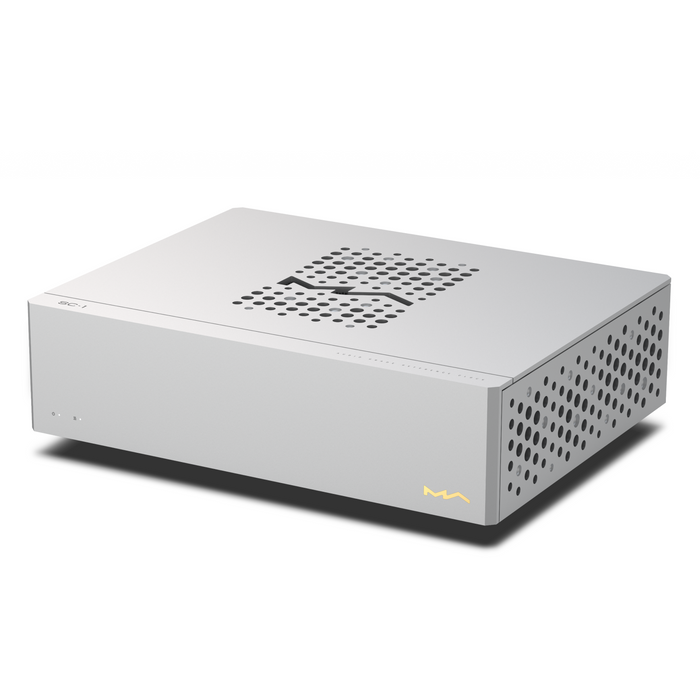

Matrix Audio proudly presents its first clock source product, meticulously designed for the streamers, DACs and CD players with synchronised reference clock inputs. With outstanding performance, it breathes new life into your audio system, unlocking a new realm of sound quality enhancement.

Precision OCXO at the Core

At the core of the SC-1 lies Matrix Audio's custom-made OCXO (Oven-Controlled Crystal Oscillator) module, utilising an SC-cut crystal. Although this cutting process is highly complex, it enables the clock module with superior phase noise and aging characteristics. With precise temperature control by the oven chamber, the crystal operates in a highly stable environment, effectively minimising the impact of ambient temperature fluctuations on phase noise and jitter.

Four Independent Buffers Synchronised Clock Outputs

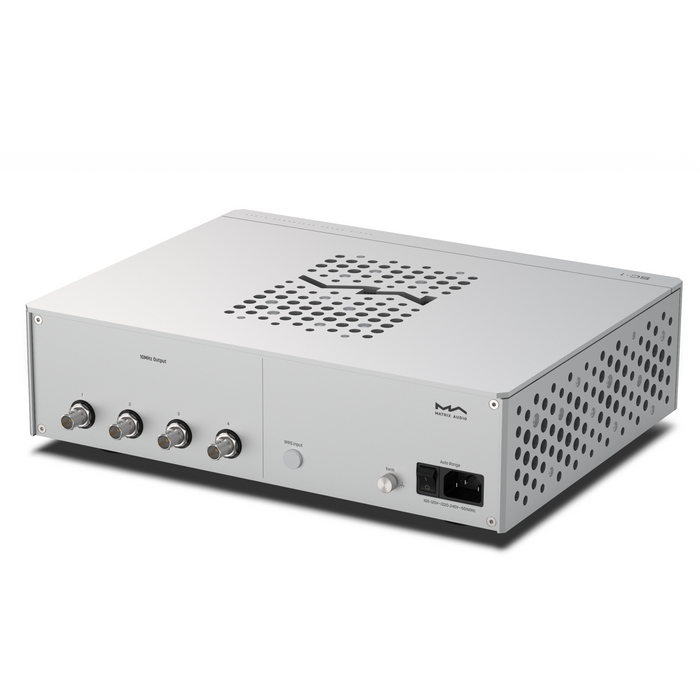

The SC-1 is equipped with four independent buffered clock outputs, all derived from the same source. While ensuring synchronised output, each output is equipped with its own buffering circuit, providing not only stable output impedance but also excellent driving capabilities. Whether using a single output or multiple outputs simultaneously, it delivers precise and stable performance, meeting your diverse requirements.

-118dBc Ultra-low Phase Noise

For a clock source device, the output noise is closely related to the internal OCXO clock module. However, the actual output noise is not exactly the same as the OCXO output noise, as the output buffering circuit introduces some performance loss. Therefore, phase noise at the output port of the device provides more practical reference value. With the excellent design of SC-1, it achieves ultra-low phase noise of better than -118dBc at 1Hz frequency at the clock output ports, setting a new industry-leading standard and delivering purer, more stable clock signals.

Clear Status Indication

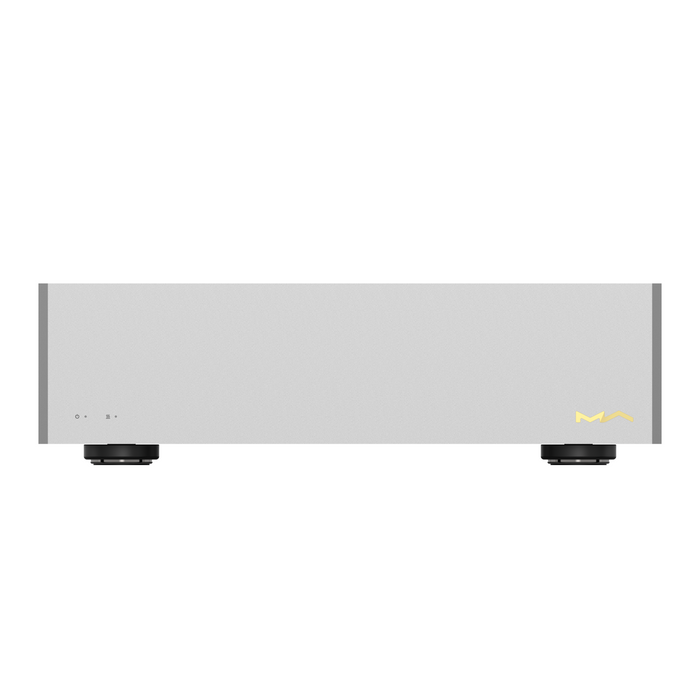

The SC-1 front panel features a warm-up status indicator LED. When the oven chamber is warming up, the indicator blinks; once the warm-up is complete, the indicator stays on. This simple and intuitive design allows you to instantly know the operating status of the device.

Customisable Output Waveforms

Matrix Audio offer two output waveform options: sine wave and square wave, catering to diverse device requirements or your demands. Square wave output is particularly recommended, as it provides higher locking accuracy compared to sine wave, delivering a more precise clock signal.

Constant Performance

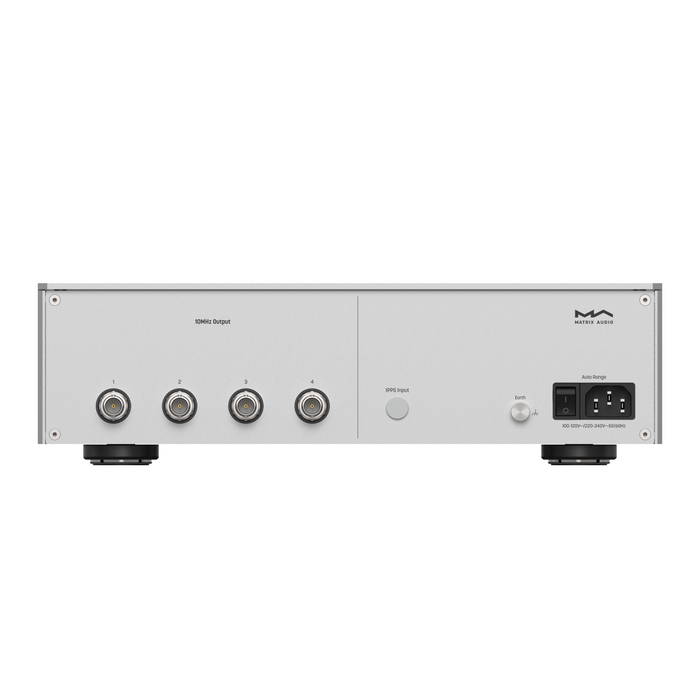

Even with the precise clock system of the SC-1, slight drift or deviation over time is inevitable. To address this condition, we designed a 1PPS reference signal input terminal on the rear panel. When connected to an external second-based reference signal source, the device automatically performs calibration. The calibration status will be indicated by the LED on the front panel. What’s more, we offer free calibration services to ensure your device remains accurate.

CBVB Vibration Absorption System

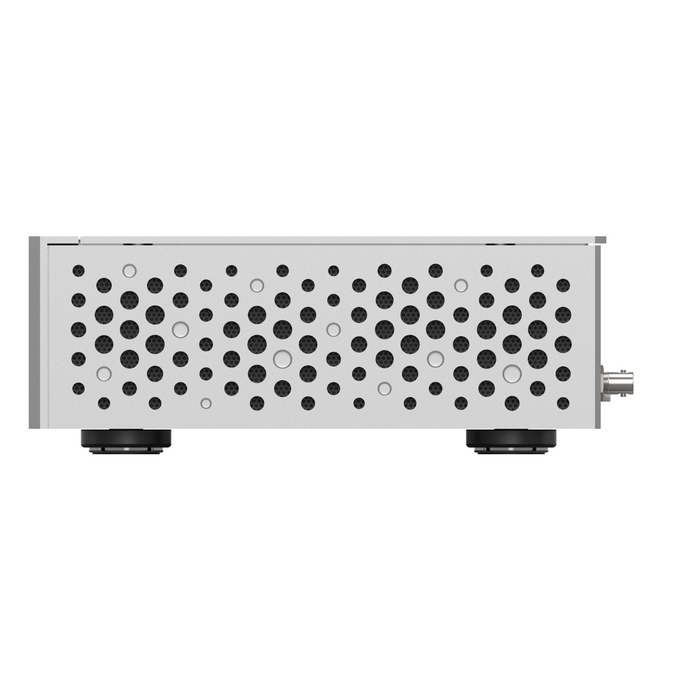

Equipped with Matrix Audio’s CBVB vibration absorption foot pads, the SC-1 effectively isolates external vibrations, minimising interference and ensuring the clock remains in a stable operating state. This delivers pure and stable audio clock signals for an enhanced listening experience.

Automatic Linear Power Supply

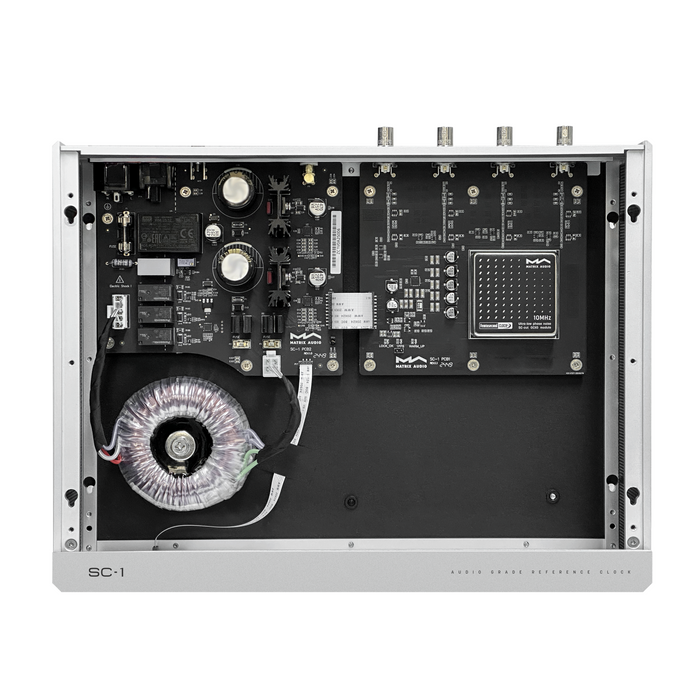

SC-1 features an advanced linear power supply with automatic voltage detection. It is equipped with sensitive voltage detection capabilities, enabling precise transformer winding switching based on the input voltage. Additionally, overvoltage and undervoltage protection functions are always on standby, providing comprehensive protection for stable device operation. Notably, dual multi-stage regulator supplies independently power the oven control circuit and the clock circuit, effectively eliminating any interference from oven chamber power fluctuations on the clock circuit. This exceptional design ensures superior clock signal quality from every aspect.

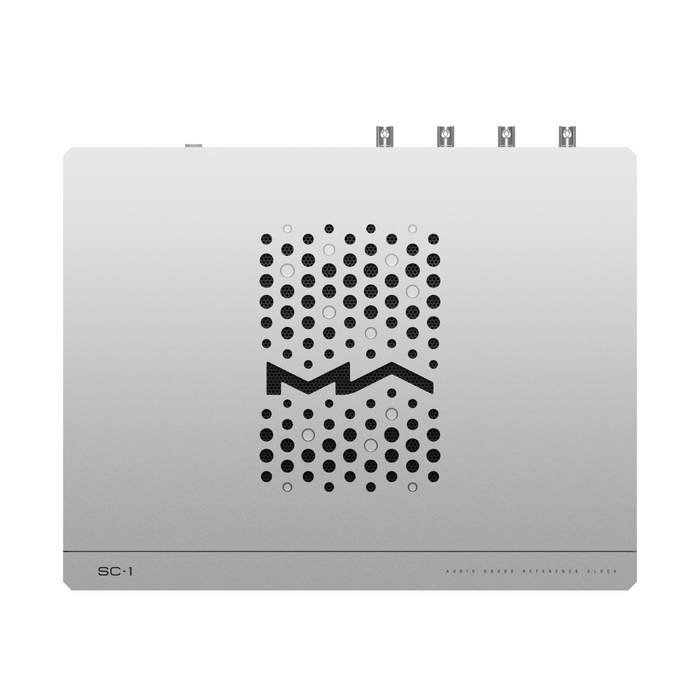

Matrix Design

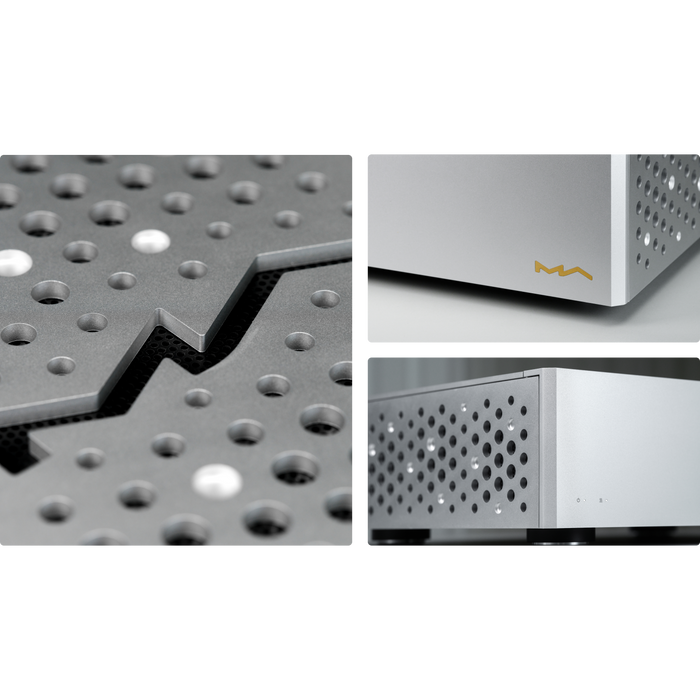

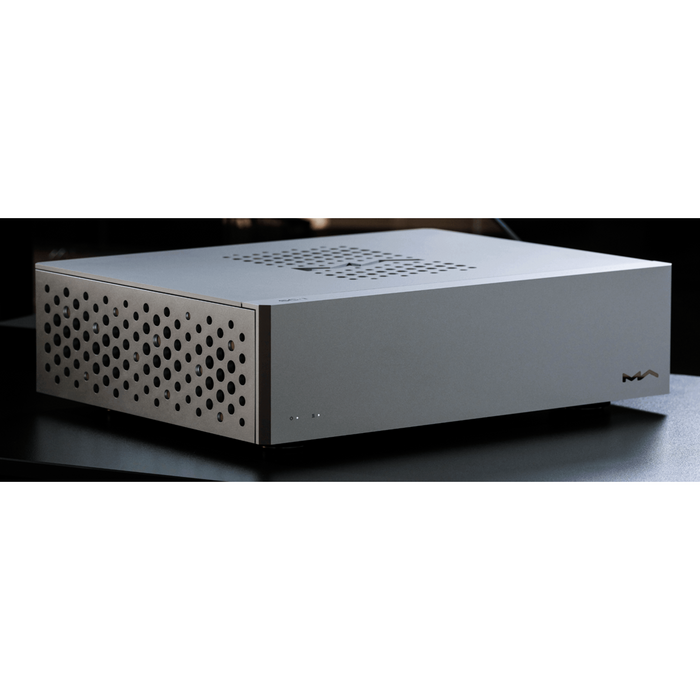

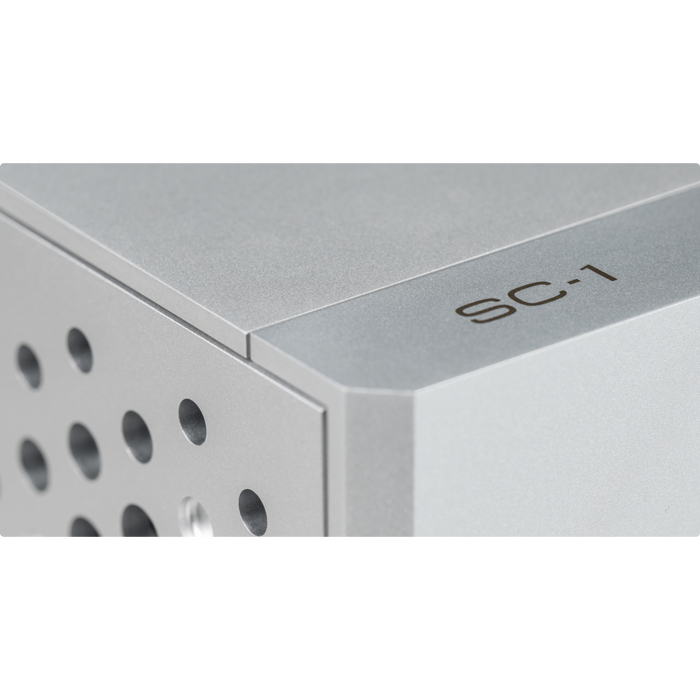

Seamlessly continuing Matrix Audio's signature design language, the SC-1 embodies unity in every detail. Carefully crafted perforations and uniquely designed bevel edges harmonise to create the distinctive visual profile of Matrix Audio products, showcasing the brand's unparalleled aesthetic philosophy.

Specifications

Clock Generator Specs

• 10.000 MHz ultra-low phase noise oven-controlled SC cut crystal oscillator
• Frequency accuracy when shipped: <±0.01ppm
• Freauency stability vs temperature range: <0.003ppm -40 'C to +70°
• Short term stability: <5E-13 @TaU = 1s
• Warm-up time: < 5 min @25 °C

Output Specs

• Output Ports: 4 x BNC independent driver buffers
• Output Waveform: Sine wave or square wave (fixed at the factory according to custom requirements)
• Output Frequency: 10.000 MHz
• Output Level: 0.5 Vrms @Sine wave / 1 Vrms @Square wave
• Output Impedance: 50Ω

Phase Noise

• This Phase noise is measured at output port of SC-1.
• 1 Hz:≤ -118 dBc/Hz
• 10 Hz≤ -140 dBc/Hz
• 100 Hz:≤ -150 dBc/Hz
• 1000 Hz: ≤ -160 dBc/Hz
• Noise Floor: ≤ -170 dBc/Hz

Jitter

• Jitter measured at SC-1 output port
• 20 fs @ 1-100 Hz

Power Specs

• Power Voltage: AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz, auto adaptive
• Maximum Power Consumption：<20W

Weight, Size & Accessories

• Weight: 4.4kg (9.7pounds)
• Dimensions (WxDxH): 330 mm（12.99 inches) x 67 mm (10.51 inches) x 97 mm（3.82 inches)
• Accessories: Power cable * 1, Printed material * 1
