PrimaLuna - EVO 100 (EL34) - Tube Phono Preamplifier ex display black
Voted Australia's #1 Hi-Fi Store by Sound+Image Magazine.
Trusted by 40,000+ Aussies who love our Award-Winning Service.
Our Thoughts
🇦🇺 About Our Award-Winning Service
Transform Your Listening Space: Personalised Expertise at Every Step
Ever felt the frustration of a mismatched audio system? The hours lost deciphering reviews, and the disappointment when it doesn't meet your expectations? We understand because we've been there.
Meet Stuart, Yvonne, Nathan, and Vaughan. But more importantly, meet the solution to your audio dilemmas.
Why Trust The Audio Tailor?
- Awarded Excellence: 🏆 Honored as Australia’s Hi-Fi Retailer of the Year in 2021 and 2022, and hailed as Queensland’s Best Hi-Fi Retailer. Not just accolades, but a testament to our dedication.
- Genuine Audiophiles, Not Salesmen: We aren’t just in this for sales. We're in it for the love of sound, and to enhance your auditory experiences.
- Personal Touch: Our commitment is to craft an audio experience tailored to you. Forget one-size-fits-all.
Our Promise?
To be with you at every step. From envisioning a serene evening with your favourite album to setting up the ultimate cinematic audio for movie nights. And once that’s clear, we’ll guide you on making it a reality - harmonising your budget, room dynamics, and dream.
What Makes Us Different?
We aren’t satisfied with the status quo. We rigorously test products, delve deep into the details, ensuring you get nothing but the best. We're about quality, not just brand names.
Act Now!
Remember, the journey to impeccable sound doesn't have to be solo. Let us be your guide.
Ready to Elevate Your Audio Experience?
Call 1300 308 711
Email sales@theaudiotailor.com.au
Or visit our Brisbane store.
ℹ Product Information

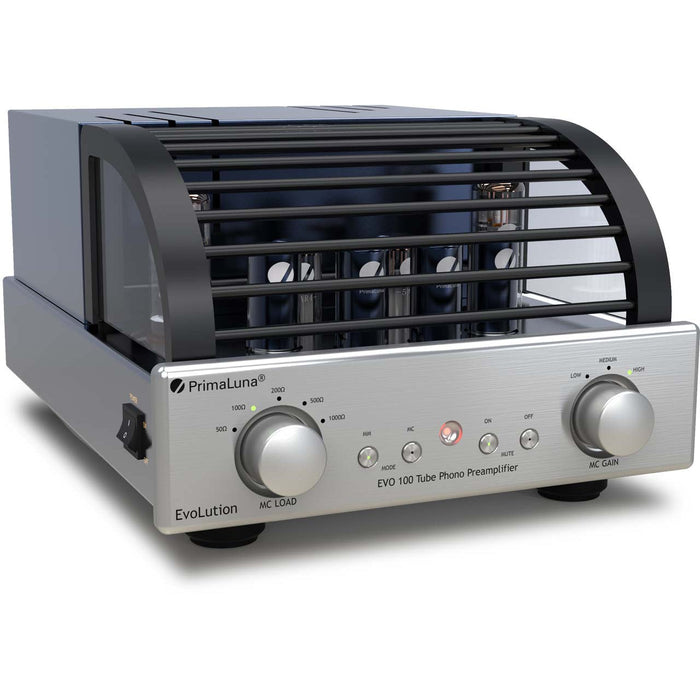

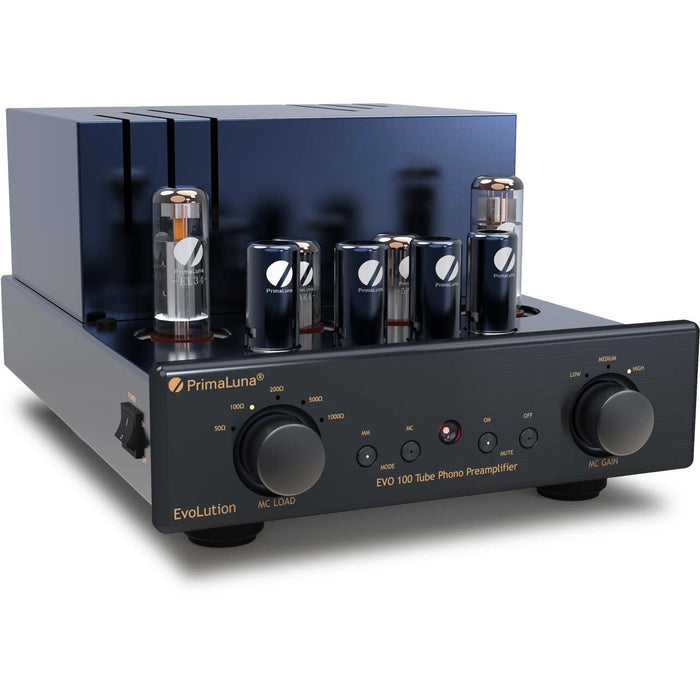

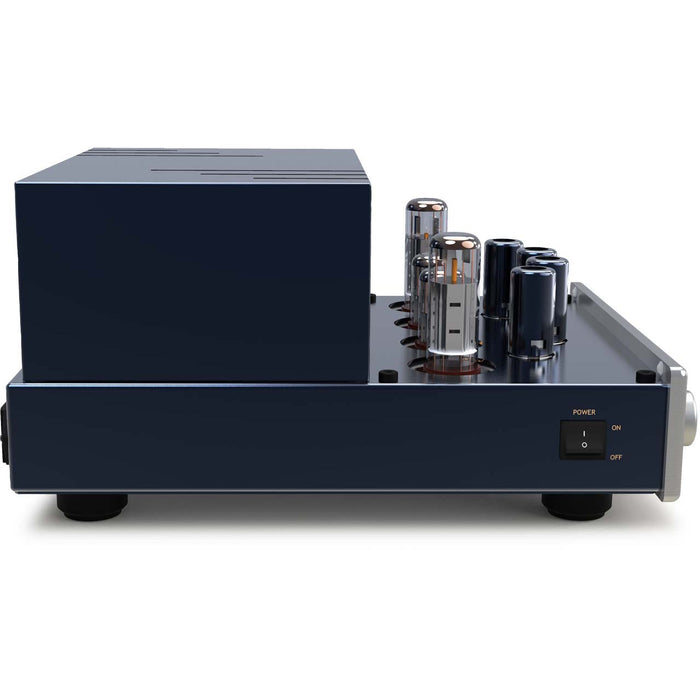

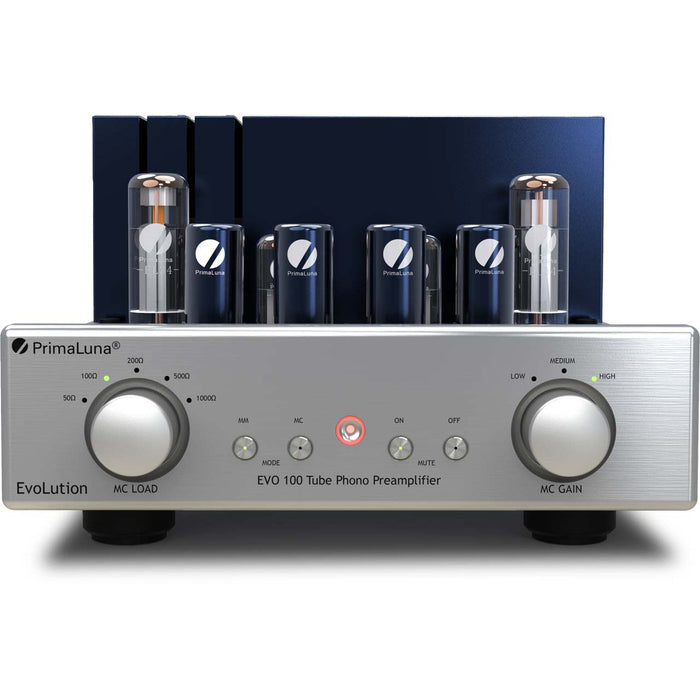

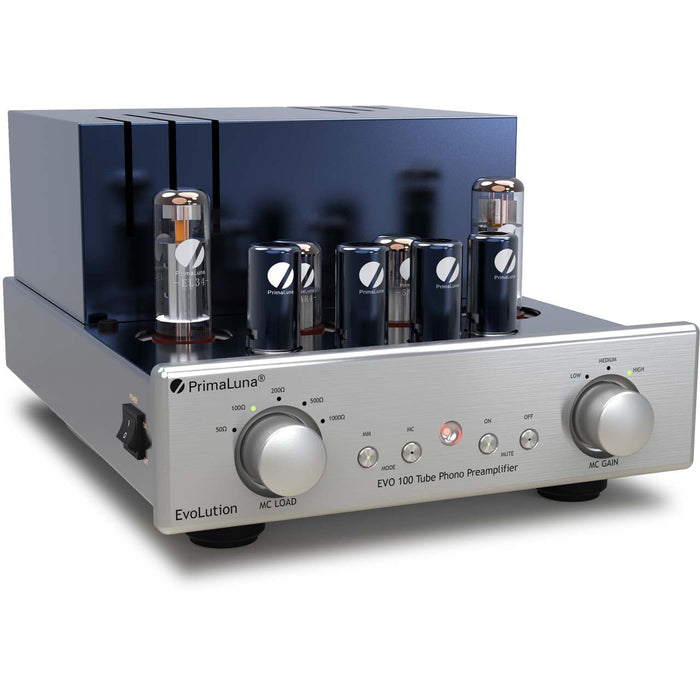

PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier ex display model in black
Fall in love with your vinyl records all over again with the PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier. It's the heart and soul of your analogue music system, crafted to recreate the purest and most truthful sound your turntable and cartridge can produce. Engineered from a pristine lineage of high-end audio equipment, we've combined decades of expertise into our first and finest Tube Phono Preamplifier. We've distilled the primal essence of audio fidelity into a stunning yet affordable device, designed to challenge the most extravagant brands in the industry. Hand-crafted and meticulously finished, it combines functionality with elegance—sleek, accessible controls seaming with sublime audio craftsmanship to exceed what was thought possible from your vinyl music collection. It sports a visibly seductive steel chassis, vented for optimal performance, housing advanced features such as a SoftStart™ circuit, PTP™ Power Transformer Protection, 100% shielding Phono chassis and gold-plated RCA jacks. Created to be the joy of audiophiles seeking the ultimate warm tube sound, the EVO Tube Phono Preamplifier defies complications, providing intuitive adjustments for multiple systems. Go ahead, pull the cover off your dusty vinyl favourites, let those analog vibrations fill your room with abundant euphony that only PrimaLuna can channel. Immerse yourself in the rediscovery and celebration of sound, as beautiful as its namesake—the primal moon—shining brilliantly in the dark expanse of space. Welcome the PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier into your audio setup and rekindle your passion for vinyl like never before.
Features:
-
Hand-made Construction: Each PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier is carefully constructed by hand with a heavy-gauge, fully-vented steel chassis, ensuring the highest standards of craftsmanship.
-
Premium Components: Enjoy top quality sound with Nichicon and DuRoch capacitors, ceramic tube sockets and a 5AR4 tube-rectifier circuitry.
-
Gold-plated RCA jacks: The device comes with gold-plated panel-mounted RCA input and output jacks, ensuring optimal signal transmission and ultimate performance.
-
100% Shielding Phono Chassis: Benefit from a phono chassis that's entirely shielded for protection against electromagnetic interference.
-
SoftStart ™ Circuit: A built-in SoftStart ™ circuit maximizes the longevity of components and drastically reduces the chance of tube failure due to thermal shock.
-
Power Transformer Protection ™ (PTP): PrimaLuna's exclusive PTP feature protects the device from overheating, enhancing longevity and ensuring safe use.
Benefits:
-
Supreme Sound Quality: Assuring an extensive bandwidth, the EVO 100 excels in delivering exceptional bass and high-extended frequencies. Turn your vinyl records into an immersive audio experience.
-
Enhanced Durability: With features like the SoftStart™ circuit and PTP™, you can be confident that your PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier will deliver outstanding performance over years.
-
Easy Use: PrimaLuna’s EVO 100 provides the possibility to connect a single turntable and simplifies adjustments regarding loading, gain, and capacity.
-
Elegant Design: The preamplifier sports an exquisitely handcrafted steel chassis with a polished five-coat finish that will grace any audio setup.
-
Versatility: The PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier provides a variety of options for input impedance and input capacitance, tailoring it to your needs.
-
Safety: The integrated PTP™ circuit offers peace of mind, making the preamplifier safer by ensuring the unit cools down before any damage occurs in case of overheating.
Rediscover and celebrate the true essence of sound with the PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier– where vintage meets innovation, yet affordability remains a prime focus. Put the power of PrimaLuna in your hands, and open the doors to an unparalleled auditory experience that masters the art of sonic fidelity.
PrimaLuna - EVO 100 (EL34) - Tube Phono Preamplifier Specifications
-
General
-
Max. Output Voltage: 26.3dBV/20.6Vrms
-
RIAA-curve deviation: 0.5dB (20Hz to 20kHz)
-
Bandwidth: 0–20kHz (+0/-3 dB)
-
Phase response error: <1°
-
THD+N (A-Weighted) MM/MC: <0.40% @ 2V
-
Output Impedance: 100Ω@1kHz
-
Rumble filter: None
-
MM Stage / MC Stage
-
Gain: 40dB / 60dB/56dB/52dB (H/M/L)
-
Input Impedance: 47kΩ / 50/100/200/500/1000Ω (selectable)
-
Input Capacitance: (Selectable) 47pF/100pF / n/a
-
Input Sensitivity: 2.5mV (200mVrms@1kHz) / 0.104mVrms (200mVrms@1kHz)
-
Maximum permissible input (@0,1%THD):180mVrms / 14mVrms
-
Channel separation (@1Khz): >75dB / >60dB
-
S/N Ratio (A-Weighted)@ 23.8dBV: >90dB / >90dB
-
S/N Ratio (A-Weighted)@ 6.0dBV: >75dB / >75dB
-
Mechanical
-
Power Consumption: 77Watt/ 86Watts (115VAC/230VAC, 50/60Hz)
-
Net Weight: 27.9 lbs / 12.7kg
-
Shipping Weight: 34.7 lbs / 15.8kg
-
Dimensions (L x W x H): 15.9" x 11" x 7.5" / 405mm x 280mm x 190mm
-
Shipping Dimension\n
\n - \n
Shipping Dimensions (L x W x H): 18.4" x 15.2" x 12.2" / 468mm x 385mm x 315mm
-

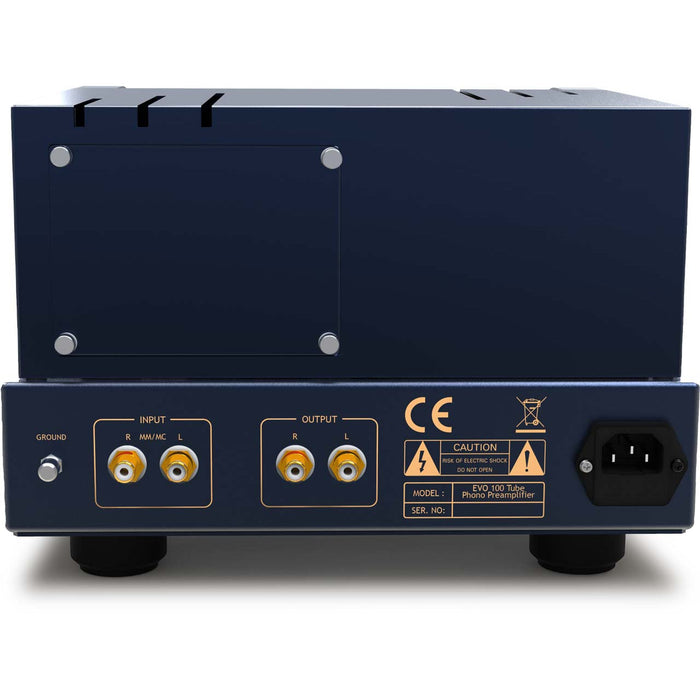

Inputs: 1 pair Stereo RCA (MM/MC)
-
Outputs: 1 pair Stereo RCA
-
Fuse 100V~120V: LittelFuse 0213001.MXP
-
Fuse 220V~240V: LittelFuse 0213.500MXP
-
Tubes
-
Tube V1, V4 (Power Supply, rectifier): 5AR4
-
Tube V2, V3 (Power Supply, stabilisation): EL34
-
Tube V5, V6, V7, V8 (MM-Stage): With aluminium cover 12AX7
-
Tube V9, V10 (MC-Stage): With aluminium cover 6922
-
MC Tube board: Mechanically decoupled
Experience the renaissance of your vinyl collection in a whole new light with PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier. This masterfully constructed component will not only optimize your audio system but will become the catalyst for a truly immersive sound experience. From the meticulous attention to detail in its construction to its stunning aesthetics, it stands as a testament to PrimaLuna’s commitment to craft superior high-fidelity audio equipment. It’s not just about listening to music; it's about losing yourself in the rich, warm tonality that only the EVO Tube Phono Preamplifier can deliver. As Australia's #1 Hi-Fi Store, The Audio Tailor invites you to embark on an unforgettable journey of musical rediscovery, accentuated with every stroke of the needle. Contact us today through 1300 308 711, email at sales@theaudiotailor.com.au, or visit our Brisbane store at Unit 9/20 Rivergate Place, Murarrie QLD 4172 for your personal rendezvous with the PrimaLuna EVO 100 (EL34) - Tube Phono Preamplifier. Let the primal moonlight guide your path to ultimate audio zenith. Elevate your vinyl experience; let the sonic magic begin.
ℹ Specifications
PrimaLuna - EVO 100 (EL34) - Tube Phono Preamplifier Specifications |
---|
General |
Max. Output Voltage: 26.3dBV/20.6Vrms |
RIAA-curve deviation: 0.5dB (20Hz to 20kHz) |
Bandwidth: 0–20kHz (+0/-3 dB) |
Phase response error: <1° |
THD+N (A-Weighted) MM/MC: <0.40% @ 2V |
Output Impedance: 100Ω@1kHz |
Rumble filter: None |
MM Stage / MC Stage |
Gain: 40dB / 60dB/56dB/52dB (H/M/L) |
Input Impedance: 47kΩ / 50/100/200/500/1000Ω (selectable) |
Input Capacitance: (Selectable) 47pF/100pF / n/a |
Input Sensitivity: 2.5mV (200mVrms@1kHz) / 0.104mVrms (200mVrms@1kHz) |
Maximum permissible input (@0,1%THD):180mVrms / 14mVrms |
Channel separation (@1Khz): >75dB / >60dB |
S/N Ratio (A-Weighted)@ 23.8dBV: >90dB / >90dB |
S/N Ratio (A-Weighted)@ 6.0dBV: >75dB / >75dB |
Mechanical |
Power Consumption: 77Watt/ 86Watts (115VAC/230VAC, 50/60Hz) |
Net Weight: 27.9 lbs / 12.7kg |
Shipping Weight: 34.7 lbs / 15.8kg |
Dimensions (L x W x H): 15.9" x 11" x 7.5" / 405mm x 280mm x 190mm |
Shipping Dimensions (L x W x H): 18.4" x 15.2" x 12.2" / 468mm x 385mm x 315mm |
Inputs: 1 pair Stereo RCA (MM/MC) |
Outputs: 1 pair Stereo RCA |
Fuse 100V~120V: LittelFuse 0213001.MXP |
Fuse 220V~240V: LittelFuse 0213.500MXP |
Tubes |
Tube V1, V4 (Power Supply, rectifier): 5AR4 |
Tube V2, V3 (Power Supply, stabilisation): EL34 |
Tube V5, V6, V7, V8 (MM-Stage): With aluminium cover 12AX7 |
Tube V9, V10 (MC-Stage): With aluminium cover 6922 |
MC Tube board: Mechanically decoupled |
