Rotel - RAP-1580 MKII - Amplified Processor
- Supports Dolby® Atmos 7.1.4 processing
- Decodes DTS:X 7.1.4 processing
- Supports Dirac Live Room Correction
- 8 HDMI 2.0b inputs capable of 4K/UHD video pass-through
- 3 HDMI inputs and both HDMI outputs support HDCP 2.2
- Bluetooth with apt-X
- PC-USB input supporting 24-bit/192kHz audio
- Moving Magnet Phono Stage Input
- 6 x Wolfson premium 24-bit/192kHz Digital to Analogue Converters
- 7 x 140W class AB amplification

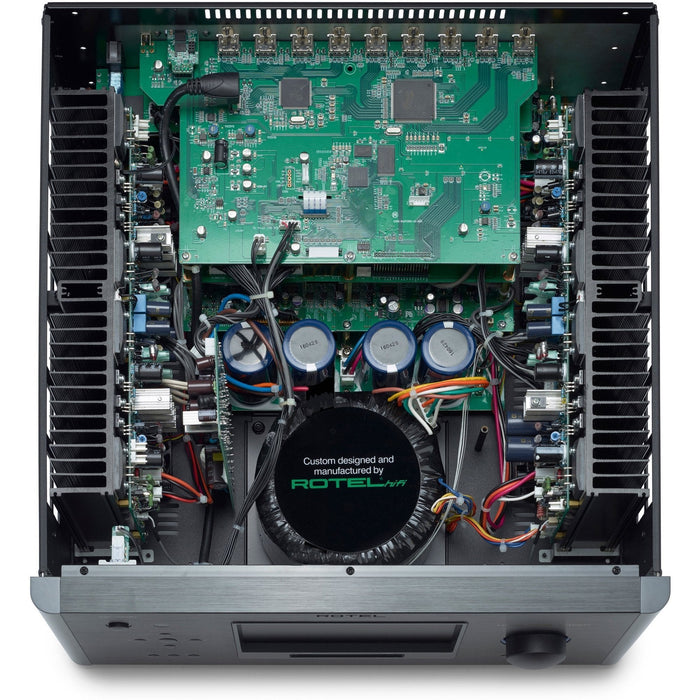

RAP-1580MKII is the ideal home theatre solution delivering uncompromised performance packaged in a size efficient chassis that rivals many separates theatre component installations. It is an ultra-high-performance multichannel-integrated amplifier supporting DTS:X and Dolby Atmos 7.1.4 surround processing bringing music and movies to life in stunning clarity. The amplifier section is built upon a powerful Class AB design driving all 7 channels simultaneously at 140 watts per channel into 4 ohm speakers loads, anchored by a massive Rotel factory-made toroidal transformer.
RAP-1580MKII utilises an array of 6 high precision Wolfson 24-bit/192kHz Digital-to-Analog Converters. These low noise, audiophile quality DACs are supported with premium-grade audio components in circuits tuned by Rotel’s acoustic engineering team in the U.K.
Dirac Live LE and a USB microphone are included providing unrivalled room correction and system calibration. Dirac delivers improved staging, better clarity and deeper, tighter bass ensuring the RAP-1580MKII delivers optimal performance in any setting.
The front HDMI input and all 7 rear HDMI inputs support HDMI 2.0b 4K HDR video with HDCP 2.2 supported on 3 of these inputs and both video outputs. The seven-inch front panel graphic display provides easy adjustments of all configuration parameters directly on the unit ideal for installations where the equipment is located remotely.

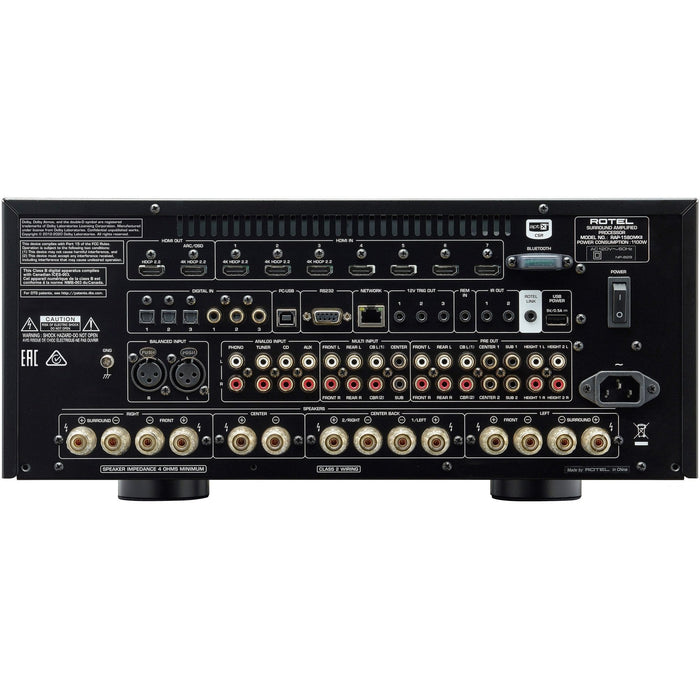

The RAP-1580MKII supports a vast array of audio source inputs including 3 analog, 6 digital, PC-USB with 24b/192k, apt-X wireless Bluetooth, XLR, Moving Magnet Phono stage, multi-input and front panel iOS USB. The unit also includes 12V trigger controls, IR remote input and outputs and RS232 and Ethernet connections for effortless integration with all popular control systems.
Rotel's RAP-1580MKII is simple to operate, powerful, flexible and refined. It is a state-of-the-art single chassis audio/video component including best-in-class Dirac Room Correction that outperforms most separates. In stereo or surround sound, this is a serious audio component.
- DIMENSIONS (W × H × D)431 × 192 × 470mm / 17" × 7.55" × 18.5"
- NET WEIGHT: 22.8kg (50.27lbs.)
- FRONT PANEL HEIGHT: 4U / 177mm (7")
- POWER REQUIREMENTS: 230V, 50Hz
- POWER CONSUMPTION: 1100W
- STANDBY POWER CONSUMPTION: 0.5W
- BTU RATING: 2800 BTU/h
- CONTINUOUS POWER OUTPUT: 200W/Ch (2 channels driven, 4Ω), 140W/Ch (7 channels driven, 4Ω), 135W/Ch (2 channels driven, 8Ω), 100W/Ch (7 channels driven, 8Ω)
- TOTAL HARMONIC DISTORTION (THD): <0.05%
- FREQUENCY RESPONSE: Phono Input - 20Hz - 20kHz, ±1dB; Analog Bypass - 10Hz - 100kHz, ±1dB; Digital Inputs - 20Hz - 20kHz, ±0.5dB
- S/N RATIO (IHF "A" Weighted): Analog Bypass - 100dB, Digital Inputs - 96dB
- INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.05%
- DAMPING FACTOR (1kHz, 8 ohms): 230
- INPUT SENSITIVITY: Line Level Inputs (RCA) - 300mV, Line Level Inputs (XLR) - 600mV, Phono Input (MM) - 3.85mV
- INPUT IMPEDANCE: Line Level Inputs (RCA) - 100kΩ, Line Level Inputs (XLR) - 100kΩ, Phono Input (MM) - 47kΩ
- PREAMP OUTPUT LEVEL: 1.2V
- DIGITAL AUDIO: LPCM (up to 192kHz, 24-bit); Dolby® Surround, Dolby® ; TrueHD, Dolby® Atmos; DTS-HD Master Audio, DTS:X; Dirac Live LE
- HDMI INPUTS/OUTPUTS: 8 inputs with 3 supporting HDCP 2.2; 2 outputs supporting HDCP 2.2; Audio Return Channel
- VIDEO INPUT RESOLUTIONS: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p 24Hz, 3D, 4K, UHD
- VIDEO OUTPUT RESOLUTION: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p 24Hz, 3D, 4K, UHD
- COLOUR SPACE SUPPORT: sRGB, YCbCr 4:2:2, YCbCr 4:4:4
- DEEP COLOUR SUPPORT: 24-bit, 30-bit, 36-bit
