Matrix Audio - X-SPDIF3 USB Digital Audio Interface Review: Elevating Your PC HiFi Experience

Matrix Audio - X-SPDIF3 USB Digital Audio Interface Review is our deep dive into one of the most versatile USB-to-digital converters on the market. If you’re looking to unlock audiophile-grade performance from a PC, laptop, tablet or smart device, the X-SPDIF3 delivers a pure, jitter-free output up to 32bit/768kHz PCM and DSD512, transforming any digital source into a high-fidelity signal for your DAC.

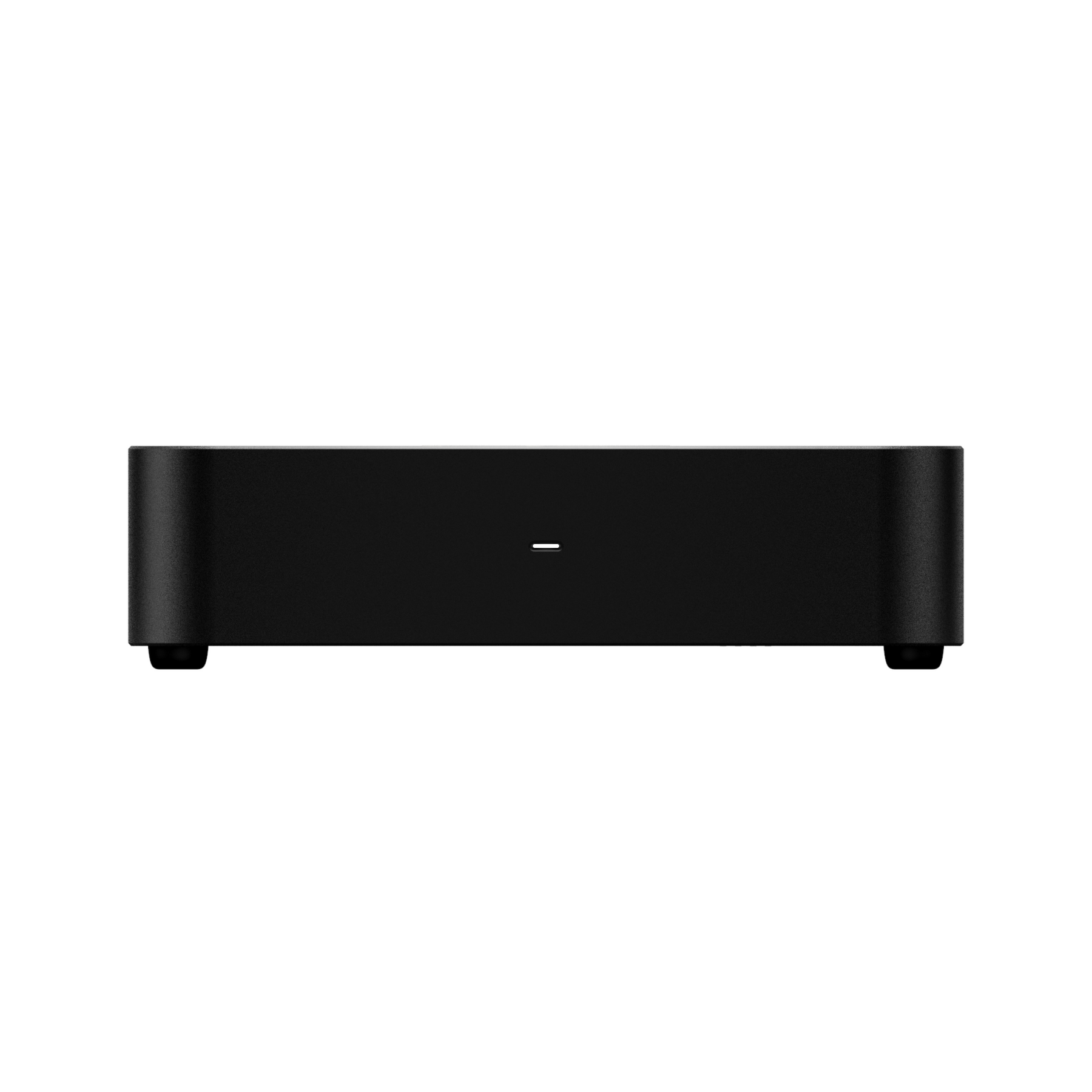

Matrix Audio X-SPDIF3 USB Digital Audio Interface

First Impressions & Build Quality

The X-SPDIF3 arrives in a precision CNC aluminium chassis that not only looks the part on a high-end audio rack but also offers exceptional electromagnetic shielding. Its compact footprint (142 x 124 x 38mm) and solid 1kg weight instil confidence at every turn. Beneath the industrial aesthetic lies meticulous engineering: femtosecond clocks from Accusilicon, an ultra-low noise LDO regulator and an FPGA-based asynchronous USB engine all harmonise to ensure ultra-stable timing and rock-solid data integrity.

X-SPDIF3 aluminium chassis

Key Features at a Glance

USB Asynchronous Mode up to PCM 32bit/768kHz & DSD512 Native
Dual Femto-Second Reference Clocks for 44.1kHz & 48kHz Families
Optical/Coaxial/AES & Four Configurable IIS-LVDS Outputs
DSD DoP to Native DSD Conversion on IIS-LVDS Port
USB Bus or 12V External Power Supply (optional)
Fully Isolated IIS-LVDS Output to Eliminate USB Noise

Technical Deep Dive

The heart of the X-SPDIF3 is its FPGA-driven design, which handles all signal reclocking and jitter reduction tasks with surgical precision. By deploying two independent Accusilicon femto clocks, one optimised for 44.1kHz multiples and the other for 48kHz multiples, Matrix ensures that the music timing stays absolutely true to the source. The ultra-low noise LDO regulator isolates the clock circuitry from USB bus noise, while the IIS-LVDS output stage features galvanic isolation to keep ground loops and interference firmly at bay.

Whether you require a standard S/PDIF coaxial feed, TOSLINK optical, AES/EBU balance or the versatile IIS-LVDS interface, a simple switch underneath the unit reconfigures pin definitions on the fly. For DSD aficionados, the onboard DoP-to-native converter effortlessly unwraps DSD64/128/256/512 streams, so you can feed even legacy DACs that only support native DSD. And if your portable device struggles to power the unit, a 12V DC input port seamlessly takes over, indicated by a dedicated LED.

Who Should Consider the X-SPDIF3?

If you run a PC or Mac-based music server, or simply want to elevate the sound from your laptop, phone or tablet to a true HiFi level, the X-SPDIF3 is a game-changer. It’s perfect for users who:

Have no onboard coaxial or optical outputs.
Experience USB jitter or noise with existing DACs.
Stream high-resolution PCM or DSD content from software like Roon, Foobar2000 or Audirvana.
Want a flexible converter that adapts to future DAC upgrades.

With native driver support on macOS, and installable drivers for Windows 7–11, plus OTG compatibility on Android and iOS via the Camera Adapter, the X-SPDIF3 slots into virtually any digital ecosystem.

Pros & Cons

Pros:
- Exceptional jitter elimination via dual femto-second clocks.
- Full support up to PCM 32bit/768kHz & DSD512.
- Multiple output formats: Optical, Coaxial, AES & IIS-LVDS.
- DoP to Native DSD conversion onboard.
- Robust CNC chassis for optimal EMI shielding.
- Optional external power for portable devices.
Cons:
- Requires driver install on Windows.
- IIS-LVDS pin mapping may need manual reference to manual.

Your Next Step with The Audio Tailor

Ready to hear the difference that true asynchronous USB and femto-second reclocking can make in your system? Speak with our expert team at The Audio Tailor—call us on 1300 308 711 or drop us a line at sales@theaudiotailor.com.au. If you’d like to explore more or purchase, visit the product page for full details and gallery.

Bringing It All Together: The X-SPDIF3 Experience

The Matrix Audio X-SPDIF3 USB Digital Audio Interface redefines what your digital front end can achieve. By eliminating USB front-end noise, providing rock-solid reclocking, and offering unparalleled format flexibility, it delivers a level of detail, dynamic range and musicality that will thrill audiophiles and casual listeners alike. Elevate your PC HiFi setup—chat to our team today and experience the pristine purity of the X-SPDIF3 in your own system.
