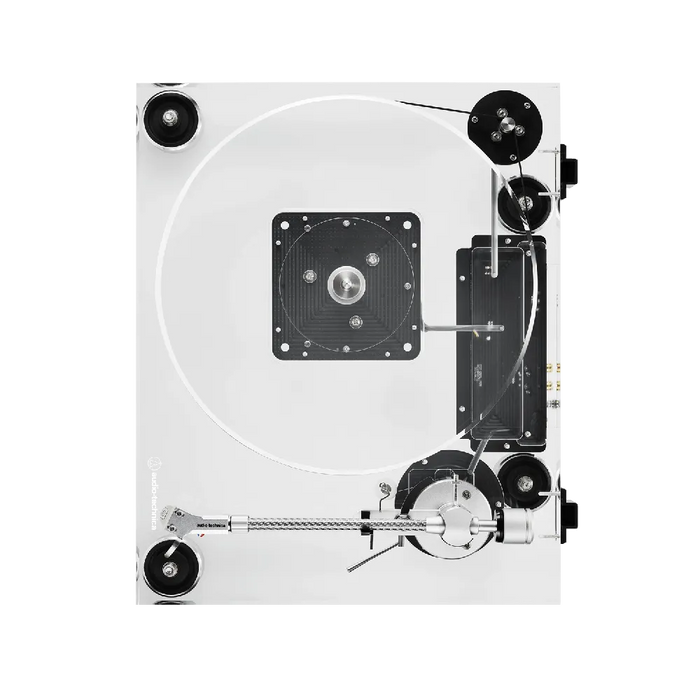

The AT-LPA2 is the finest turntable Audio-Technica has ever developed, designed to reveal the purity of analog audio.

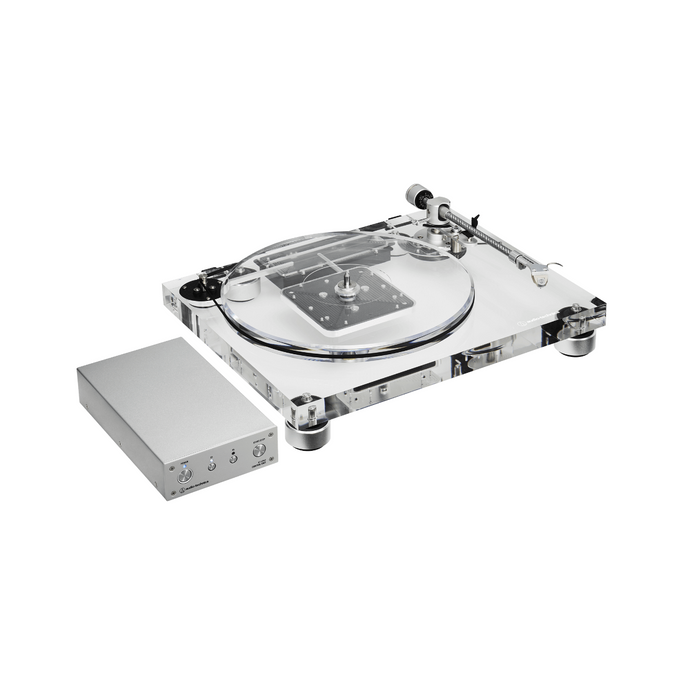

Assembled from transparent acrylic, the AT-LPA2 fully manual belt-drive turntable combines contemporary aesthetics with analog expertise, while remaining incredibly easy to set up and use. We designed the AT-LPA2 to minimize resonance, which can cause noise and distortion in the signal chain, while maximizing detailed audio reproduction of your vinyl records with crystal-clear accuracy. Not only is the acrylic stunning, it is also an ideal material for turntable construction, greatly reducing reverberations that might otherwise affect sound clarity.

Features

• The finest turntable Audio-Technica has ever developed, designed to reveal the purity of analog audio)
• Despite the turntable’s mechanical precision, it remains incredibly easy to set up and use)
• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM)
• 30 mm-thick transparent chassis is made from low-resonance, high-density clear acrylic)
• 20 mm-thick, high-density transparent acrylic platter is calibrated to spin at a consistent speed)
• AT-OC9XEN MC cartridge with 0.3 x 0.7 mil elliptical nude stylus provides detailed sound reproduction with excellent channel separation and low distortion )
• Separate control unit / power supply isolates the turntable from unwanted electrical noise)
• Optical sensor, positioned under the spindle, monitors platter rotation to maintain accurate speed)
• Newly designed, carbon-fibre tonearm is precision-engineered for superior tracking and stability, with adjustable VTA)
• Highly accurate and finely adjustable weighted anti-skate mechanism (string-type))

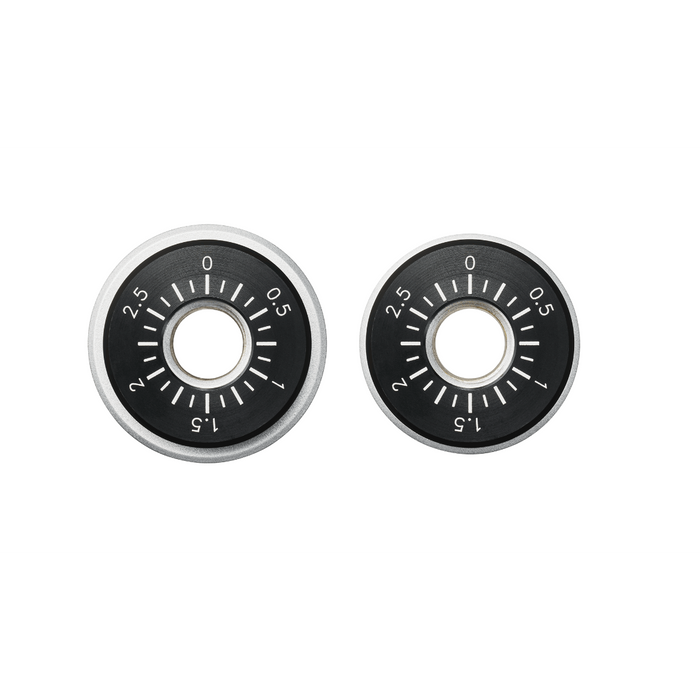

• Includes both a 110 g and 130 g counterweight to accommodate most cartridge configurations)
• Exclusive machined-aluminum headshell with azimuth adjustment)
• Phono-level output provides pure, direct transmission of the cartridge’s signal)

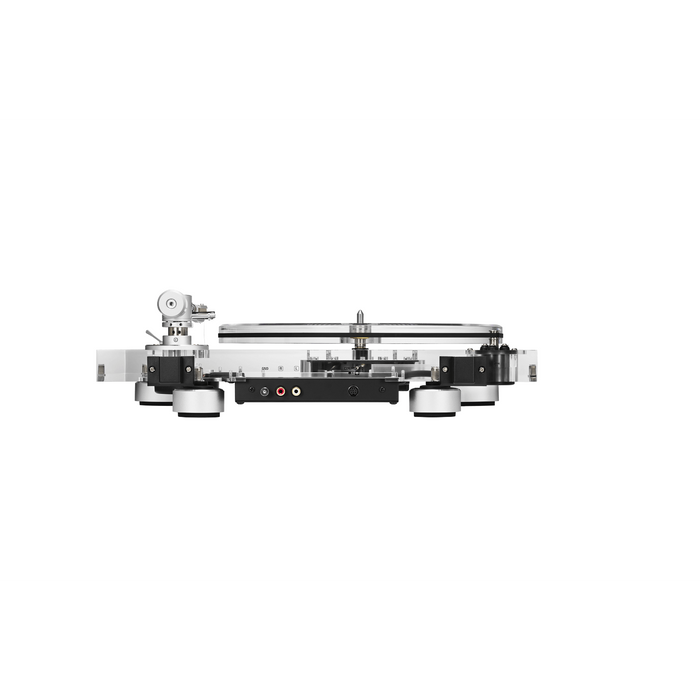

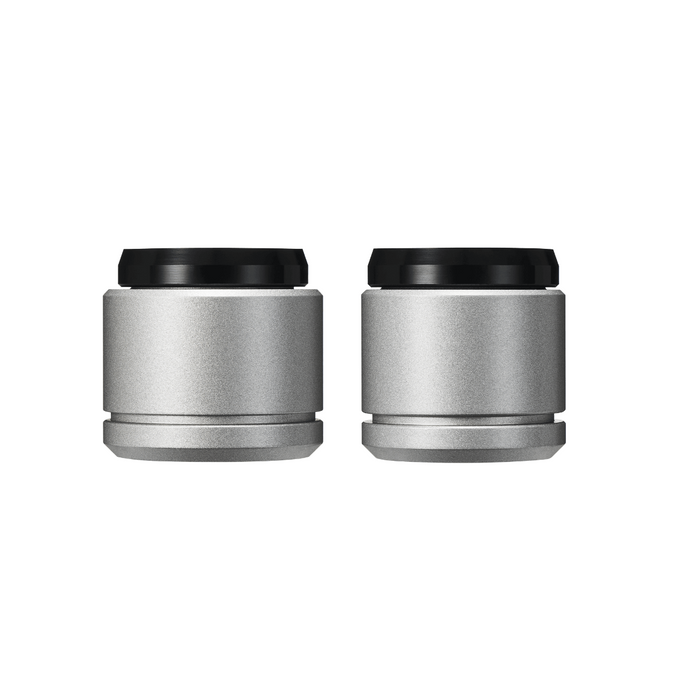

• Exclusively designed heavy-duty, height-adjustable feet isolate the turntable from vibration)

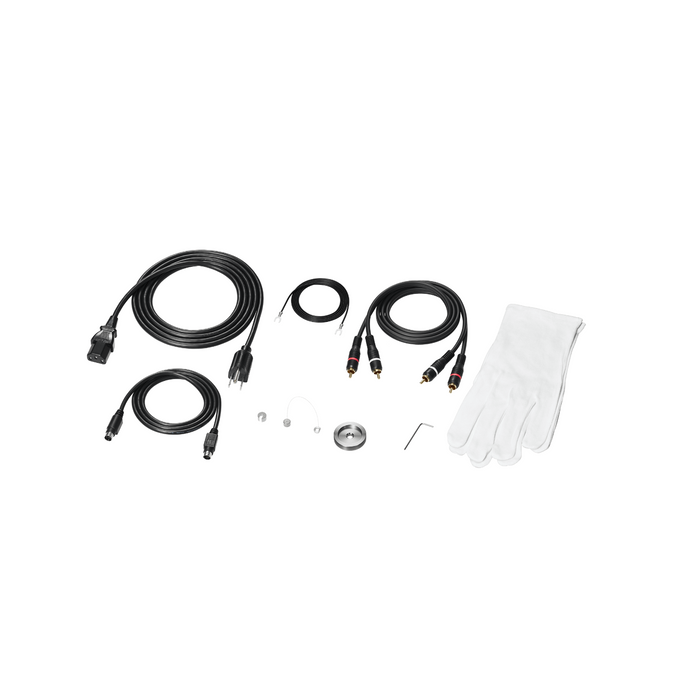

• Includes dual RCA (male) to dual RCA (male) stereo cable, ground wire, 45 RPM adapter, removable hinged dust cover, hex wrench (to adjust tonearm height), white inspection gloves (to prevent fingerprints during setup)

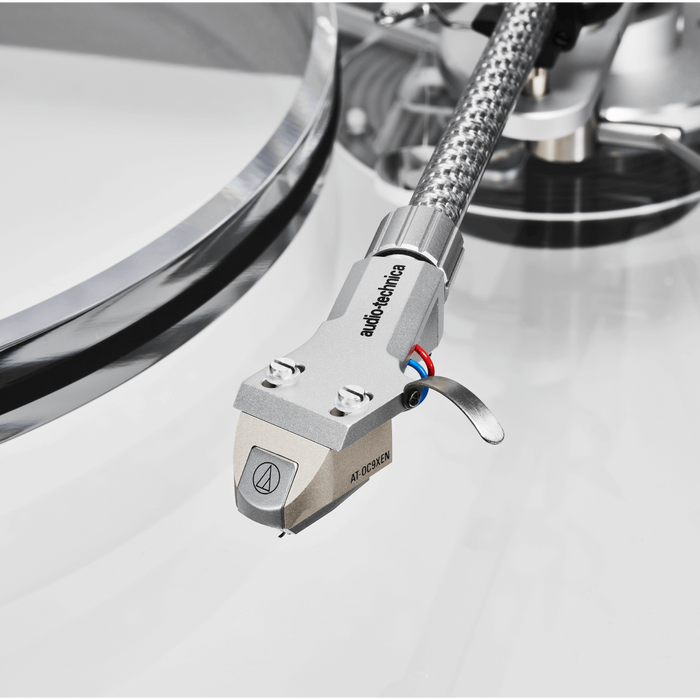

AT-OC9XEN Dual Moving Coil Cartridge

The AT-OC9XEN moving coil cartridge* features a nude elliptical stylus (0.3 x 0.7 mil) and high-purity PCOCC coils. Designed to capture every nuance of your records with stunning clarity, this cartridge blends engineering innovations with carefully selected materials to provide outstanding channel separation and detailed audio reproduction.

*Please note: The cartridge’s low (0.35 mV) output voltage requires the use of a step-up transformer or moving coil phono preamp to boost the signal.

Ultimate Resonance Reduction

The high-density acrylic of the chassis and platter dampens vibrations for supremely quiet playback, allowing the brilliance and detail of your vinyl records to shine through.

Quiet, Stabel Performance

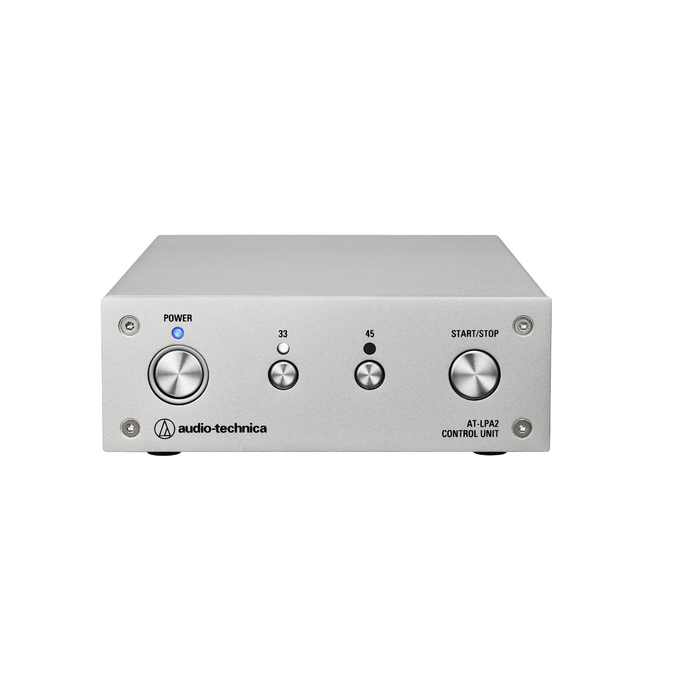

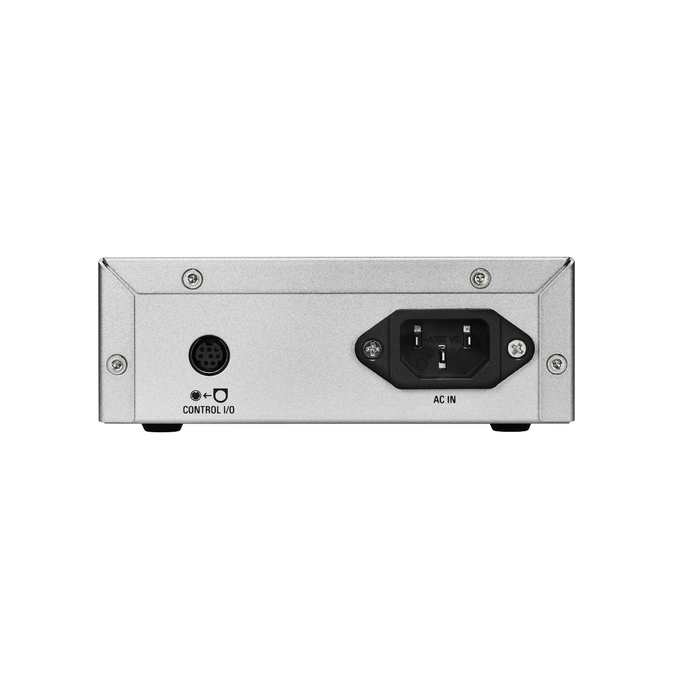

To minimise electrical interference and ensure optimal performance, the AT-LPA2 features a separate power and control unit. This design isolates the sensitive audio components from power supply noise, resulting in a cleaner, more accurate sound.

Exclusively Designed and Engineered

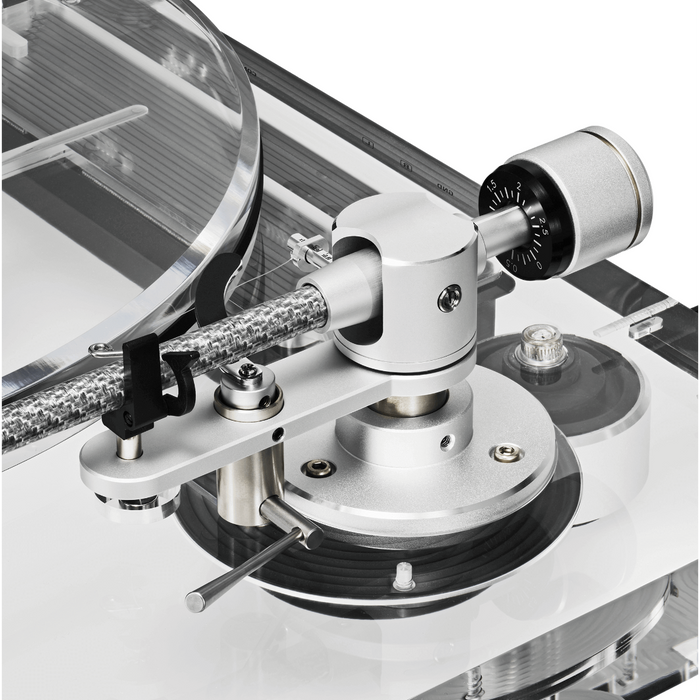

The AT-LPA2’s newly designed tonearm is engineered for precision and ease of use. Featuring advanced materials and construction, the tonearm provides superior tracking with reduced resonance, allowing for faithful reproduction of the original recording.

Phono Cartridge Assembly Line Circa 1962

Over 60 years of analog excellence

Audio Technical got their start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Specifications

• Motor: DC Servo
• Drive Method: Belt Drive
• Speeds: 33-1/3 RPM or 45 RPM
• Turntable Platter: 20 mm-thick, acrylic platter
• Wow & Flutter: <0.12% WRM (33 RPM)
• Signal-to-Noise Ratio: > 60 dB
• Cartridge Type: MC
• Power supply requirements: 100 to 240 V, 50/60 Hz
• Power Consumption: 6W
• Dimensions: Turntable body: 420 mm (17") × 340 mm (13") × 135 mm (5.3") (W × D × H) Control unit: 133 mm (5.2") x 228 mm (9.0") x 50 mm (2.0") (W x D x H)
• Weight: Turntable body: Approx. 8.4 kg (19 lbs); Control unit: Approx. 1.1 kg (2.4 lbs)
• Accessories Included: Control unit, Dust cover, Platter, Drive belt, Dust cover hinges, Counterweight (light), Counterweight (heavy), Weight for anti-skate, Auxiliary weight for anti-skate, Headshell with MC stereo cartridge (AT-OC9XEN), 45 RPM adapter, RCA audio cable (approx. 1.1 m (3.6’)), Power cable (approx. 1.8m (5.9’)) *, Control cable (approx. 1.0 m (3.3’)), Ground cable (approx. 1.1 m (3.6’)), Hexagonal wrench, Gloves (*Power cable length and plug shape may vary depending on the country of sale.)
• Tonearm Type: Static balanced straight carbon tonearm
• Effective Arm Length: 223.6 mm
• Overhang: 18.6 mm
• Tracking Error Angle: Less than 2.0°
• Stylus Pressure Adjustment Range: 0 to 3.0 g
• Applicable Cartridge Weight: (excluding headshell) When counterweight (light) is used: 6.1 to 9.2 g; When counterweight (heavy) is used: 9.2 to 13.9 g
• Tonearm Height Adjustment Range: -1.5 mm to +7 mm (with included cartridge)
• Anti-skate Mechanism: Thread-suspended type
• Anti-skate Adjustment Range: Equivalent to 1.3 g to 3.0 g stylus pressure
• Replacement Cartridge: AT-OC9XEN
• Replacement Belt: AT-LPA2 exclusive belt (sold separately)
• Notes: For product improvement, the product is subject to modification without notice.
