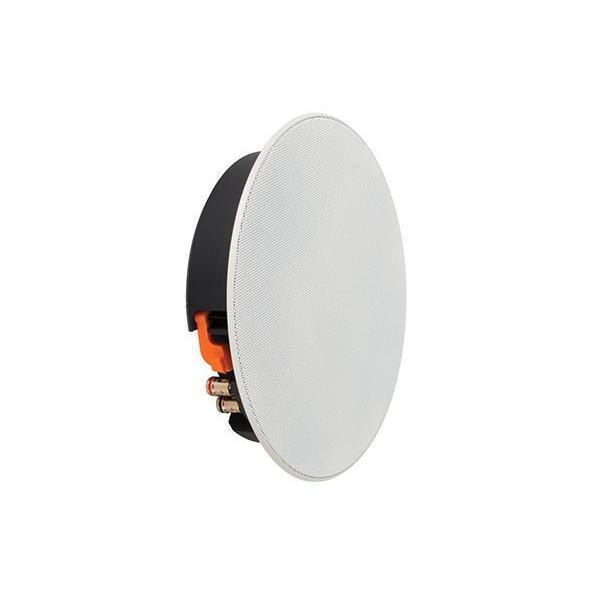

Monitor Audio CSS230 Super Slim In-Ceiling Speaker

Introducing the CSS230 from Monitor Audio - a pinnacle of innovative ingenuity and superb sound delivery packaged in a super slim, sleek design like none other. A class of its own in the realm of in-ceiling speakers, the CSS230 stands out with an incredibly shallow mounting depth of just 50mm (2") - a design specifically formulated to crack the code of delivering true high-fidelity sound in uniquely confined spaces. With features such as a custom hybrid CP ‘Controlled Performance’ style, this speaker not only gives you flexible high-performance options but also the luxury of sound isolation like never before. A powerful array of three 3" C-CAM bass/mid-range drivers and a 19 mm C-CAM Gold Dome tweeter are centered around a top-tier crossover design, offering the award-winning signature sound quality that Monitor Audio is renowned for. When aesthetics meet functionality, you have gold-plated push terminals available that are not just reliable and easy to connect, but also add a touch of elegance to your speaker setup. A magnetically attached 'Trim-less' round and square grille paves the way for easy servicing while ensuring a discreet in-wall/ceiling installation that can be seamlessly painted to match your décor. All these features, combined with patented Tri-Grip dog leg fixings for quick and durable installation, position the CSS230 as the perfect solution for fitting between 2" stud frames or otherwise restricted spaces. Offering consistency in audio quality and installation versatility, the CSS230 does not compromise on delivering the deep, enriching bass output equivalent to a 6 1/2" driver from a perfectly flush-fitted profile. Sink into the unmatched audio detail and dynamics driven by high-quality film capacitors and low-loss inductors, irrespective of the speaker's compact size and application. The CSS230's ported mode also comes with a fine dust protection gauze, ensuring your acoustic system's longevity. Unravel a symphony of exceptional sound quality, power-packed performance, and innovative design with the CSS230.

Features:

1. Super-Slim Mounting Depth: The CSS230's sleek design incorporates an imperceptibly shallow mounting depth of just 50mm (2") For unparalleled installation flexibility.
2. Hybrid CP ‘Controlled Performance’ Style: Experience heightened sound isolation and the option of an enclosed or open back-box to suit your precise needs.

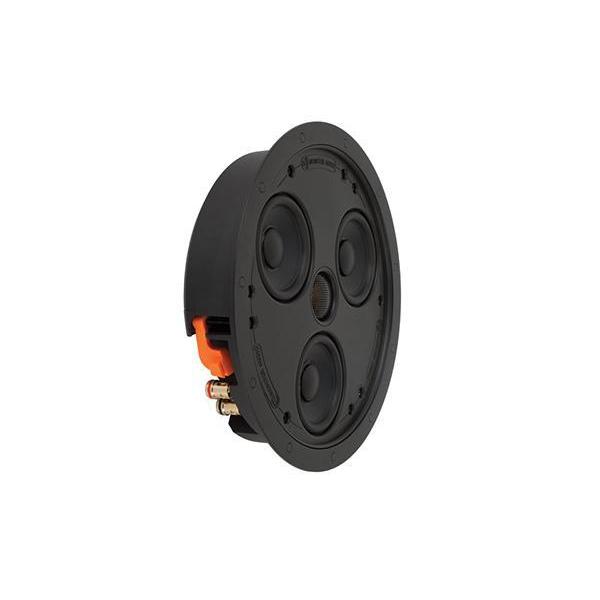

3. Driver Configuration: The CSS230 houses three 3" C-CAM bass/mid-range drivers and a 19 mm C-CAM Gold Dome tweeter for an unrivaled audio experience.

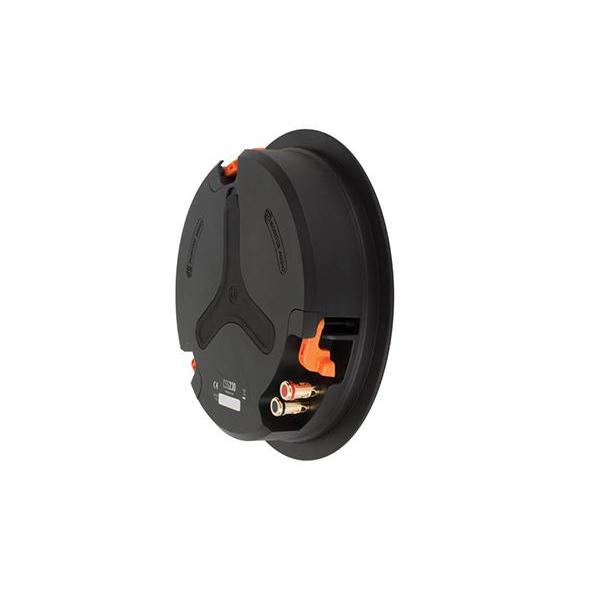

4. Gold Plated Sprung Push Terminals: Secure and straightforward connections are a snap with these durable, gold-plated terminals.

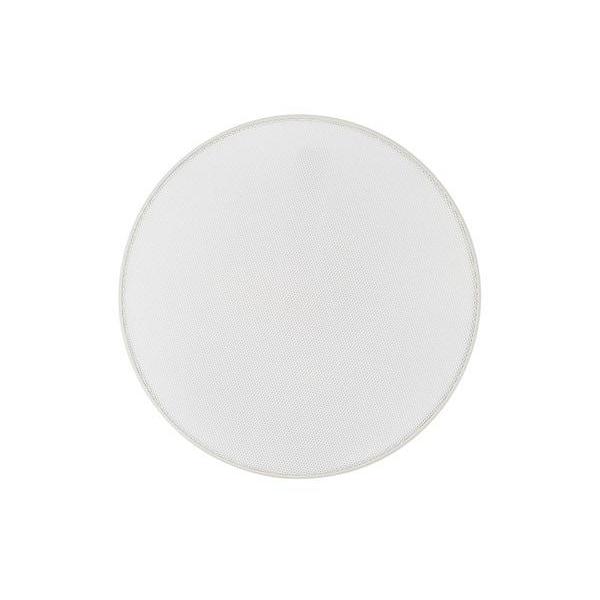

5. Magnetically Attached ‘Trim-less’ Grilles: These discreet, paintable grilles allow for easy servicing and seamless integration into your décor.

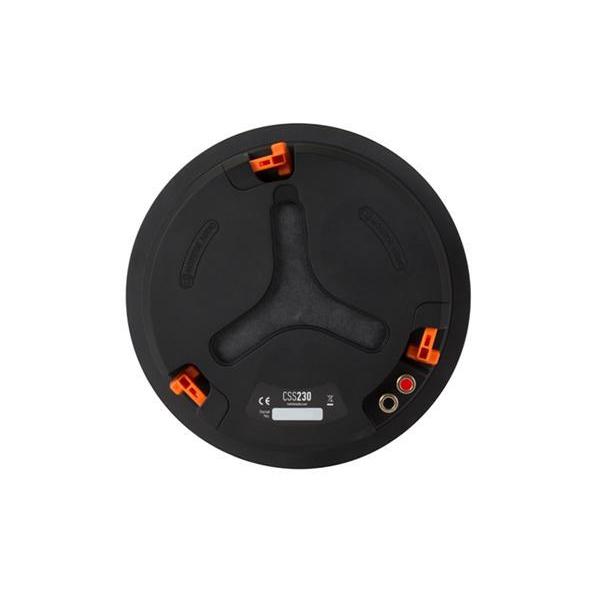

6. Tri-Grip Dog Leg Fixings: Rapid and robust installation is assured with these patented, heavy-duty fixings.
7. Exceptional Bass Output: Despite its slender profile, the CSS230 can provide the bass output equivalent to a larger 6 1/2" driver.
8. High-quality Crossover Design: Monitor Audio’s renowned design finds expression in a high-quality film capacitors and low-loss inductors for unrivaled audio detail and dynamics.
9. Dust Protection Gauze: Guarantee the longevity of your acoustic system with this protective gauze that shields against dust ingress.

Benefits:

1. Space Saving Design: Ideal for fitting between 2" stud frames and limited spaces, without compromising on sound quality.
2. Flexible Installation Options: The hybrid back-box option renders the CSS230 versatile in various installation conditions.
3. Award-Winning Sound Quality: Enjoy Monitor Audio’s award-winning signature sound and dive into a deep and rich auditory experience.
4. Easy Connection: Reliable and quick connections made hassle-free with gold-plated translucent push terminals.
5. Discreet Integration: The imperceptible grilles blend into your décor effortlessly, while facilitating easy servicing.
6. Quick and Secure Installation: With Tri-Grip dog leg fixings, you're ensured a quick, durable installation process.
7. Powerful Performance: Experience extraordinary bass output from a compact speaker, equivalent to the performance of larger counterparts.
8. Enhanced Audio Detail: Uncover finer audio details with high-quality crossover design, ensuring superior audio dynamics unrivaled by speakers of its size.
9. Long-Term Protection: The dust protection gauze safeguards your investment, ensuring a long and trouble-free service life.

The Monitor Audio CSS230 offers a revolutionary blend of innovative design, power-packed performance, and installation versatility that effortlessly tucks away without compromise on quality or aesthetics. Enjoy high-fidelity sound amidst a space-saving profile with the CSS230.

Product Specifications

• Product: Monitor Audio - Super Slim CSS230 - In-Ceiling Speaker
• Features: Super-slim mounting depth 50 mm (2"), Hybrid CP style, Driver configuration of three 3" C-CAM bass/mid-range drivers, 19 mm C-CAM Gold Dome tweeter, Gold plated sprung push terminals, Magnetically attached Trim-less grille, Patented Tri-Grip dog leg fixings
• Mounting Depth: 50 mm (2")
• Driver Complement: 3 x 3" C-CAM cone bass-mid drivers, 1 x 19 mm (3/4") C-CAM Gold Dome tweeter
• Frequency Response: 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
• Nominal Impedance: 8 ohms
• Sensitivity: 86 dB
• Maximum SPL: 103.8 dBA
• Power Handling (RMS): 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
• Recommended Amplifier Requirements: 10 - 60 W
• Gold Plated Sprung Push Terminal: For bare wire connection up to 4 mm(2)
• Overall Diameter (Including Grille): 250 mm (9 13/16")
• Overall Depth (Including Grille): 54 mm (2 1/8")
• Cut-Out Hole Diameter: 211 mm (8 1/4")
• Mounting depth: 50 mm (2")
• Optional Square Grille: Outer Dimensions - 249 x 249 mm (9 3/16")
• Fixing Type: 3 position Tri-Grip dog leg fixings
• Construction Material: ABS (UL94 rated, RoHS2 Compliant), Painted steel grille
• Weight: 2.88 kg (6 lb 5 oz)
• Pre-Construction Bracket: CB6 Pre-Construction Bracket (Purple)
• Sold as: Individually

Indulge in the audio revolution crafted by Monitor Audio's Super Slim CSS230. It harnesses the unparalleled power of cutting-edge design and high fidelity sound reproduction in a uniquely compact package. From the undeniably versatile installation options to its expert detailing of immersive bass and mid-tones, the CSS230 is nothing short of a triumph in the in-ceiling speaker industry. Championed for its slender profile, dynamic range, and audacious performance, this speaker not only accommodates ambitiously confined locations but transforms them by becoming at one with your décor. Experience the acoustic prowess of the CSS230 that sets new standards for your auditory pleasure – a remarkable blend of style, substance, and sonant brilliance. Adopt the Monitor Audio's Super Slim CSS230 and convert your living space into an exquisite concert hall. Discover this exceptional creation and many more on The Audio Tailor - voted Australia's #1 Hi-Fi Store, where we make the sublime sound a matter of your everyday lifestyle. Contact us on 1300 308 711 or at sales@theaudiotailor.com.au today to redefine your sound experience. Let the music lead, and we'll take care of the rest!
