ℹ Product Information
The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
- Certified Roon Tested
- ICESS premium 32-bit Digital to Analog Converter
- Bluetooth with aptX™HD and AAC
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Includes Remote Control
The Ultimate Personal Audio Integrated Amplifier

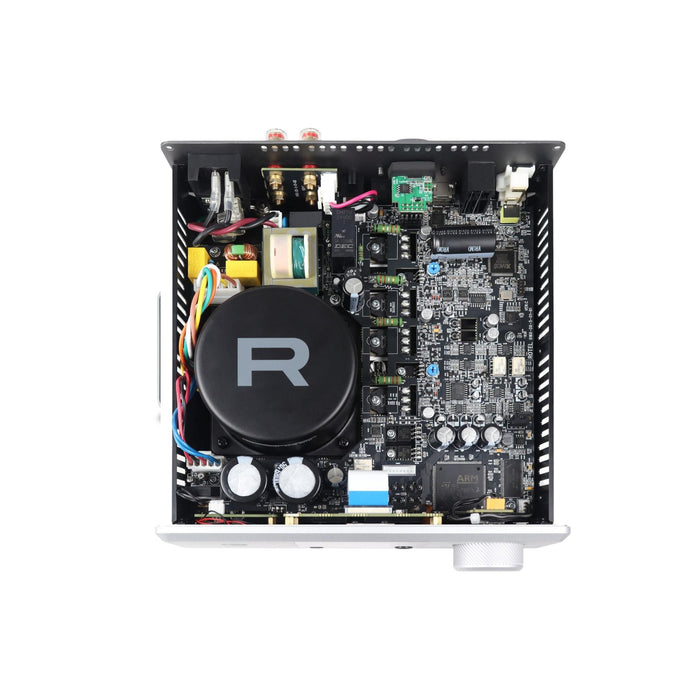

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

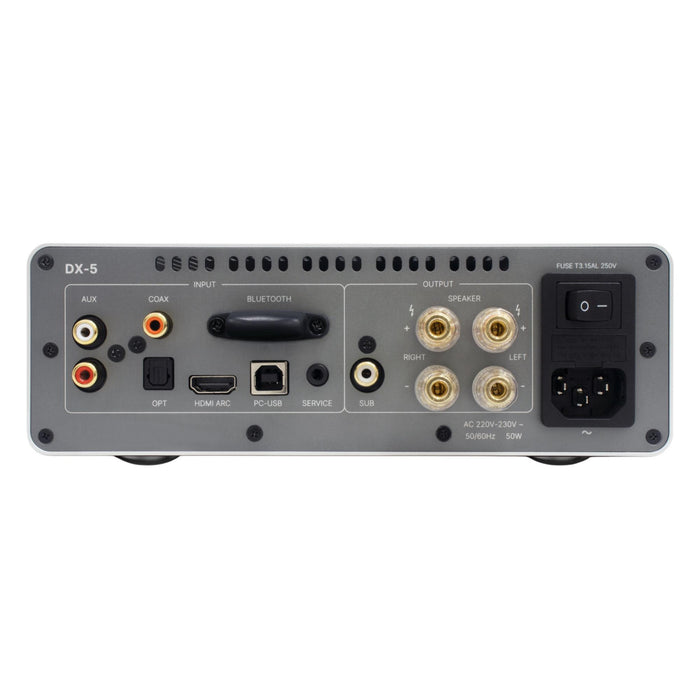

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

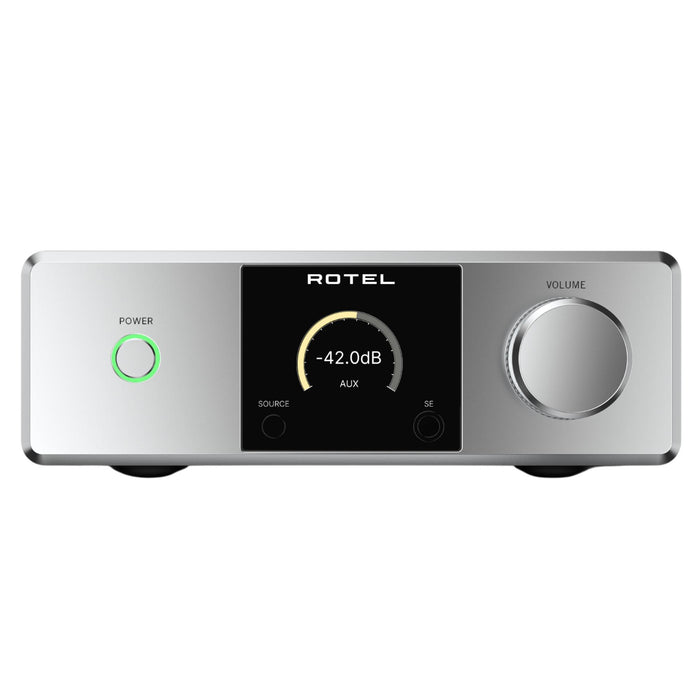

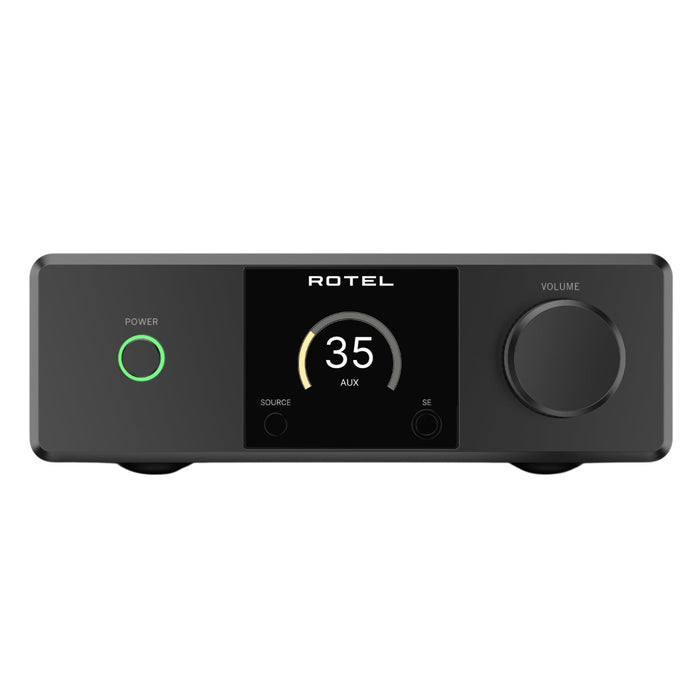

The DX-5 features a full-colour TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Specifications
- DIMENSIONS (W × H × D): 215 x 76 x 251mm; 8 1/2 x 3 x 10"
- FRONT PANEL HEIGHT: 70 mm (2 3/4")
- POWER REQUIREMENTS: 230 V, 50 Hz
- POWER CONSUMPTION: 80 W
- STANDBY POWER CONSUMPTION: <0.5 W
- NET WEIGHT: 4.1 kg (9.1 lbs.)
- BTU: 241 BTU/h
- POWER OUTPUT (FTC): 25 W / ch
- MAXIMUM POWER OUTPUT (Non FTC): 33 W / ch, (1k Hz, 4 Ω)
- CONTINUOUS POWER OUTPUT (Non FTC): 25 W / ch, (1k Hz, 8 Ω)
- TOTAL HARMONIC DISTORTION: < 0.03%
- FREQUENCY RESPONSE: 10 Hz – 100k Hz (0 ± 0.19 dB)
- DAMPING FACTOR (20 Hz – 20k Hz, 8 Ω): 140
- INPUT SENSITIVITY / IMPEDANCE: 680 mV / 100k Ω
- INPUT OVERLOAD: 4.2V
- S/N RATIO (IHF "A" Weighted): >100 dB
- INTERMODULATION DISTORTION (60 Hz : 7k Hz, 4:1): < 0.03%
- FREQUENCY RESPONSE (10 Hz – 80k Hz): 10 Hz – 80k Hz (0 ± 2 dB, Max)
- INPUT SENSITIVITY / IMPEDANCE: -10.3 dBFS / 75 Ω
- S/N RATIO (IHF "A" Weighted): >100 dB
- HDMI: Support ARC function
- DIGITAL INPUTS: SPDIF LPCM (up to 24-bit / 192k Hz)
- PC-USB: USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required. Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz). Roon Tested
