Electrocompaniet - ECI 6DX - Integrated Amplifier w/ DAC & Streamer
Balanced integrated amplifier with DAC and Next-gen streamer
The ECI 6Dx combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound. This single unit is able to play whichever, wherever and whatever audio you might have, and makes it sound like music was meant to be.
The built-in streamer is extremely powerful, flexible and easy to use. It can play directly from music services such as Tidal, Qobuz and Spotify, can be fed music through AirPlay or DLNA, and it can even index and play from your own music collection stored in your network. The powerful hardware ensures that all popular formats are supported (including DSD) and that continuous software upgrades can support the latest and greatest streaming services.
The streamer shares the same DNA as the ECM 2 and the new EC Living product line. This means that you can use the same apps and interface, and play all of the same music on all units. This way, you don’t have to choose between high-end and multi-room, or flexibility and audio quality. All units are equally flexible, and will work equally well together.
The ECI 6DX can be operated by the intuitive iOS & Android application, the universal webinterface, or with the straightforward IR remote control. All of our streamer systems use the same app and web-interface.
Easy to control
Electrocompaniets free app for iPhone, iPad and Android devices offers easy access to all features and settings of the system.
It allows you to command your system, set it up and control it.
Streaming your favorite music.
ECI 6DX is compatible with all of the most popular streaming formats and services, including Spotify, Tidal, Qobuz, Airplay, Spotify connect etc. The system also has built-in internet radio.
- All measurements are made at 120V / 240V //50Hz / 60Hz
- D/A converter - 24 bit/192 kHz
- Sample rate converter - 24bit / 192kHz

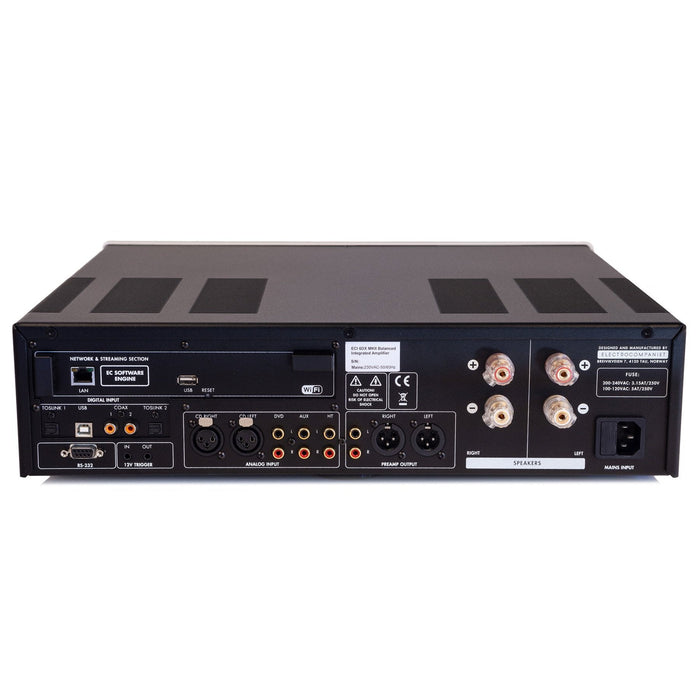

- Inputs - SPDIF, 2x Toslink, 1x USB
- USB - asynchronous up to 24bit/ 192kHz supported
- SPDIF - 24bit/ 192kHz
- Toslink - 24bit/ 96kHz
- Advanced 802.11 AC WiFi with MIMO
- 1x Gigabit Ethernet (1000Mbps)
- 1x USB for external storage
- iOS, Android and web app
- Streaming services - Spotify Connect, TIDAL, Qobuz, AirPlay, Internet Radio, DLNA as renderer
- Supported formats - WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
- Input impedance ( Balanced input ) - 47Kohm
- Maximum input level - 10 Volt RMS
- Noise floor ( 1Vrms, 20 - 20 kHz, balanced) - -135 dB
- THD + N (1Vrms, 20 - 20 kHz, balanced) - <0.004%
- Gain (Balanced) - 0 dB
- Output Impedance - < 0,02 Ohm
- Frequency response - 1 – 150 kHz
- Channel separation - > 120 dB
- THD ( 20 - 20 kHz) - < 0.004%
- Maximum peak current - >100A
- Damping factor 8 ohm load - >350
- I Input sensitivity 120W output - 1.3Vrms
- Input sensitivity HT 120W output - 1Vrms
- Gain HT Input - x36 (31 dB)
- Rated output power - 8 ohms = 2 x 125 W, 4 ohms = 2 x 200 W, 2 ohms = 2 x 370 W
- Power consumption - 110 W
- Standby (no load or signal) - 1W
- Dimensions - 465mm W x 405mm D x 128mm H
- Weight - 20Kg
