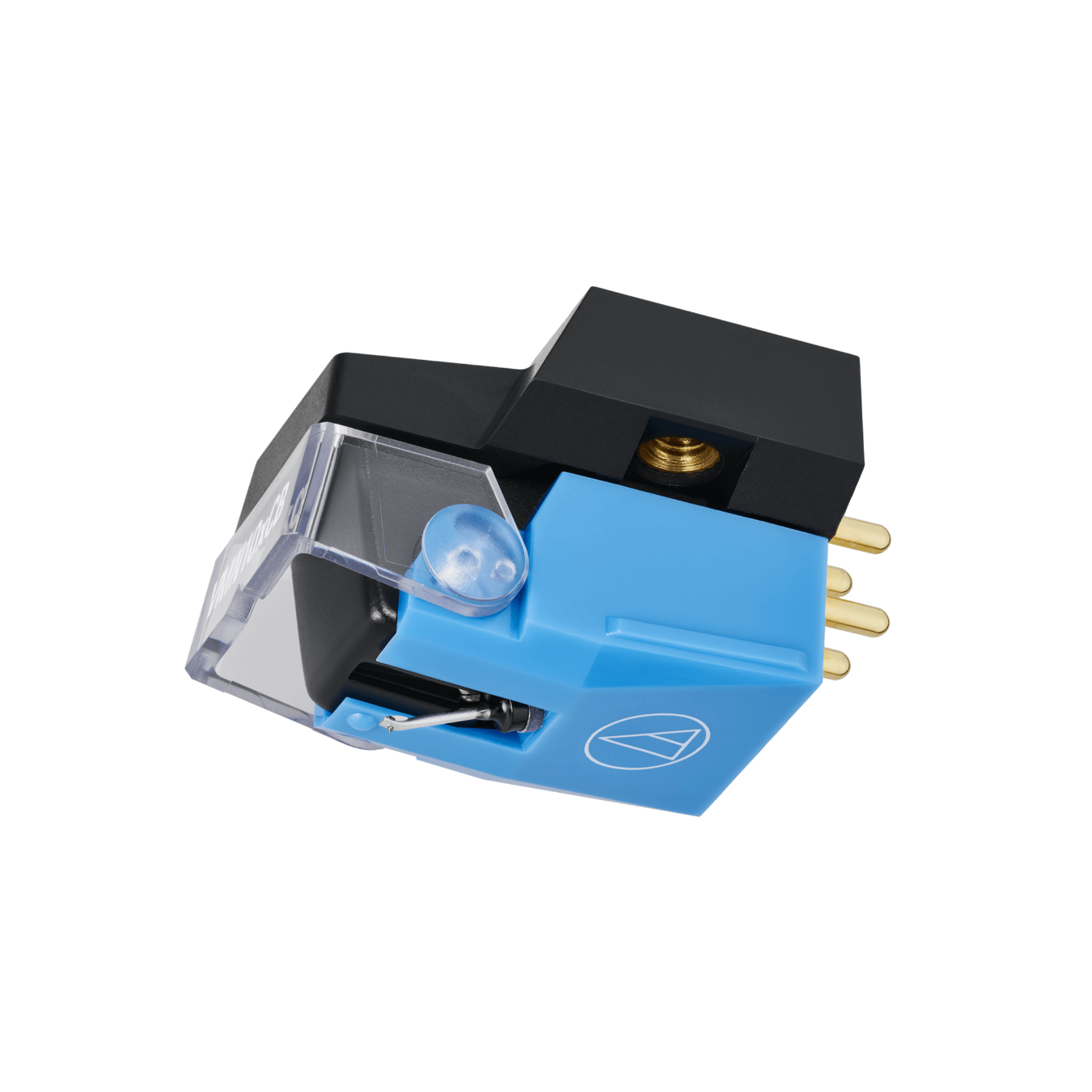

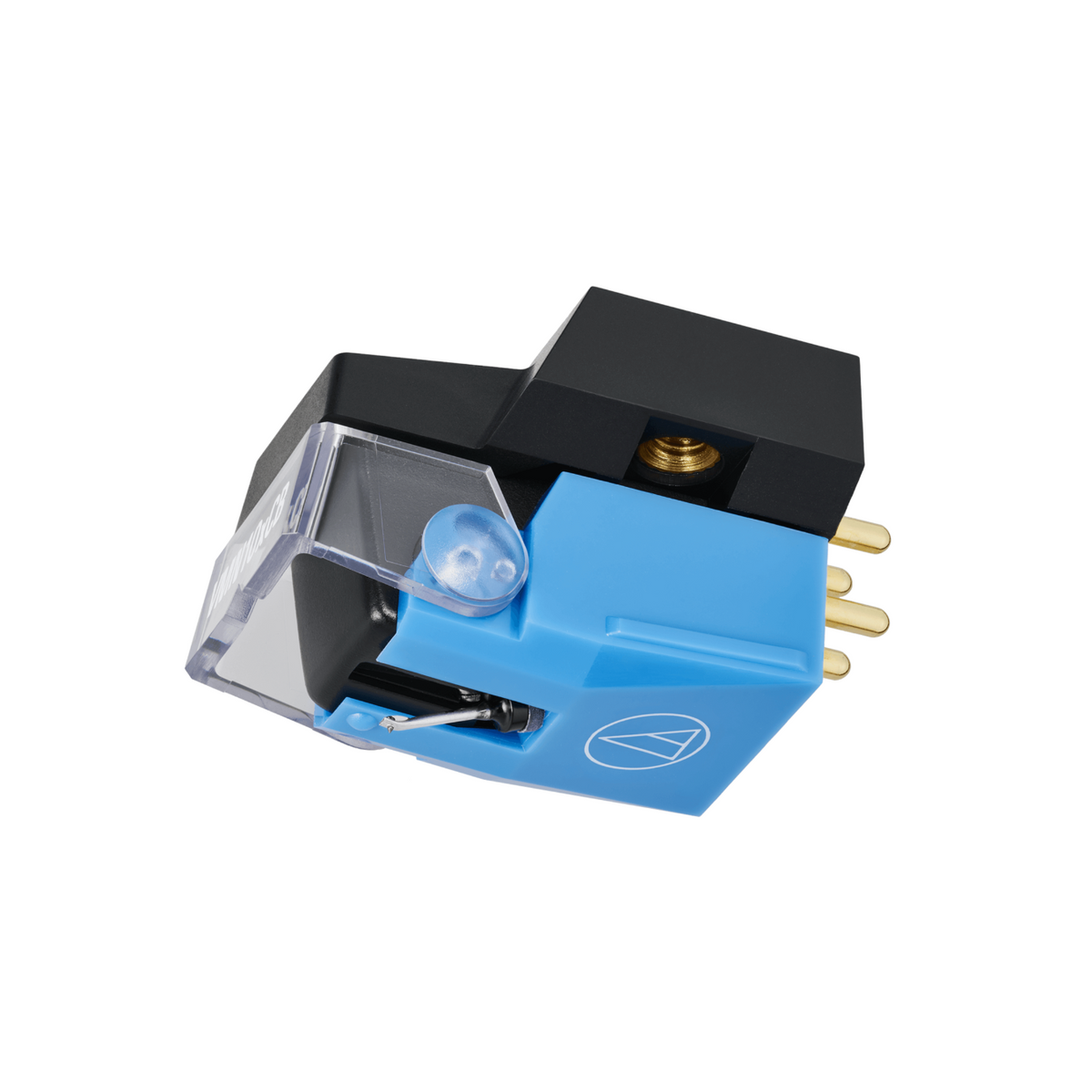

Audio Technica VM510xCB Dual Moving Magnet Cartridge Review — the VM510xCB from Audio-Technica’s new AT-VMx series is set to redefine what we expect from a moving magnet (MM) cartridge at this price point. In this in-depth review, we unpack how this cartridge delivers warmth, realism and an expansive soundstage that brings vinyl to life, and why it deserves a place in your hi-fi setup. For all the juicy details, speak with our team at The Audio Tailor. Call us on 1300 308 711 or email our experts.
First Impressions & Design
From the moment you unbox the VM510xCB, you notice the meticulous Japanese craftsmanship. The low-resonance polymer housing feels solid yet lightweight, while the aluminium cantilever promises rigidity for pinpoint tracking. Threaded inserts simplify mounting — no fiddly nuts — and the V-cut stylus protector guides you straight to the groove. Every detail, from the centre shield plate to the polymer body, speaks to Audio-Technica’s legacy in cartridge design.
Innovative Generator & Coil Technology
What sets the VM510xCB apart is its Paratoroidal coil design and PCUHD (Pure Copper Ultra High Drawability) coils. By stacking two coils per channel, Audio-Technica achieves enhanced channel separation and a faster transient response. Fewer coil turns compared to the original VM line yield a more responsive generator, preserving delicate transients without sacrificing warmth.
Combined with the vertical dual magnet configuration — closely mirroring the cutter head used on vinyl masters — the cartridge maintains exceptional stereo imaging and clarity across the 20 Hz–20 kHz spectrum. You’ll hear vocals bloom, percussion snap and basslines tighten like never before.
Soundstage & Musicality
In listening tests with orchestral and acoustic jazz cuts, the VM510xCB revealed an expansive, three-dimensional soundstage. Instruments occupy distinct positions, with an airy top-end extension that doesn’t sound etched or fatiguing. The midrange is lush and forward; vocals emerge with natural tonal colour and rich harmonic overtones. Bass response is taut, controlled and articulate — vital for modern electronic or bass-heavy genres.
Whether you’re spinning early pressings of classic rock or deep-cut electronica, the VM510xCB excels at conveying musical expression. Its conical 0.6 mil bonded stylus offers reliable groove tracking and longevity, while still teasing out subtleties in vinyl surface noise that add to the analogue charm.
Installation & Compatibility
Easy installation is one of the VM510xCB’s strong suits. The threaded inserts align perfectly with standard ½" headshells, so you can secure the cartridge with just two screws. The stylus protector’s V notch becomes an instant guide when cueing records, reducing the risk of a mis-cue.
This cartridge pairs seamlessly with any turntable accepting ½" cartridges. Recommended tracking force is 1.8–2.2 g (2.0 g standard), and it performs best into a 47 kΩ load impedance phono stage. If you’re already a fan of Audio-Technica’s VM series, you’ll appreciate that all AT-VMx and VM styli interchange, offering an upgrade path from conical to elliptical, microlinear or Shibata profiles.
Who Should Consider the VM510xCB?
- Vinyl enthusiasts seeking a high-resolution MM cartridge without the higher cost of MC designs.
- Collectors who appreciate faithful groove-to-master tracking, especially with original pressings.
- Owners of Audio-Technica tonearms and headshells looking to upgrade from entry-level styli.
- Anyone craving more depth, detail and warmth from their analog playback.
If you’re not certain whether the VM510xCB is the right fit for your system, our team at The Audio Tailor is ready to advise on tonearm alignment, phono stage matching and replacement stylus options. Learn more & reserve your Audio Technica VM510xCB.
Pros & Cons
| Pros |
Cons |
- Exceptional channel separation and stereo imaging
- Rich midrange warmth with articulate bass response
- Paratoroidal coils for fast transient response
- Threaded inserts for effortless installation
- Interchangeable AT-VMx & VM styli upgrade path
- Competitive pricing in premium MM category
|
- Conical stylus limits ultimate resolution vs. nude microlinear options
- Tracking force window may challenge very lightweight tonearms
- Availability is limited until official launch
|
Ready to Elevate Your Vinyl Playback?
The Audio Technica VM510xCB Dual Moving Magnet Cartridge brings pro-grade design and sonic performance to discerning vinyl lovers at a highly attractive price. If you’re keen to discover how this cartridge can transform your turntable experience, our friendly experts at The Audio Tailor are eager to chat. Call 1300 308 711, email sales@theaudiotailor.com.au or visit us online to secure your VM510xCB when it drops. Your records have never sounded better.
