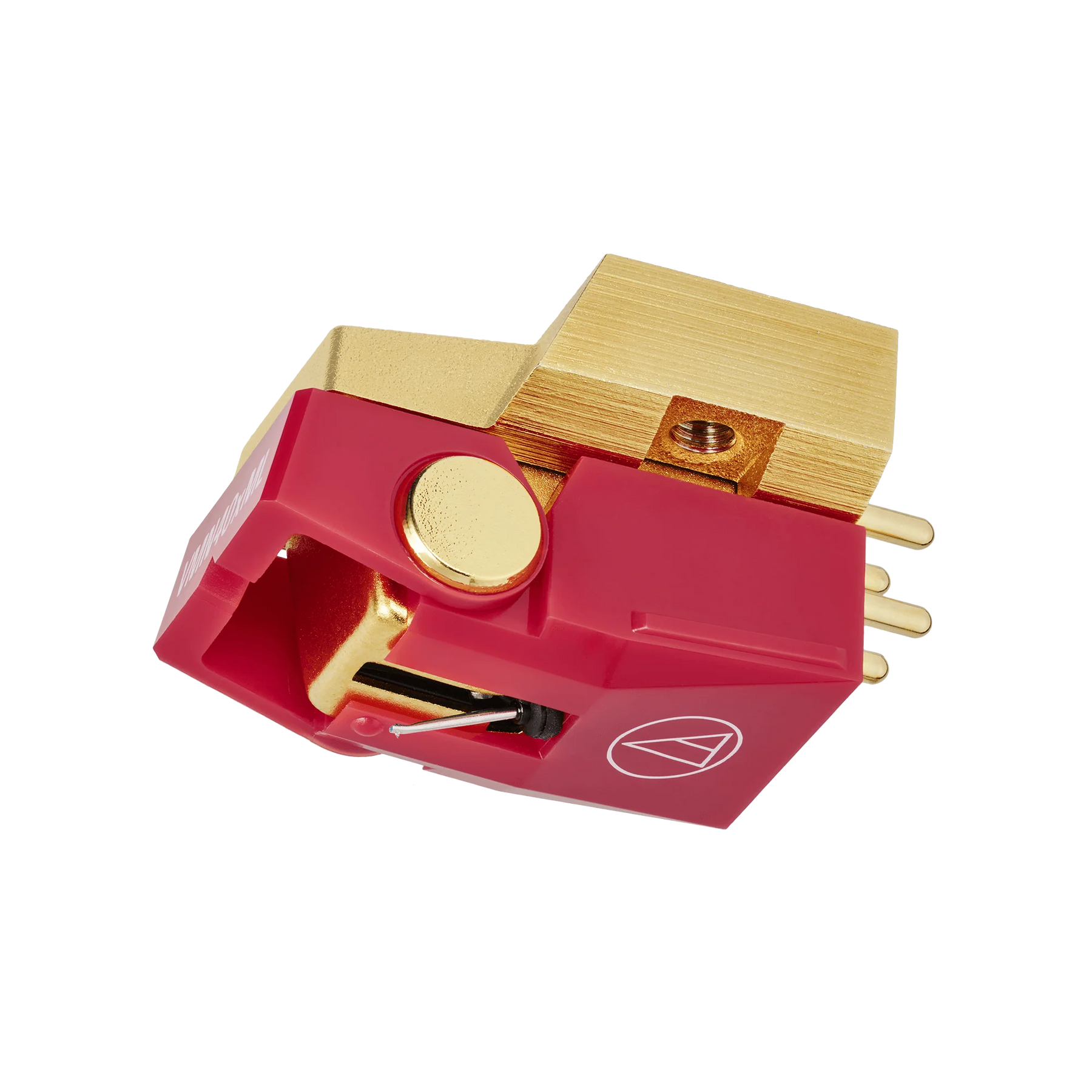

Welcome to our Audio Technica - VM740xML - Dual Moving Magnet Cartridge Review. If you’re seeking a cartridge that delivers exceptional warmth, precision and an expansive soundstage, the VM740xML is engineered to elevate your vinyl replay to audiophile heights.
Design & Construction
The VM740xML features Audio Technica’s signature dual moving magnet (MM) generator, mirroring the original cutter head configuration with two magnets oriented at 45° angles. Housed in a die-cast aluminium body, vibrations and resonance are minimised, while threaded inserts simplify mounting to any standard 1/2” headshell. The aluminium tapered cantilever and nude microlinear stylus ensure unmatched tracking accuracy, especially in complex grooves.
Sound Quality & Performance
From the first groove, the VM740xML envelops you in a three-dimensional soundscape. The PCUHD (Pure Copper Ultra High Drawability) paratoroidal coils, stacked per channel, boost generator efficiency, delivering enhanced channel separation (>25 dB at 1 kHz) and fast transient response. Highs are crystal-clear yet warm, mids are richly detailed, and the bass exhibits authority without bloat.
Dynamic swings are handled with agility; whether it’s the delicate decay of a cymbal or a thunderous kick drum, the VM740xML tracks with astonishing precision. The centre shield plate effectively reduces crosstalk, preserving stereo imaging and depth.
Technical Highlights
Frequency Response: 20 – 25,000 Hz for a wide, detailed spectrum
Tracking Force: 1.8 – 2.2 g (standard 2.0 g) for optimal groove contact
Nude Microlinear Stylus: Superior groove tracking compared to elliptical/conical tips
Paratoroidal & PCUHD Coils: Fewer turns, enhanced transient response and 3D imaging
Interchangeable Stylus: Compatible with AT-VMx replacement styli for tonal tailoring
Who Should Consider the VM740xML?
The VM740xML is ideal for vinyl enthusiasts who prioritise nuanced musical detail and expansive soundstage. If you’re upgrading from an entry-level MM cartridge, this model offers a transformative step up, particularly suited to tonal purists, dynamic jazz aficionados and those craving pinpoint stereo imaging.
Got questions about compatibility or setup? Feel free to view the full product details or speak with our experts at The Audio Tailor on 1300 308 711.
Cons: Premium price point reflects high-end performance, requires precise setup for best results.
Why the VM740xML Sings
The Audio Technica VM740xML Dual Moving Magnet Cartridge redefines vinyl playback, combining analogue authenticity with modern design refinements. Its technical prowess and musicality deliver an immersive listening experience. For a tailored recommendation or installation advice, call our team at The Audio Tailor today or email sales@theaudiotailor.com.au.
