Bowers & Wilkins 803 D5 Review: Reference 800 Series Diamond Performance, Perfectly Proportioned

Welcome to our in-depth Bowers & Wilkins 803 D5 Review. If you've ever dreamed of owning a genuine 800 Series Diamond loudspeaker, with the Diamond dome tweeter, the iconic Turbine Head and that sense of effortless scale, but wondered whether your room could accommodate a flagship, the 803 D5 may be the answer. It is the most compact model in the 800 Series Diamond range to feature Bowers & Wilkins' distinctive Turbine Head, and it brings the precision, scale and musical realism of the line into a more room-friendly form. Here at The Audio Tailor, we think it may be one of the most compelling reference loudspeakers available today. Let's dig into why.

Bowers & Wilkins 803 D5 at a Glance

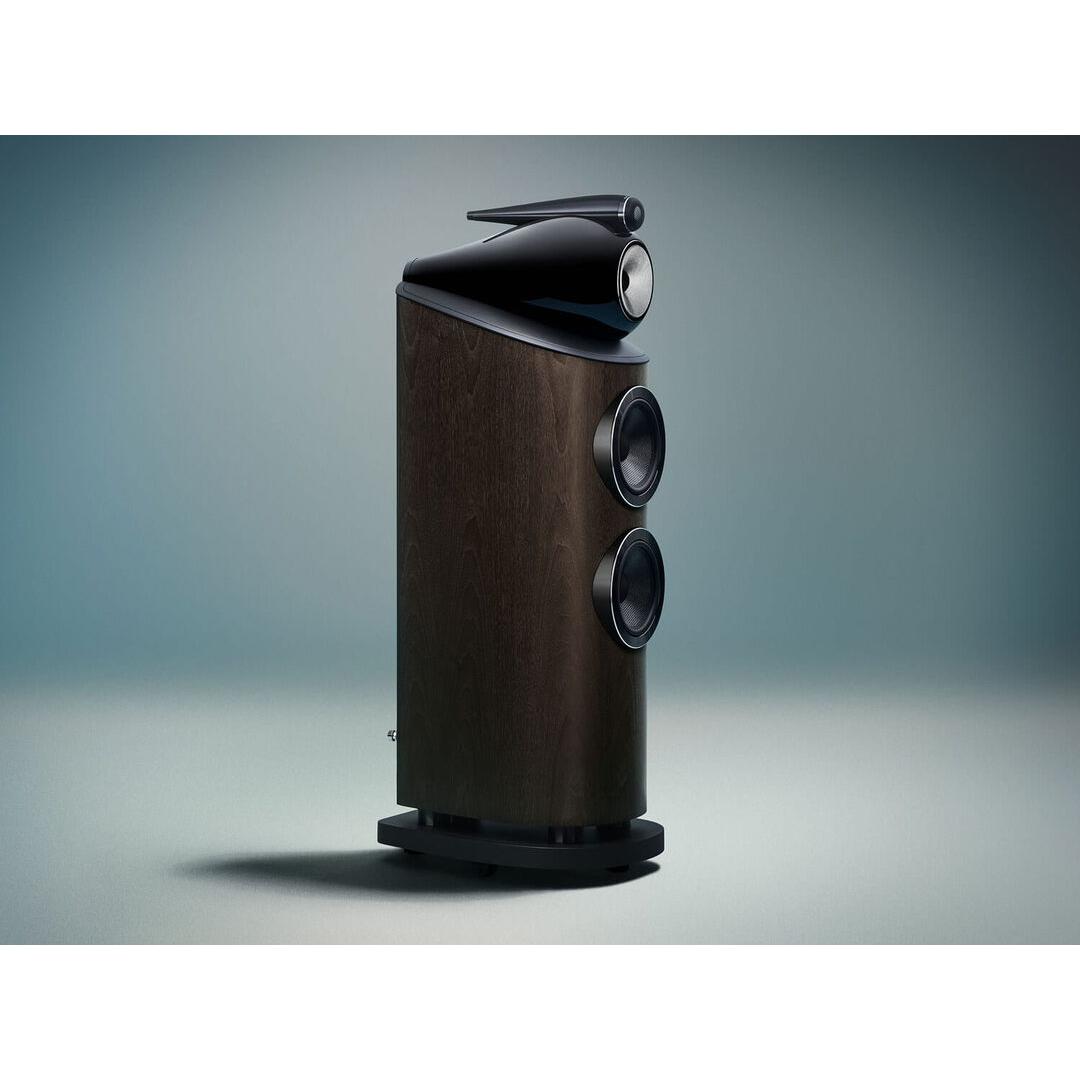

The Bowers & Wilkins 803 D5 Floorstanding Speaker is a three-way, vented-box reference loudspeaker built around a 25 mm Diamond dome tweeter, a dedicated 130 mm Continuum cone FST midrange driver and dual 180 mm Aerofoil bass drivers. Here are the key numbers that matter:

Specification	Details
Product Type	Reference floorstanding loudspeaker
Enclosure Design	Three-way vented-box system
High-Frequency Driver	1 × 25 mm Diamond dome tweeter
Midrange Driver	1 × 130 mm Continuum cone FST driver
Bass Drivers	2 × 180 mm Aerofoil bass cones
Frequency Range	16 Hz–35 kHz at -6 dB
Frequency Response	19 Hz–28 kHz, ±3 dB
Sensitivity	90 dB
Nominal Impedance	8 ohms
Minimum Impedance	3.0 ohms
Recommended Amplifier Power	50–1,000 W into 8 ohms on unclipped programme
Maximum Recommended Cable Impedance	0.1 ohm
Harmonic Distortion	Less than 1% from 80 Hz–20 kHz; less than 0.3% from 100 Hz–8 kHz
Height	1,165 mm including tweeter and plinth
Cabinet Width / Overall Width	301 mm / 359 mm including plinth
Depth / Overall Depth	473 mm including grille and terminals / 499 mm including plinth
Net Weight	63.7 kg
Cabinet Finishes	Stealth Black, Warm White, Dark Walnut, Light Walnut

Where the 803 D5 Sits in the 800 Series Diamond Family

The 800 Series Diamond has long been a benchmark in high-end loudspeaker design, and the 803 D5 occupies a particularly clever position within it. It sits beneath the larger 801 D5 and 802 D5, yet retains the defining ingredient that sets the upper tier apart: the separately housed Turbine Head midrange enclosure. That means you get the same core architecture that underpins the series' famous imaging and vocal purity, in a cabinet standing 1,165 mm tall and 301 mm wide.

For many listeners, this is the sweet spot. It delivers true reference-grade engineering and a claimed low-frequency extension down to 19 Hz (±3 dB), without demanding the physical real estate of the flagships. If you're weighing up the 803 D5 against its bigger siblings, give our team a call on 1300 308 711 and we'll help you work out which model best suits your room and listening habits.

The Diamond Dome Tweeter: Resonance Pushed Well Beyond Hearing

At the very top of the 803 D5 sits the component that gives the series its name: a 25 mm Diamond dome tweeter. Diamond offers a rare combination of extremely low mass and outstanding stiffness, and that pairing is exactly what a high-frequency transducer craves. The result is a break-up frequency of approximately 70 kHz, placing the dome's first significant resonance far above the limits of human hearing.

Why does that matter? Every diaphragm material eventually flexes and rings; when that break-up mode sits close to the audible band, its effects can smear transients and add a subtle hardness or glare. By pushing it so far out, the Diamond tweeter can render cymbals, bowed strings, room ambience and the air around a recording with remarkable openness, precision and natural tonal balance. High frequencies sound extended and detailed, rather than etched or fatiguing.

Solid Body Tweeter-on-Top

The Diamond dome is housed in Bowers & Wilkins' rigid Solid Body Tweeter-on-Top enclosure. Physically separating the tweeter from the main cabinet isolates it from vibrations generated by the larger midrange and bass drivers, while the elongated housing reduces diffraction around the dome. Less diffraction means fewer secondary wavefronts arriving at your ears, which translates directly into sharper imaging and a clearer sense of space around voices and instruments.

Turbine Head, Continuum Cone and Biomimetic Suspension: The Heart of the Matter

If the Diamond tweeter is the 803 D5's headline, the midrange is its soul. This is where vocals, piano, guitar and the bulk of musical information live, and Bowers & Wilkins has thrown serious engineering at it.

130 mm Continuum Cone FST Midrange

A dedicated 130 mm Continuum cone FST midrange driver handles the critical middle frequencies. The Continuum cone is engineered for smooth, controlled behaviour across its operating range, reducing unwanted colouration. In practical terms, that means voices, strings and acoustic instruments are presented with natural timbre and precise definition, without the boxy or honky character that can plague lesser midrange designs.

Biomimetic Suspension and Anti-Resonance Plug

Behind the cone, Bowers & Wilkins replaces the conventional fabric spider with its Biomimetic Suspension. This open structure reduces unwanted air pressure and mechanical noise behind the cone, the kind of low-level grunge that masks fine detail. Remove it, and the midrange gains transparency; subtle breaths, finger movements on fretboards and the decay of notes into silence become more apparent. An Anti-Resonance plug adds further control over the driver's motion, supporting cleaner, more consistent reproduction.

The Acoustically Optimised Turbine Head

All of this sits within the distinctive Turbine Head, physically separated from the main bass enclosure. Its curved, highly rigid form provides a stable platform for the Continuum cone while minimising internal resonance. The benefit is focused vocals, pinpoint instrument placement and a genuinely believable three-dimensional soundstage. Crucially, the 803 D5 is the smallest 800 Series Diamond floorstander to include this Turbine Head configuration, and it's a big part of why this model punches so far above its footprint.

Dual 180 mm Aerofoil Bass Drivers and Flowport: Depth With Discipline

Low-frequency duties fall to a pair of 180 mm Aerofoil bass drivers. The Aerofoil cone profile is designed to remain rigid as the drivers move, reducing distortion and improving definition through demanding bass passages. Rigidity under excursion is key: a cone that flexes under load no longer behaves as a pure piston, and that's when bass turns bloated and indistinct.

The payoff is substantial weight without sacrificing speed or accuracy. Orchestral bass drums, pipe organ pedal notes, deep electronic synth lines and cinematic LFE-style effects all benefit from the 803 D5's quoted response of 19 Hz–28 kHz at ±3 dB, and 16 Hz–35 kHz at -6 dB. For a cabinet of this size, that is genuinely impressive bass extension.

Flowport Bass Reflex

Supporting the bass drivers is Bowers & Wilkins' Flowport bass-reflex system. Its carefully shaped, dimpled surface reduces turbulence as air moves through the port, minimising chuffing noise and port compression. This is particularly valuable at higher listening levels, where lesser port designs can audibly strain. With Flowport, low frequencies stay clean and controlled even when you push things.

Cabinet Engineering: A Quieter Foundation for the Music

A great loudspeaker should add nothing of its own, and the 803 D5 cabinet is engineered with that philosophy firmly in mind.

• Enhanced Matrix bracing: Interlocking internal panels create a rigid structure that reinforces the enclosure and reduces unwanted vibration, preventing the cabinet from adding audible colouration.
• Aluminium Space Frame Bracing and reinforced aluminium top section: Additional stability for a quieter acoustic foundation and a more spacious, immersive presentation.
• Curved reverse-wrap cabinet: Formed from a continuous curve, reducing flat surfaces around the drive units to minimise reflections and diffraction, while improving structural rigidity.
• Solid aluminium rear spine: Secures the curved cabinet and adds further strength.

The measured results speak to this attention to detail: harmonic distortion is rated at less than 1% from 80 Hz–20 kHz and less than 0.3% from 100 Hz–8 kHz. That is an exceptionally clean performance through the heart of the audible band.

How the 803 D5 Presents Music

Taken together, the 803 D5's engineering points towards a presentation defined by transparency, scale and coherence. The low-colouration Continuum midrange within its isolated Turbine Head, coupled with the diffraction-minimising Tweeter-on-Top and curved cabinet, is designed for an expansive soundstage where performers occupy stable, clearly defined positions and the speakers themselves seem to vanish.

Vocals are where this design is built to shine: lifelike, focused and free of the cabinet-borne veiling that can dull a singer's presence. Up top, the Diamond dome's resonance-free operation supports treble that is detailed and airy yet natural. Underpinning it all, the twin Aerofoil woofers provide deep, controlled bass that gives large-scale recordings genuine weight and authority. Whether it's an intimate jazz trio, a full symphony orchestra or a bass-heavy electronic track, the 803 D5 is built to reproduce it with the precision and musical realism that the 800 Series Diamond name promises.

Amplification and System Matching

With a sensitivity of 90 dB, a nominal impedance of 8 ohms and a minimum impedance of 3.0 ohms, the 803 D5 is reasonably efficient but rewards a quality amplifier with stable current delivery. Bowers & Wilkins recommends amplifier power between 50 and 1,000 watts into 8 ohms on unclipped programme material. That broad window gives you plenty of flexibility, but to truly control the dual Aerofoil bass drivers and unlock the speaker's full dynamic and low-frequency capability, a robust, high-current design is the way to go.

Cabling matters too: Bowers & Wilkins specifies a maximum recommended cable impedance of 0.1 ohm. Matching amplification, source and cabling to a speaker of this calibre is exactly the kind of thing our team loves helping with. Whether you prefer the richness of a quality integrated amplifier or the headroom of separate pre and power amps, speak with Stuart, Gabby, Nathan or Vaughan on 1300 308 711 or email sales@theaudiotailor.com.au for tailored system advice.

A Superb Front Pair for High-End Home Theatre

The 803 D5 isn't just for two-channel purists. It can serve as a premium front left and right speaker within an 800 Series Diamond home theatre system, delivering the dynamics, clarity and tonal consistency needed for immersive film and music playback. The deep bass extension gives soundtracks real physicality, while the Turbine Head midrange keeps dialogue clear and anchored. If you're planning a reference-level cinema room, our team can help design a cohesive system around a pair of 803 D5s.

Premium Finishes to Suit Your Space

The 803 D5 is as much a piece of industrial design as it is a loudspeaker. It's available in four premium finishes, each complemented by matching Leather by Connolly trim:

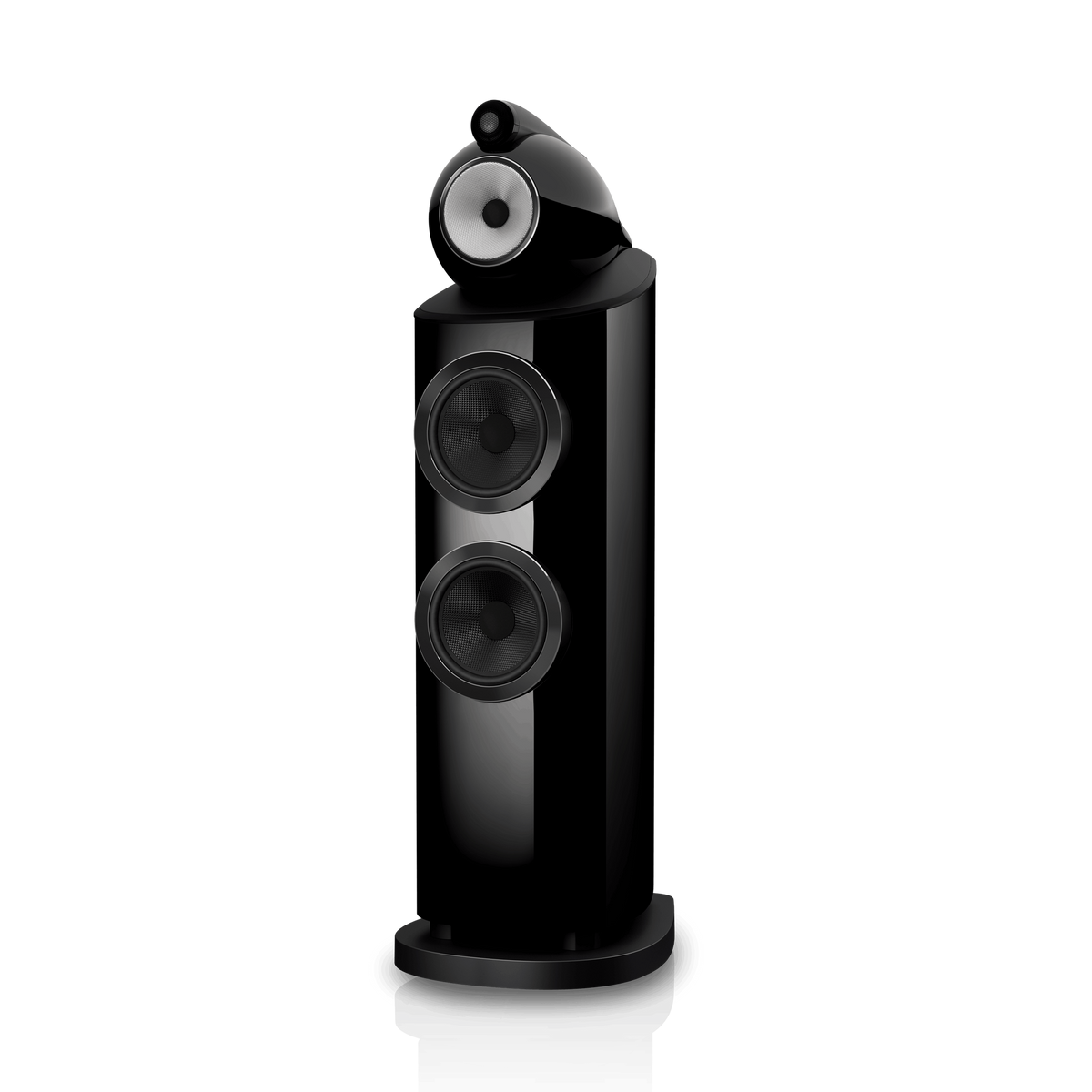

• Stealth Black with black grilles

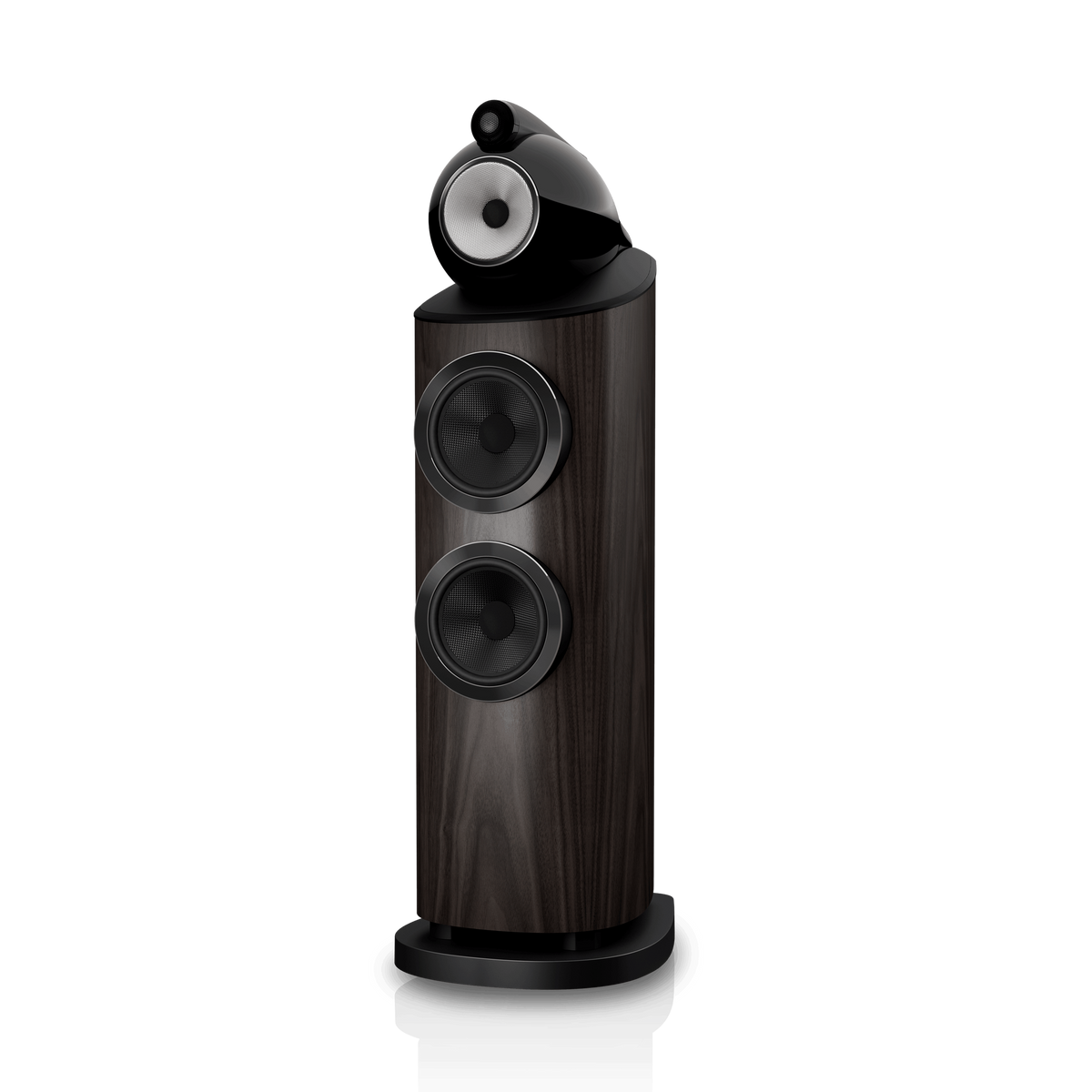

• Dark Walnut with black grilles
• Warm White with grey grilles

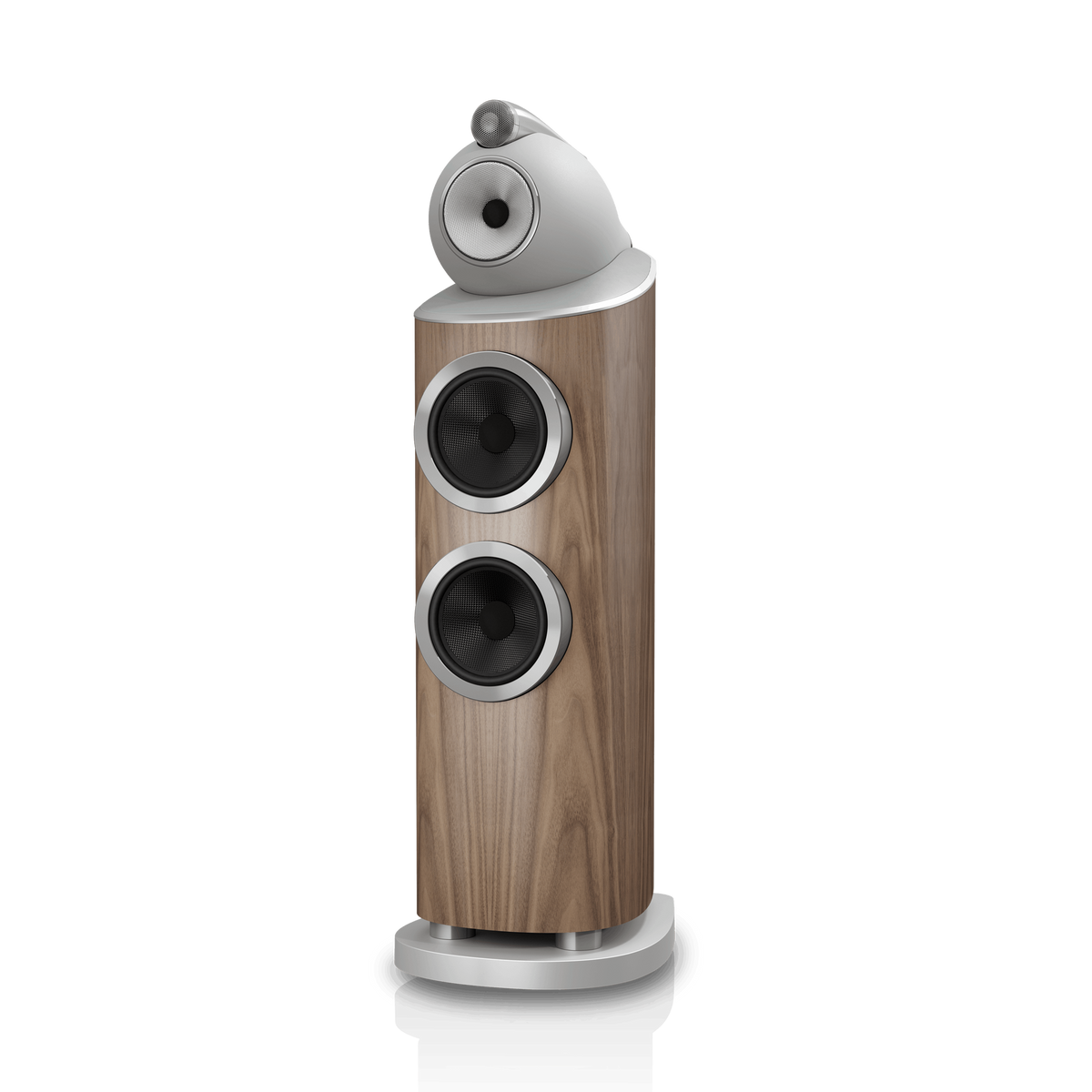

• Light Walnut with grey grilles

Whether your space leans modern and minimalist or warm and traditional, there's a finish to complement it. Not sure which suits your décor? Our team is happy to talk it through.

Who Is the Bowers & Wilkins 803 D5 For?

• Dedicated two-channel listeners who want reference performance without the physical scale of the 801 D5 or 802 D5.
• Home theatre enthusiasts building an 800 Series Diamond system and seeking a front left and right pair with genuine dynamics and clarity.
• Upgraders stepping up from high-quality bookshelf or floorstanding speakers who crave the Turbine Head and Diamond tweeter experience.
• Design-conscious audiophiles who want a loudspeaker that looks every bit as exceptional as it sounds.
• Listeners with medium to large rooms who want deep, full-range bass from a comparatively compact cabinet.

Bowers & Wilkins 803 D5: Pros and Cons

Pros

• Most compact 800 Series Diamond model with the acclaimed Turbine Head
• 25 mm Diamond dome tweeter with break-up pushed to approximately 70 kHz for open, precise treble
• Solid Body Tweeter-on-Top reduces vibration and diffraction for superb imaging
• Continuum cone FST midrange with Biomimetic Suspension for exceptionally transparent, natural vocals
• Dual 180 mm Aerofoil bass drivers deliver extension to 19 Hz (±3 dB)
• Very low distortion: under 0.3% from 100 Hz–8 kHz
• Enhanced Matrix and Aluminium Space Frame Bracing for a quiet, uncoloured cabinet
• Flowport technology keeps bass clean at high levels
• Versatile for both reference stereo and premium home theatre
• Four gorgeous finishes with Leather by Connolly trim

Cons

• Deserves high-quality, current-capable amplification to fully shine (a great excuse to build a truly special system)
• At 63.7 kg each, you'll want a helping hand during setup
• Once you've heard what it can do, lesser speakers may be hard to go back to

The Verdict: The 800 Series Diamond Sweet Spot

The Bowers & Wilkins 803 D5 is a remarkable achievement. It distils the defining technologies of the 800 Series Diamond range, including the Diamond dome tweeter, Solid Body Tweeter-on-Top, the isolated Turbine Head with Continuum cone and Biomimetic Suspension, twin Aerofoil woofers and a meticulously braced reverse-wrap cabinet, into a loudspeaker that fits comfortably into far more rooms than the flagships. The result is expansive soundstaging, lifelike vocals and deep, controlled bass: true reference performance, beautifully proportioned.

For the listener who wants the 800 Series experience in its most room-friendly Turbine Head form, the 803 D5 is, in our view, the sweet spot of the range. Explore the full details on the Bowers & Wilkins 803 D5 product page, and when you're ready to talk amplification, room setup or a complete system, reach out to our team. Call us on 1300 308 711, email sales@theaudiotailor.com.au, or visit us at Unit 9/20 Rivergate Place, Murarrie, Qld 4172. As Sound+Image's HiFi Retailer of the Year in 2021 and 2022, we ship nationwide and take pride in tailoring every system to your space, your music and your budget.
