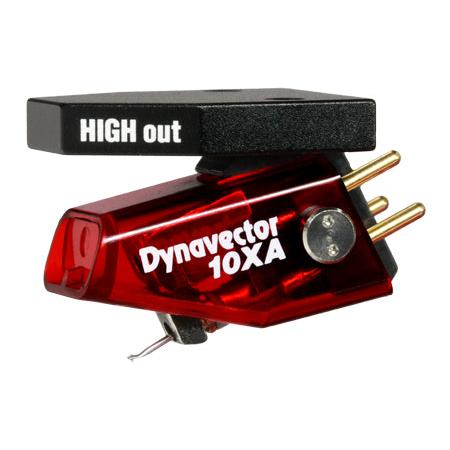

Dynavector - 10XA - MC Cartridge Review is here to show how Dynavector has once again raised the bar for high-output moving-coil (MC) cartridges. Since its debut in 1978, the 10X series has been celebrated for delivering MC dynamics with MM-style convenience. The latest 10XA model, featuring a Special Magnetic Annealing circuit and a Shibata Type III stylus, pushes analogue playback to new heights.

Engineering Excellence: Special Magnetic Annealing

The heart of the 10XA is its newly developed magnetic circuit. Dynavector’s proprietary Special Magnetic Annealing process optimises temperature, atmosphere and cooling rates to produce pure iron magnets with minimal distortion. The result is expansive resonance, unrivalled resolution and an articulate midrange that breathes life into every vinyl groove.

Shibata Type III Stylus & Aluminium Cantilever

Tracking performance is key to extracting detail, and the 10XA’s Shibata Type III line-contact stylus excels in this domain. Mated to a rigid, lightweight aluminium cantilever, it maintains superb groove contact and extends the high-frequency response up to 20kHz (±2dB). The payoff is a crystalline top end with a natural lift, making cymbal decay and string harmonics shimmer with authenticity.

Neodymium Magnet & Softened Magnetic Field

High output MC cartridges often contend with harshness from powerful magnets. Dynavector’s patented Softened Magnet technology tames the neodymium field, reducing edgy artefacts while preserving a healthy 2.8 mV output. This design choice means you can plug the 10XA straight into a MM phono input (47 kΩ load) or a dedicated MC stage without compromise.

Broad Compatibility & Easy Integration

At just 7.5 g with a compliance of 12 mm/N, the 10XA suits the vast majority of tonearms, from classic SME-style pivot arms to modern unipivots. The solid machined aluminium head block ensures rigidity and perfect alignment. Whether you’re upgrading an existing rig or building a new analogue system, the 10XA integrates seamlessly.

Performance and Sound Character

• Soundstage & Imaging: Midstage focus is crisp and transparent, allowing voices and instruments to occupy discrete positions with lifelike weight.
• Dynamics & Pace: The cartridge swings from whisper-quiet nuance to full-bodied crescendos without strain, thanks to the low-mass cantilever and optimised magnetic circuit.
• Tonal Balance: A neutral tonal canvas with a slight warmth in the lower midrange enhances analogue richness without veiling detail.

Who Should Consider the Dynavector 10XA?

If you’re an audiophile seeking MC-level resolution but crave the convenience of an MM-compatible output, the 10XA is for you. It’s ideal for turntable systems where tracking finesse, low distortion and effortless integration matter. Whether you’re spinning delicate jazz on Blue Note pressings or bass-heavy electronic vinyl, the 10XA delivers a balanced, engaging performance.

Pros and Cons

• Pros:
  • Exceptional midrange clarity and extended treble detail
  • High-output 2.8 mV eliminates need for step-up transformers
  • Special Magnetic Annealing yields low distortion, expansive sound
  • Shibata Type III stylus ensures superior groove tracking
  • Broad tonearm compatibility with secure aluminium head block
• Cons:
  • Requires a 1.8–2.2 g tracking force and precise alignment
  • Shibata stylus break-in period of ~50 hours before peak performance

Elevate Your Analogue Journey Today

The Dynavector 10XA MC Cartridge is more than a simple upgrade—it’s a gateway to an analogue experience that defies expectations. To learn more or book a consultation, visit the product page or speak with our specialist team at The Audio Tailor on 1300 308 711. Let us help you tailor the perfect HiFi setup for your listening space and budget.
