As our Matrix Audio MS-1P Music Streamer with Built-In Preamplifier Review demonstrates, this flagship M Series component sets a new benchmark for audiophiles seeking an integrated high-resolution streamer and preamplifier. Discover more on the Matrix Audio MS-1P Music Streamer with Built-In Preamplifier page, or talk directly with our team at The Audio Tailor for expert guidance.

Industrial Design & Build Quality

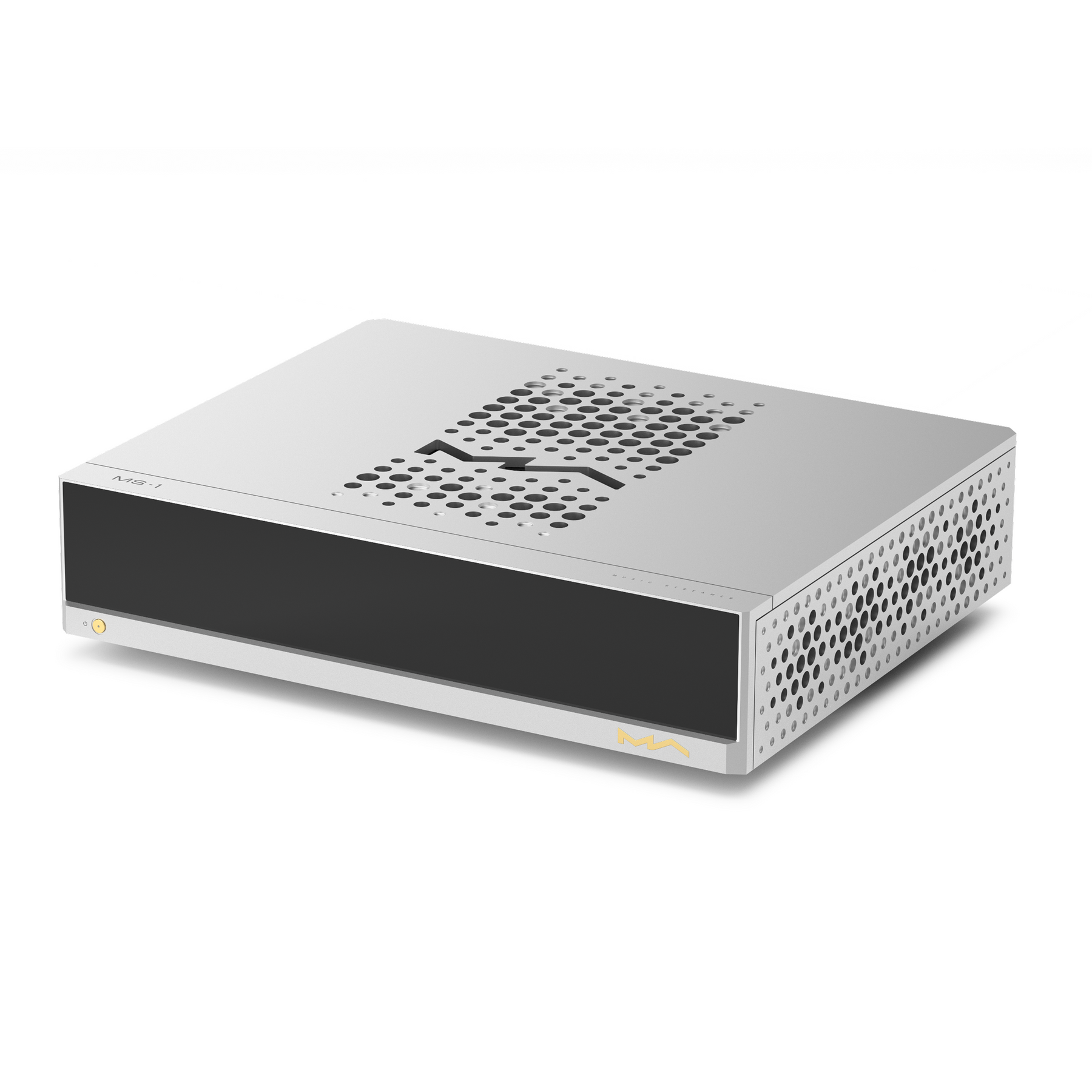

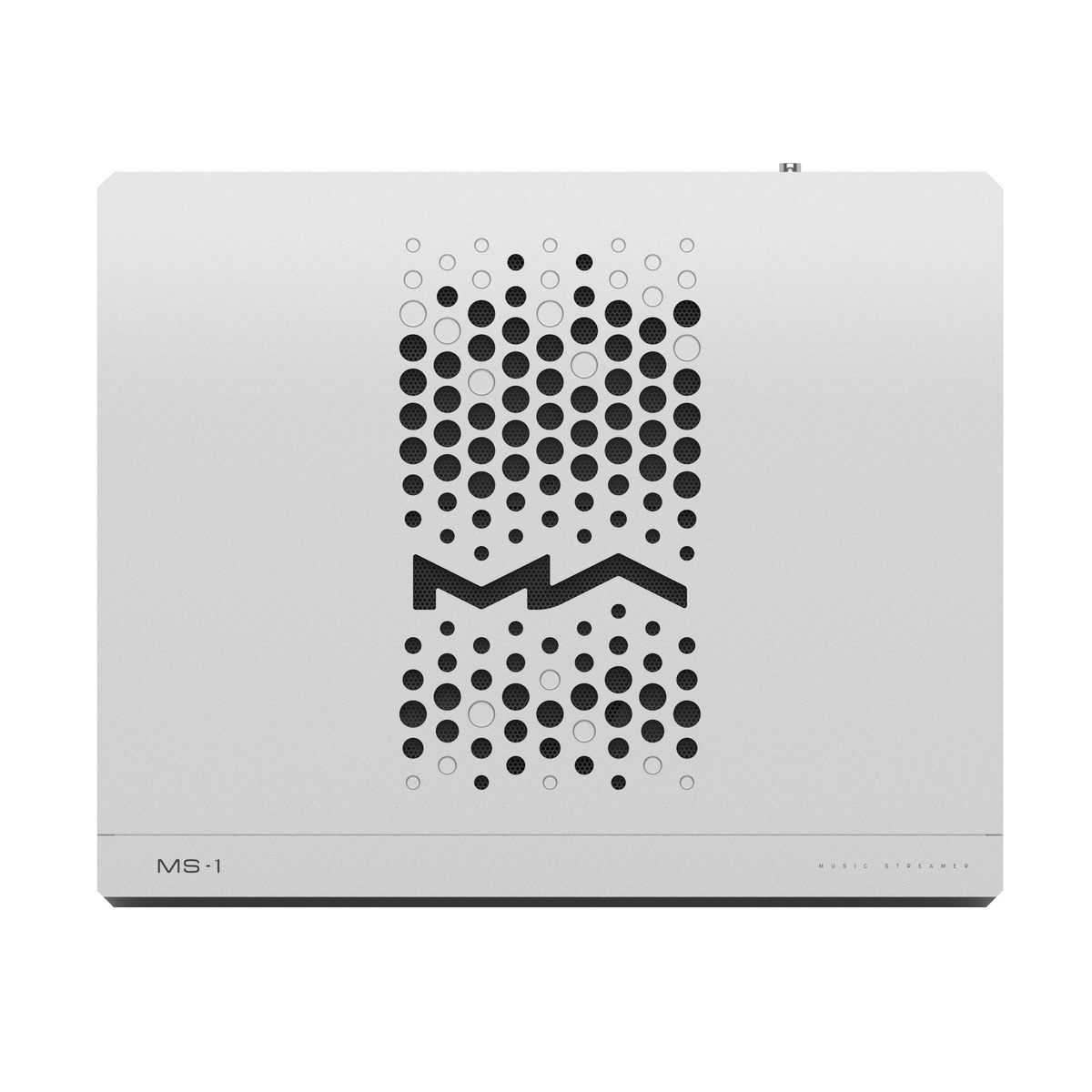

Built around an elegant hexahedral chassis, the MS-1P showcases the new Matrix Design language: hundreds of circular perforations cut across the 20 mm CNC-machined aluminium panels, creating a rhythmic visual motif and optimising heat dissipation. The unique H-shaped internal structure isolates circuit modules into separate cavities, drastically reducing electromagnetic interference. Each channel section sits symmetrically on either side of the central beam, supported by heavy-duty feet that anchor the 6 kg frame, ensuring rock-solid stability and minimal vibration.

Feature Deep Dive

Under the hood, the MS-1P's architecture is a symphony of technology, each element crafted for ultimate sonic fidelity and user convenience:

• Software Experience – MA Player & MA Remote App: Driven by a streamlined Linux-based MA Player, the MS-1P allows seamless browsing of local libraries and TIDAL, Qobuz, SONY Select, Highresaudio, as well as online radio. The MA Remote App for iOS and Android transforms your mobile device into a powerful control centre, handling everything from volume and track selection to PCM filters and DSD conversion settings.
• Dual Mono DAC Engine: Leveraging dual AK4191 clocks and parallel AK4499 DACs in a fully dual-mono layout, the MS-1P delivers astonishing dynamic range and channel separation. High-precision DPLL clocks achieve jitter below 45 fs, while external 10 MHz clock input ensures even greater stability.
• Precision Volume Control & Preamplifier: A multi-stage op-amp preamp stage offers +10 dB gain and 16 VRMS output, with 64-step resistor arrays and 32 sealed reed relays providing lossless attenuation and impeccable channel matching at every volume.
• Comprehensive Connectivity: From XLR/RCA line inputs and MM/MC phono preamp via high-precision ADC, to USB, optical, coaxial and IIS-LVDS digital inputs and outputs, the MS-1P integrates effortlessly with turntables, CD transports, set-top boxes and external DACs.

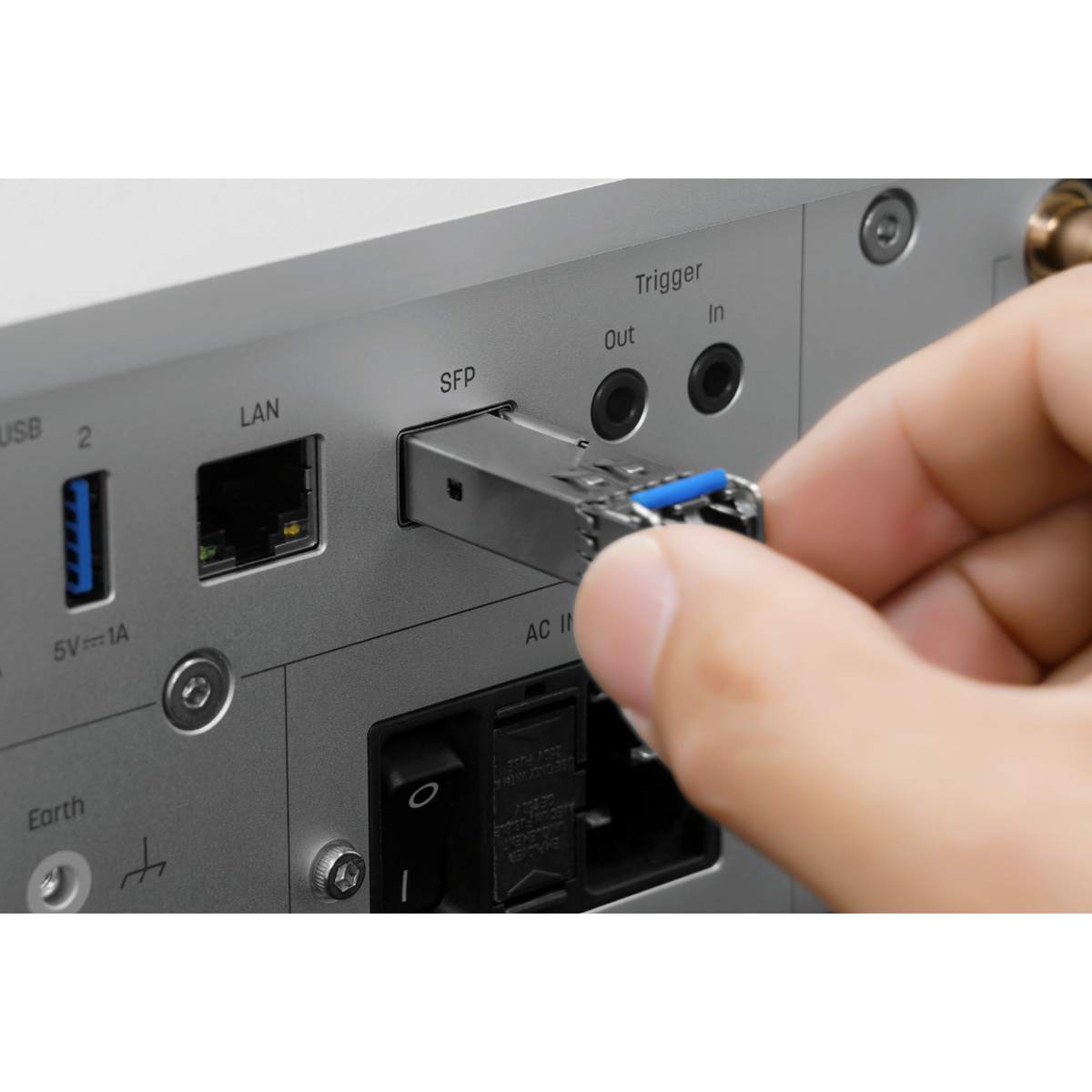

• Robust Power & Isolation: Dual toroidal transformers wound with square copper wire feed separate analogue and digital circuits, complemented by MUNDORF M-Lytic AG capacitors and ultra-low noise LDO regulators. An SFP fibre-optic network port eliminates switch noise, while an NVMe SSD slot provides silent internal storage.

Sound Performance: Defining Detail and Dynamics

In listening tests, the Matrix Audio MS-1P effortlessly reveals the smallest textural cues, from the softest finger snap in jazz recordings to the rumbling sub-bass in electronic tracks. The dual-mono DAC configuration grants an expansive soundstage with razor-sharp imaging, while the DSD conversion path adds a silky naturalness to complex orchestral passages. Whether streamed or spun from vinyl, every performance carries pristine clarity, punchy rhythm and tonal neutrality that keeps you locked in for hours.

Who Should Consider the MS-1P?

For audiophiles who demand a single-box solution without compromise, the MS-1P is a dream come true. Vinyl enthusiasts will appreciate the built-in MM/MC phono stage, while multi-source users can harness the array of digital and analogue inputs. Ideal for minimalist systems or as the hub of a larger HiFi setup, it’s perfect in both dedicated listening rooms and living-room environments.

Elevating Integrated HiFi to New Heights

The Matrix Audio MS-1P redefines the art of integration by pairing studio-grade DACs and precision volume control with intuitive software and robust connectivity. Every detail, from the microsecond-accurate clocking to the tactile CNC finish, underscores Matrix Audio’s commitment to crafting future-proof HiFi. Our team at The Audio Tailor is excited to guide you through how this flagship streamer can upgrade your system.

Pros & Cons

Pros:

• True dual-mono DAC design with AK4191 & AK4499 for superb imaging and detail.
• High-precision DPLL clocking (<45 fs jitter) with external 10 MHz input for ultimate stability.
• Resistor-array volume control ensures lossless attenuation and perfect channel balance.
• Comprehensive MA Player OS and MA Remote App for seamless high-res streaming and control.
• Built-in MM/MC phono, XLR/RCA inputs, IIS-LVDS outputs and NVMe SSD slot for full expandability.
• Isolated fibre-optic network port for noise-free streaming.
• Immaculate build quality with H-shaped CNC chassis and premium power supply components.

Cons:

• Premium price point reflects flagship-class engineering.
