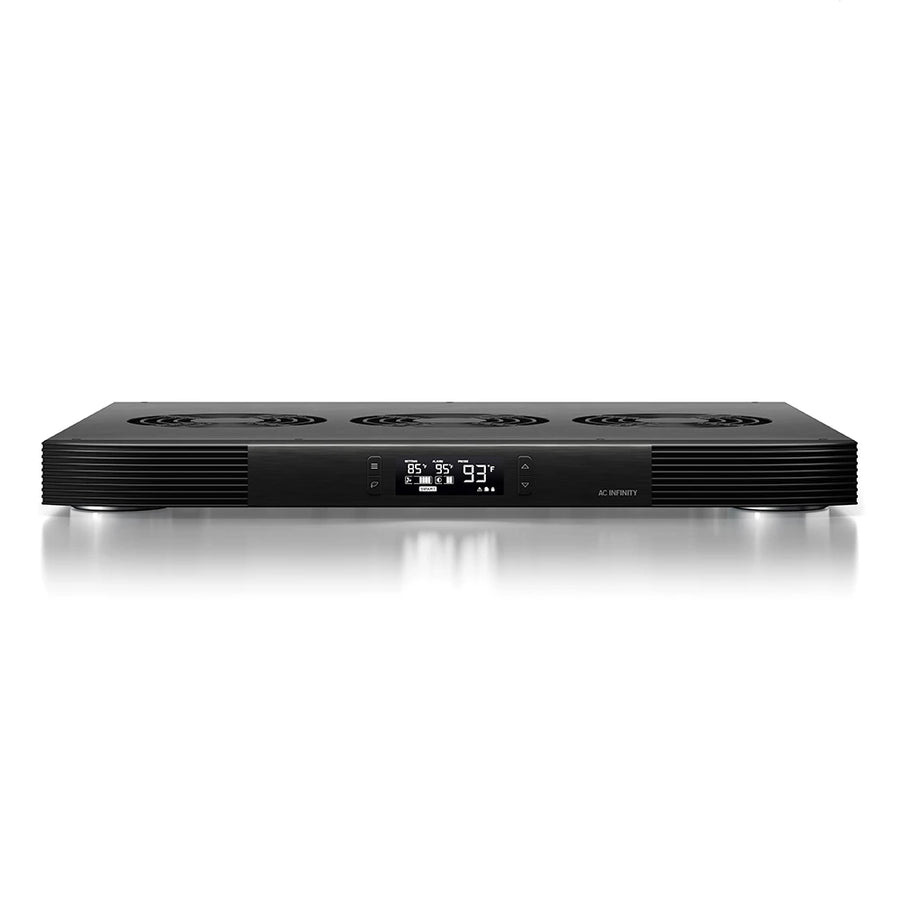

AC Infinity - AIRCOM T9 - AV Receiver Cooling Fan with LCD Temperature Controller (17" Top Exhaust)

The flagship AC Infinity AIRCOM T9 cooling system — a 17" top-exhaust fan with LCD thermostat, SMART auto-speed mode, alarm alerts, fan failure triggers, backup memory, six speed settings, expandable fan control ports and 210 CFM airflow. Three dual ball bearing fans, 13.6 kg top weight capacity. UL, CE and RoHS certified.

The Flagship. Maximum Airflow. Maximum Intelligence.

The AC Infinity AIRCOM T9 sits at the top of the entire AIRCOM cooling range, combining the highest airflow output of any model in the lineup — 210 CFM — with the advanced LCD digital control system first introduced on the T8. Add a top-exhaust design that works with natural convection, triple certification including UL, and expandable control for up to six additional fans, and the T9 is the definitive choice for demanding AV installations where thermal management cannot be left to chance.

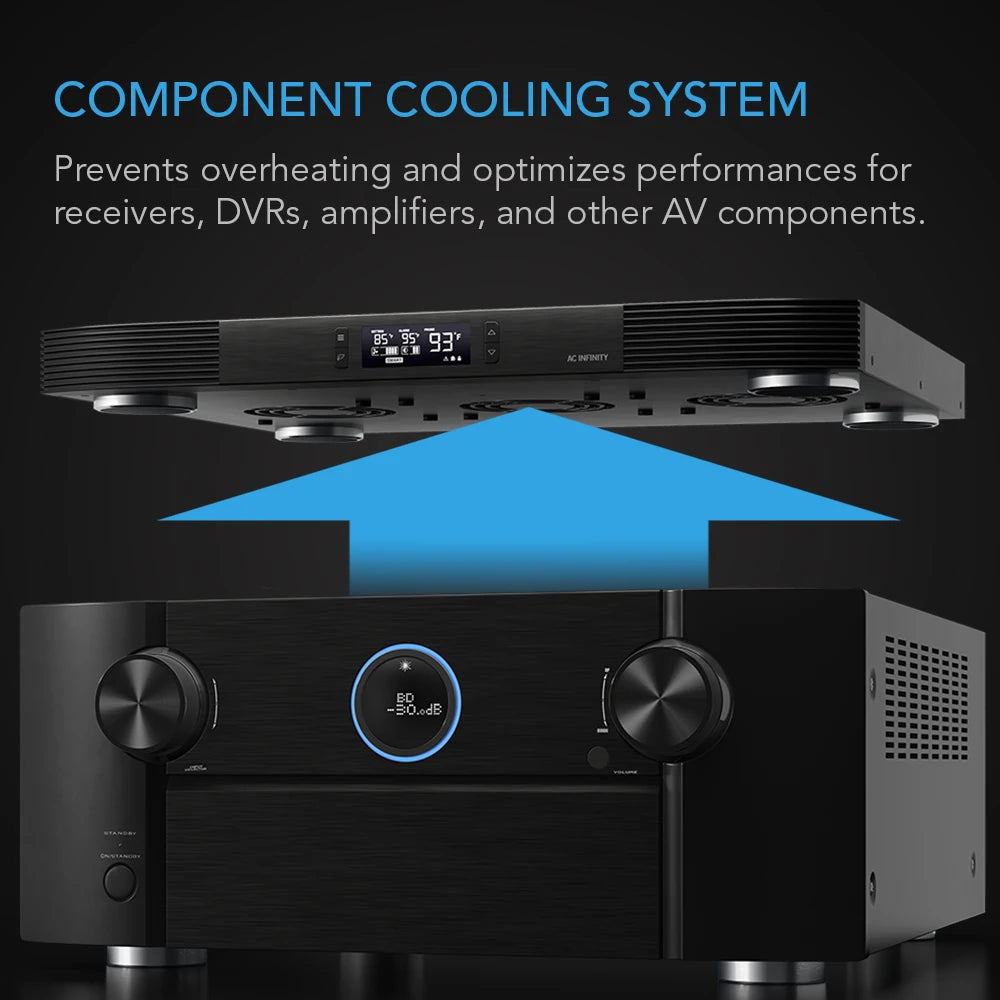

Top Exhaust — 210 CFM of Natural Convection Cooling

Heat rises. The T9's top-exhaust design works with this fundamental principle, channelling warm air upward and out of the unit as efficiently as physics allows. For open rack installations, equipment positioned away from rear walls, or systems where rear clearance is restricted, top exhaust is the optimal configuration — and at 210 CFM, the T9 delivers the most powerful airflow in the AIRCOM range, 31% more than the rear-exhaust T8, at a lower noise level of just 21 dBA.

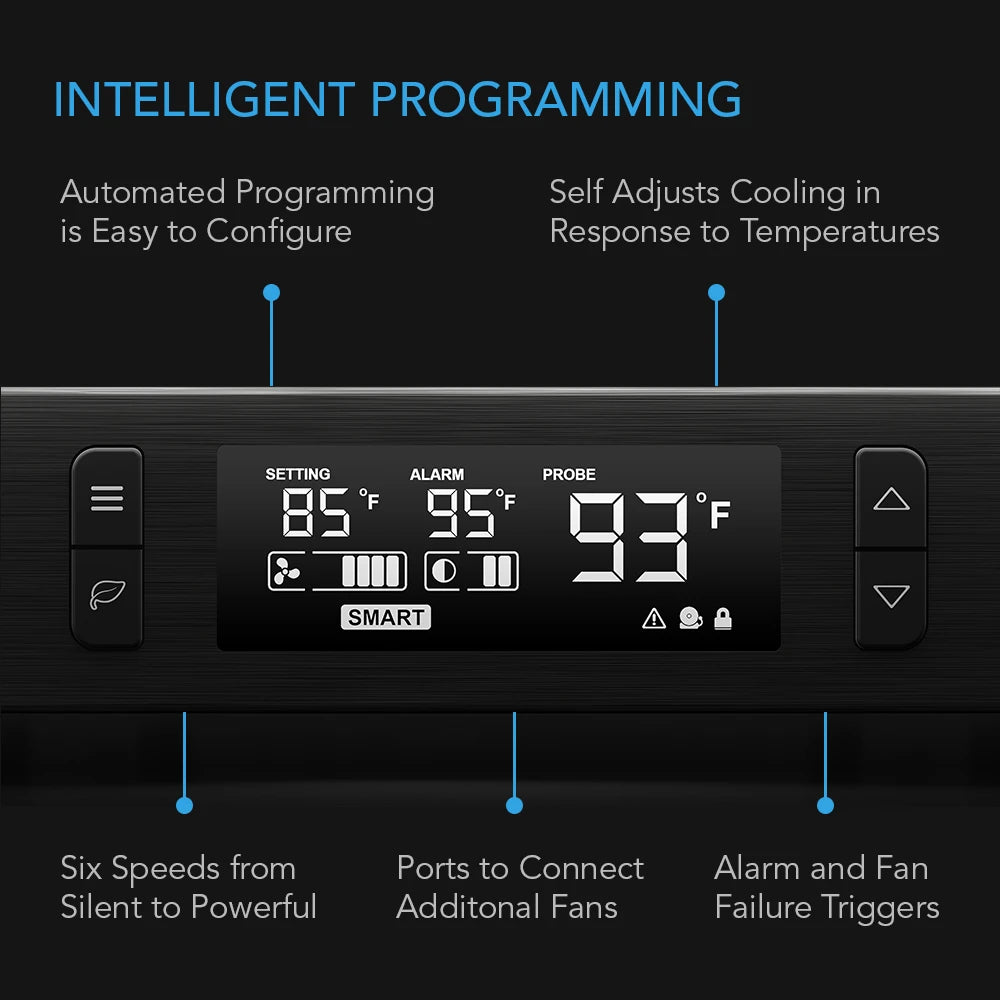

LCD Digital Controller — SMART Mode & Professional-Grade Programming

The T9's front-panel LCD digital controller offers a level of programming sophistication well beyond anything found on the S-series. Features include:

• SMART Mode — continuously monitors temperature and automatically adjusts fan speed in real time, responding to thermal changes without manual input
• Six fan speed settings — finer speed control than the four-speed S-series for more precise thermal management
• Alarm alerts — audible and visual notification when temperatures exceed a programmed threshold
• Fan failure trigger — detects a blower failure and alerts immediately, ensuring cooling loss is never silent
• Power saving mode — reduces energy consumption during periods of lower thermal demand
• Display lock — prevents accidental changes to programmed settings
• Backup memory — all settings are retained through power cycles, so there is no need to reprogram after a power interruption
• Three screen brightness settings — ensures the display is readable in any lighting condition without being intrusive in a darkened listening room

Expandable Fan Control — Build a Complete Thermal Management System

The rear panel of the T9 features dedicated control ports capable of managing up to six individual AC Infinity AIRPLATE cabinet fans and MULTIFAN component fans. This transforms the T9 from a standalone cooling unit into the central nervous system of a comprehensive, whole-cabinet thermal management solution — ideal for custom AV installations, multi-component rack systems and professional integrations.

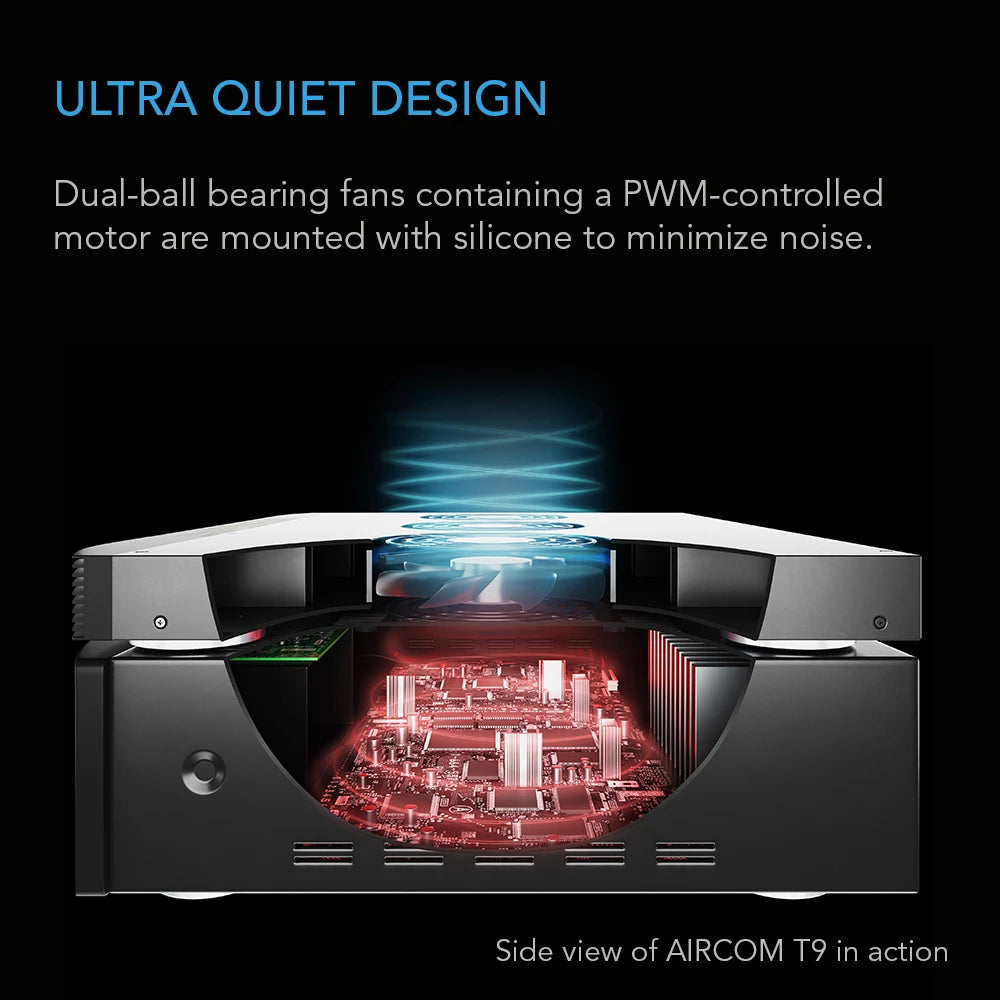

Three PWM Dual Ball Bearing Fans — 210 CFM

Three dual ball bearing fans, each driven by a PWM (pulse-width modulation) controlled motor, deliver a combined 210 CFM of airflow through the top of the unit. PWM control minimises noise during speed transitions, while the dual ball bearing construction provides an L10 rated lifespan of 67,000 hours. Each fan is suspended on silicone mounts to isolate vibration from both the unit and the equipment beneath it. At 21 dBA, the T9 achieves its class-leading airflow with remarkably restrained noise output.

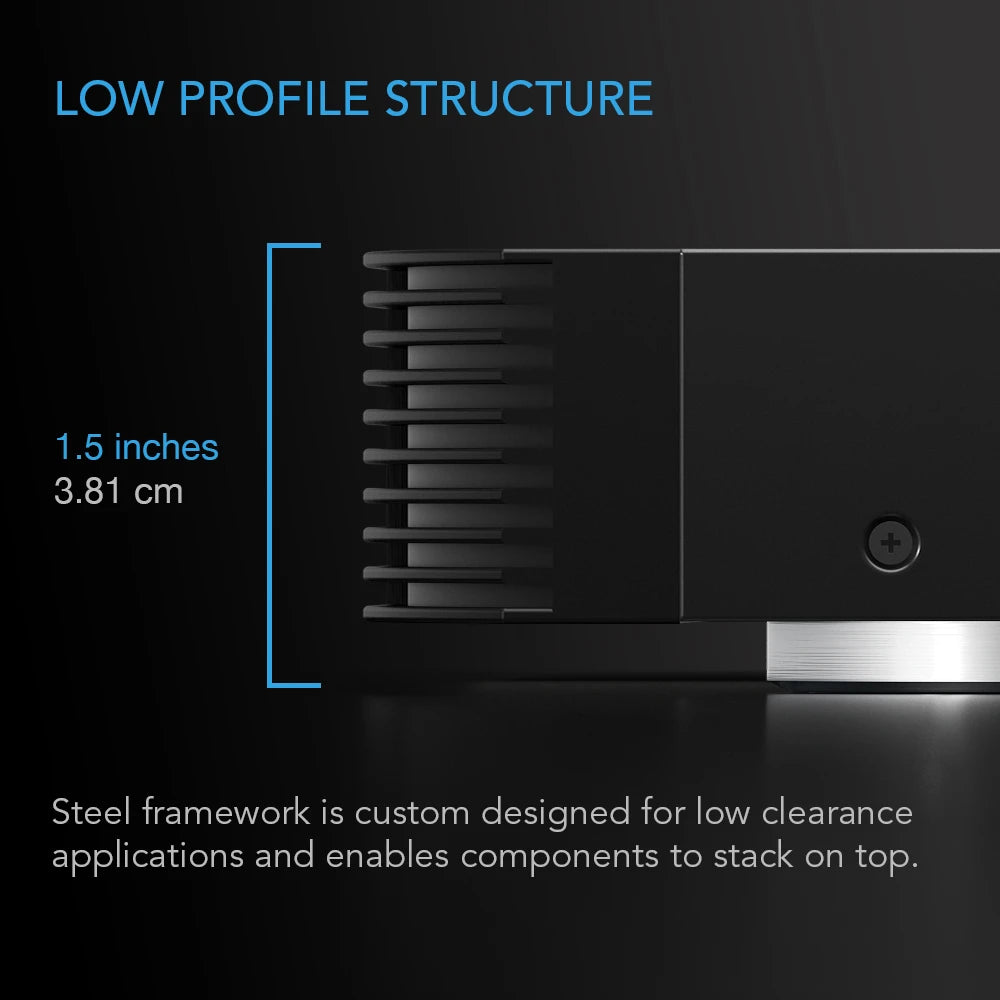

Low-Profile Design — 43.2 x 34.3 x 3.8 cm

Despite its large footprint and three-fan configuration, the T9 maintains the same slim 3.8 cm profile as the rest of the AIRCOM range, fitting neatly into AV cabinets and rack systems with limited vertical clearance. Its 43.2 x 34.3 cm surface area ensures even, full-coverage cooling across large receivers, amplifiers and DVRs.

Heavy-Duty Construction — Stack Up to 13.6 kg on Top

The aluminium and steel chassis is rated to support components stacked on top weighing up to 13.6 kg, making the T9 suitable for use between heavy components in a stacked rack system without any concern about structural integrity.

Universal Power Compatibility

The included 1.83 m corded power adapter accepts 100–240V AC input, making the T9 fully compatible with Australian mains power and universally compatible worldwide.

Triple Certified Quality

The AIRCOM T9 carries UL, CE and RoHS certifications — the same triple certification as the S9 — confirming compliance with North American and European safety and environmental standards.

In the Box

• AIRCOM T9 cooling fan system
• Corded power adapter (100–240V AC, 1.83 m cord)
