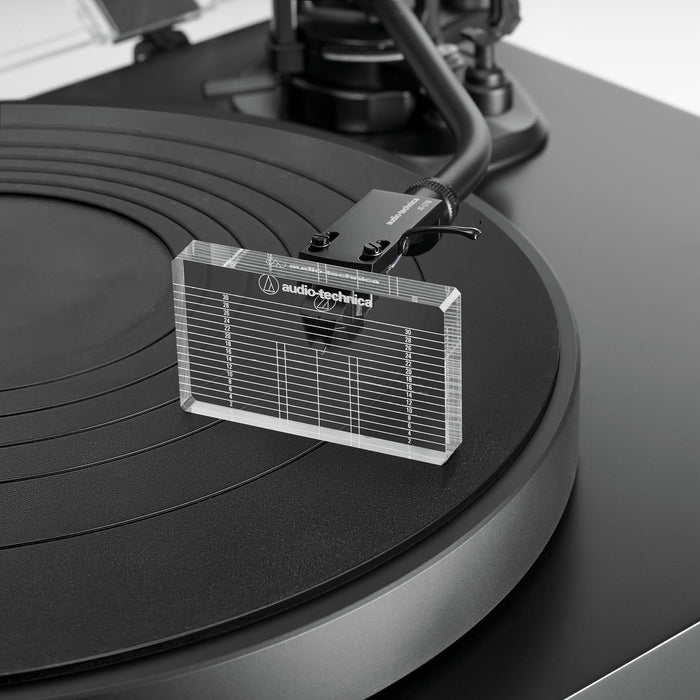

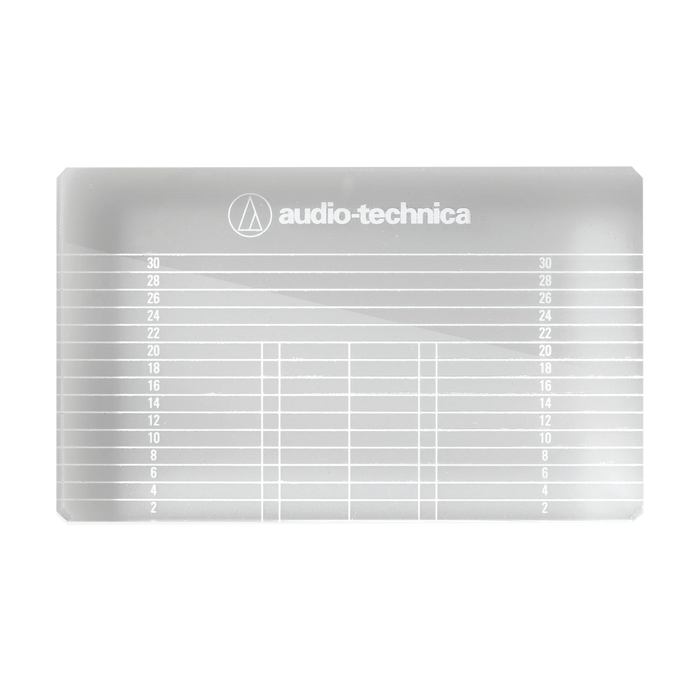

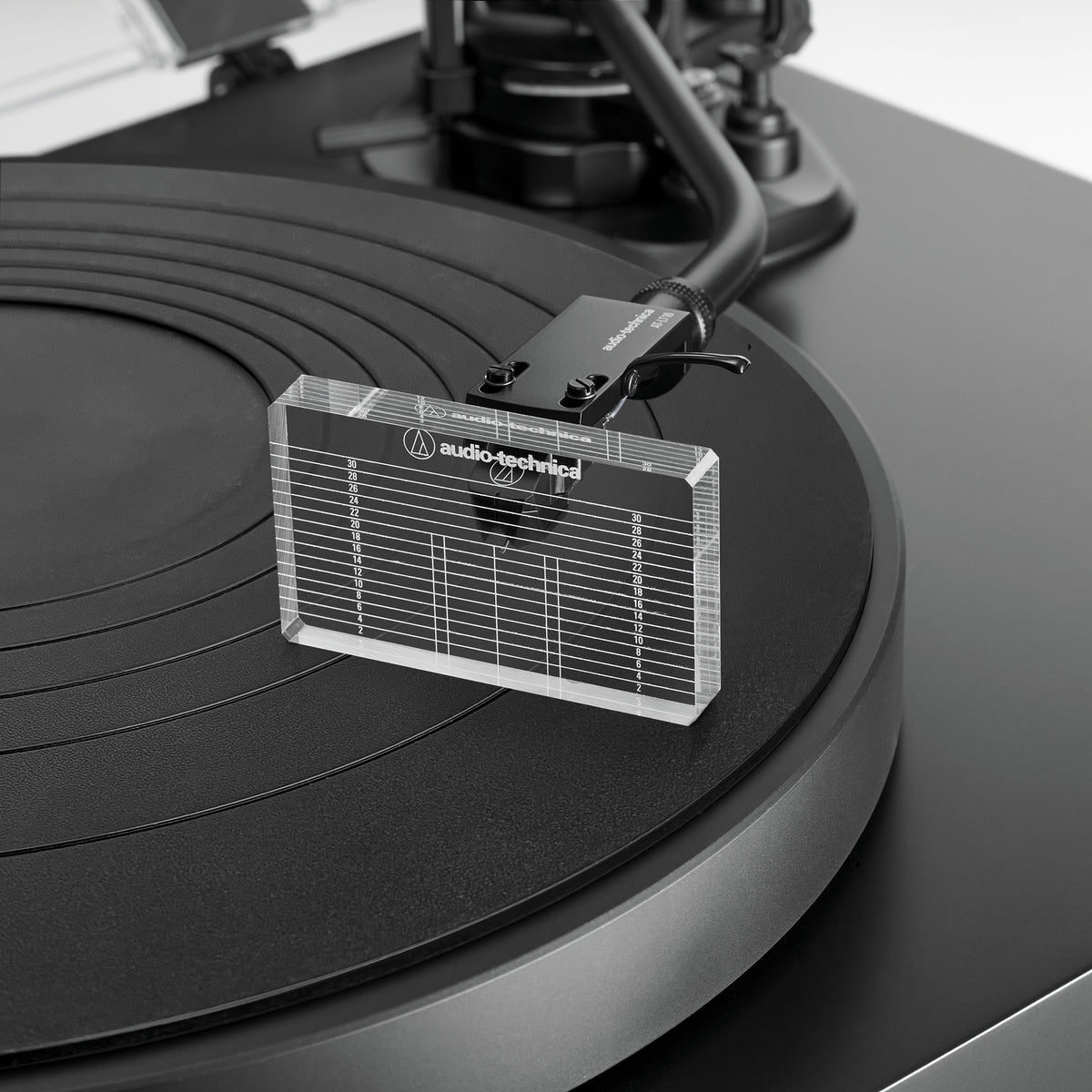

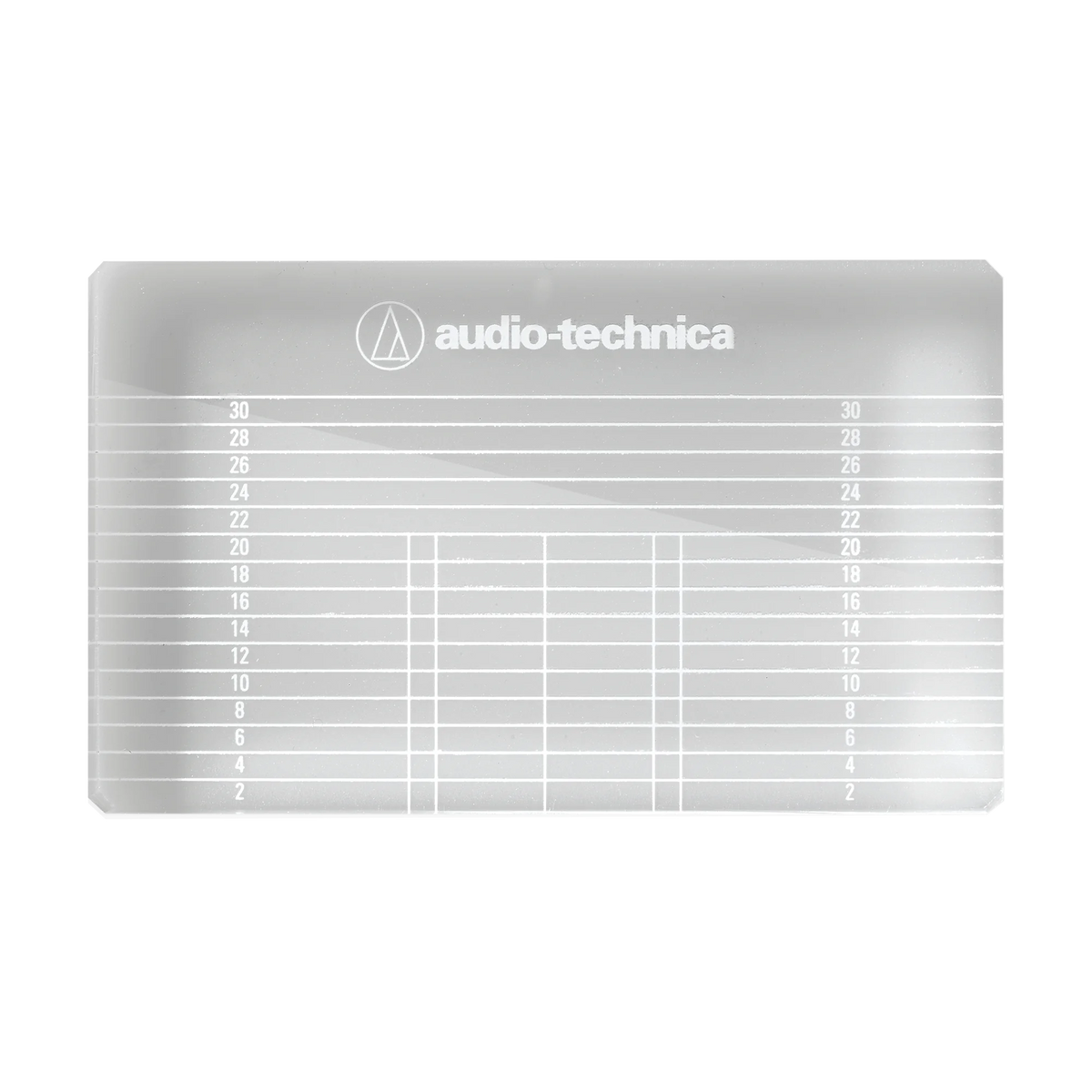

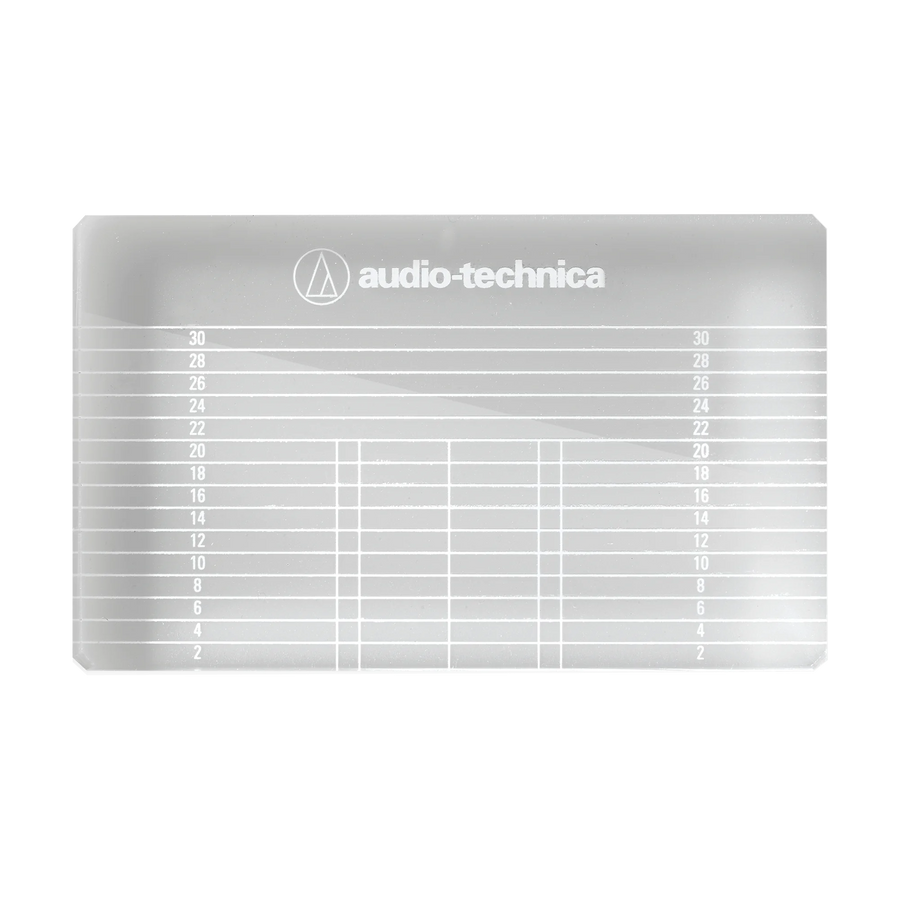

Audio-Technica - VTAZ1 - Azimuth & VTA Alignment Tool

Two of the most critical — and most often overlooked — adjustments in vinyl playback, addressed in one simple, elegant tool. The Audio-Technica AT-VTAZ1 helps you achieve accurate tonearm height and cartridge azimuth alignment for precise tracking and proper playback geometry.

The Difference Between Good and Great

Setting up a turntable is easy. Setting up a turntable correctly is an art. Most listeners adjust tracking force and antiskate — but fewer take the time to dial in azimuth and vertical tracking angle (VTA), the two adjustments that have an outsized impact on channel balance, stereo imaging, and the overall sense of presence and depth in the soundstage.

The Audio-Technica AT-VTAZ1 is designed to make both adjustments accessible, accurate, and repeatable. A simple, well-made tool that takes the guesswork out of two critical alignment parameters — and rewards the effort with a noticeable, immediate improvement in the way your records sound.

Azimuth — Left and Right in Balance

Azimuth describes the rotational angle of the cartridge relative to the record surface — essentially, whether the stylus sits perfectly perpendicular to the groove when viewed from the front. Even a small deviation from correct azimuth causes the two channels to be read at subtly different levels and with subtly different frequency responses, collapsing the stereo image, reducing channel separation, and robbing the music of its spatial dimension.

The AT-VTAZ1 provides a clear reference for setting azimuth accurately, ensuring the stylus meets the groove walls at precisely the correct angle — for a wide, stable, well-defined stereo image with maximum channel separation.

VTA — The Angle That Changes Everything

Vertical Tracking Angle (VTA) describes the angle of the stylus shank relative to the record surface. Most cartridges are designed to be played with the tonearm parallel to the record — but variations in tonearm height, cartridge body dimensions, and record thickness can all shift VTA away from its optimal point, affecting frequency response, detail retrieval, and tonal balance.

The AT-VTAZ1 gives you a reliable reference for setting tonearm height and achieving correct VTA — producing playback that is tonally balanced, dynamically accurate, and true to the original recording.

Simple. Effective. Essential.

The AT-VTAZ1 requires no batteries, no calibration, and no technical expertise to use. It is a straightforward, well-made tool that belongs in every vinyl listener's setup kit — from the casual enthusiast taking their first steps into proper turntable alignment to the experienced audiophile who knows that the fundamentals are always worth revisiting.

Feature Cards

📐 Azimuth Alignment

Achieve correct cartridge rotational angle relative to the groove for maximum channel separation, a wide and stable stereo image, and balanced frequency response from both channels.

📏 VTA / Tonearm Height Alignment

Set tonearm height accurately for correct Vertical Tracking Angle — ensuring tonally balanced, dynamically accurate playback that is true to the geometry the cartridge was designed for.

🎯 Precise Tracking Geometry

Proper azimuth and VTA alignment work together to ensure the stylus traces the groove as the cutting engineer intended — extracting maximum detail, dynamics, and spatial information from every record.

🔧 Simple & Ready to Use

No batteries. No calibration. No technical expertise required. A clean, effective tool that makes two of the most impactful turntable adjustments straightforward and repeatable.

Editorial Blockquote

"Use this tool to achieve accurate tonearm height and cartridge azimuth alignment for precise tracking and proper playback geometry." — Audio-Technica

At-a-Glance Bullets

• Sets cartridge azimuth — correct rotational angle for maximum channel separation and stereo imaging
• Sets VTA (Vertical Tracking Angle) — correct tonearm height for optimal playback geometry
• Simple to use — no batteries, no calibration required
• Compatible with the vast majority of tonearms and cartridges
• Essential accessory for any vinyl setup
• From Audio-Technica — one of the world's most trusted names in cartridge and turntable design
• RRP: A$22.95

Specifications

Closing Quote

"Two of the most impactful adjustments in vinyl playback — made simple. The AT-VTAZ1 is the small tool that makes a big difference to the way your records sound."
