Overview

BLACK EX AMP

Brand
Bel Canto
Category
Power Amplifiers
SKU
EXAMP

Not sure it's the right fit for your room or system? Our team can talk you through it.

Call 1300 308 711
Our thoughts

Unleash an unparalleled, immersive audio experience with the Bel Canto Black EX Dual Mono Amplifier. Crafted in a custom plated high-grade aluminium chassis, this amplifier echoes sophistication and durability. It boasts independent power supplies and amplifiers, crafting a true dual-mono performance unrivaled in the market. Armed with an impressive 350W/700W per channel, the EX Amplifier delivers high power accuracy, bringing life and musicality to your loudspeakers. It's always primed for high-performance operation, making it a perfect match for any loudspeaker. With high Dynamics Range, Low Noise, Distortion, and its proprietary SSHA (Single Stage High-Current Amplifier), it's designed for optimal sound delivery, remaining true to the audio source and offering a unique musical experience. Prepare to transform your soundscape with the Bel Canto Black EX Dual Mono Amplifier.

The Audio Tailor team, Murarrie showroom

Introducing the Bel Canto - BLACK EX Dual Mono Amplifier

The Bel Canto - BLACK EX Dual Mono Amplifier is a pinnacle of power and precision. It is designed to provide a recording-studio-like experience for high fidelity enthusiasts in the comfort of their own homes.

The amplifier features a custom plated high-grade aluminium chassis that houses independent power supplies and unique amplifiers for a true dual-mono performance. This configuration reduces cross-channel interference, resulting in robust sound imaging and a broad soundstage.

With a rating of 350W/700W per channel, this amplifier delivers musicality at an unprecedented level with laser precision and high-power accuracy. The advanced technology of the amplifier ensures efficiency and reliability for high-performance operations.

The amplifier is engineered to drive any loudspeaker with utmost clarity, producing ultra low-noise, high power amplification. It also allows for customization with internal gain switches for optimization to your unique system.

The Class D efficiency of the amplifier eliminates thermal modulation and provides resistance to output stage bias wander and sonic ghosting. This ensures steady and reliable performance.

The proprietary Single Stage High-Current Amplifier (SSHA) further enhances the listening experience by delivering unbeatable dynamic contrast and resolution.

Other features and benefits of the amplifier include its exquisite design, true dual-mono performance, high-quality audio output, customizable performance, and high dynamic range.

The detailed product specifications provide information on power output, frequency response, THD+N, input and output connections, and more.

Overall, the Bel Canto - BLACK EX Dual Mono Amplifier sets a new benchmark in the realm of high fidelity sound with its extraordinary power, adaptability, cutting-edge technology, and superior sonic quality.

Specifications

Technical details

Manufacturer specifications. Want to know how it compares with something else? Ask our team.

Specifications Details
Product Bel Canto - BLACK EX Amplifier - Dual Mono Amplifier
Power Output 1% THD Per Channel 700W 4 ohms, 350W 8 ohms
Minimum Load 2 ohms
Peak Output Current 27 amperes
Frequency Response +/-3 dB 0Hz-50KHz, all loads
THD+N 0.002% 1W, 1KHz, 4 ohms
IMD (CCIF) 0.0003%, 1W, 14:15KHz, 4 ohms
Output Noise 35uVRMS A-weighted 10Hz-20KHz
Voltage Gain 27dB (internal switches select for 33dB)
Damping Factor >500
Output Impedance at 100Hz <16 milliohms
Dynamic Range 126dB
Input Voltage for Max Output 2.3Vrms at 27dB gain

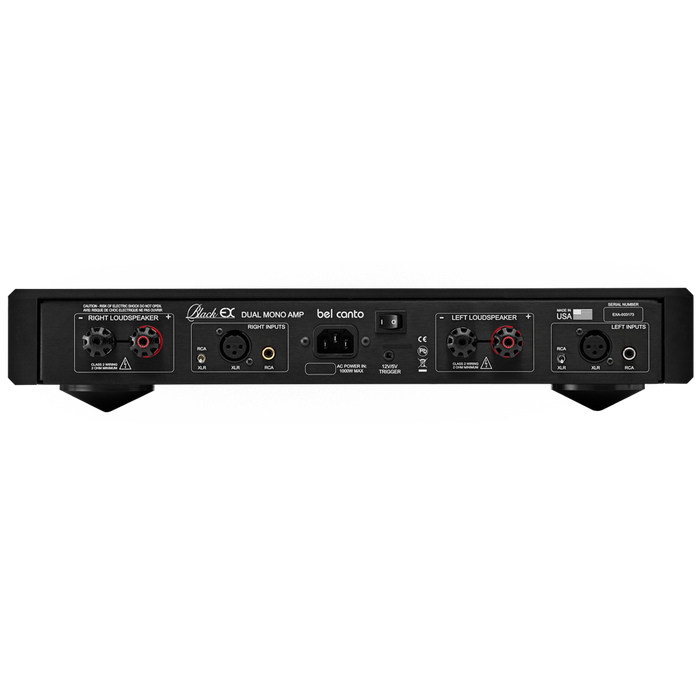

Input Connections Single-ended RCA or balanced XLR
RCA Input Impedance 100Kohms
Balanced Input Impedance 20Kohms
Output Connections 2 sets WBT Nextgen 5-way binding posts
Power On Usage 44W
Standby Usage 0.5W
Internally Set Operating Voltages 100-120VAC or 230-240VAC 50/60 Hz
Size 17.75 W x 15.5 D x 3.5 H inches, 451 x 394 x 89mm
Weight 25 lbs. (12kg)
Construct Custom plated high-grade aluminium chassis
Performance High-power amplification, ultra low-noise, high efficiency of Class D
Technology SSHA (Single Stage High-Current Amplifier), Single stage architecture of linear switching power stage

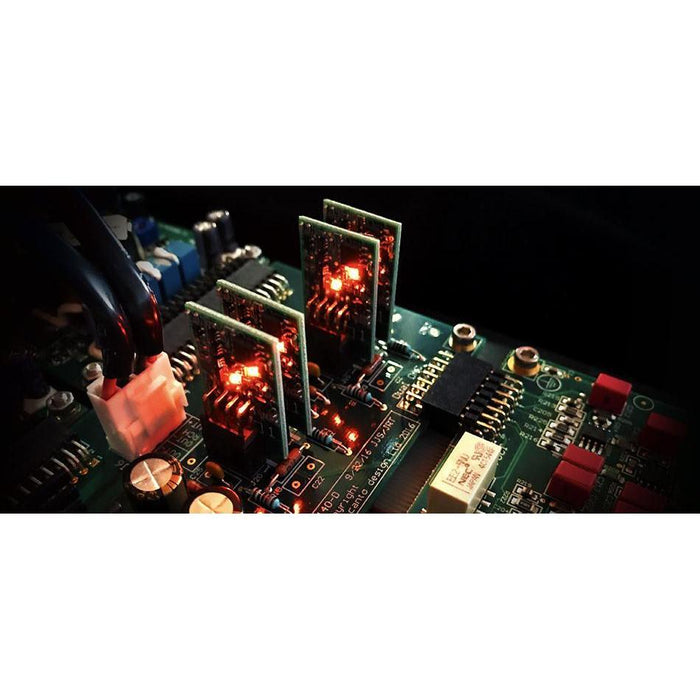

Design Ultra-short signal paths, minimal number of output devices, vertical modular design, efficient PCB layout
Features Independent power supplies and amplifiers, internal gain switches
