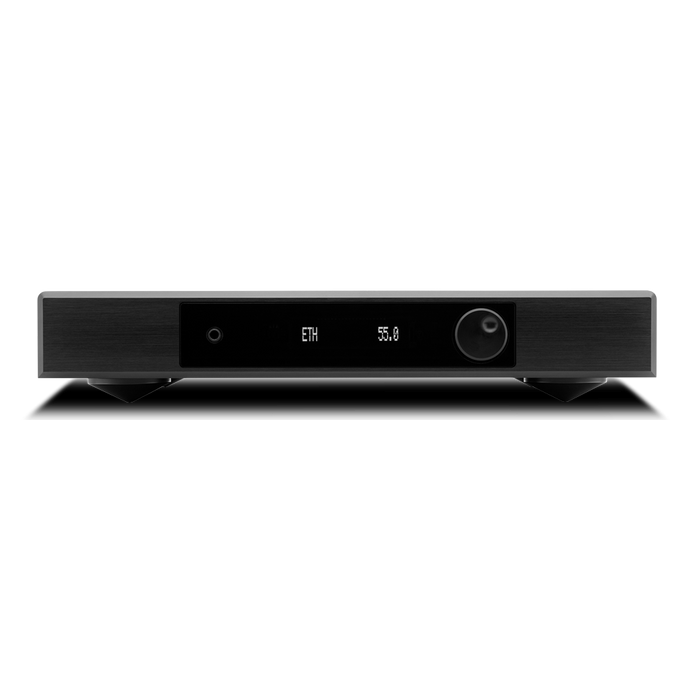

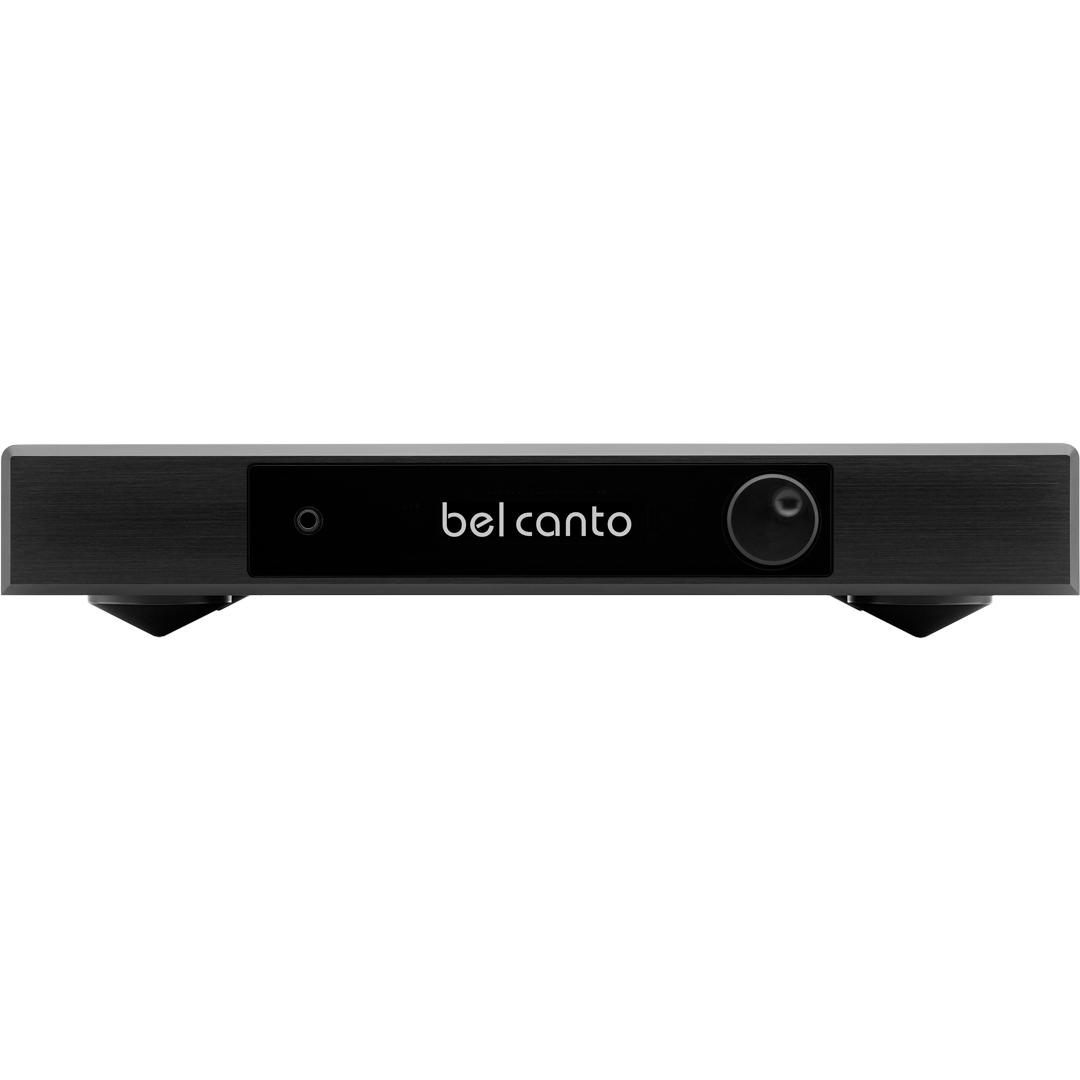

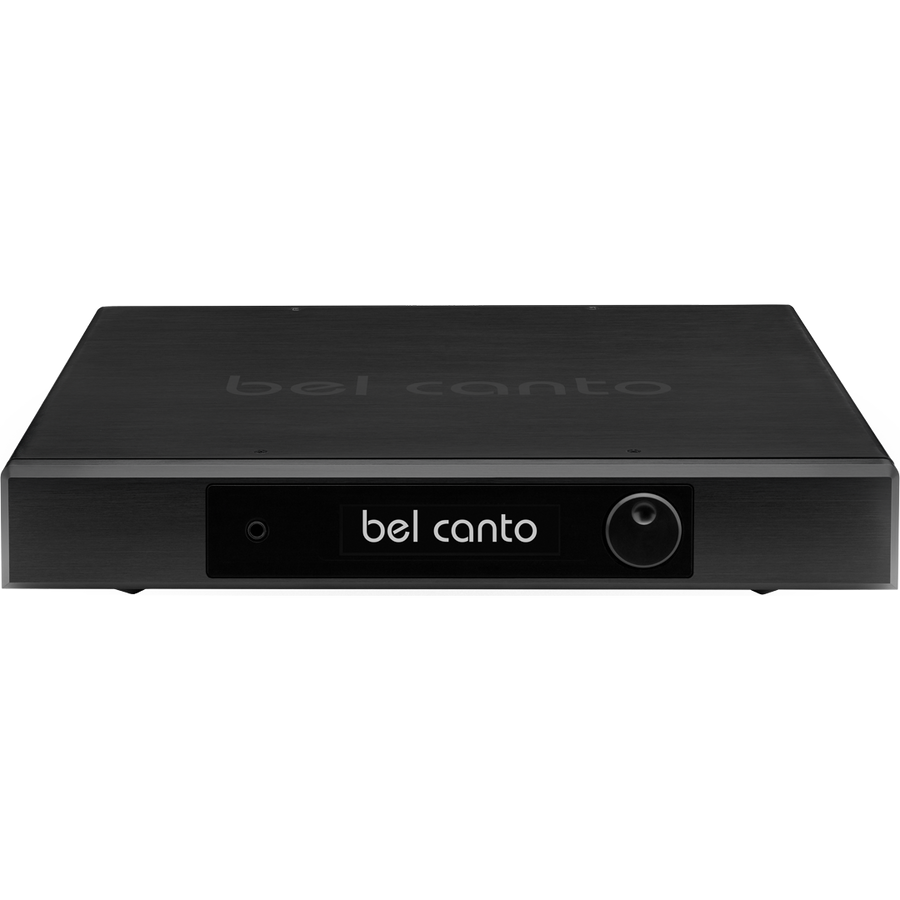

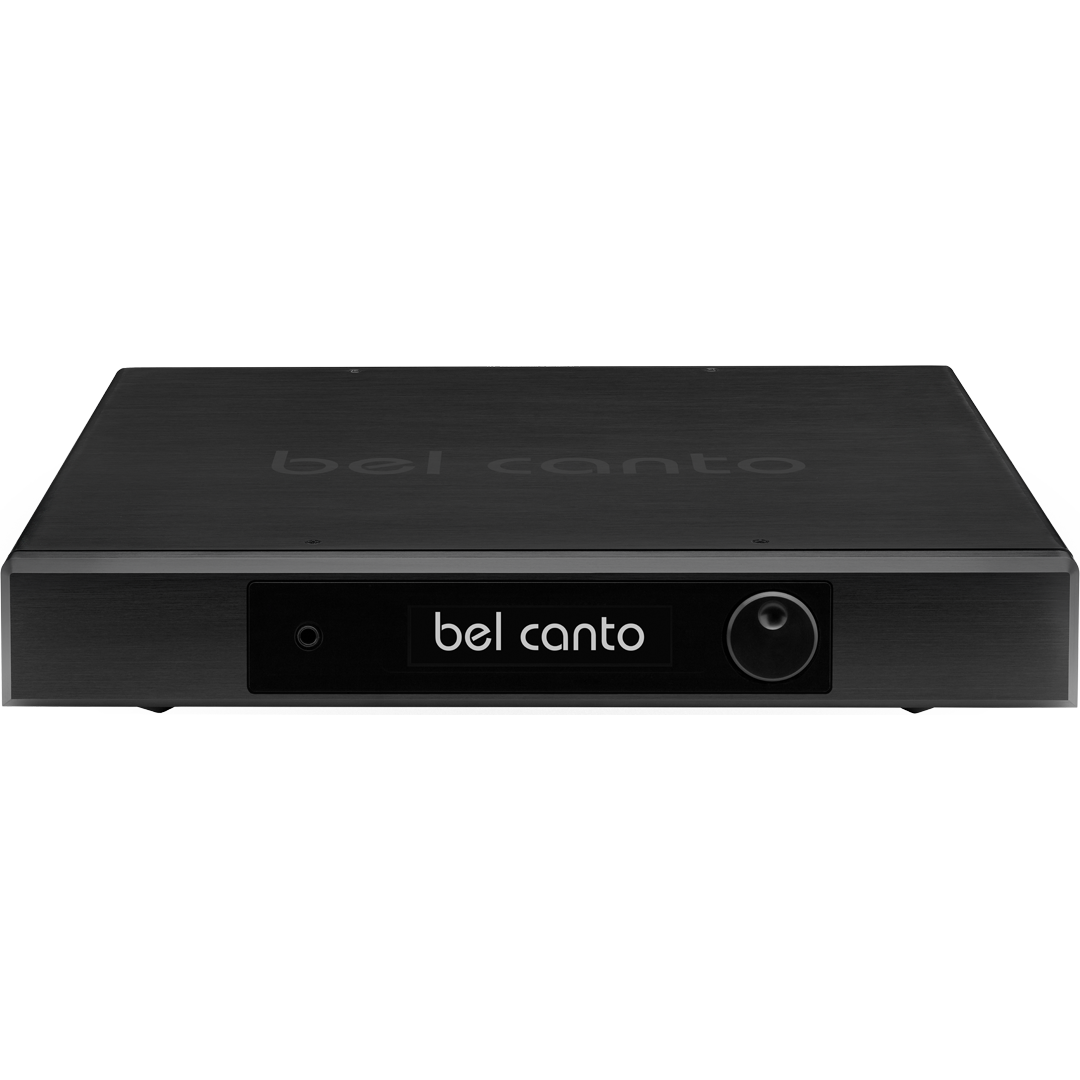

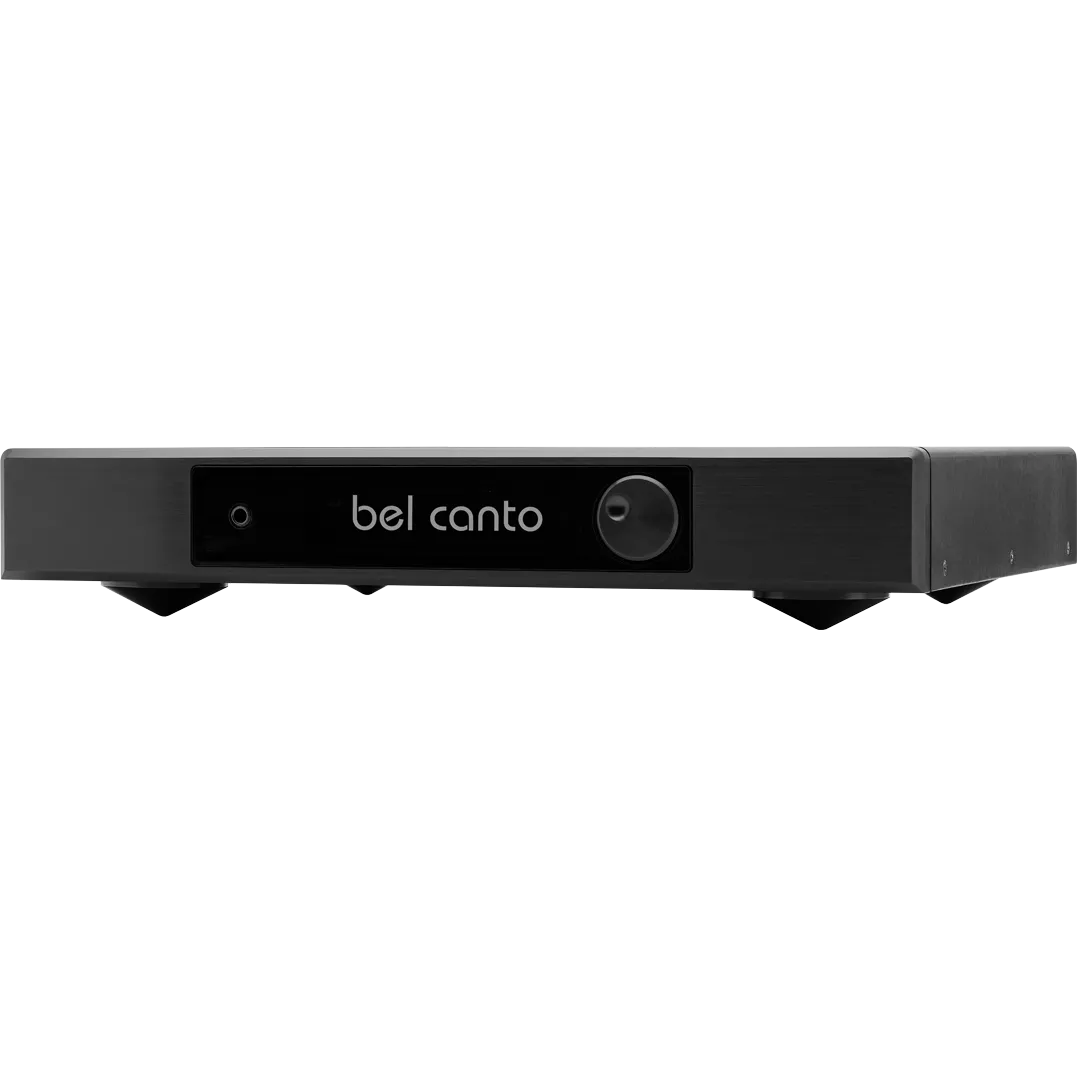

Bel Canto - E1X DC1 - DAC / Control Preamplifier

Twenty years of DAC evolution distilled into a single chassis. The Bel Canto E1X DC1 combines the award-winning BLACK system architecture with HDR-II and AMiP technologies — delivering uncompromised DAC, streaming, and phono stage performance in one profoundly musical platform.

---

Profound and Compelling. Uncomplicated and Uncompromised.

There is a clarity that only comes from getting everything right — every circuit path, every clock, every conversion. The Bel Canto E1X DC1 DAC/Control Preamplifier is the product of more than two decades of relentless digital audio research, refined through the design of Bel Canto's flagship BLACK system and brought together in a single, elegant chassis for those who demand the full potential from every source they own.

At its core are two of Bel Canto's most advanced proprietary technologies: the HDR-II (High Dynamic Range II) DAC core and the AMiP (Asynchronous Multi-Input Processor) platform. Together, they handle every source you care to connect — Ethernet streaming, USB, AES, S/PDIF, TosLink, line level analogue, and a full MM/MC phono stage — and convert, process, and deliver each with an accuracy and musicality that reveals the full emotional weight of the recording.

This is not transparency for transparency's sake. The E1X DC1 is built to render music as it was played — with clarity, dynamics, and an emotional presence that reminds you why you fell in love with sound in the first place.

HDR-II: Twenty Years of DAC Evolution

Bel Canto's High Dynamic Range II (HDR-II) core is the culmination of more than twenty years of digital-to-analogue design evolution. It achieves 126dB of dynamic range — higher than any analogue volume control could provide — ensuring completely transparent volume control at every listening level.

At the heart of HDR-II is a deliberate choice of Advanced Segment Technology DAC, combining multi-bit and delta-sigma technologies to deliver 132dB dynamic range with linear-phase digital filters. Operating in Constant Voltage, Class A Differential Current mode, it minimises distortion and maximises analogue purity. Ultra-Low Phase Noise Master Clocks run free from dedicated low-noise supplies, with two stages of asynchronous interfacing stripping jitter from every incoming digital source.

The result is a DAC that behaves in a true analogue fashion — with diminishing levels of distortion at lower output levels, where most music actually lives.

AMiP: Six Processors. Every Source. Zero Compromise.

The AMiP (Asynchronous Multi-Input Processor) platform is a powerful custom asynchronous core comprising six dedicated processors: two 32-bit XMOS general-purpose processors, two 32-bit ARM processors, and two dedicated audio processors. Together, they manage the Ethernet interface for Roon Ready and DLNA streaming, USB-A host input, USB2 24/384 input, legacy SPDIF/AES/TosLink digital inputs, and analogue line level and phono inputs — simultaneously and without compromise.

Dual free-running Ultra-Low Phase Noise Master Clocks direct all digital processing and strip incoming jitter from every external digital source. A 32-bit ARM core handles user interface and platform coordination. And custom Time Optimised Filters with integer up-sampling are designed to mimic the time domain response of an audio signal travelling through ten metres of open air — preserving the critical time relationships in the original music.

Pure Class A Differential Analogue Output

The E1X DC1's analogue output stage operates in pure Class A throughout. Large, constant-bias differential currents keep every precision resistor, film capacitor, and amplification device in thermal stasis — ensuring that all original signal dynamics are retained from input to output, without variation or compromise.

MM/MC Phono Stage

The dual-stage phono architecture begins with an ultra-low noise input RIAA amplifier with precision filter components and fixed 40dB gain, followed by a digitally controlled analogue variable gain stage accommodating a broad range of MM and MC cartridges. Input loading is fully configurable from the menu, allowing optimal impedance matching for MC cartridges. RIAA accuracy is ±0.25dB from 50Hz to 15kHz.

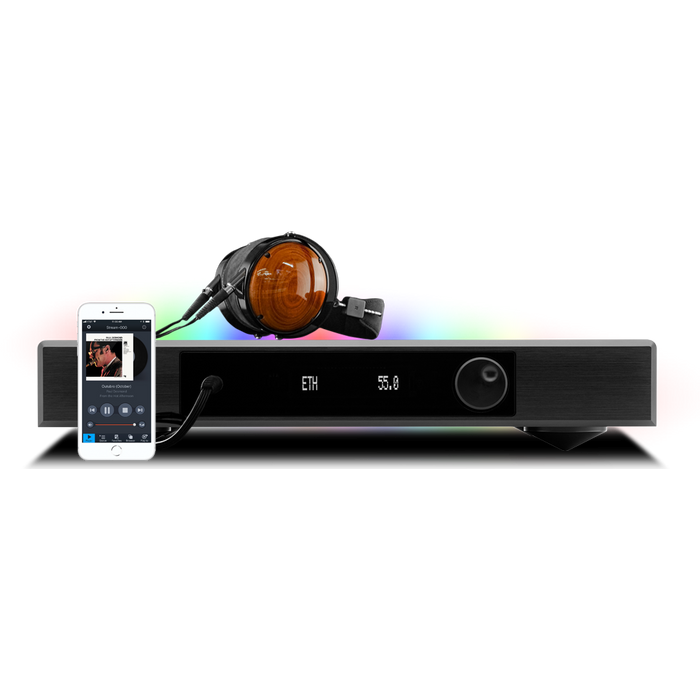

Headphone Output

A dedicated secondary DAC with 112dB dynamic range drives the headphone output through a high-current output buffer, capable of driving 32-ohm headphones to high levels with exceptional sonic detail and control.

Bass Management, Tilt & EQ

A custom 64-bit DSP engine embedded into the internal signal path enables Bel Canto's precision filter and equaliser functions — with no risk of noise, distortion, or response errors from traditional analogue filtering. The Tilt function adjusts high and low frequencies simultaneously around a 775Hz axis point, ideal for correcting tonal balance in sonically challenging recordings or rooms. Bass EQ provides ±3dB of control below 200Hz. Independent high-pass and low-pass filters (adjustable from 40Hz to 120Hz) enable seamless subwoofer integration. A user-configurable maximum volume setting prevents inadvertent damage to speakers.

Always Up to Date

The Ethernet connection enables over-the-network firmware updates at any time, ensuring the E1X DC1 is always running the latest software — without power cycling or manual intervention.

---

Feature Cards

🎛️ HDR-II DAC Core — 126dB Dynamic Range

Twenty years of DAC evolution in a single proprietary core. Advanced Segment Technology combining multi-bit and delta-sigma design delivers 132dB dynamic range, Class A Differential Current output, and Ultra-Low Phase Noise clocking — for sound that is as analogue in character as it is digitally precise.

⚙️ AMiP Platform — Six Processors, Every Source

Bel Canto's Asynchronous Multi-Input Processor handles Ethernet (Roon Ready, DLNA), USB, AES, S/PDIF, TosLink, analogue line level, and MM/MC phono — simultaneously and without compromise, driven by dual free-running Ultra-Low Phase Noise Master Clocks.

🎙️ MM/MC Phono Stage

A dual-stage analogue phono architecture with ultra-low noise RIAA amplifier, fixed 40dB gain, digitally controlled variable gain, and configurable MC input loading — delivering ±0.25dB RIAA accuracy from 50Hz to 15kHz.

🎧 Dedicated Headphone Output

A secondary 112dB dynamic range DAC drives the headphone stage through a high-current output buffer — capable of driving 32-ohm headphones to high levels with full sonic integrity.

---

Editorial Blockquote

"The E1X sonic characteristic emphasises profound and compelling musical expression. Its advanced HDR-II and AMiP architecture preserves signal integrity and reveals clear, dynamic, and naturally expressive sound." — Bel Canto Design

---

At-a-Glance Bullets

• HDR-II proprietary DAC core — 126dB dynamic range, Class A Differential Current output
• Advanced Segment Technology DAC — 132dB dynamic range, linear-phase digital filters
• AMiP asynchronous multi-input platform — 6 dedicated processors
• Roon Ready via 10/100 Ethernet streaming
• DLNA network streaming
• USB-A host streaming input
• USB2 input — up to 24-bit/384kHz and DSD64 (DoP)

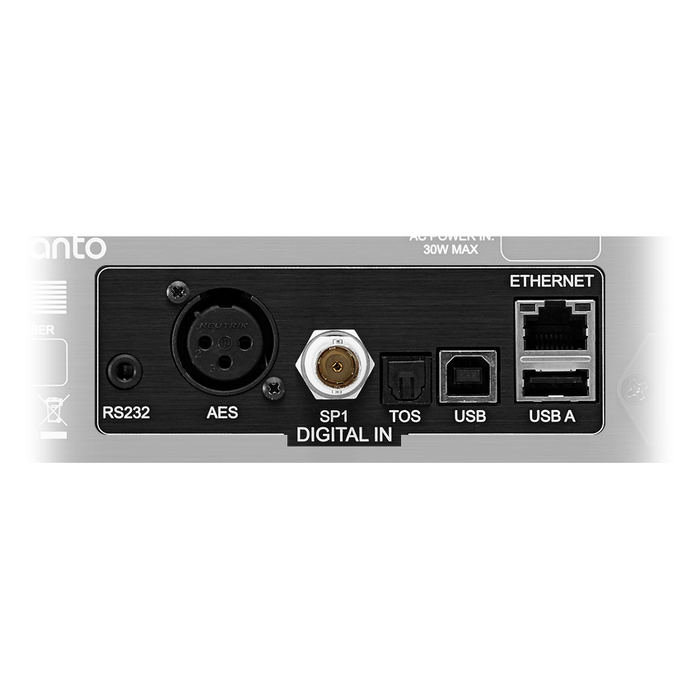

• AES, S/PDIF, TosLink digital inputs — up to 24-bit/192kHz
• MQA decoding
• DSD64/128 via Ethernet; DSD64 DoP via USB
• MM/MC phono stage — software-controlled loading, ±0.25dB RIAA accuracy

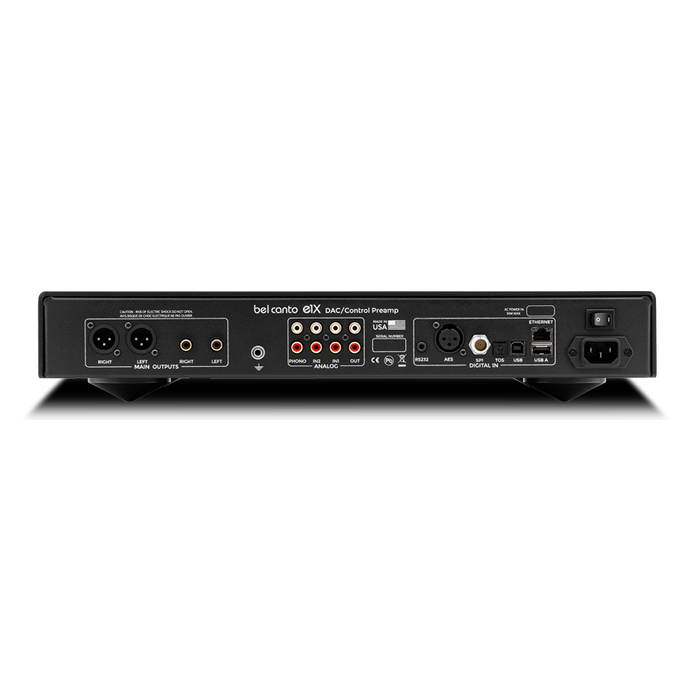

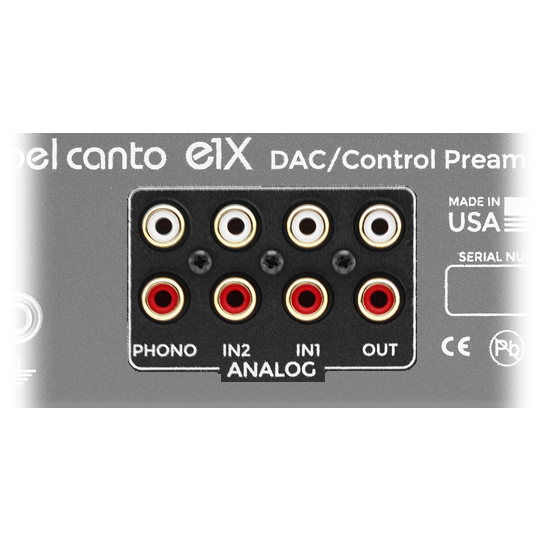

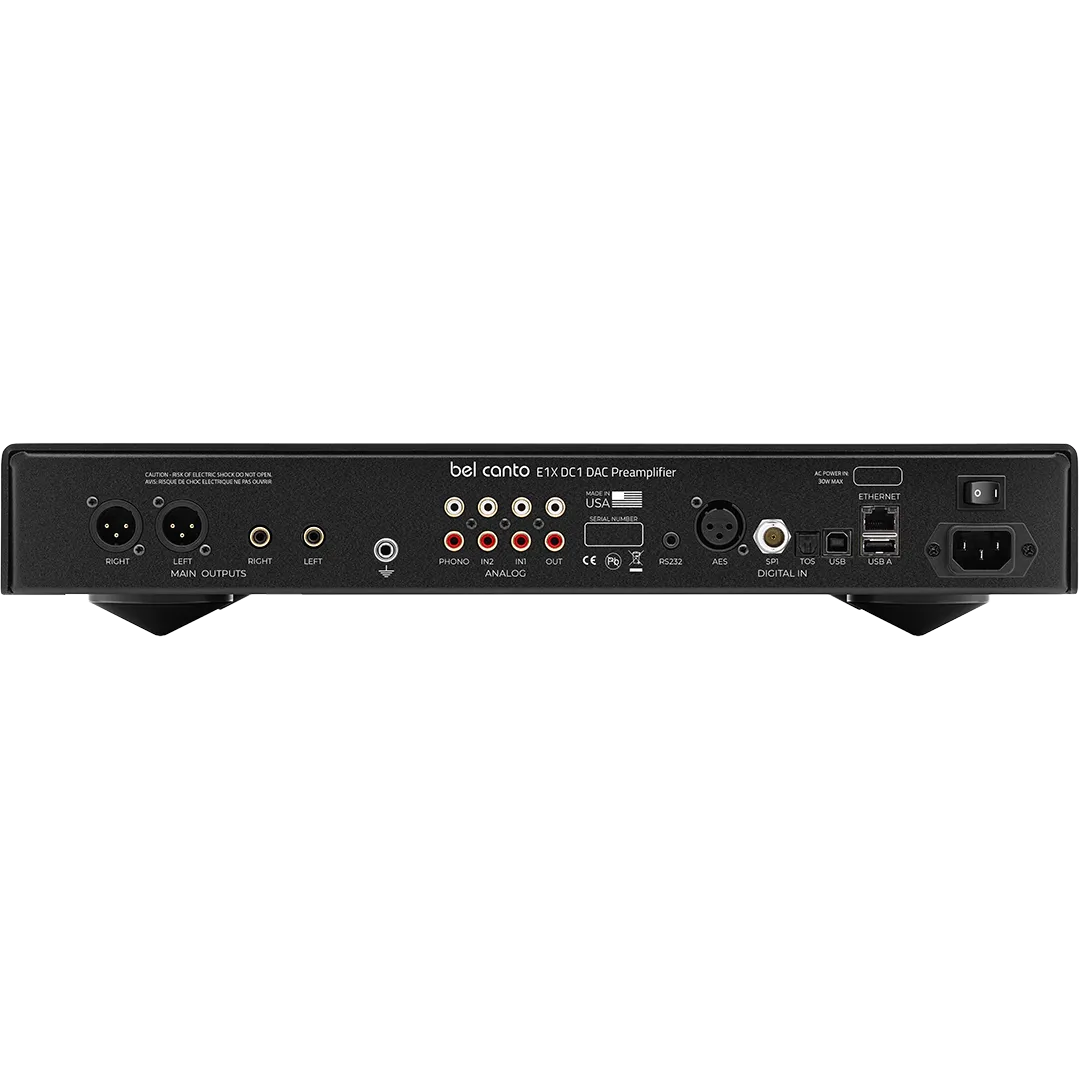

• 2 × line level analogue inputs (RCA) — 110dB dynamic range
• Balanced XLR outputs — 5.5Vrms
• RCA outputs — 2.75Vrms
• Dedicated headphone output — 112dB dynamic range DAC, 4.5Vrms
• Subwoofer output with bass management
• 64-bit DSP — Tilt EQ, Bass EQ, high-pass/low-pass filters (40–120Hz)
• Dual Ultra-Low Phase Noise Master Clocks — asynchronous, jitter-free
• Custom Time Optimised Filters with integer up-sampling
• Over-the-network firmware updates via Ethernet
• Configurable maximum volume setting
• Dimensions: 451 × 400 × 83mm — Weight: 6.4kg

---

Finish / Colour Options

• Black

---

Specifications

Maximum Data Input Rates

DAC Performance

Low Level Outputs

Main Outputs

MM/MC Phono Stage

Line Level Inputs

General

---

Closing Quote

"Twenty years of audio DAC design evolution. Six dedicated processors. One chassis. The Bel Canto E1X DC1 is for music lovers who want an uncomplicated, uncompromised, and exhilarating home audio experience — and won't settle for anything less."
