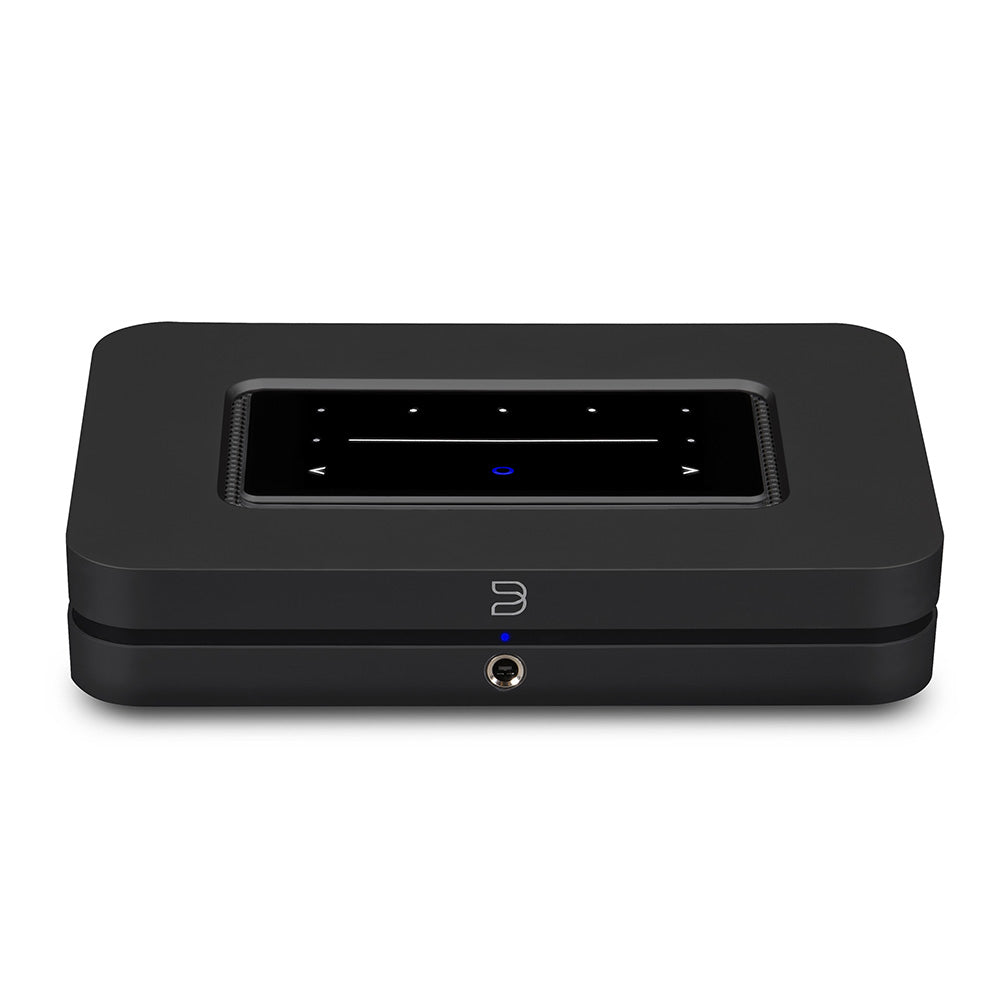

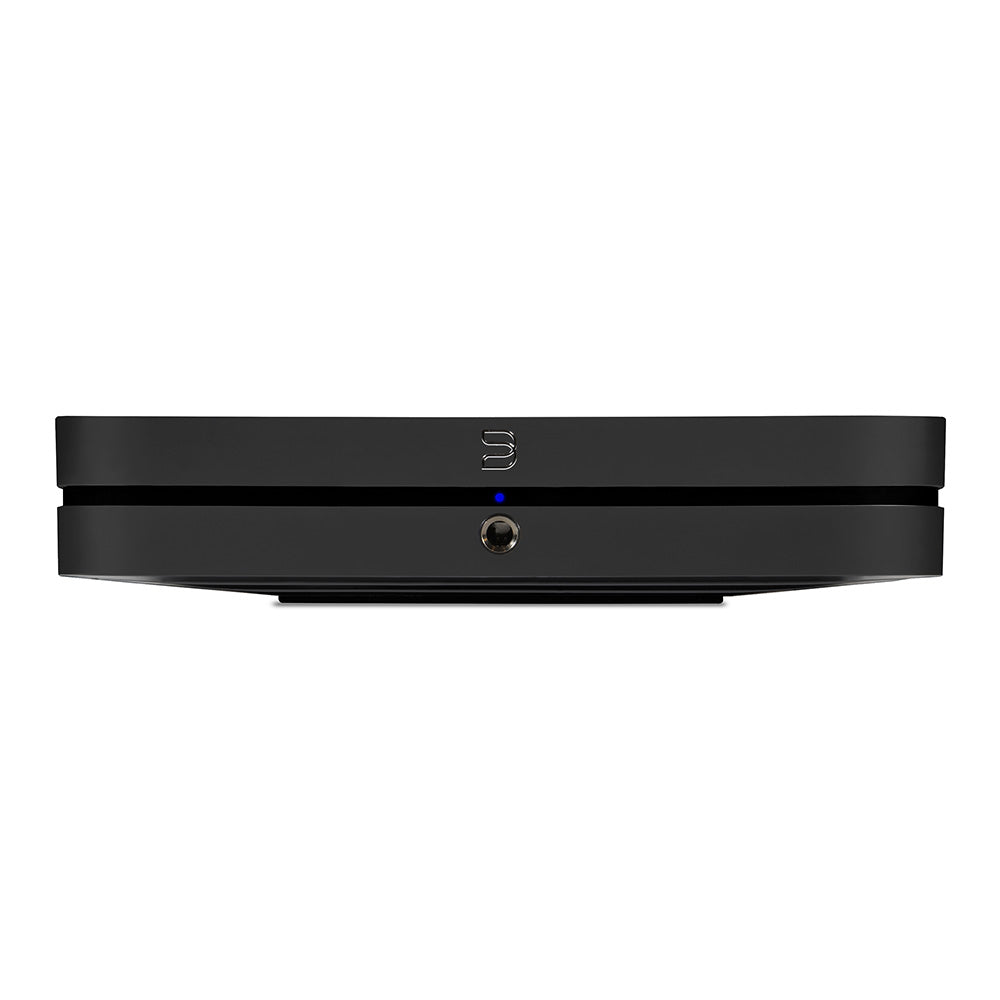

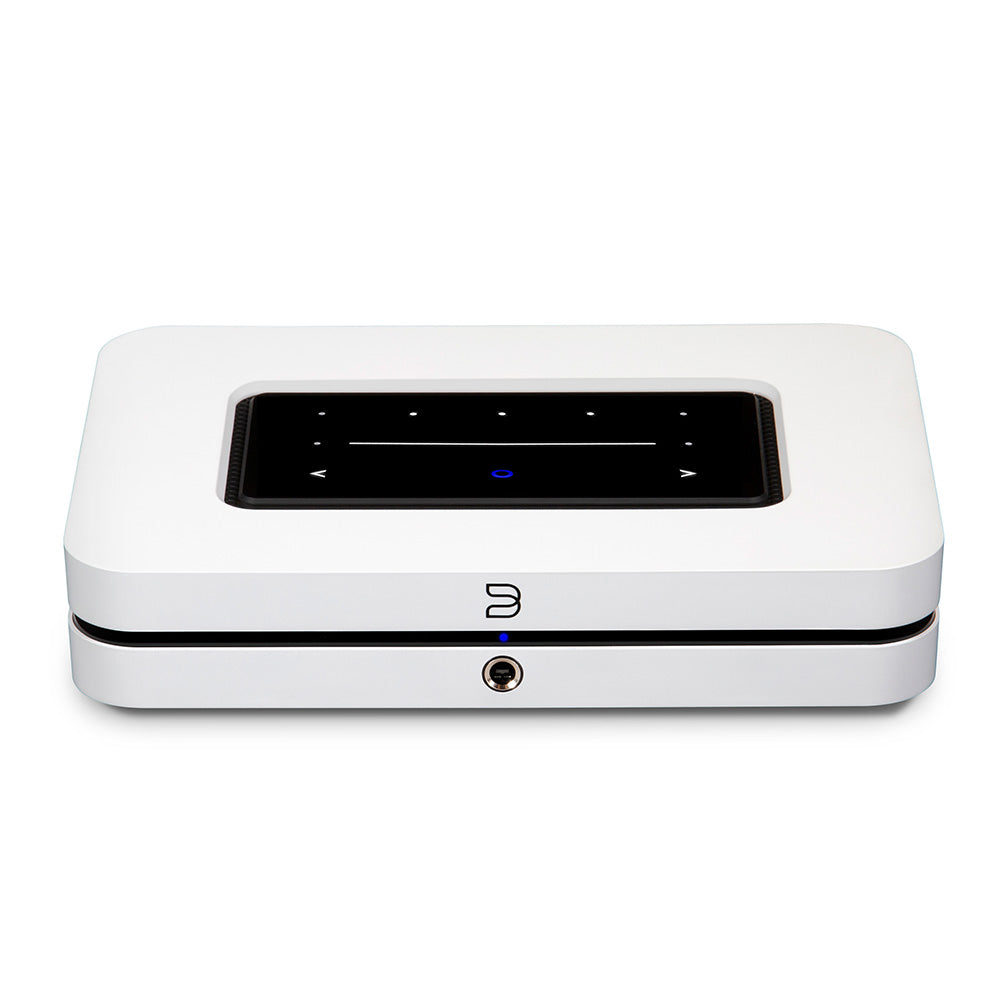

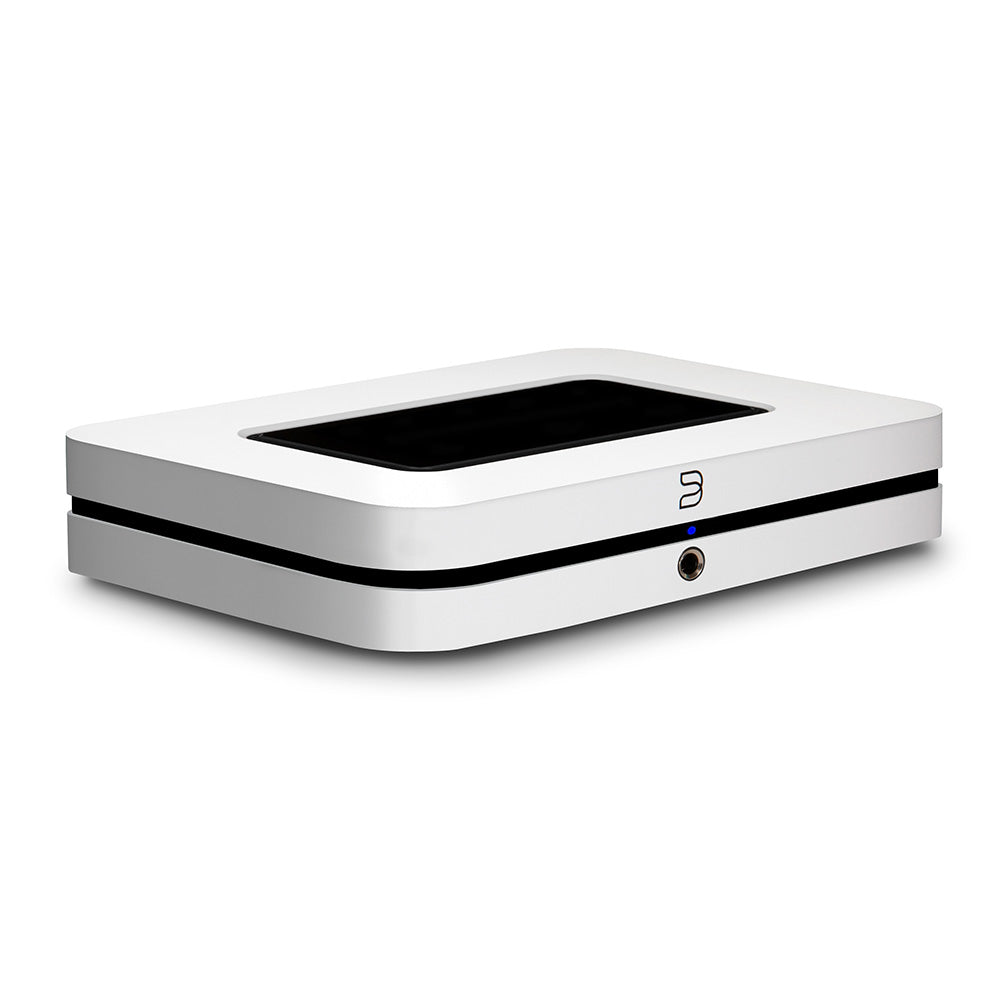

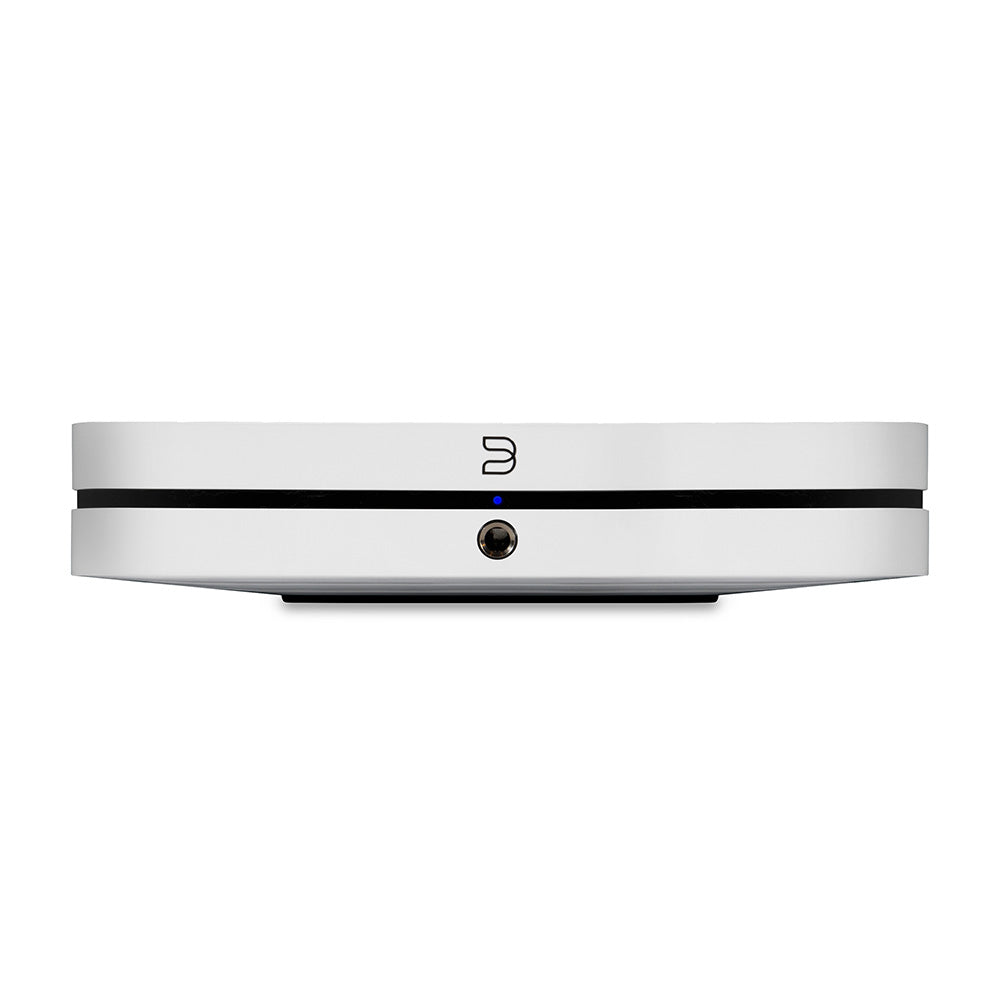

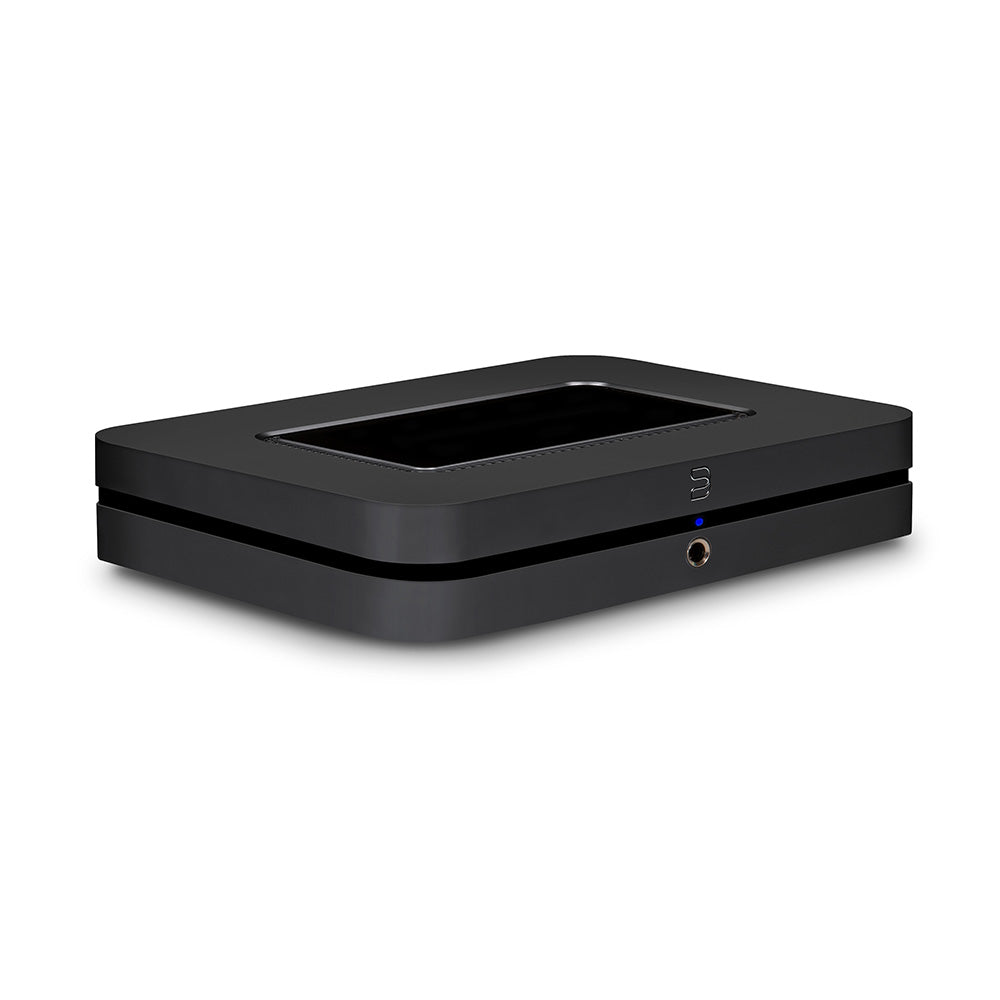

Bluesound - NODE N132 - Performance Music Streamer

Performance Music Streamer

There's nothing like a BLUESOUND NODE, the original hi-res multiroom wireless streamer.

Simply put, there is nothing like the NODE. With re-engineered components and circuitry for even better performance, the original wireless hi-res music streamer now features built-in THX AAA™ headphone technology, DSD playback, and more. Connect it to your stereo system and stream music, radio, podcasts, and more from popular streaming services or your personal library. With HDMI eARC, Dolby Digital decoding, and Apple AirPlay 2, the NODE is at the core of your home audio experience, with the flexibility to wirelessly connect to Bluesound Players for seamless multi-room music throughout the home.

• ESS ES9039Q2M SABRE® DAC
• Quad-core 1.8GHz ARM® Cortex™ A53 processor
• THX AAA™ headphone amplifier technology
• Full-sized 1/4″ (6.3mm) headphone output
• HDMI eARC, Optical inputs
• Dirac Live Ready*
• Five programmable quick-touch presets
• User interface with proximity sensor
• AirPlay 2 integration
• Spotify Connect + TIDAL Connect

*Available via future software update

BETTER DOWN TO EVERY SONIC DETAIL

The NODE delivers precision-engineered sound with its improved ESS SABRE® DAC (ES9039Q2M) and audiophile-grade circuitry, designed to reduce jitter and interference. Enjoy clean, clear audio that brings out every detail of your music through your favourite amp or powered speakers.

YOUR MUSIC AND MORE

Stream everything at the highest quality with control of the BluOS app, from popular music streaming services to personal music libraries with thousands of tracks in HD quality. Apple AirPlay 2 and aptX Adaptive Bluetooth* are also built-in for even more music from more apps and services.

GO BEYOND THE HIFI SYSTEM

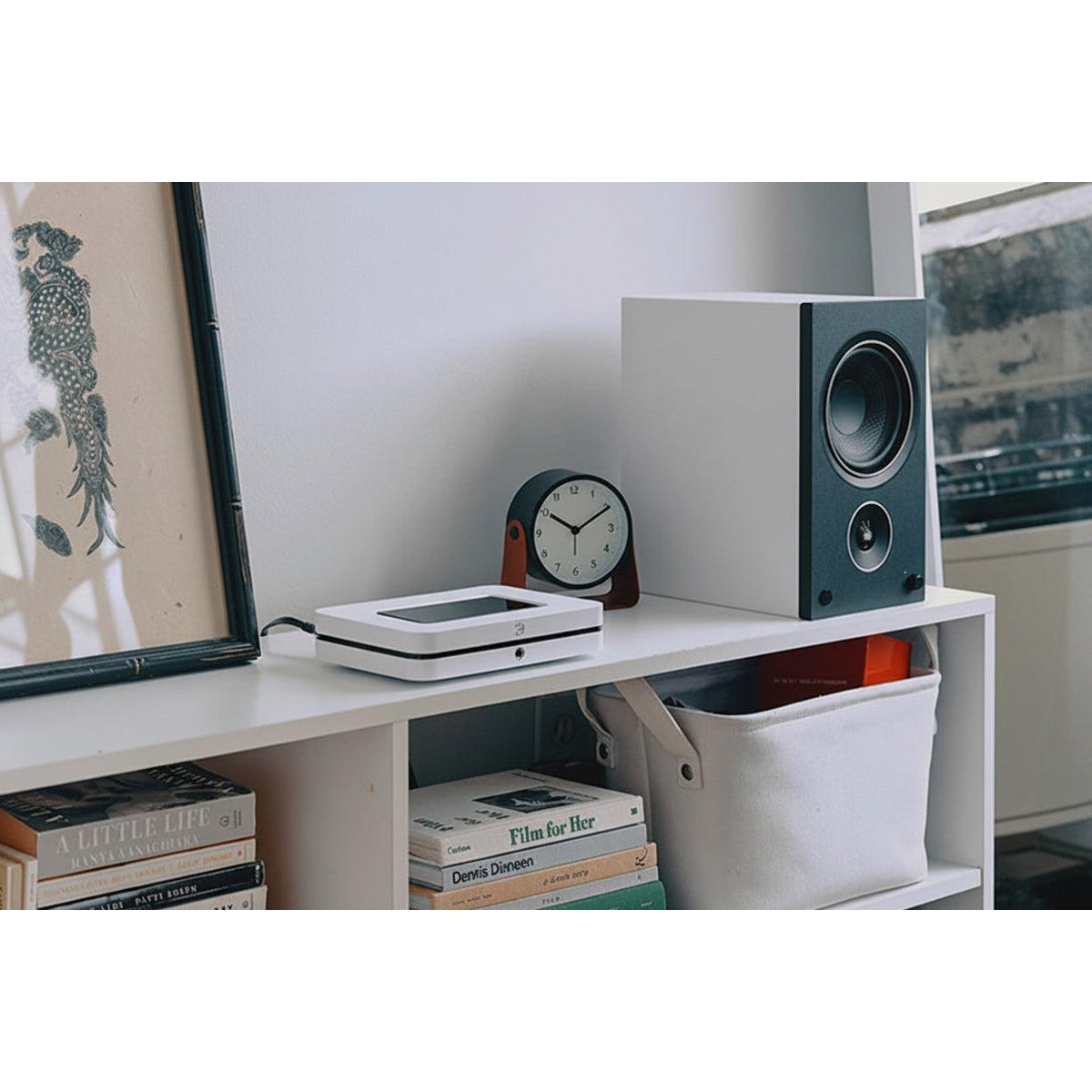

Wirelessly connect the NODE to Bluesound speakers and stereo components to create an immersive multi-room system, powered and controlled by BluOS throughout the home with dual band Wi-Fi and gigabit ethernet. Enjoy HiFi quality sound in any and every room without dropouts or interruptions.

WORLD-CLASS HEADPHONE TECHNOLOGY

Experience lifelike headphone listening with THX AAA™ headphone technology, providing the world’s most linear response and minimal distortion for exceptional clarity. Connect your high-performance headphones to the 1/4" jack and enjoy audiophile-quality sound.

CONNECT EVERYTHING

The NODE is fully equipped with digital/analog inputs and outputs, making it incredibly versatile in any stereo or home audio setup with Stereo RCA, Optical, USB, and more. Connect it to your TV via HDMI eARC and use its built-in IR learning for seamless universal control of any remote. Program up to five presets on a proximity-sensing touch panel for quick and easy access of your favourite sources.

SMART ACOUSTICS

With Dirac Live Room Correction* as an available upgrade, you can use sophisticated room correction technology and measure room acoustics to eliminate standing waves, reverberations, and other unwanted distortions. A calibration kit with a high-sensitivity mic is also required and available from Bluesound with additional purchase.

SPECIFICATIONS

Audio

• Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
• Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
• DSD Support: DSD256, available via future BluOS update
• Supported Multi-Channel Audio Formats: Dolby Digital®
• Native Sampling Rates: up to 192 kHz
• Bit Depth: 16-24
• Audio Controls & EQ: BluOS Controller App
• DAC: ESS ES9039Q2M
• Signal-to-Noise Ratio: -118 dB
• Distortion: THD+N, 0.0007%
• Headphone Continuous Output Power (THD<0.1%): 160mW, 16Ω; 230mW, 32Ω; 53mW, 250Ω; 22mW, 600Ω

Software & Integrations

• Operating System: BluOS
• App Controller Operating System: iOS, Android, Windows, macOS
• Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
• Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
• Album Art Supported: JPG, PNG
• Music Services: 23+: Amazon Music, Bugs, CustomChannels , Deezer, IDAGIO, KKBOX, Napster, Neil Young Archives, nugs.net, Pandora , Presto Music, Qobuz, Qsic, Spotify, SOUNDMACHINE , TIDAL, Tunify & more
• Internet Radio: CALM Radio, SiriusXM , iHeartRadio, LiveOne, Audacy, Radio Paradise, TuneIn & more
• 3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
• Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
• Voice Control Integrations: Amazon Alexa Skills

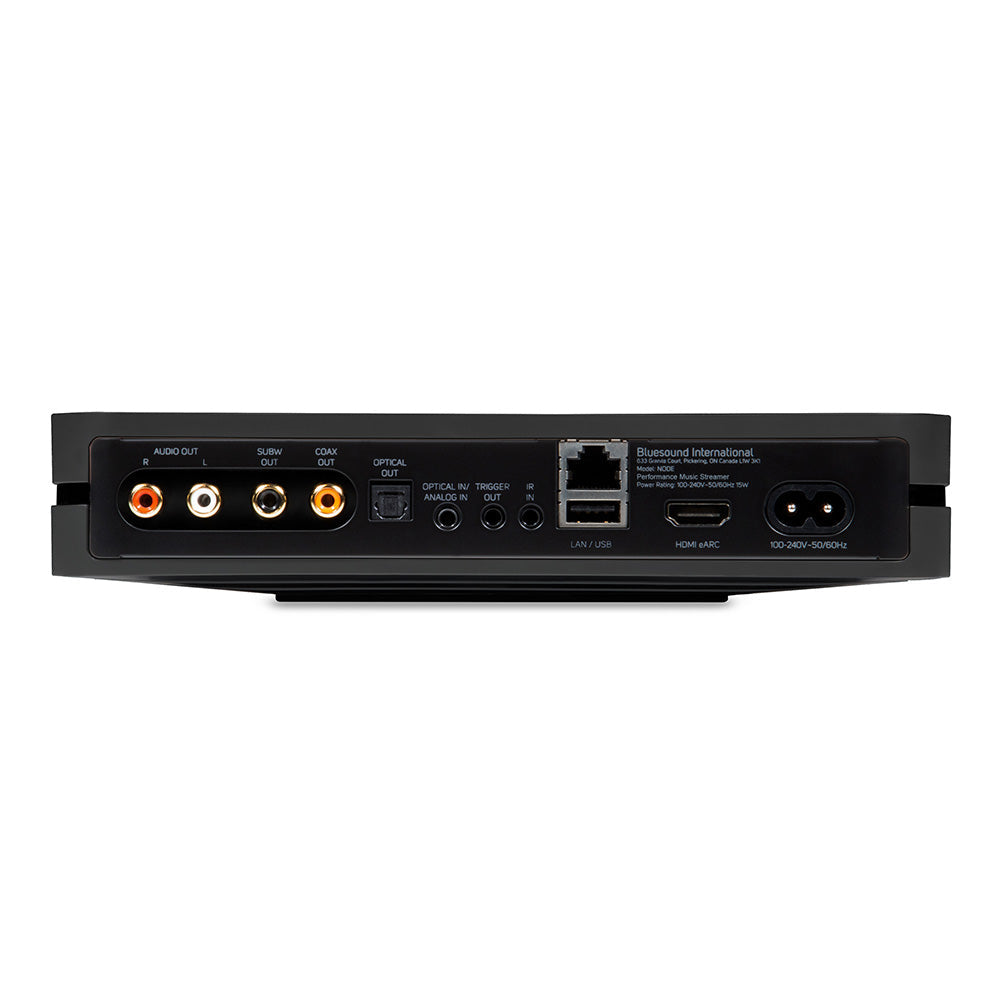

Connections

• Power Supply: Universal bi-pin AC cord input (100-240AC)
• Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
• Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
• Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
• Bluetooth Connectivity: Two-Way (transmit & receive)
• IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
• Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm
• IR Input: 3.5mm Jack
• HDMI Input: HDMI eARC
• USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
• Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
• Coaxial Output: RCA
• Optical Output: TOSLINK digital optical
• Trigger Out: 12 Volt
• Headphone Output: 6.3mm Stereo; Bluetooth
• Subwoofer Output: RCA x 1; Wireless to PULSE SUB+

User Interface & Control

• Status Indicator: LED x 2
• Play/Pause Button: Touch LED
• Volume Control Buttons: Touch Slider LED
• Preset Buttons: Touch LED x 5
• Proximity Sensor: Yes

General

• Finish: Black or White: Matte Satin Paint
• Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
• Operating Environment: 0°C to 40°C
• Version: N132
• Product Dimensions: 220 x 46 x 146 mm (W x H x D); 8.7 x 1.8 x 5.7 in (W x H x D)* (*Non-metric measurements are approximate)
• Product Weight: 1.09kg/2.4lbs
• Included Accessories:120V AC Power Cord, 230V AC Power Cord, Stereo RCA to RCA Cable, Ethernet Cable, Mini Jack to Toslink Adapter, Safety/Warranty Guide, Quick Setup Guide, Dirac Live Ready Info Card
