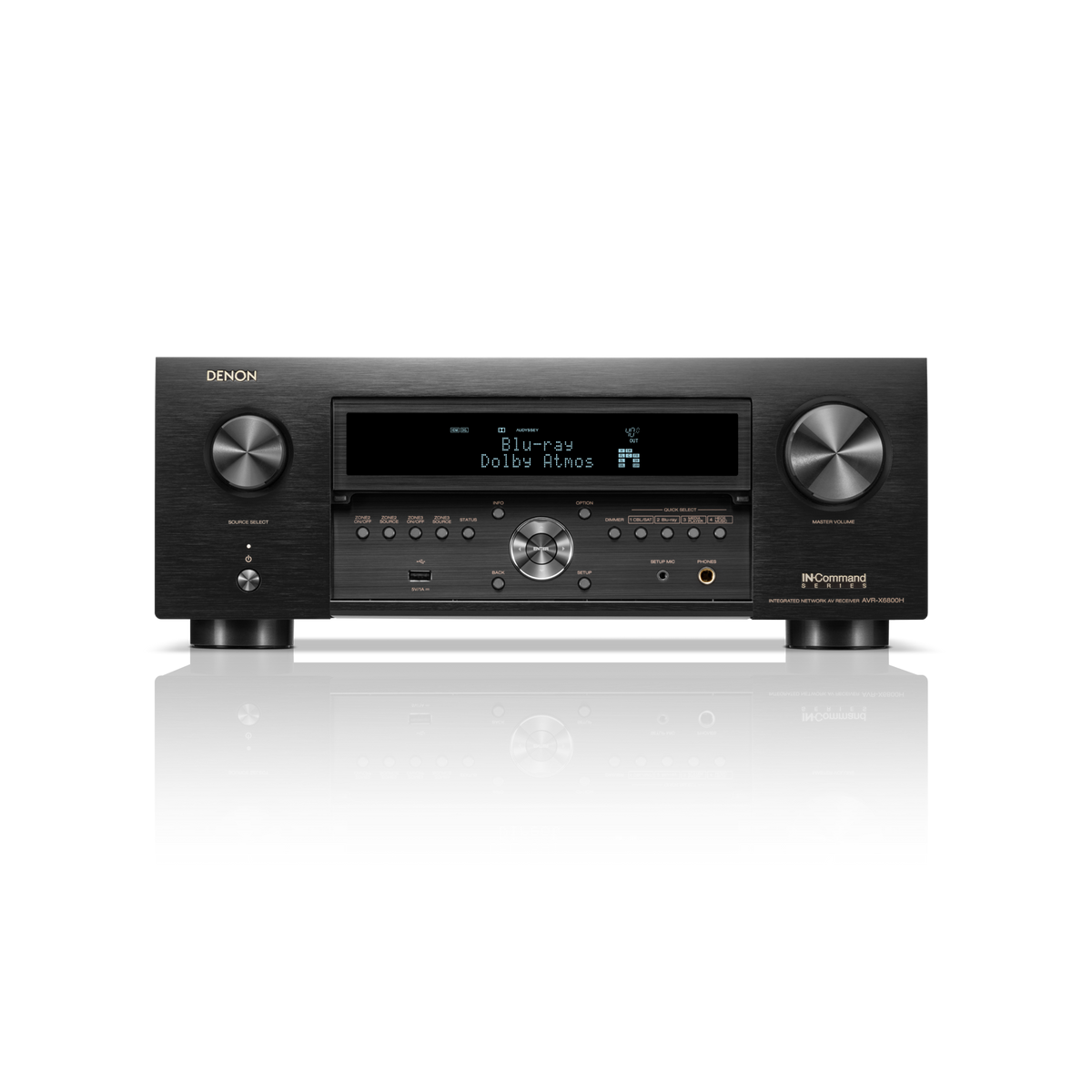

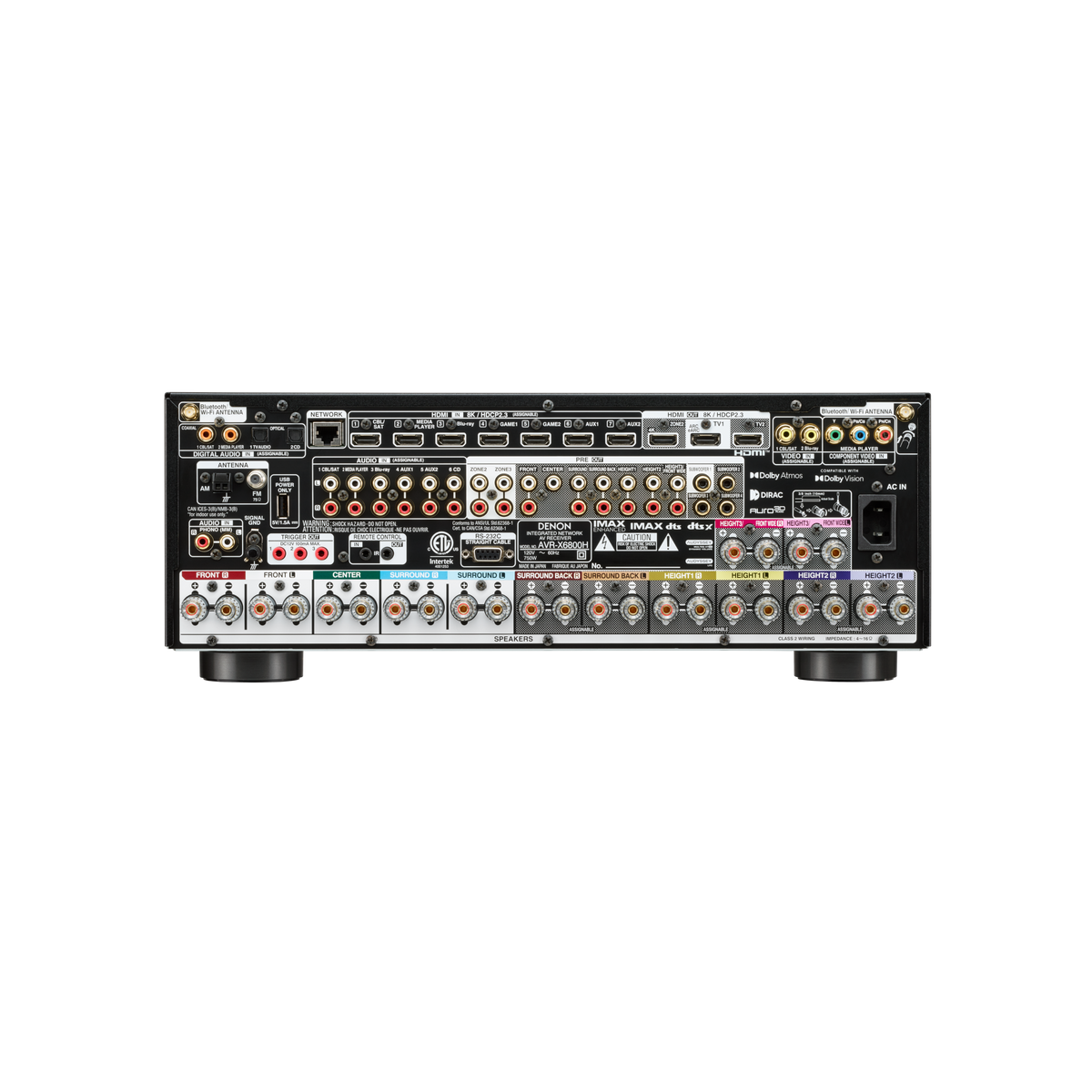

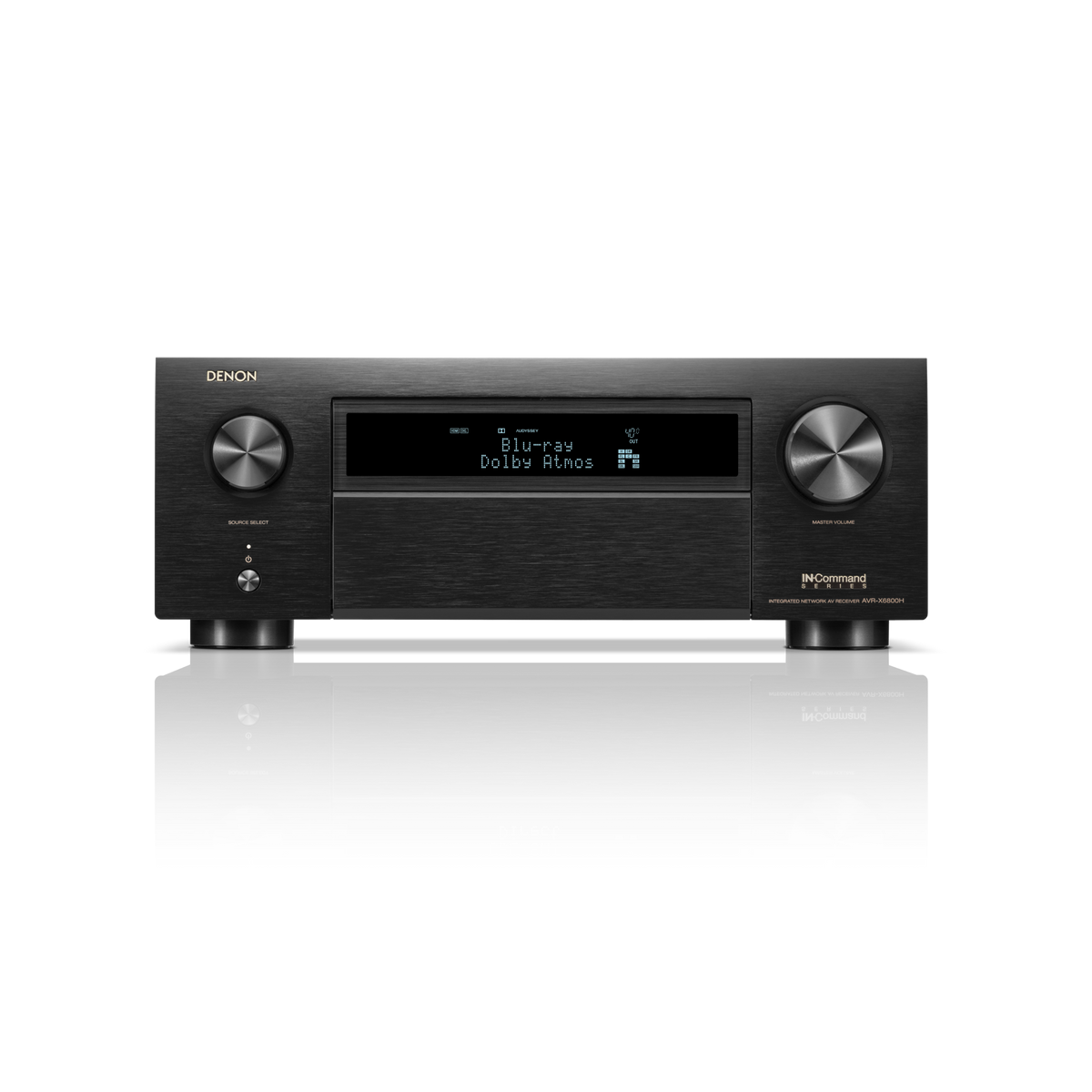

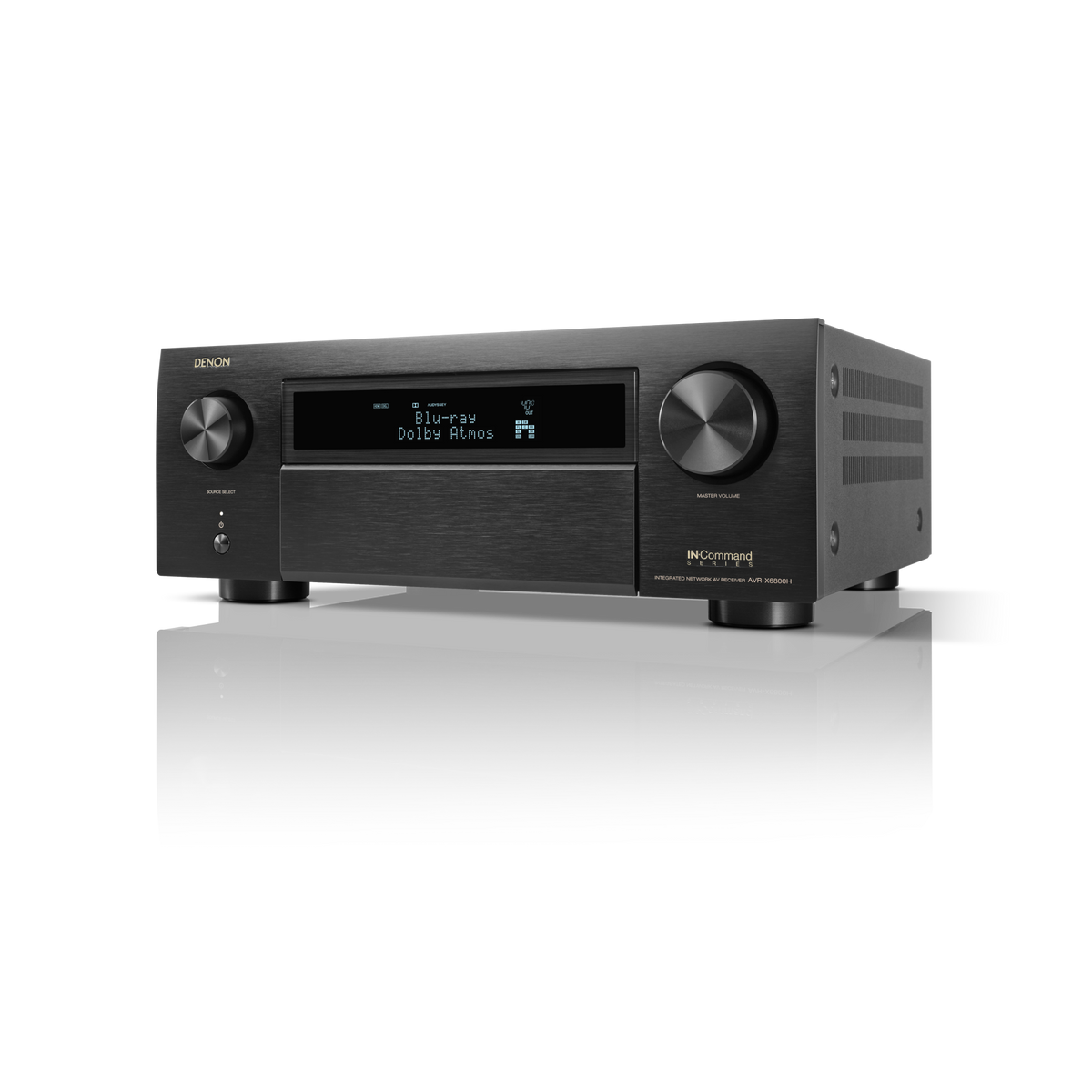

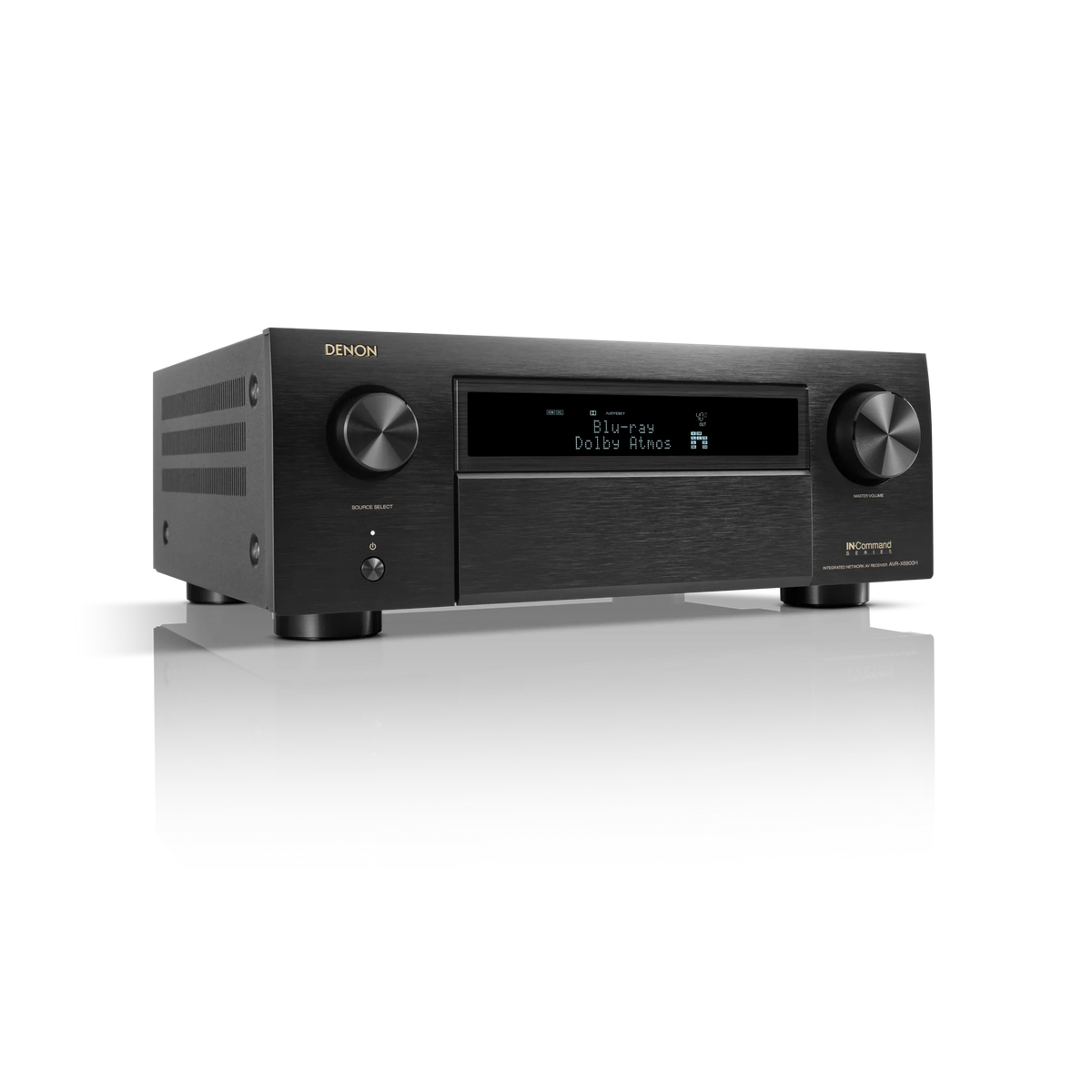

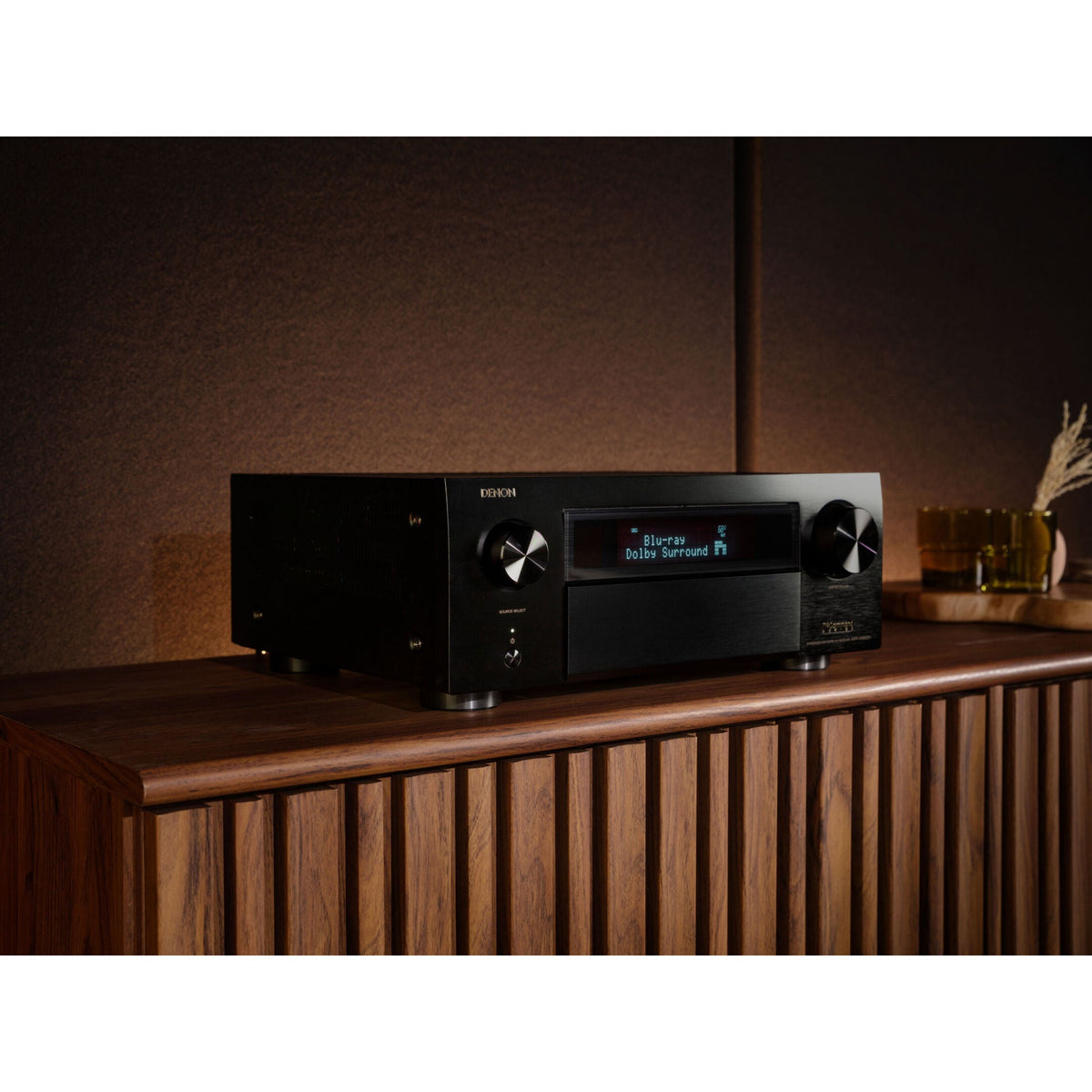

Denon - AVC-X6800 - AV Receiver
Denon - AVC-X6800 - AV Receiver
Denon - AVC-X6800 - AV Receiver
Denon - AVC-X6800 - AV Receiver
Denon - AVC-X6800 - AV Receiver
Denon - AVC-X6800 - AV Receiver

Denon

Denon - AVC-X6800 - AV Receiver

$5,849.00 $6,499.00
Why Pay Full Price?

In stock

Delivery Australia-wide

Shipping calculated at checkout

Pick up from The Audio Tailor Usually ready in 2-4 days. We'll let you know when it's ready to collect. Store info
9/20 Rivergate Pl, Murarrie QLD 4172
Tuesday to Friday
9am to 5pm
Saturday
9am to 3pm
Sunday and Monday
Closed
Get directions Call 1300 308 711 Book a listen

Experience it in store

Want to hear it first?

Call or message us to check it's set up to demo in our Murarrie listening rooms.

Ask about a demo Call 1300 308 711
Unit 9/20 Rivergate Place, Murarrie, Qld 4172 Get directions
  • Australian Hi-Fi Retailer of the Year
  • Fast, insured delivery Australia-wide
  • Trade in your old gear and upgrade
  • Advice from experts, not salespeople

Overview

AVC-X6800

Brand
Denon
Category
AV Receivers
SKU
Denon-AVC-X6800

Not sure it's the right fit for your room or system? Our team can talk you through it.

Call 1300 308 711
Our thoughts

Room correction that can grow with the room sets this receiver apart, with Audyssey included and a Dirac Live upgrade available later. It is made for home theatre builders who want Atmos, DTS:X and Auro 3D decoded in one chassis, with multi-room music built in.

Each channel is built as a mono block with its own discrete power amplifier, the aim being cleaner separation between channels in a larger layout. The phono stage is moving magnet only, so moving coil cartridges are not catered for on board. The 13.4 pre-outs and three zones let it anchor a bigger system, with a second room fed from its own zone output.

Best suited to dedicated theatre rooms and mixed systems where film and music share one rack. Talk with our team by phone or in the showroom about speaker layout and room fit, and whether Audyssey on its own or a later Dirac Live upgrade suits your space.

The Audio Tailor team, Murarrie showroom

Denon AVR-X6800H: Elevate Your Home Theater Experience

Experience the pinnacle of home entertainment with the meticulously crafted Denon AVR-X6800H, designed and manufactured in Japan. This exceptional AV receiver takes your audio and video experience to new heights, delivering an immersive 11.4 channels of amplification.

Denon AVR-X6800H AV Receiver Key Features:

  1. Immersive 3D Audio: With support for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro 3D, the AVR-X6800H transports you into the heart of the action, enveloping larger living spaces with breathtaking 3D audio.

  2. HEOS® Built-in: Enjoy the convenience of wirelessly streaming your favourite music, making it effortless to set the perfect mood for any occasion.

  3. Customisable Configuration: Take full control of your home theater setup with a wide range of configuration options, ensuring a perfect fit for your space and preferences.

  4. Denon Craftsmanship: Designed and meticulously crafted at Denon's Japanese facilities, the AVR-X6800H upholds the highest standards of quality and performance.

  5. Room Correction Expertise: Enhance audio precision with room correction options, including the pre-installed Audyssey or the option to add Dirac Live® Room Correction and Dirac Live® Bass Control.

Sophisticated Power Amplification:

The AVR-X6800H boasts a sophisticated power amplifier design, delivering high-power performance at 140 watts per channel (8 Ohms, 20 Hz–20 kHz, THD: 0.05%, 2 ch. driven), ensuring a dynamic and precise entertainment experience.

Immersive Audio Technologies:

Experience true immersion with Dolby Atmos®, DTS:X®, IMAX Enhanced, and Auro 3D, complemented by Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimise legacy content.

Setup Flexibility:

The AVR-X6800H offers numerous setup options and flexibility to tailor your home theater to your exact needs. It supports 13.4 channel processing capability, Amplifier mode, and optional Dirac Live upgradability (with a fee).

Advanced Video Support:

Enjoy seamless 8K video with support on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through, you can be confident in video compatibility and picture quality.

Wireless Music Streaming:

Stream music effortlessly from a variety of free and premium streaming services and share content with HEOS devices, such as Denon Home speakers, in other rooms.

Elevate your home theater experience with the Denon AVR-X6800H, where cutting-edge technology meets exquisite craftsmanship for a truly unforgettable entertainment journey.

Specifications

Technical details

Manufacturer specifications. Want to know how it compares with something else? Ask our team.

Multichannel SurroundDTS HD Master / DTS:X / DTS:X ProYes / Yes / Yes
DTS Neo:6 / DTS Neural:XNo / Yes
DTS Virtual:XYes
IMAX EnhancedYes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos MusicYes / Yes / Yes / Yes
Dolby ProLogic II / Dolby SurroundNo / Yes
Auro 3DYes
360 Reality Audio / MPEG HYes / Yes
Multichannel StereoYes
Max. Number of Processing (Preamp) Channels13.4
Sound EnhancementsMono Block Power Amp ConstructionYes
Discrete Power AmplifierYes
D.D.S.C. HD DigitalYes (32 bit)
Pure DirectYes
Gold Plated RCA TerminalsYes
Clock Jitter ReducerYes
Alpha ProcessingAL32 Processing Multichannel
AudysseyMultEQ XT32
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
Audyssey LFCYes
Dirac Live UpgradabilityYes
Compressed Audio RestorerYes
NetworkMedia ServerYes
HEOS Wireless Multi-Room TechnologyYes
Bluetooth Re-transmit for Bluetooth HeadphonesYes (With Volume Control)
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless PlaybackYes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet RadioYes (TuneIn)
Spotify ConnectYes (Connect)
PandoraYes
SiriusXMYes
Other Streaming ServicesAmazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon TestedYes
HEOS App ControlYes
Compatible with Remote APP for Smart PhonesDenon AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes
HDMIHDMI Inputs: Back, Front7 / No
HDCP2.3 SupportYes
HDMI Outputs: Main, Zone2 / 1
Video Conversion Analog -> HDMIYes
HDMI to HDMI Scaling1080P/4K to 8K
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz ABYes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevueYes / Yes / Yes / Yes / No
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-Through for GamingYes
Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / No
3D Signal Pass-ThroughYes
8K Signal Pass-Through, Scaling, GUI OverlayYes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
HDMI Pass-Though in Standby ModeYes
CECYes
DSD Audio CapabilityYes
Audio Return ChannelARC, eARC
Auto LipSyncYes
Multi-room / CIMulti-Room Zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-OutYes / Yes
Zone HDMI Output from HDMI SourceYes
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
Remote In / OutYes / Yes
DC Trigger Output3
HDMI DiagnosticsYes
OthersAuto Speaker Setup by MicrophoneAudyssey MultEQ XT32 Dirac Live (upgrade)
Front Display2 Line FLD
Graphic User Interface - GUIModern HD GUI
GUI Languages3
Setup AssistantYes
Quick Select Plus, Quick SelectYes / No
Firmware Update by Network / USBYes / Yes
Variable CrossoverYes
Optimized Bass RedirectionYes
Bass SyncYes
ECO ModeYes
Auto Power OffYes
Sleep TimerYes
Inputs OutputsVIDEO
Composite In / Out2 / No
Component In / Out1 / No
HDMI In / Out7 / 3
Multi-Room Video Out: Video / HDMINo / Yes
AUDIO
Analog In, Out6 / No
Phono (MM) InYes
Digital In: Optical/Coaxial2 / 2
Multi-Room Out: Analog/Digital2 / No
Multichannel Pre-outYes (13.4)
Subwoofer Out4 (independent)
OTHERSpeaker Terminal: Gold-Plated Screw / Regular ScrewYes / No
Number of Speaker Terminals13
Speaker A / B AssignableAssignable
Bi-amp Drive AssignableAssignable
Multi-Room Speaker Terminal AssignableAssignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
USB Power Supply on Rear PanelYes
AM/FM TunerYes
SpecificationsNumber of Power Amps11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)175 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)250 W
GeneralMetal Front PanelYes
System Remote ControlRC-1256
Pre-programmed / Learnable / LCD DisplayYes / No / No
Power Consumption in W750
Power Consumption No-Sound (ECO On / Off) in W65W / 110W
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Standby Consumption in WLess than 2.0
Maximum Dimensions (W x D x H) in mm17.1 x 15.3 x 6.6
Antenna:Horizontal:(W x D x H) in mm(Antenna:Vertical :(W x D x H) in mm)
w/o Antenna :(W x D x H) in mm(17.1 x 15.3 x 9.3)
(17.1 x 14.9 x 6.6)
Carton Dimensions (Packaging) (W x D x H) in Inches)20.9 x 18.3 x 11.9 (in)
Weight in LBS34.4
Weight in LBS (Packaging)40.1
Power SupplyAC 120 V, 60 Hz
Speaker Impedance4–16Ω/ohms
Pre-Amplifier SectionInput Sensitivity200 mV
Frequency Response10 Hz–100 kHz — +1, –3dB (Direct mode)
S/N Ratio102dB (IHF-A weighted, Direct mode)
FM SectionTuning Frequency Range87.5–107.9 MHz
AM SectionTuning Frequency Range520 kHz–1710 kHz
What's in the BoxMain Unit, Remote Control, Batteries, AM/FM Antennas, Wire Labels, Quick Start Guide, Audyssey Microphone, Cardboard Microphone Stand, 2 External Detachable Antenna, AC Cord
UPC Code747192140359
