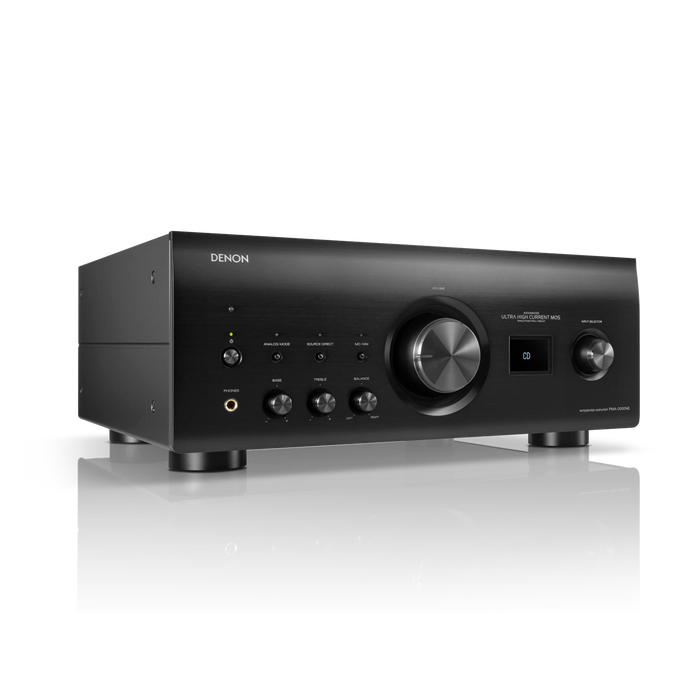

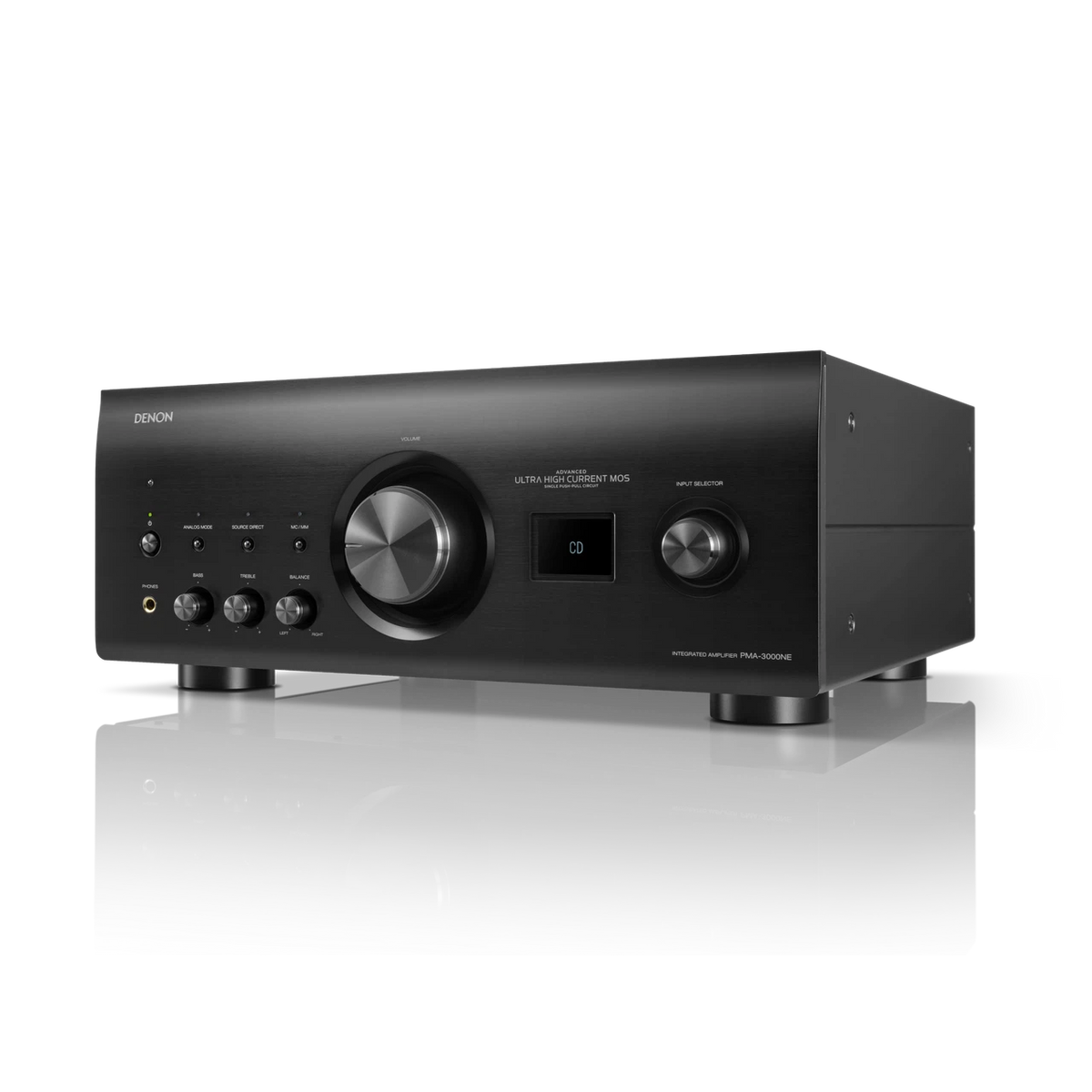

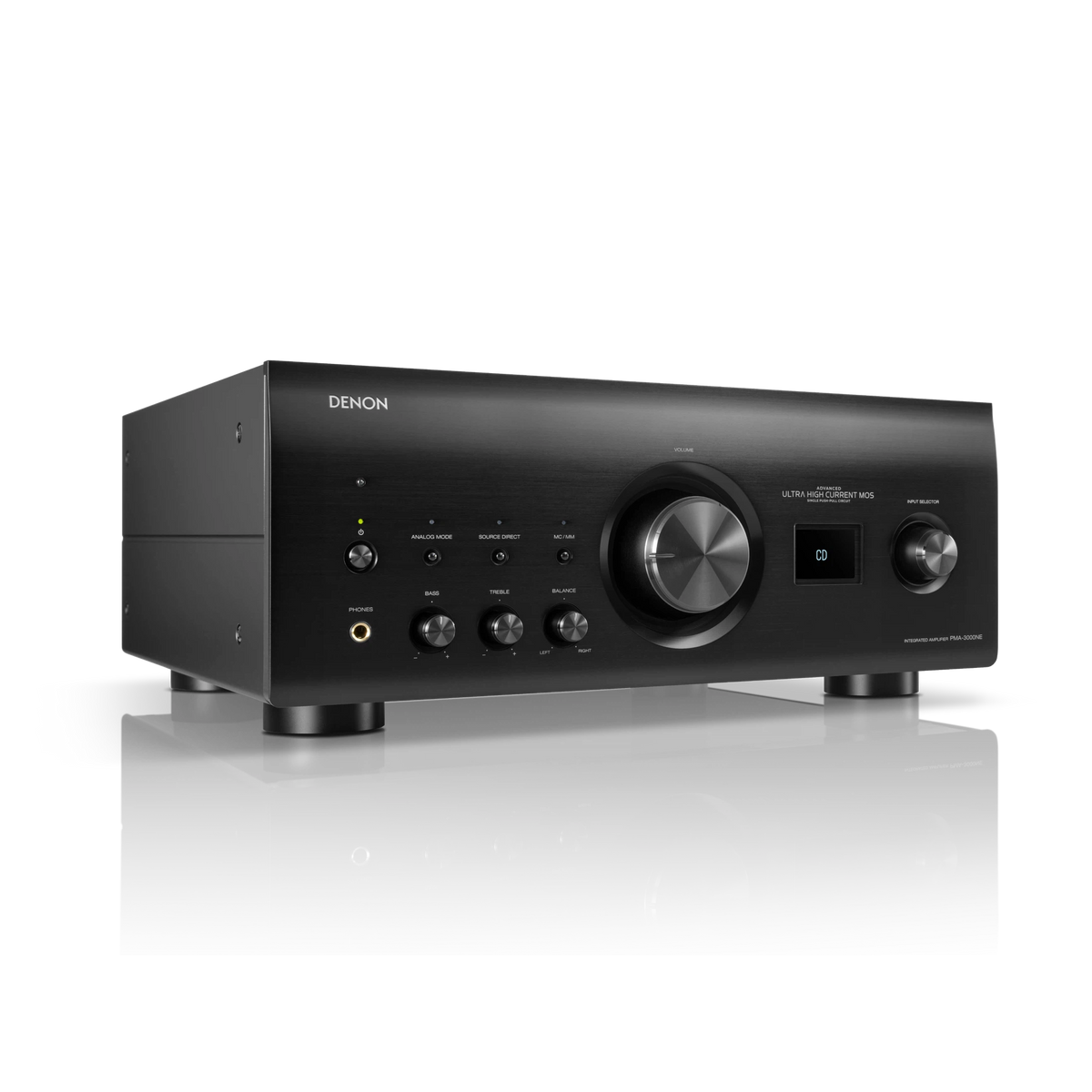

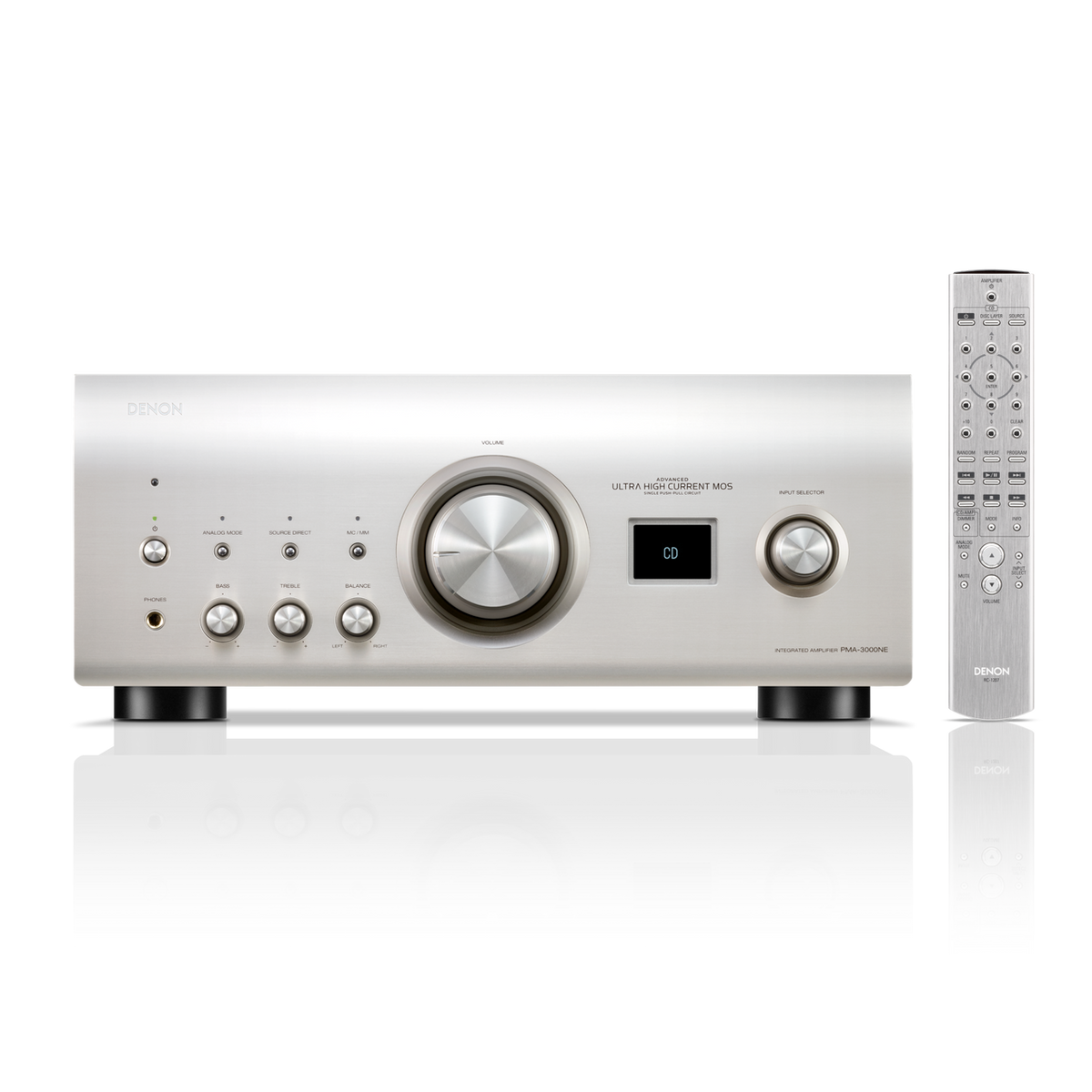

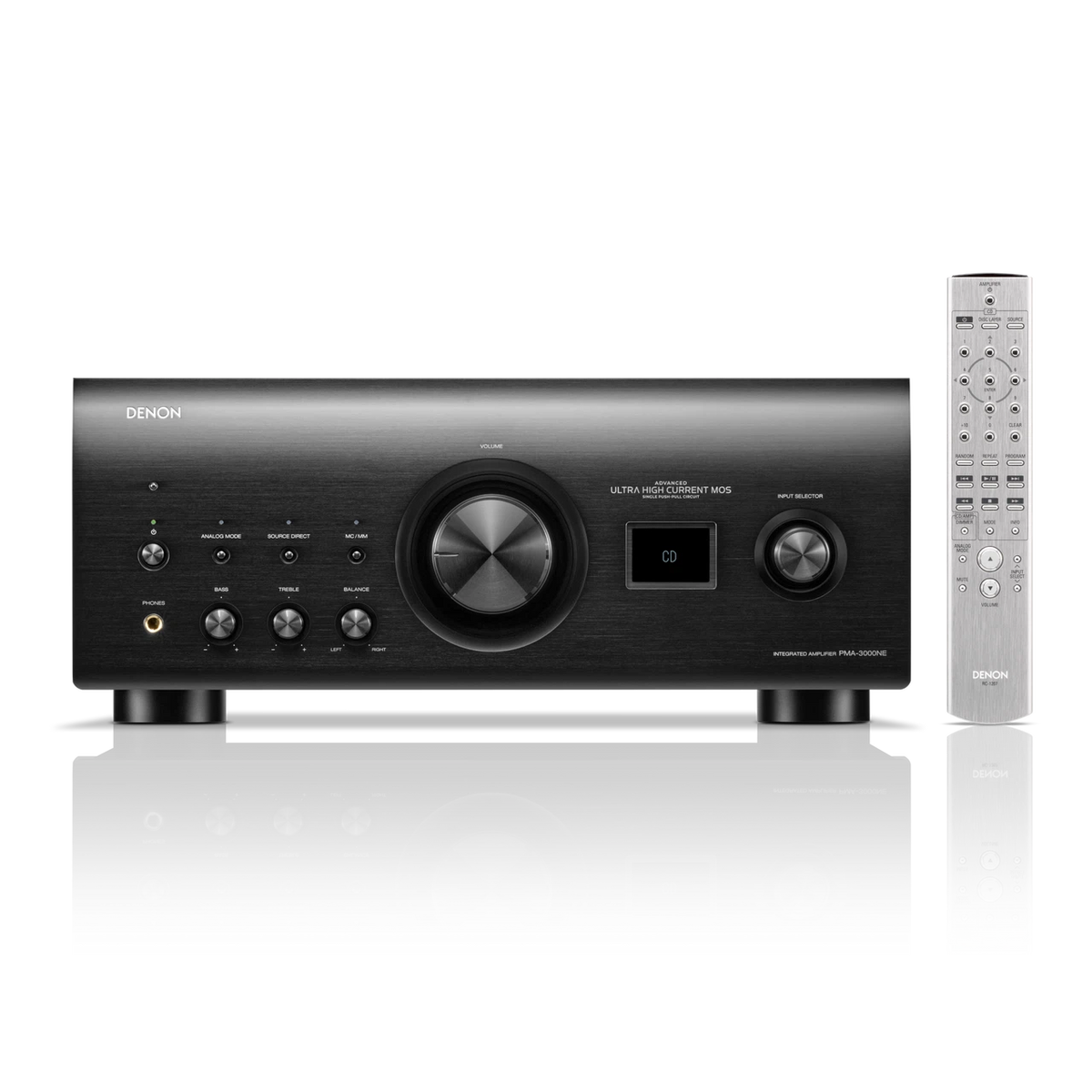

Denon - PMA-3000NE - Integrated Amplifier

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.

• 2 channels
• 160 watts per channel
• MM/MC phono stage
• Ultra AL32 Processing
• Optical, coaxial, and USB digital connections
• Pure Analog mode

Audio excellence, redefined

With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favourite music with clarity and precision.

Faithful to any sound source

Drives even the most demanding speakers

A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.

Seamlessly integrate high-resolution digital audio

Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.

Unlock your vinyl collection’s full potential

The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.

Fidelity, form, and function - Advanced amplifier design

The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its UHC-MOS single push-pull circuit and differential 2-stage amplifier drive demanding speakers with exceptional clarity and linearity.

Ultra AL32 Processing

Denon’s Ultra AL32 Processing uses interpolation algorithms to produce high resolution output. Supporting input signals up to 384kHz/24-bit, it upsamples for smoother waveforms and improved sound reproduction.

High Performance MM/MC Phono Stage

The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimise distortion for pure, detailed sound.

Digital Audio Inputs

The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.

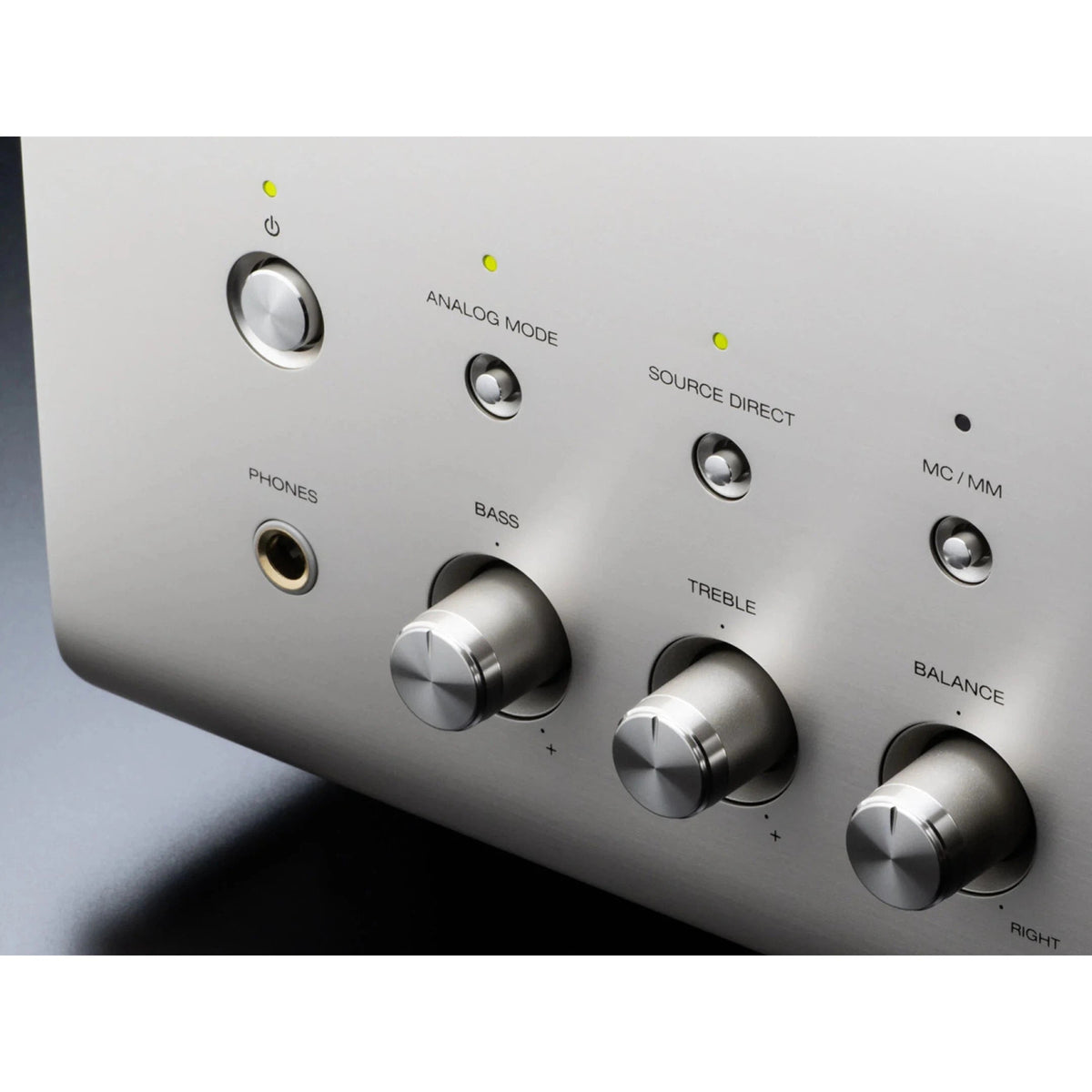

Pure Analog Mode

Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.

Sonic Innovation For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

Tailor your sound with complete connectivity & control

Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.

Specifications

• Rated Output Power: 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%), 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
• Total Harmonic distortion: 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
• Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm, MC: 200 μV / 100 ohm
• Input Sensitivity: CD/LINE/RECORDER 135 mV / 19 kohm
• Input Sensitivity: Power Amp input 0.9V / 47 kohm (EXT. PRE)
• Signal to Noise Ratio :PHONO (MM): 89 dB, PHONO (MC): 74 dB, CD: 107 dB
• Power Consumption: 400W
• Power Consumption at Standby: 0.2W TV autoplay off, 0.4W TV autoplay on

General

• Unit (W × H × D): 434 × 182 × 443 mm
• Net Weight: 24.6 kg / 54.2 lbs

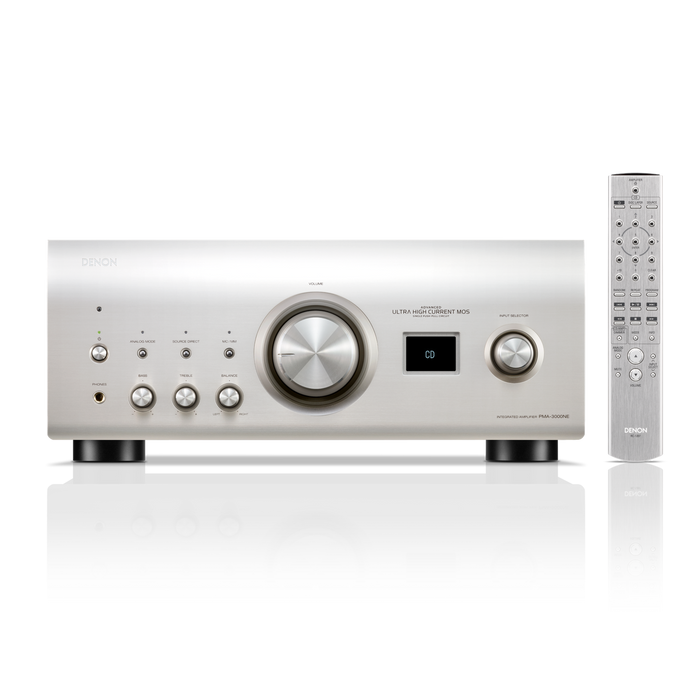

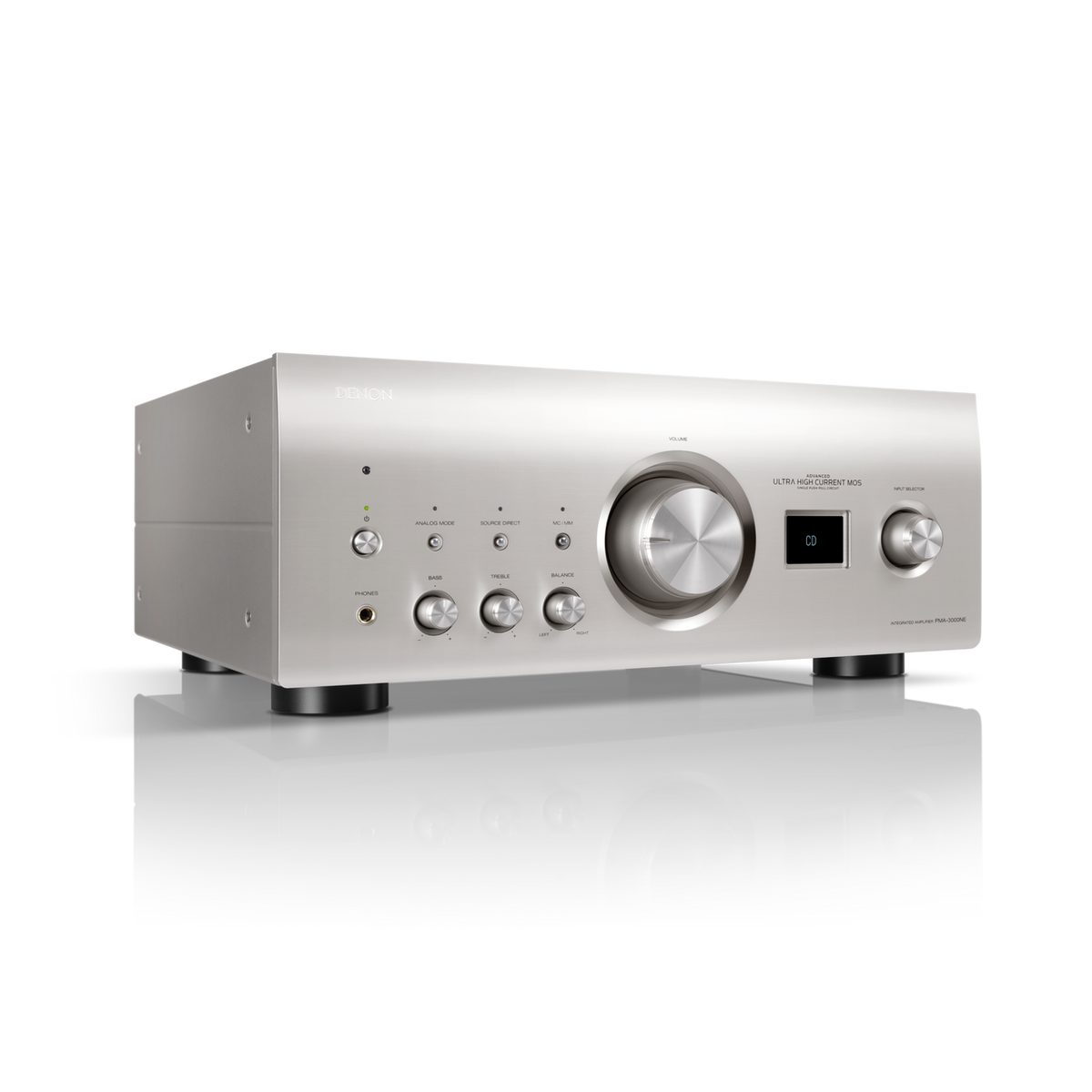

• Panel Cover: Silver, Black

Audio Features

• Power Amplifier Circuit: New UHC-MOS, Single Push Pull (7)
• Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
• Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
• Source Direct: Yes
• Analog Amp Mode: Yes (button on front panel)
• DAC Circuit: ES9018K2M × 4
• Digital Processing: Ultra AL32 Processing
• DAC Master Clock Design: Yes
• Asyncronous mode (for USB-B input): Yes

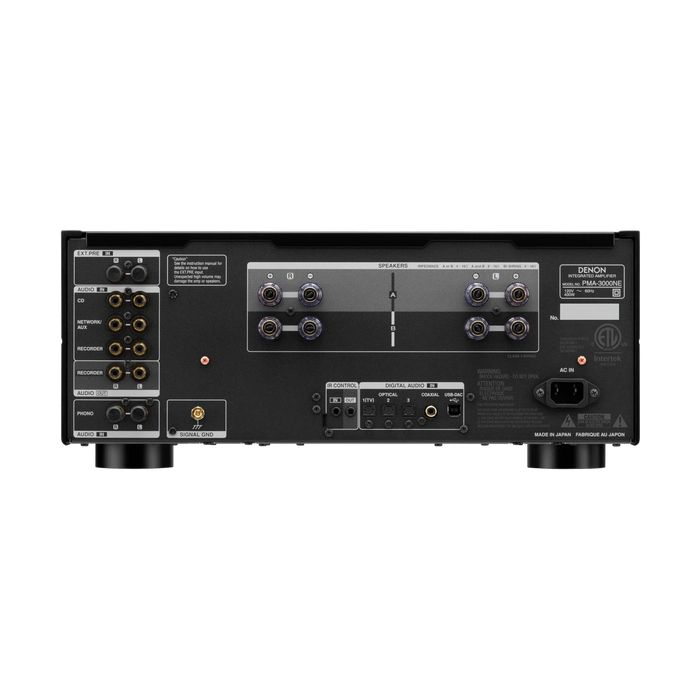

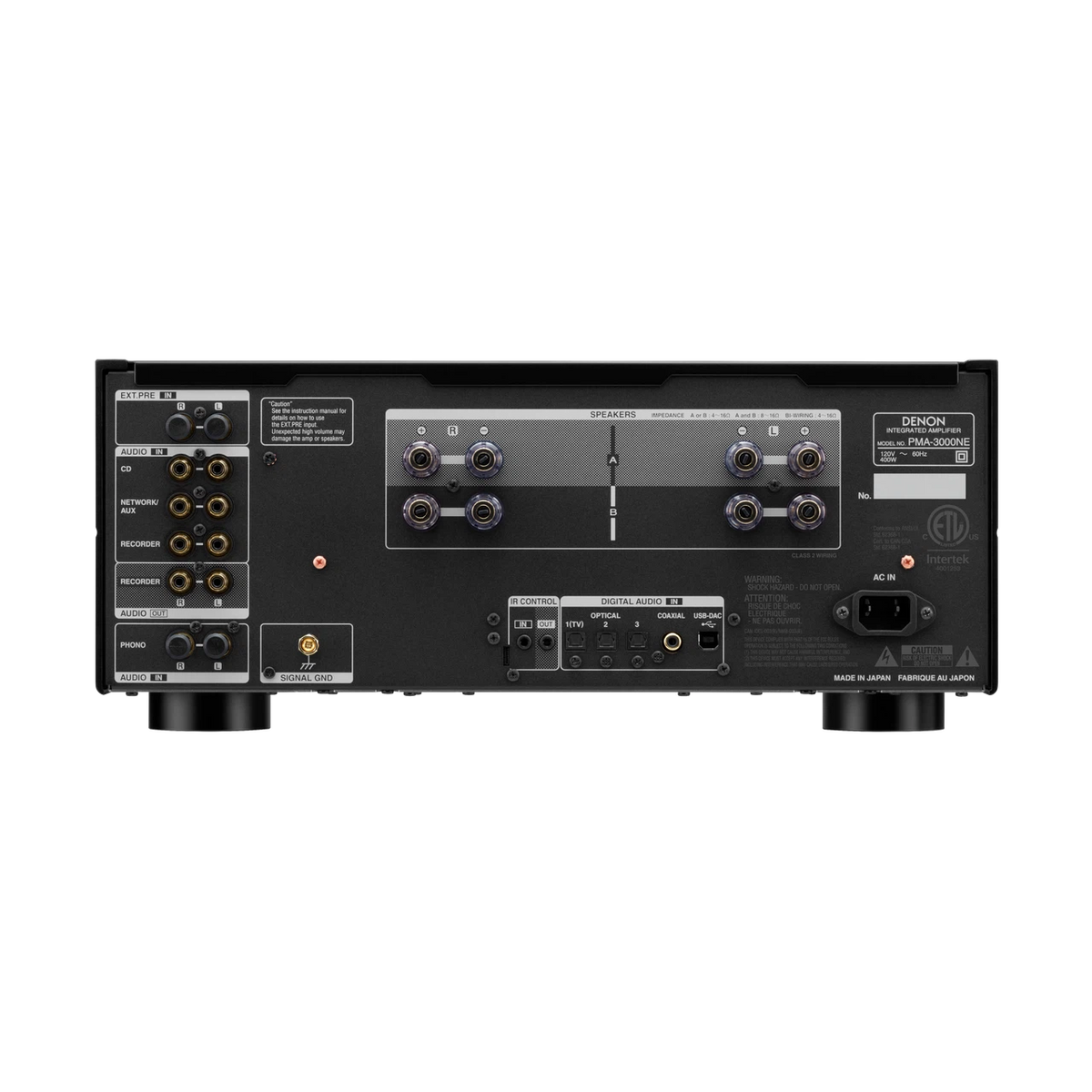

Connectivity

• Phono Input: Yes (MM / MC) *default = MM
• Analog Input (include Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
• Optical input / output (Maximum Support): 3 / 0 (192 kHz/24-bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192 kHz/24-bit)
• Speaker Terminal: AVR-A1H type Gold Plated w/Cover
• Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)

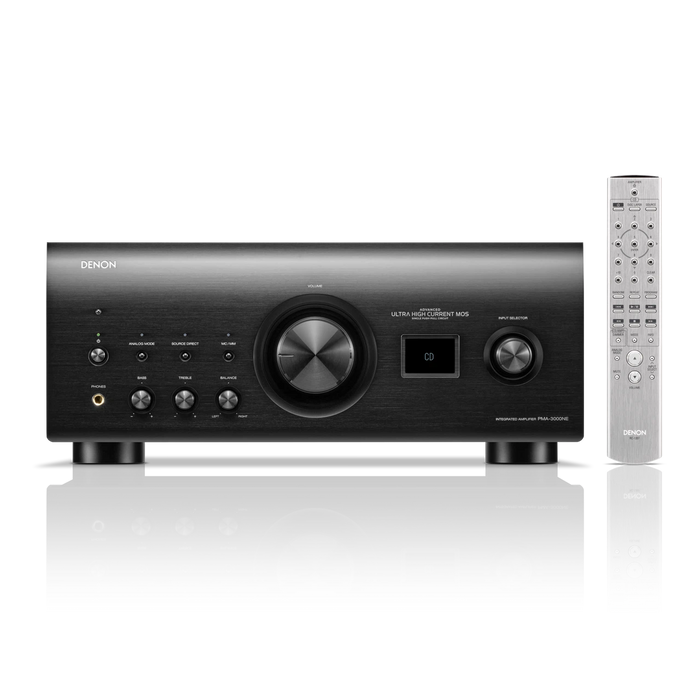

• Remote Control: Yes
• Remote Control Bus Terminal: Yes (mini)
• Wi-Fi: No
• HEOS: No
• USB B (USB DAC): 1 (Rear)
• PCM Sample Rate / Resolution: ~384 kHz/32-bit
• DSD Audio Streaming: ~11.2MHz
