DS Audio - TB-50 - Hybrid EQ Amplifier with Tube Buffer Output

The DS Audio TB-50 hybrid phono EQ amplifier compatible with all DS Audio optical cartridges. Solid-state RIAA equalisation with ECC82 (12AU7) vacuum tube buffer output stage, current-drive and current-transmission cartridge connection, heat dissipation duct design and adjustable tube illumination. Two souls, one music.

DS Audio TB-50 Two Souls. One Music.

The DS Audio TB-50 is a hybrid EQ amplifier that resolves a longstanding tension in high-end audio design — the precision and linearity of solid-state circuitry, and the rich harmonic expression that only vacuum tubes can provide. Rather than choosing one approach over the other, the TB-50 brings both together in a carefully engineered hybrid architecture that delivers the best of both worlds: ideal signal amplification through solid-state design, combined with the warmth, dimensionality and natural musicality that define the tube sound.

The TB-50 uses the same ECC82 (12AU7) tubes as DS Audio's flagship TB-100, bringing the world of DS Audio tube sound to a wider range of music lovers without compromise to the fundamental sonic character that defines the DS Audio approach.

Hybrid Architecture — Solid-State Precision, Tube Expression

At the heart of the TB-50 is a thoughtfully conceived hybrid signal path. The amplification circuit, including RIAA equalisation, is implemented entirely in solid-state circuitry — ensuring accurate, low-distortion signal amplification with the consistency and reliability that precision audio demands. The output stage then passes through a vacuum tube buffer, where the ECC82 tubes impart their characteristic harmonic richness, natural decay and three-dimensional presence before the signal reaches your amplifier.

This is not a compromise. It is a deliberate and elegant engineering decision that allows each technology to do what it does best — solid-state for accuracy and control, tubes for expression and soul.

Compatible with All DS Audio Optical Cartridges

The TB-50 is fully compatible with the complete range of DS Audio optical cartridges — from the entry-level models through to the flagship designs. Whether you are building a new DS Audio system or upgrading an existing one, the TB-50 integrates seamlessly as the EQ amplifier for any DS Audio cartridge in your collection, now or in the future.

Current Drive & Transmission — The Ideal Cartridge Connection

DS Audio's optical cartridges demand a fundamentally different approach to cartridge connection than conventional moving magnet or moving coil designs, and the TB-50 has been engineered accordingly. Both power delivery to the cartridge and music signal transmission employ a current-drive and current-transmission methodology — an approach inherently less susceptible to the influence of phono cables and contact points than conventional voltage transmission.

The practical benefit is significant: the impact of cable length, cable quality and connector characteristics is minimised, allowing the full potential of the optical cartridge to be drawn out regardless of the phono cable used. This is the ideal cartridge connection that DS Audio has long advocated, and the TB-50 delivers it at a new level of accessibility within the DS Audio range.

Heat Dissipation Duct Design

Vacuum tubes generate heat, and the way that heat is managed has a direct impact on sonic consistency and tube longevity. The TB-50 addresses this with a dedicated duct structure that surrounds the vacuum tubes — drawing fresh air from outside the chassis and efficiently venting the heat generated during operation.

This thermal management system keeps the internal temperature within an optimal range, stabilising the operating point of the tubes and ensuring consistent sound quality even during extended listening sessions. The result is an amplifier that sounds as good after hours of listening as it does the moment it warms up.

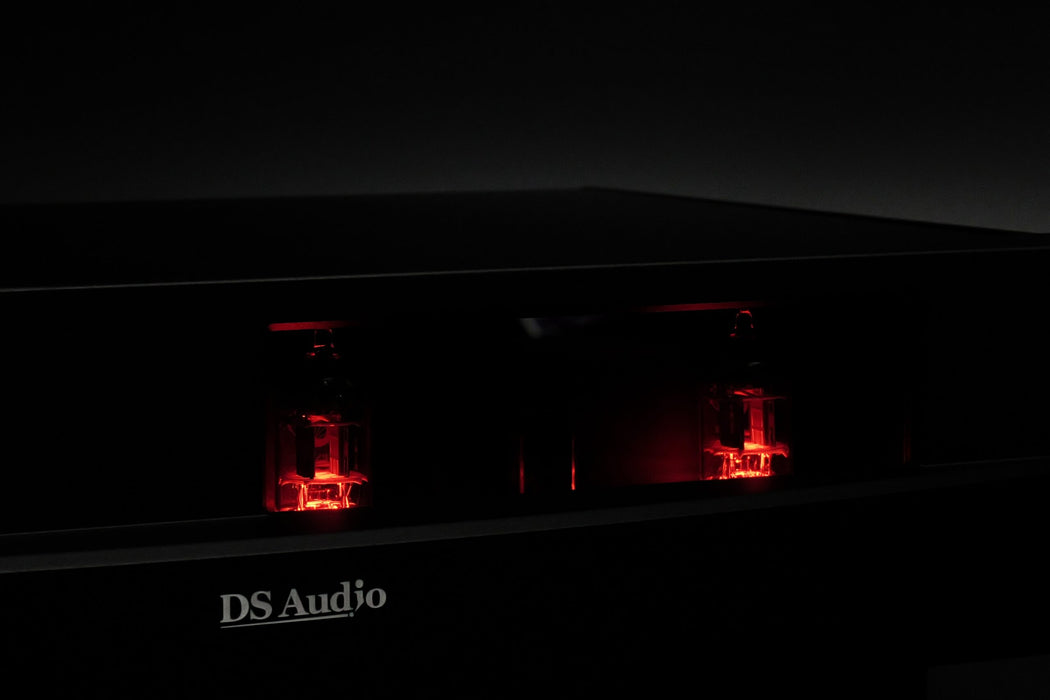

Adjustable Tube Illumination

LED illumination positioned beneath each vacuum tube can be adjusted to suit the room or listening mood. A continuously variable control on the rear panel allows precise dimming — from a warm, visible glow to near-invisible operation. It is a detail that speaks to DS Audio's understanding that a component placed at the centre of a listening room is part of the aesthetic experience, not merely a functional device.
