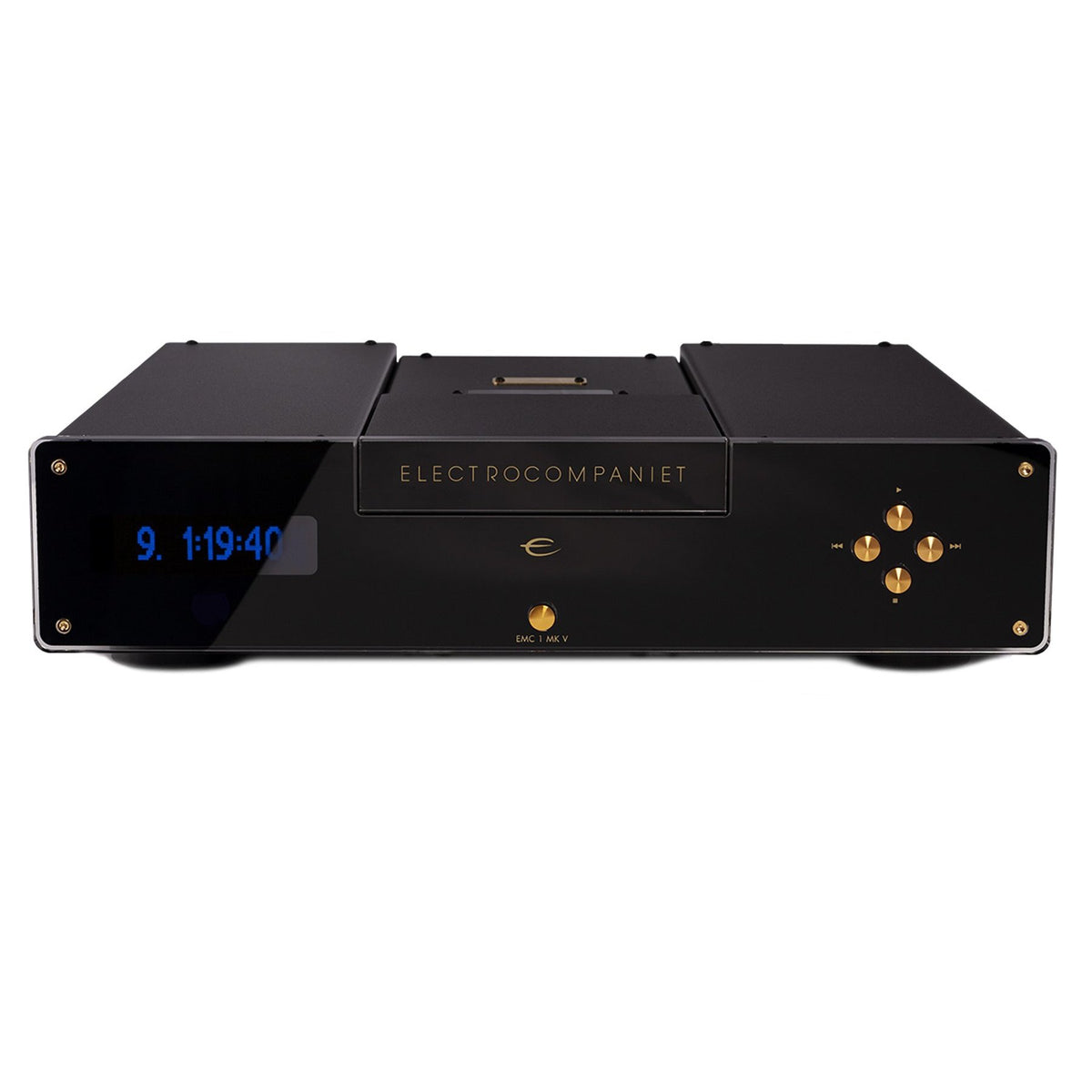

Electrocompaniet - EMC 1UP MKIV - Reference CD Player

Reference CD player

Since 1998, Electrocompaniet has produced one of the best sounding CD players on the market, the EMC 1-UP. The new EMC 1 MKIV builds upon this legacy, and refines by using a new drive unit. The player has a high performance sample rate converter, fully balanced D/A converters and discrete analog audio circuitry for excellent performance. It features an unique cancellation system which cancels acoustic / mechanical vibrations, preventing the laser pick-up from receiving unwanted and sonically degrading signals.The audio quality surpasses our own EMC 1 UP, arguably one of the best CD players on the market today.

Product highlights:

• No-compromise mechanical design with five different housings, which shield analogue, digital, transport, transformer and controller circuitry.
• Electromechanical cancellation system which cancels acoustic-mechanical vibrations, preventing the laser pickup from receiving mechanical distortions.
• Separate transformers and power supplies for analogue and digital circuits.
• Fully balanced D/A converter with fully balanced discrete analog audio circuitry.
• Digital outputs via S/PDIF and Toslink.
• 12V trigger input for remote power ON.
• RS232 port for firmware upgrades and control through a wide range of home installation systems.
• Soundcare superspikes for the best possible footing.

Top Loading CD Transport

Pair large text with an image to tell a story, explain a detail about your product, or describe a new promotion.

Balanced audio

Fully balanced D/A converter with fully balanced discrete analog audio circuitry.

Shield construction

No-compromise mechanical design with five different housings, which shield analogue, digital, transport, transformer and controller circuitry.

Specifications:

• Output level - (unbalanced) 2.3Vrms, (balanced) 4.6Vrms
• Noise floor - < -130dB
• Frequency deviation - (20-20kHz) 0.05dB
• Channel separation - > 110 dB
• THD+N - <0.003%
• Dynamic range - 120 dB
• Power consumption - 25 W
• Power consumption Standby - 0.5 W
• Compatible formats - CD, CD-R, CD-RW
• Digital outputs - SPDIF COAX, SPDIF TOSLINK
• Control inputs - RS232, 12V Trigger
• True balanced system
• Mechanical filter which cancels acoustic/mechanical vibrations preventing the laser pick-up from receiving unwanted signals
• Fully remote (no volume control)
• Dimensions - 482mm W x 422mm D x 120mm H
• Weight - 18 Kg
