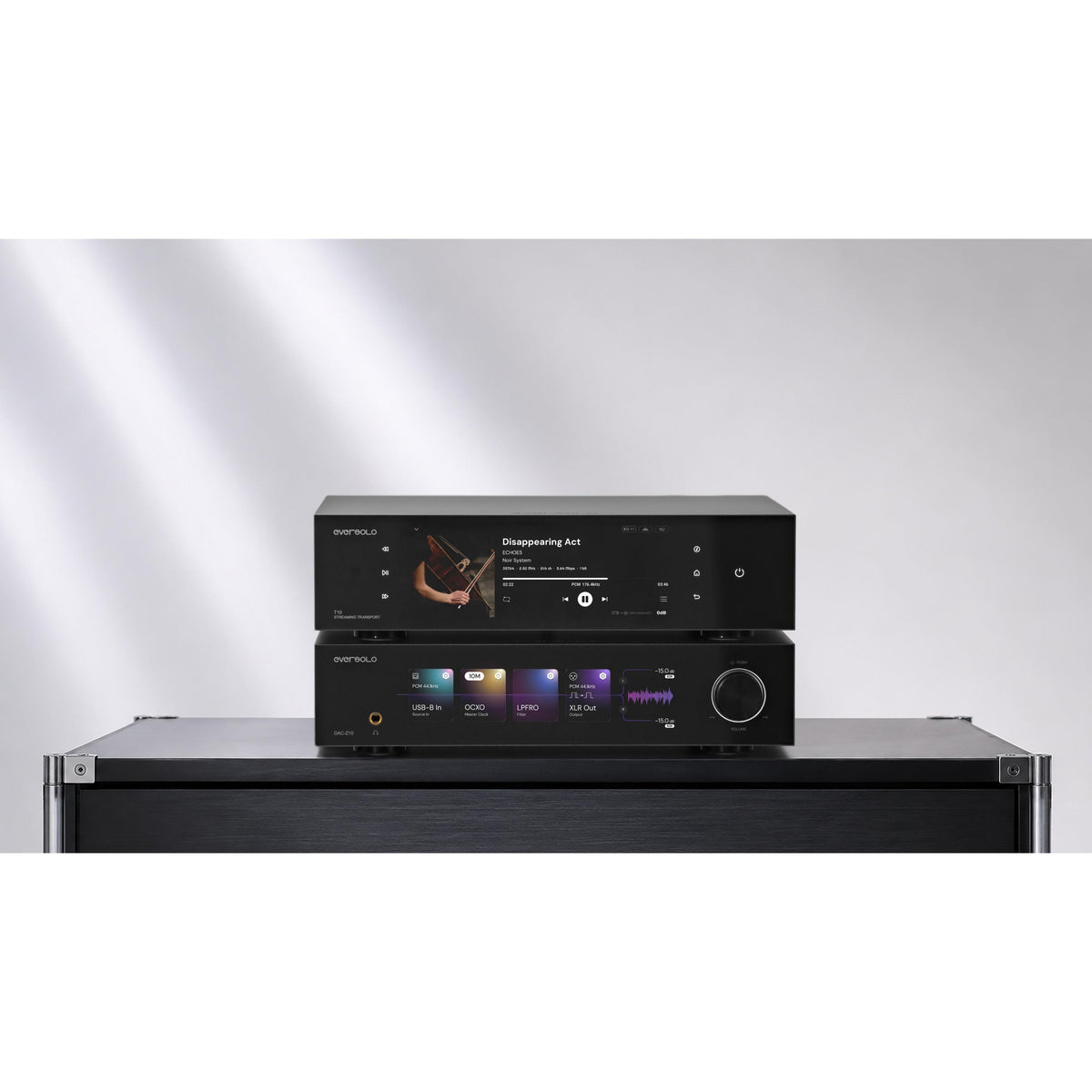

Eversolo - T10 - Reference Streaming Transport

The Eversolo T10 is a reference-grade streaming transport built for high-end DAC systems. OCXO clock, femtosecond clock system, custom O-type linear power supply, multi-stage electrical isolation, 8-mode IIS output, 2.5G Ethernet, SFP optical network, Wi-Fi 6, AES/EBU, coaxial, USB audio, external 10/25MHz clock input, DSD512 / PCM 768kHz 32-bit, evotune™ Pro room correction and 8.6" touchscreen display.

Pure Sound. True Essence.

The Eversolo T10 is a reference streaming transport engineered from first principles for high-end DAC systems. Every design decision — from the custom O-type linear power supply and OCXO clock system to the multi-stage electrical isolation architecture and 2.5G network connectivity — is made in pursuit of a single goal: ensuring every bit of your music arrives at your DAC exactly as it was recorded, with the lowest possible noise, jitter and interference.

The T10 is not merely a network streamer. It is a precision digital source component designed to elevate what your existing DAC can do.

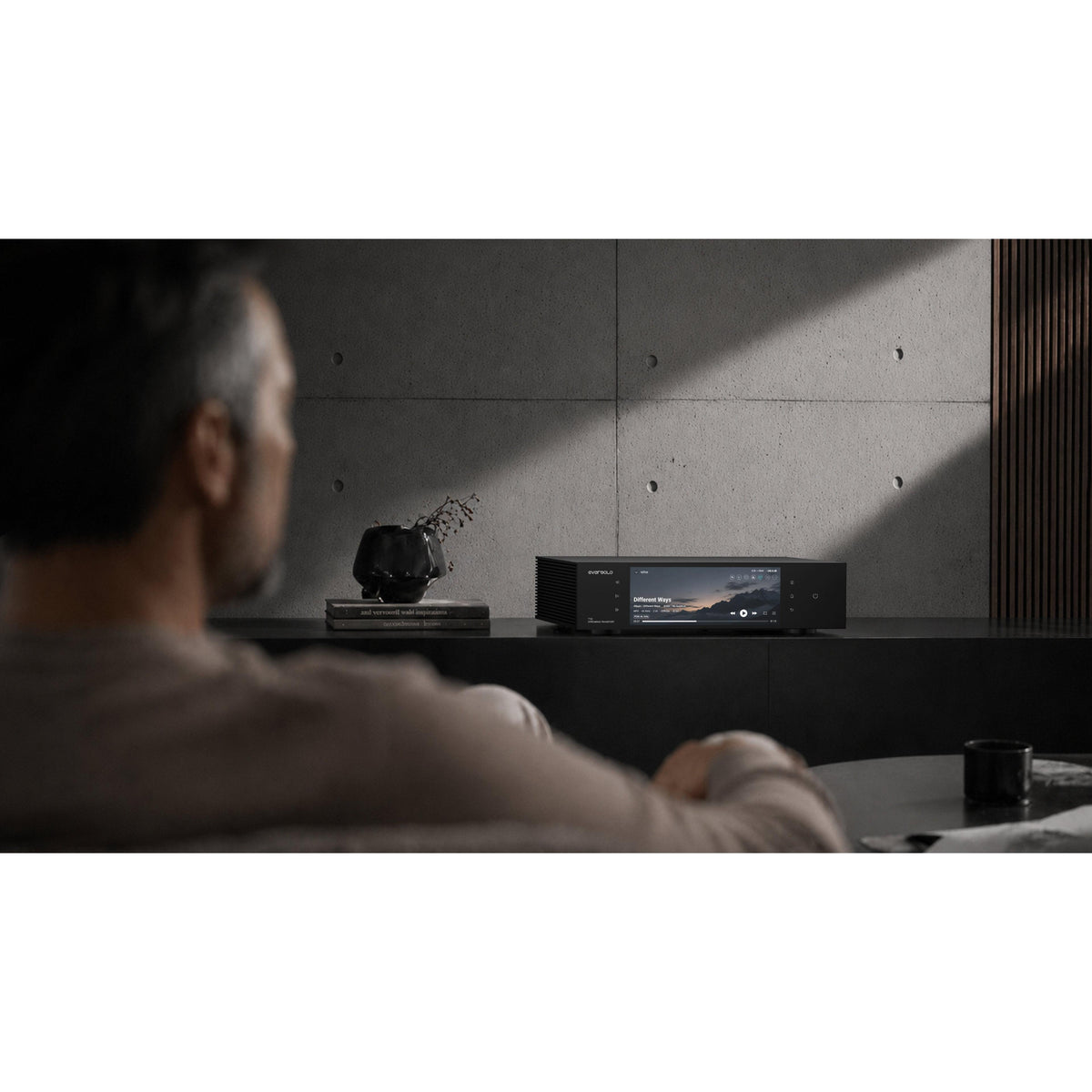

Industrial Aesthetics — Audiovisual Art

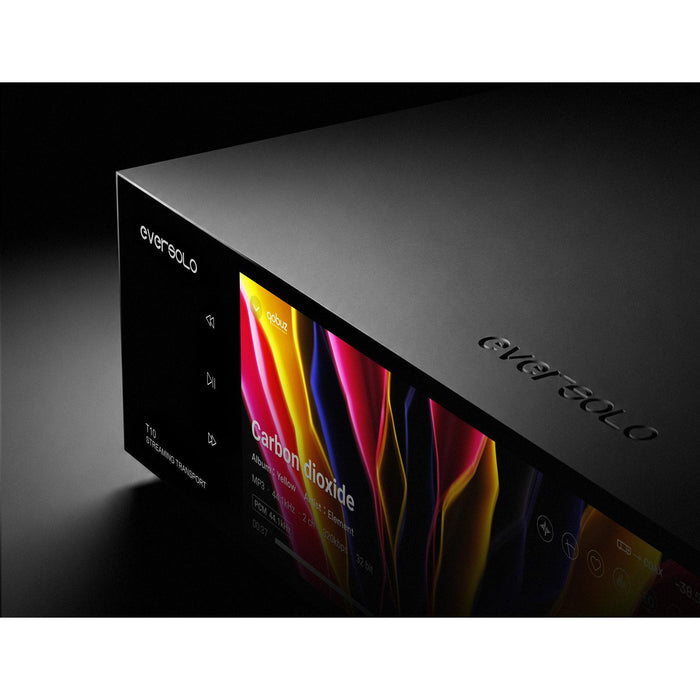

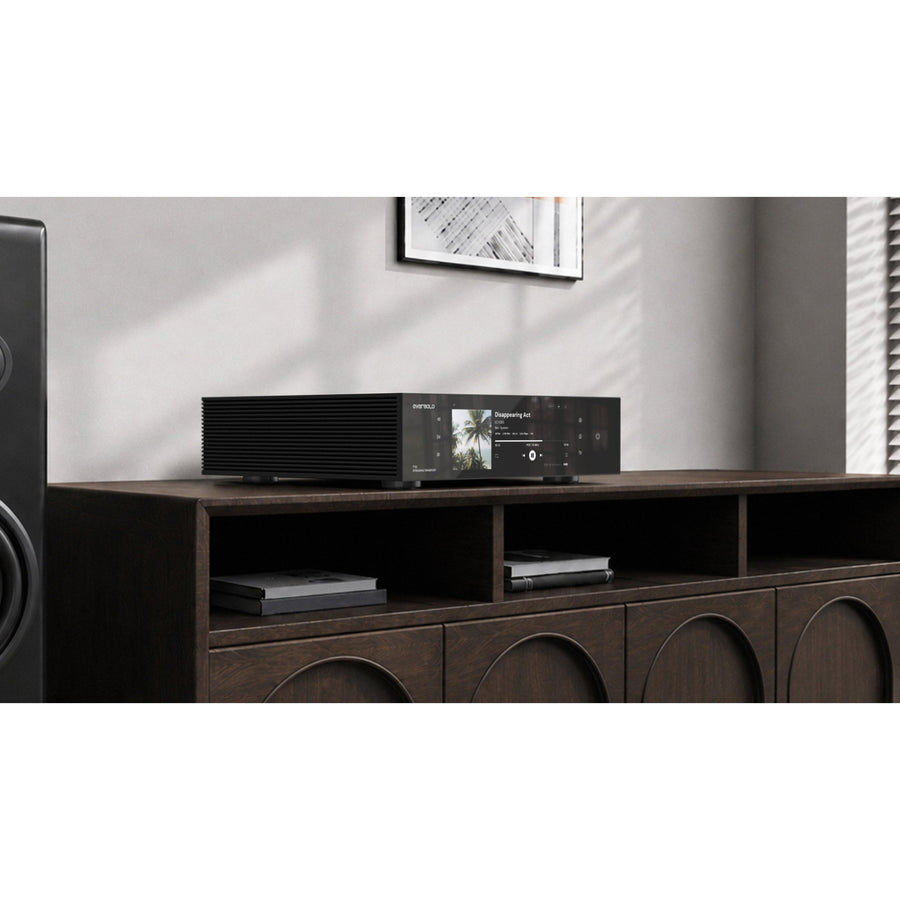

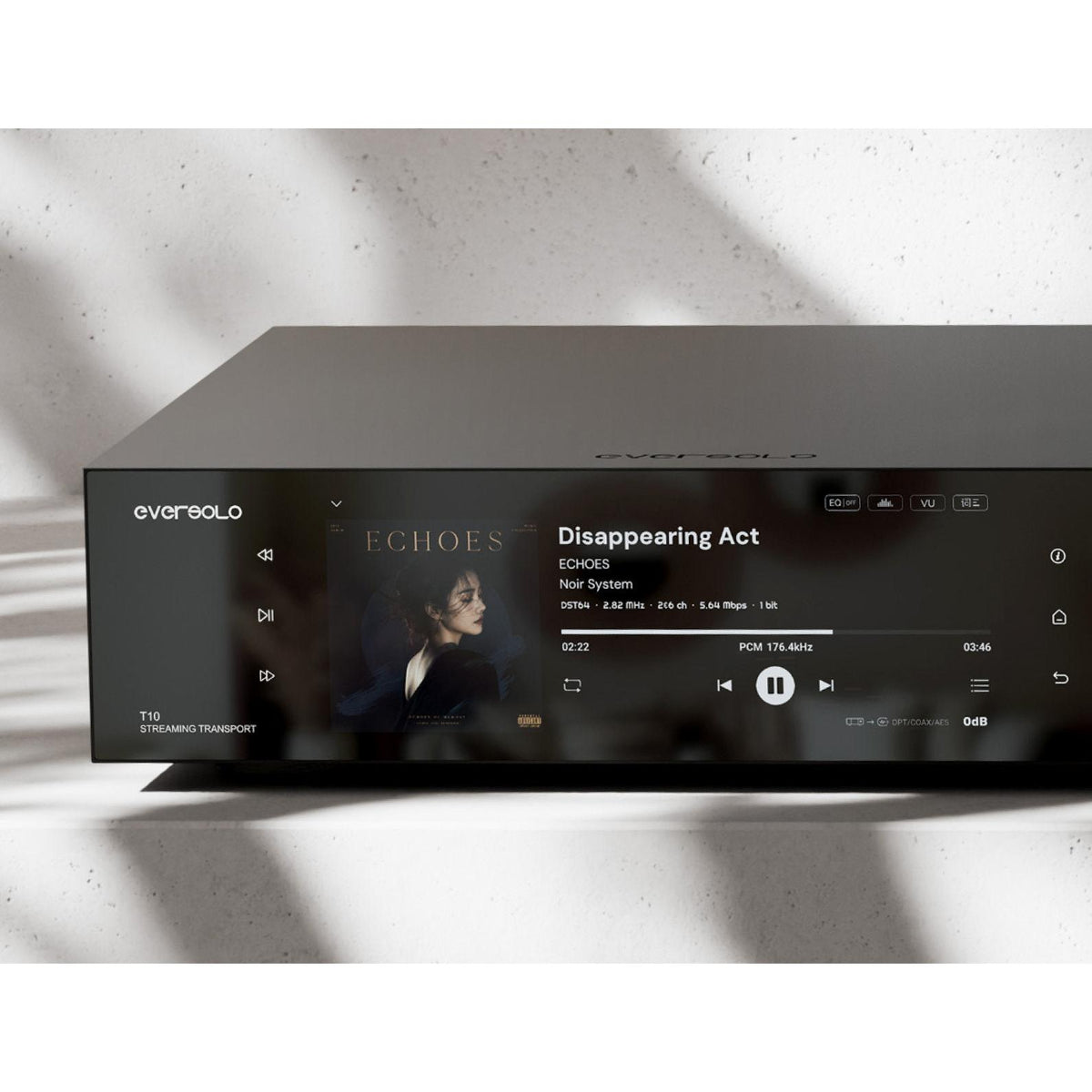

The T10's chassis is CNC-machined from a solid block of aerospace-grade aluminium — a monolithic design language that creates a controlled, elegant visual presence that integrates naturally into any listening environment. At 365 × 310 × 88 mm, the larger chassis houses an immersive 8.6-inch LCD touchscreen with a completely rethought user interface — refined from layout and hierarchy to interaction logic, making every operation more fluid and intuitive.

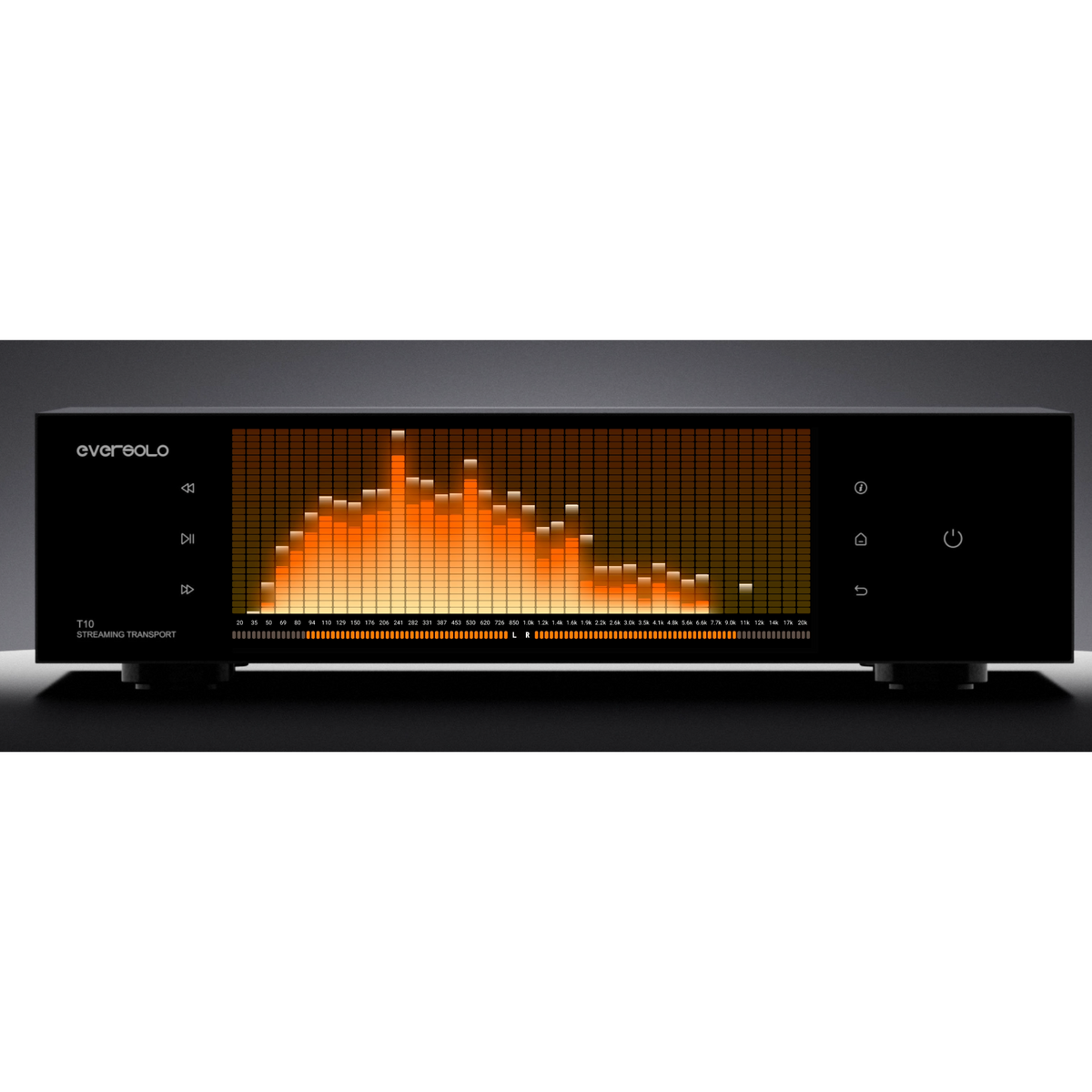

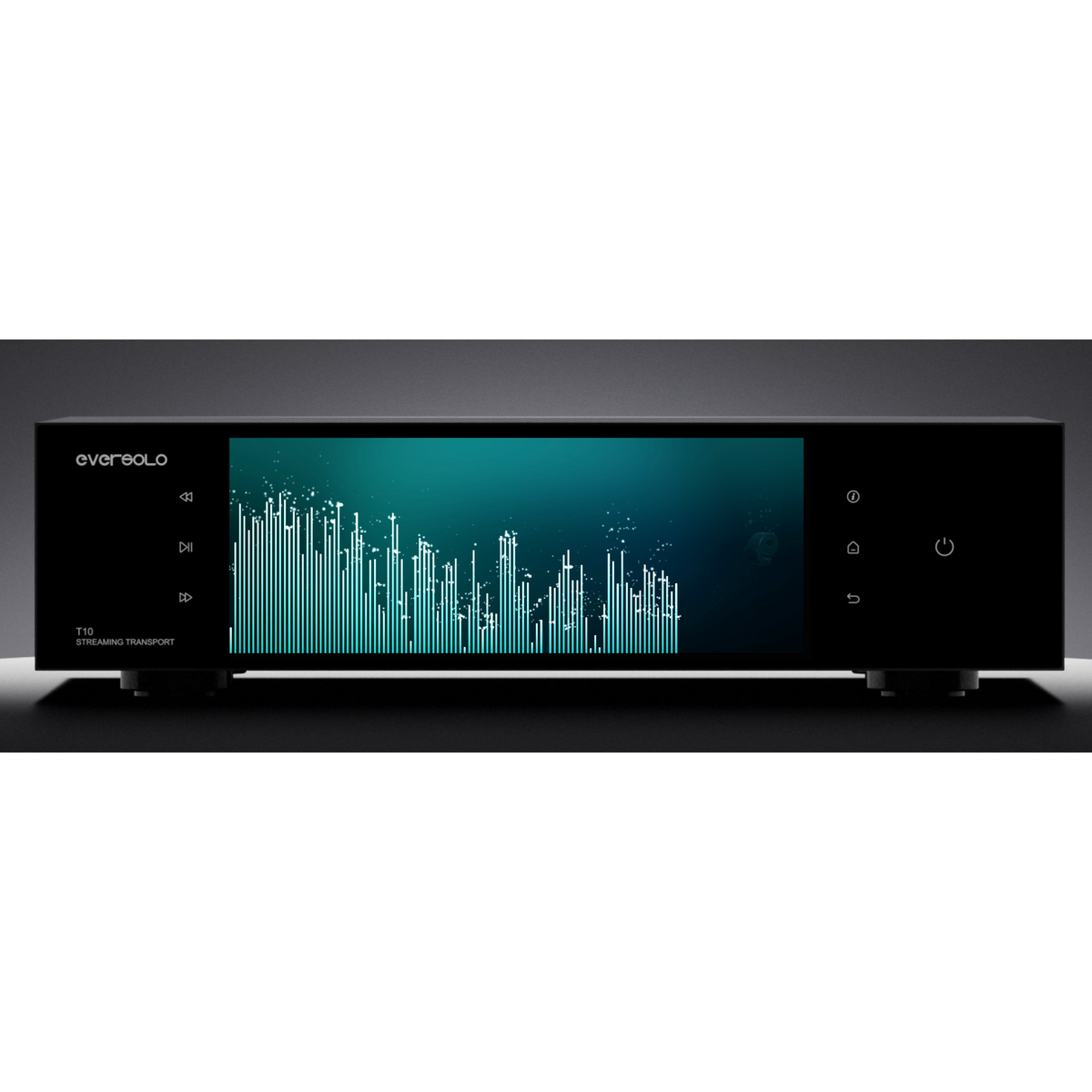

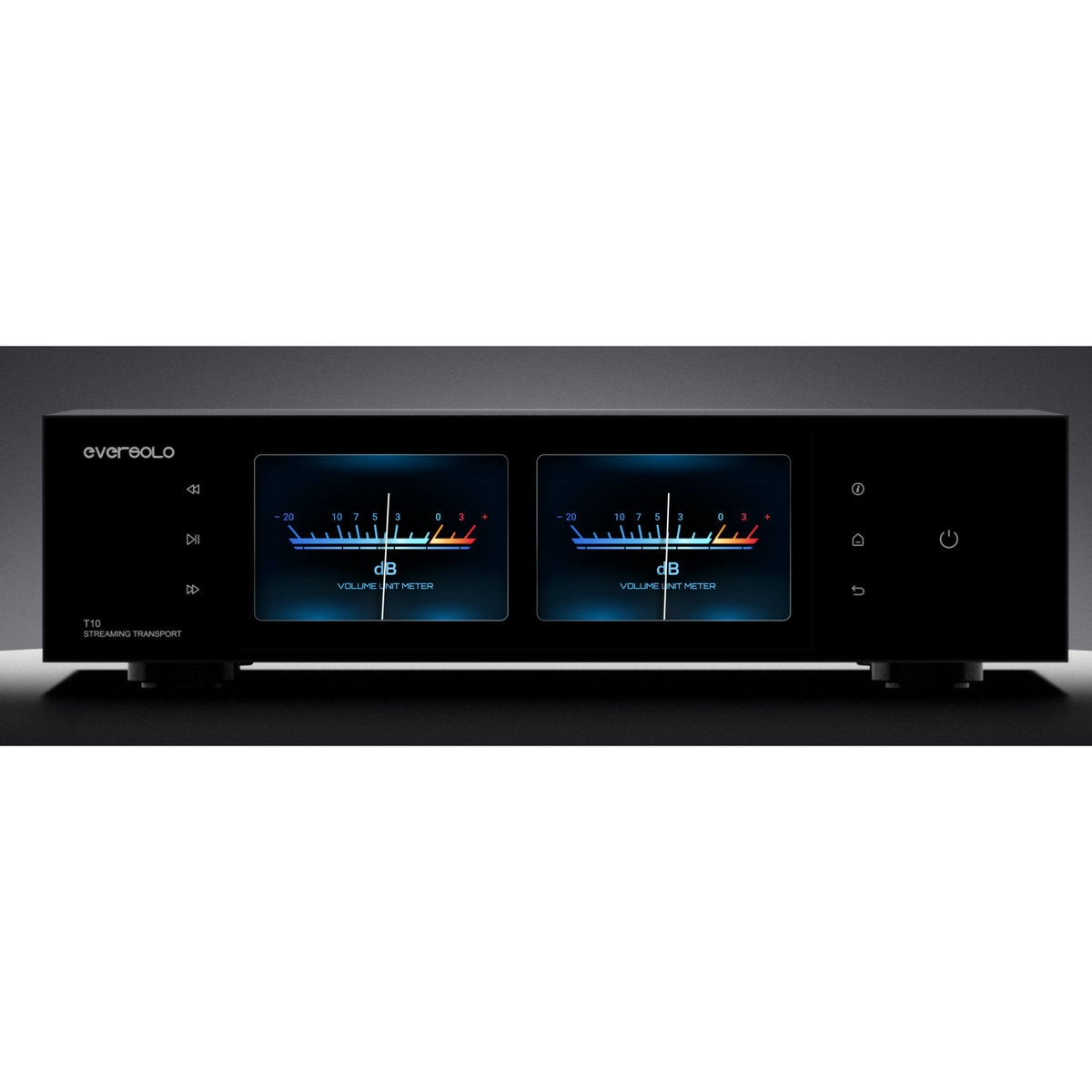

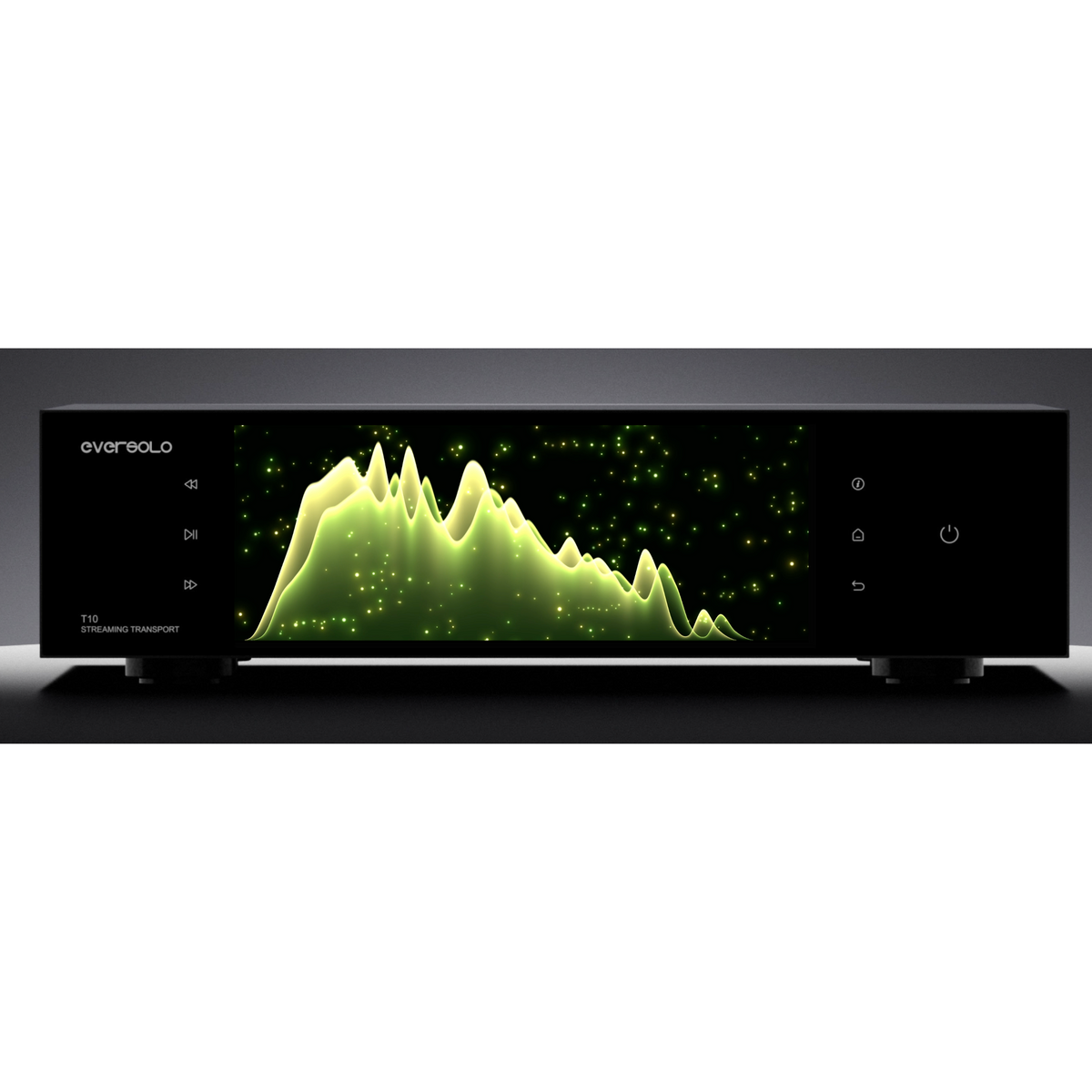

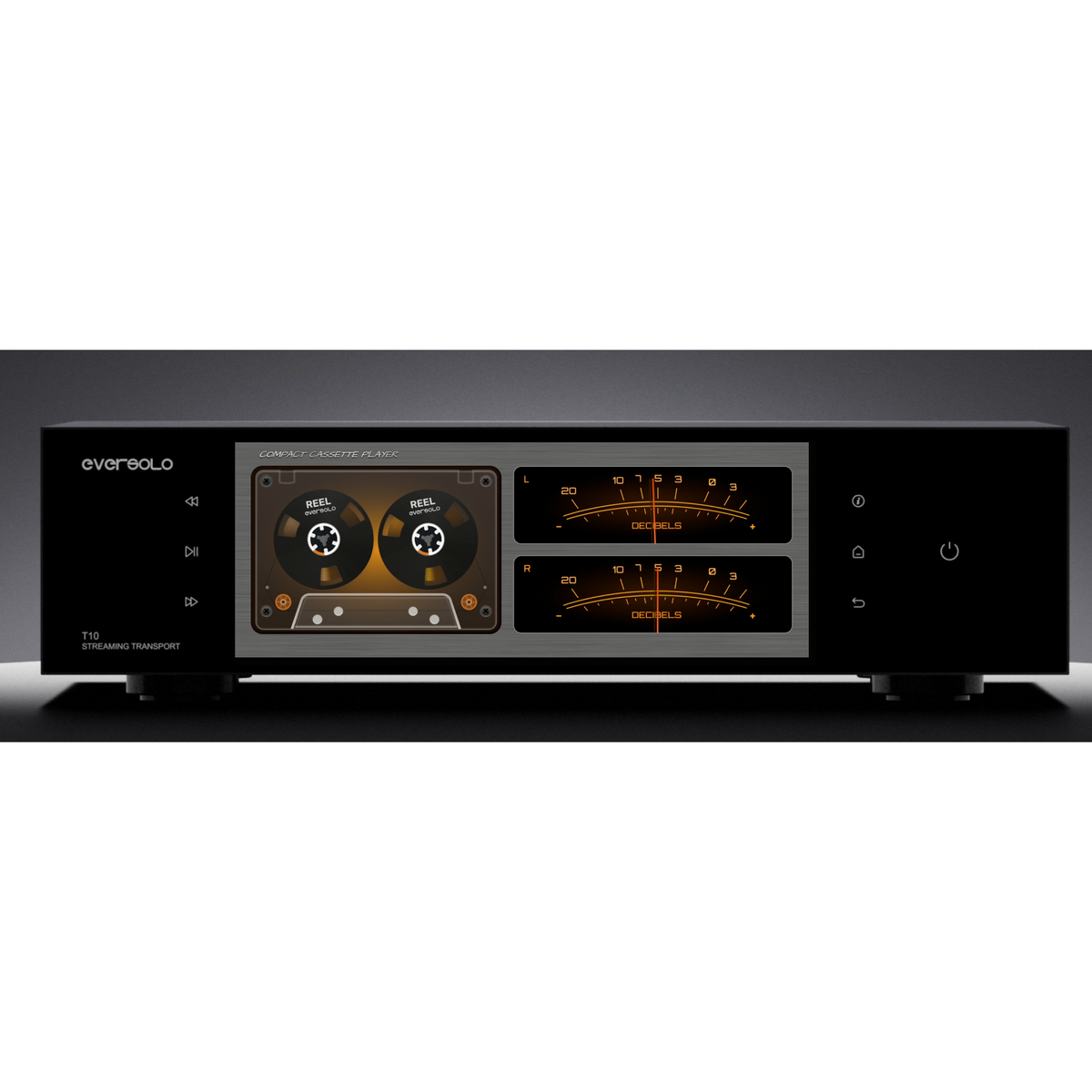

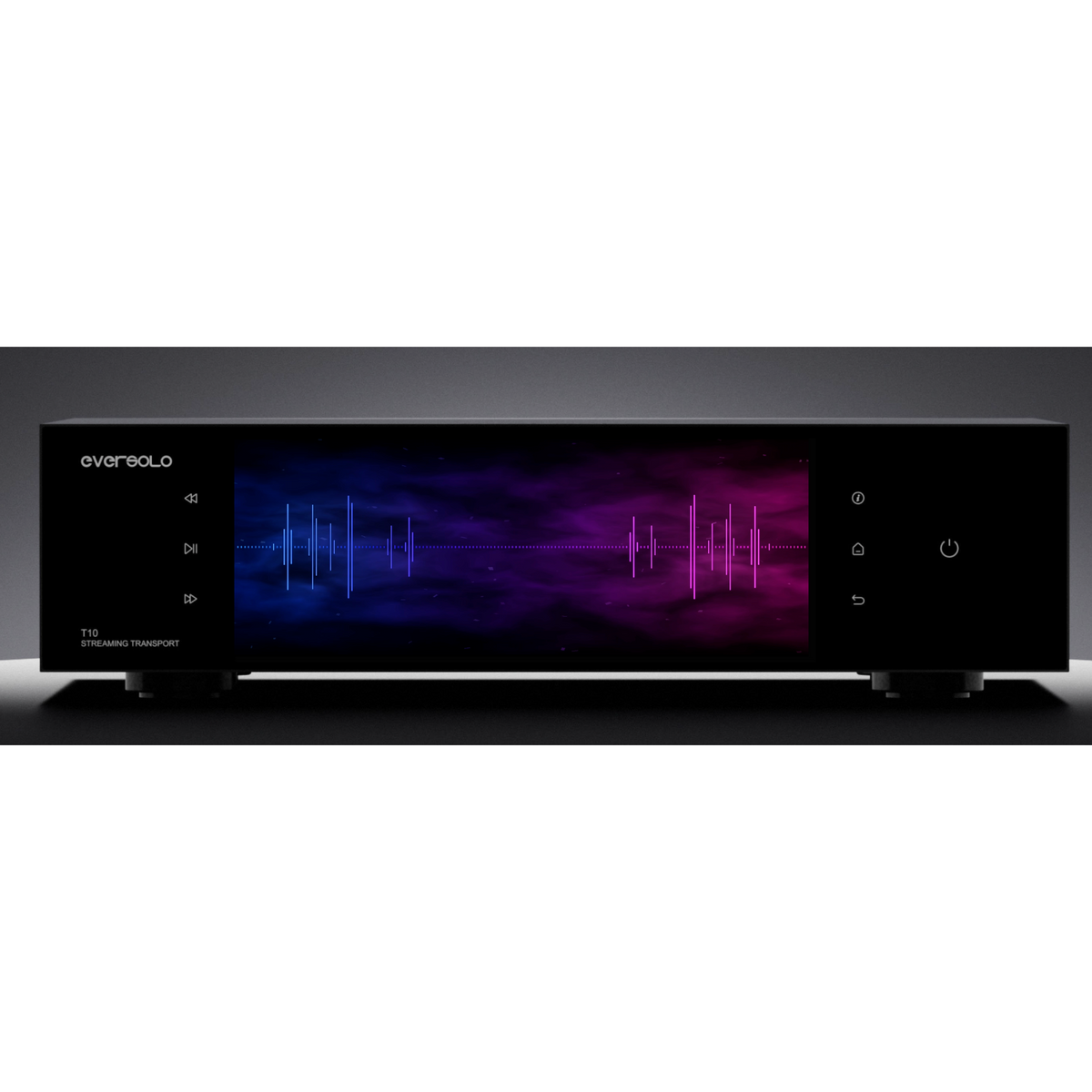

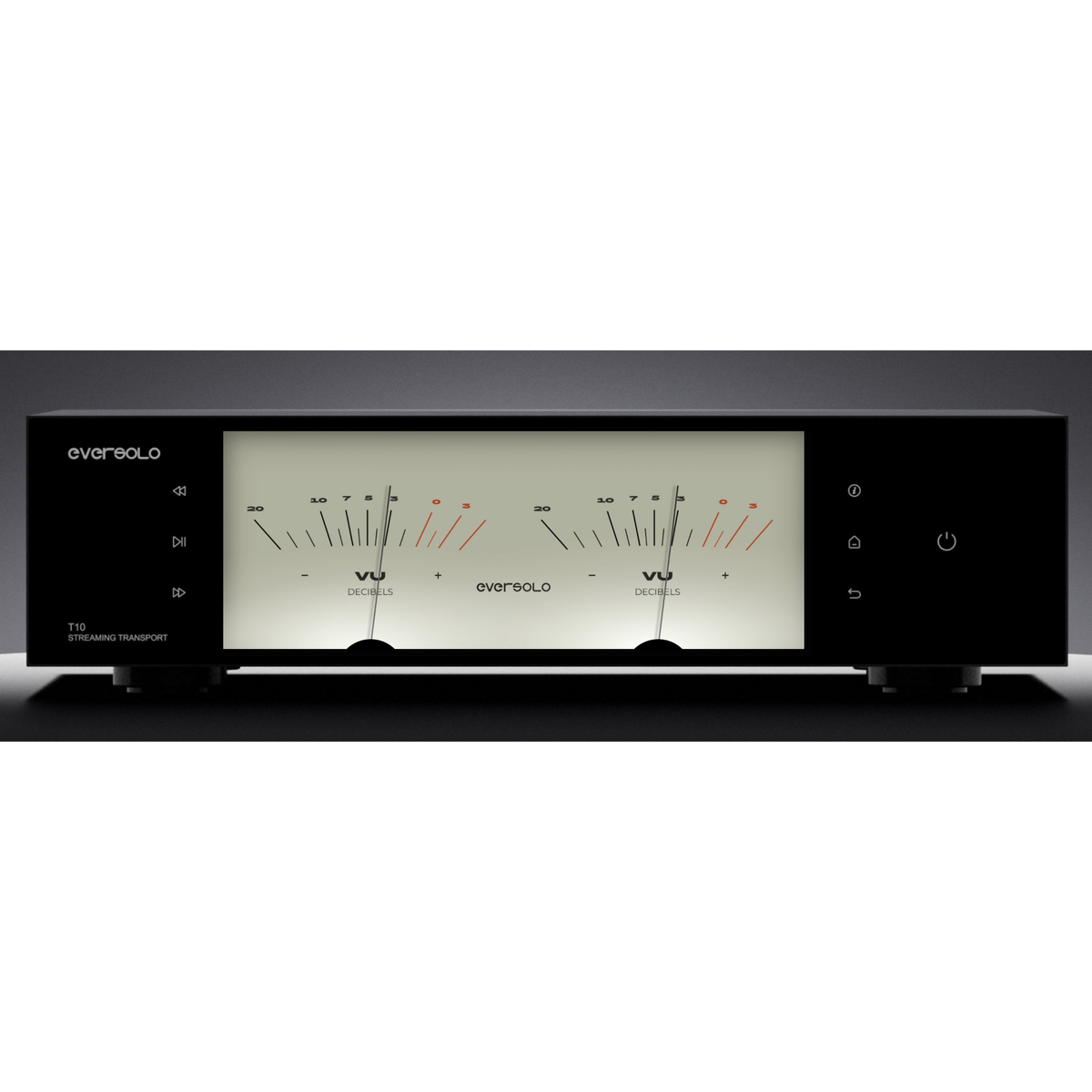

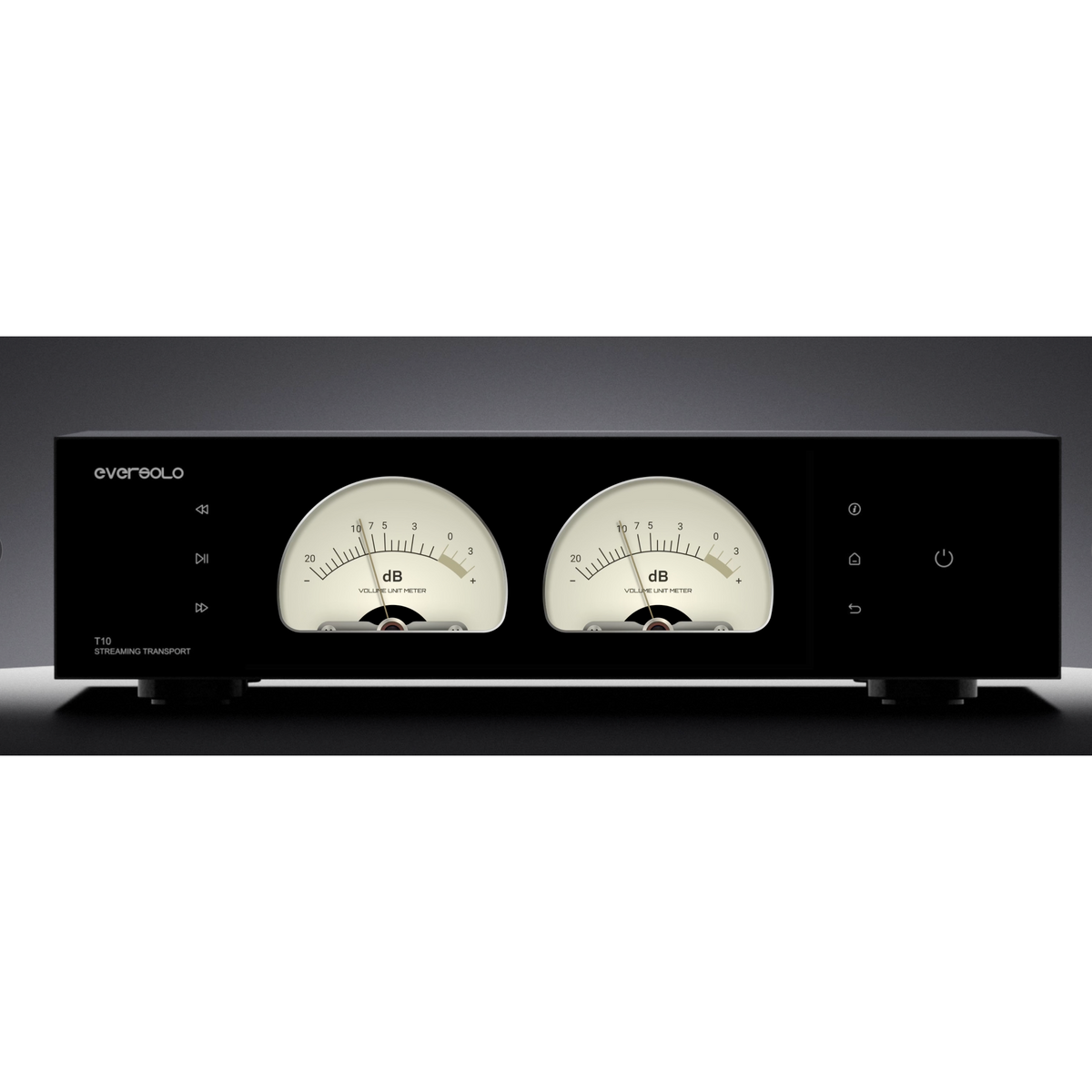

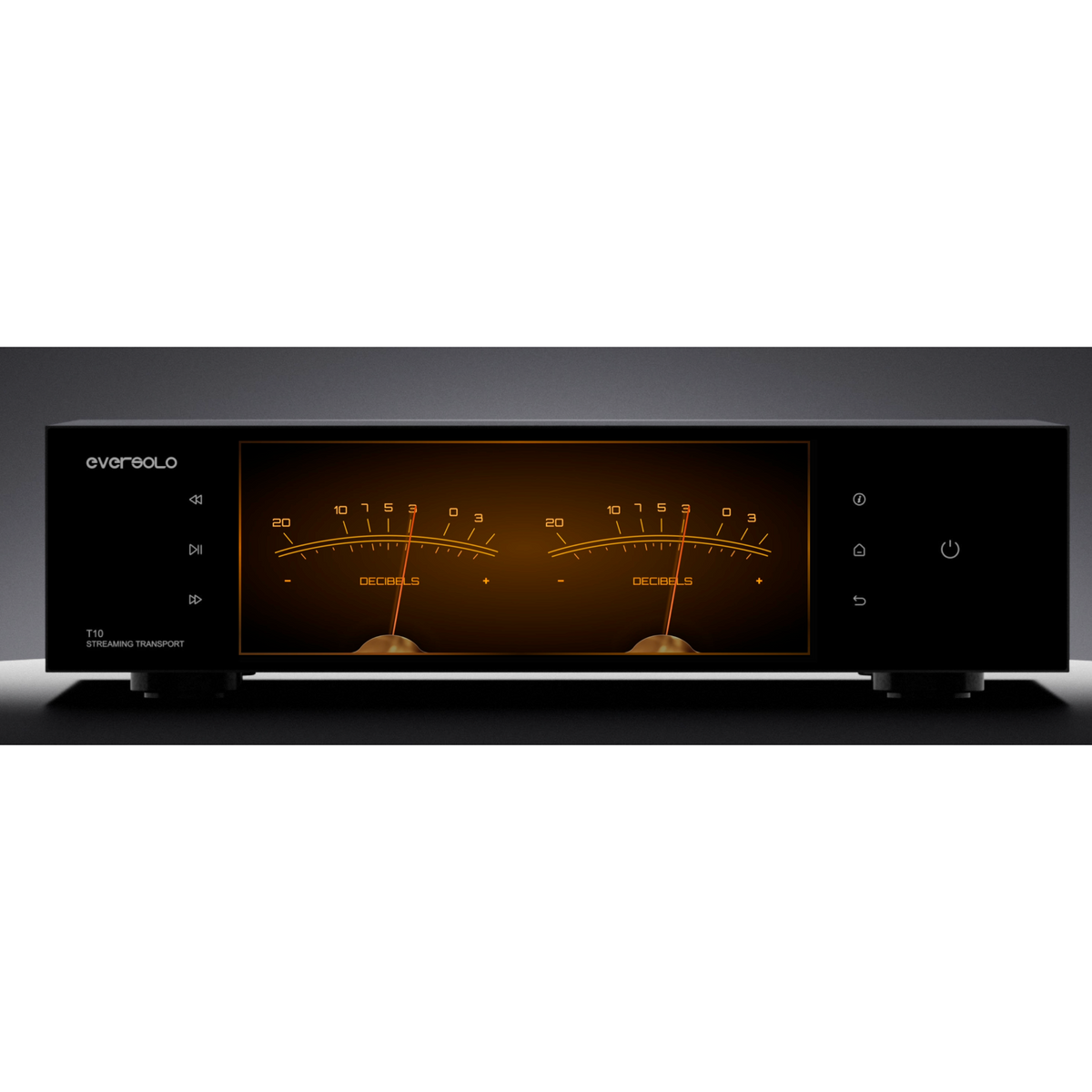

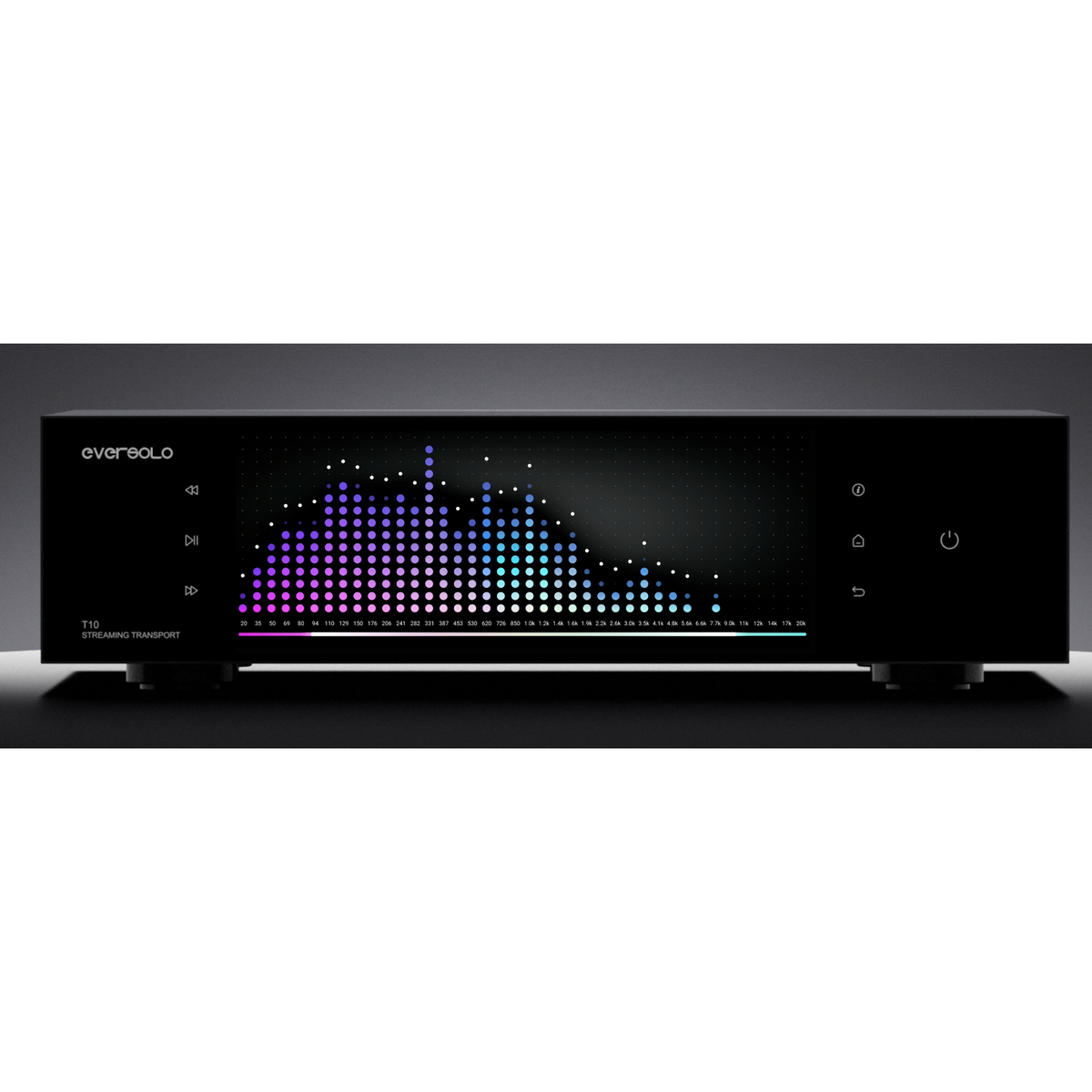

A rich array of personalised dynamic displays brings music to life visually: VU meters, spectrum visualisers and spatial mood imagery can be matched to your listening atmosphere. Touch controls are seamlessly integrated into the aluminium front panel, with electromagnetic isolation built into the screen to reduce interference with the audio circuitry.

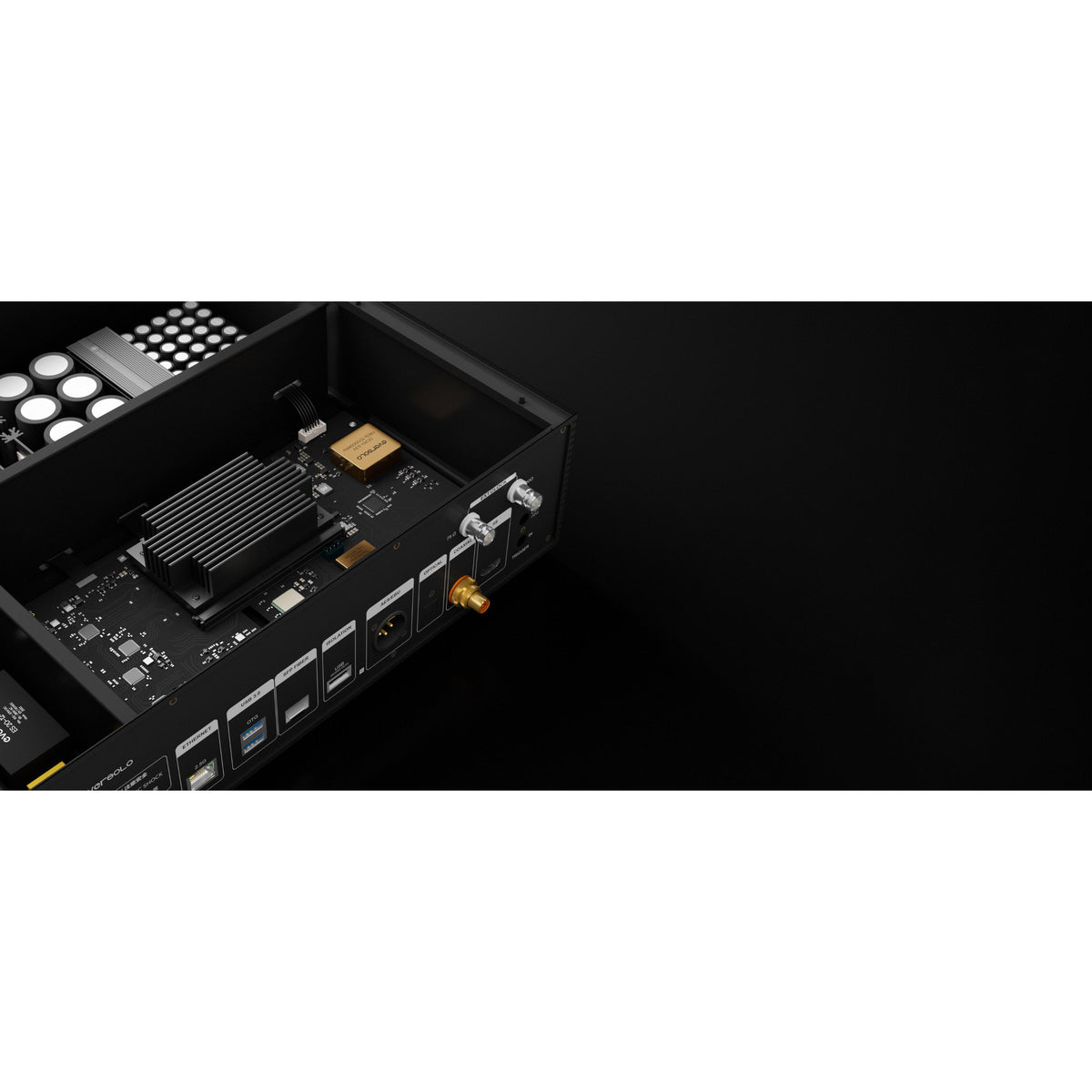

Core Architecture — The Power Matrix

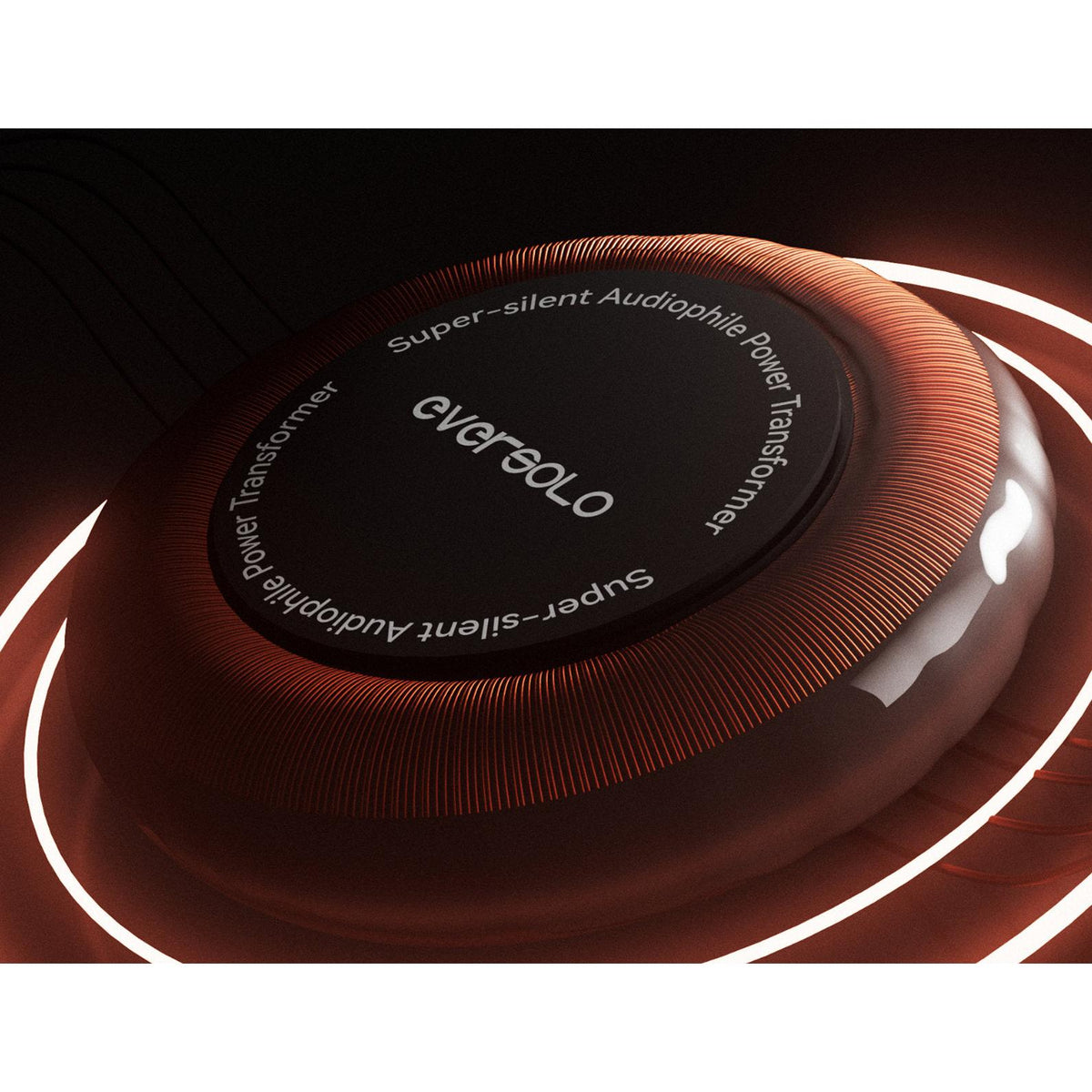

Custom O-Type Linear Power Supply The T10's custom O-type linear power supply combines a closed-loop magnetic design with low-noise architecture to reduce leakage flux and power-related interference at the source. The result is a cleaner, more stable electrical foundation for refined playback.

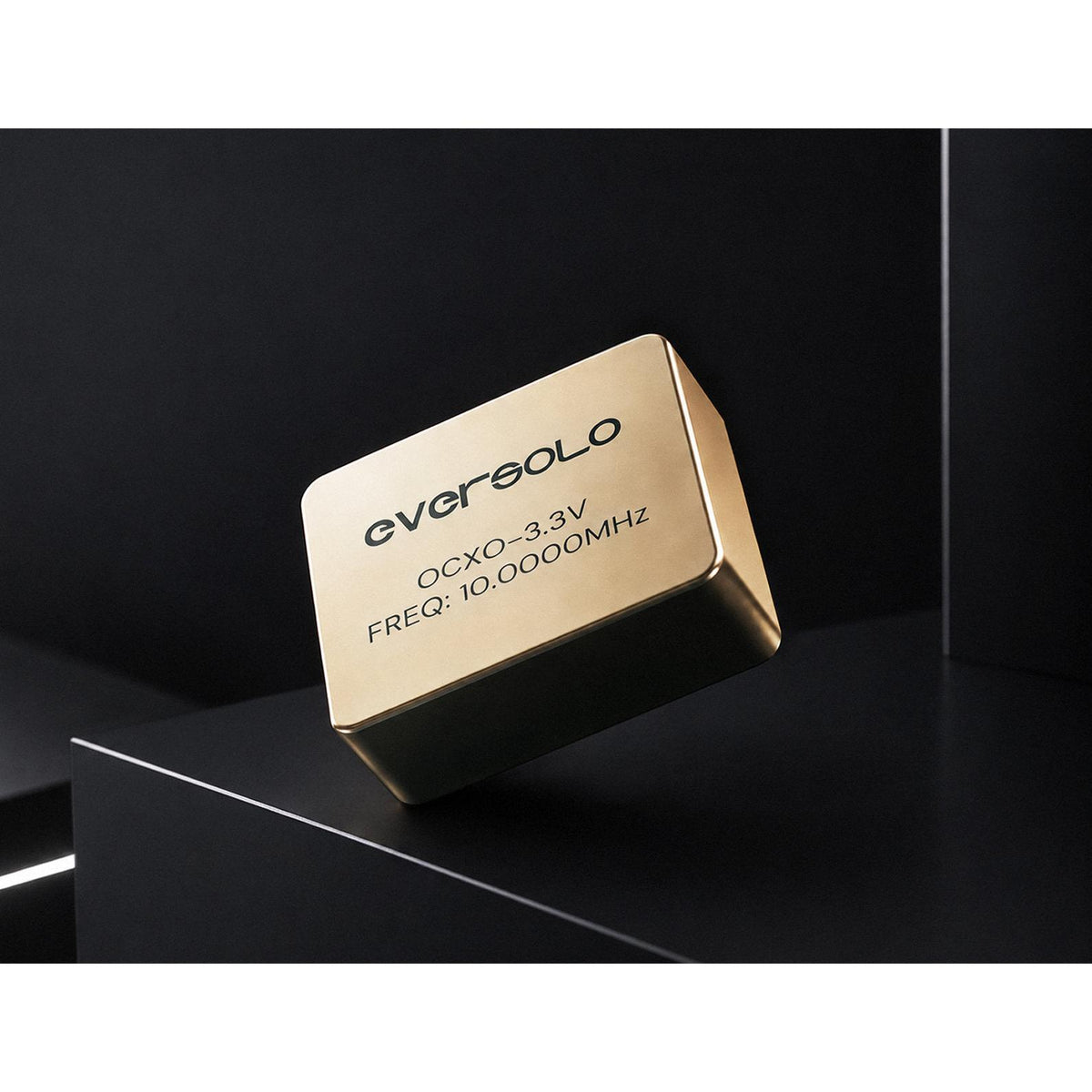

OCXO Clock System A high-precision OCXO (Oven Controlled Crystal Oscillator) clock maintains consistent operating temperature for long-term timing stability, minimising fluctuations caused by environmental temperature changes. Digital signal transmission remains more accurate and consistent — preserving vocal clarity, instrumental layering and fine musical detail.

Low-Noise PLL Clock A low-noise Phase-Locked Loop clock system continuously optimises signal synchronisation to further reduce jitter-related interference, delivering a smoother, more coherent presentation with less harshness and digital glare. Music flows more naturally.

Femtosecond Clock The T10's femtosecond-grade system clock provides an ultra-precise timing reference at the foundational level of the system architecture.

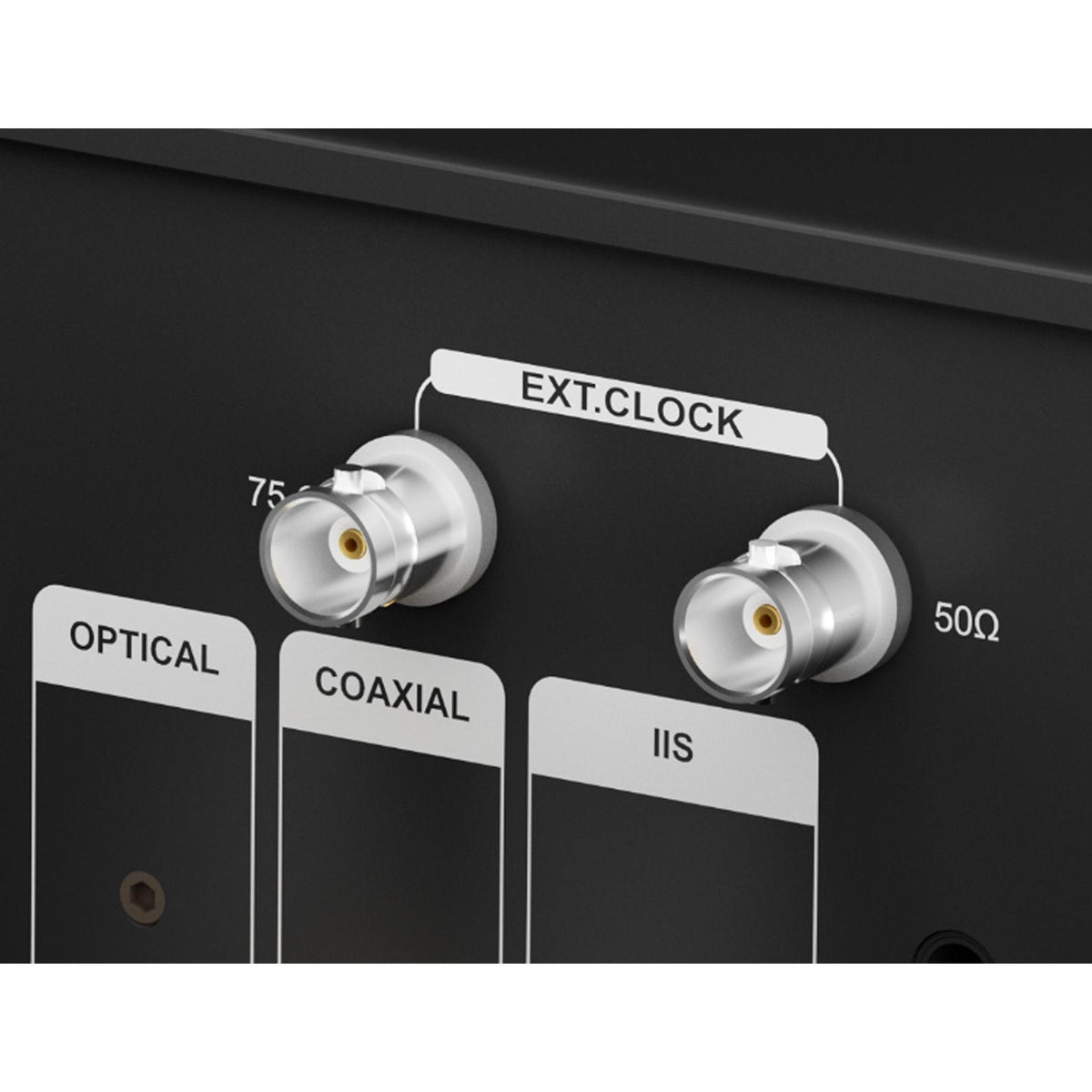

External Master Clock Input Support for external 10MHz and 25MHz master clock input allows seamless integration with independent clock generators and high-end multi-device audio systems. Input impedance: 50Ω / 75Ω.

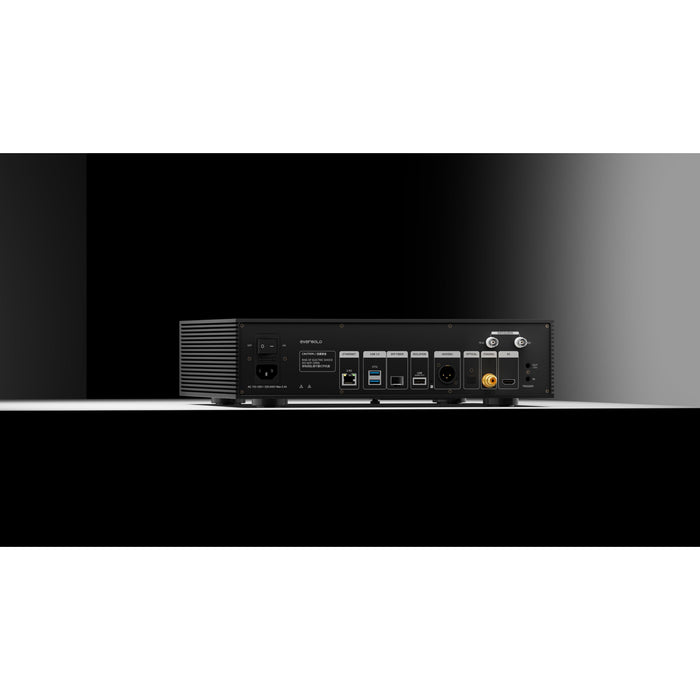

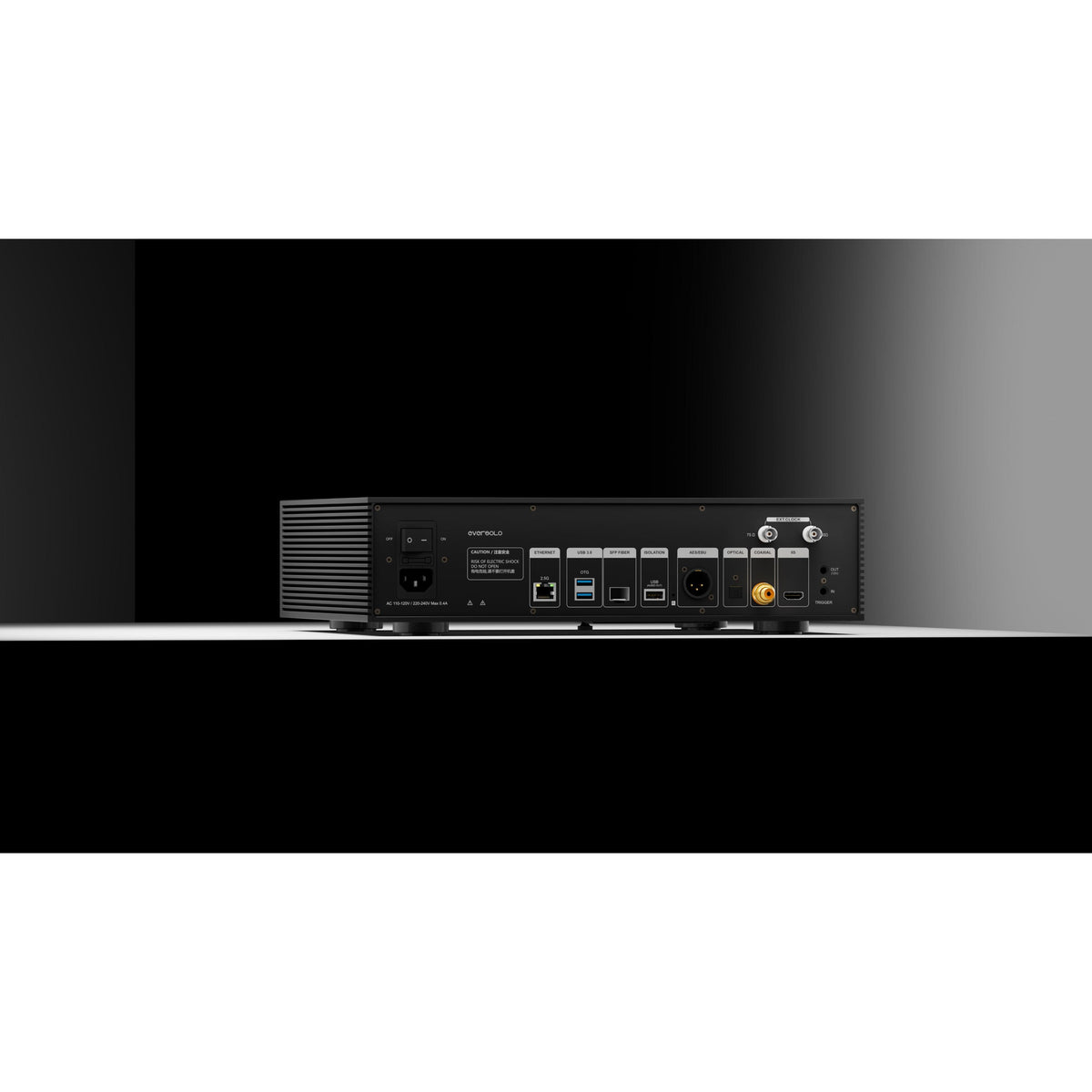

Connectivity Without Limits — Multi-Stage Electrical Isolation

The T10 goes beyond physical separation with multi-stage electrical isolation across all critical digital pathways, reducing noise interference and signal crosstalk between connected devices throughout the entire signal chain.

Isolated IIS Output — 8 Configuration Modes Support for 8 IIS output configurations ensures compatibility across a wider range of DAC architectures. Supports up to stereo DSD512 Native and PCM 768kHz/32-bit.

Isolated USB Audio Output Professional-grade isolation architecture reduces noise and electrical interference from upstream devices. Supports up to stereo DSD512 Native and PCM 768kHz/32-bit (compatible with UAC-standard DACs).

AES/EBU Output Professional balanced transmission architecture for high-end DACs and studio-grade audio systems. Supports up to PCM 192kHz/24-bit and DoP64.

Coaxial Output Isolation architecture reduces noise and current crosstalk. Supports up to PCM 192kHz/24-bit and DoP64.

Network — Speed and Purity Together

2.5G Ethernet — High-bandwidth wired connection ensures stable, uninterrupted high-resolution playback.

SFP Optical Network Interface — Further reduces network-borne electrical interference for a quieter sonic background. Supports Gigabit single-mode single-fibre and dual-fibre optical modules (SFP modules sold separately; single-mode 1310nm recommended, e.g. StarTech SFPGLCLHSMST, TP-Link TL-SM311LSA-2KM).

Wi-Fi 6 (Dual-band 2.4G + 5G) — Higher bandwidth, lower latency and stronger anti-interference performance for smooth wireless streaming.

Software — Reimagining the Listening Experience

EOS Audio Engine The self-developed EOS audio engine supports original sample-rate output, bypassing unnecessary SRC processing at the system level. Whether streaming from third-party apps or playing local Hi-Res files, audio stays closer to the original recording.

Music Services Native integration with TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music, and more. Additional services added through firmware updates.

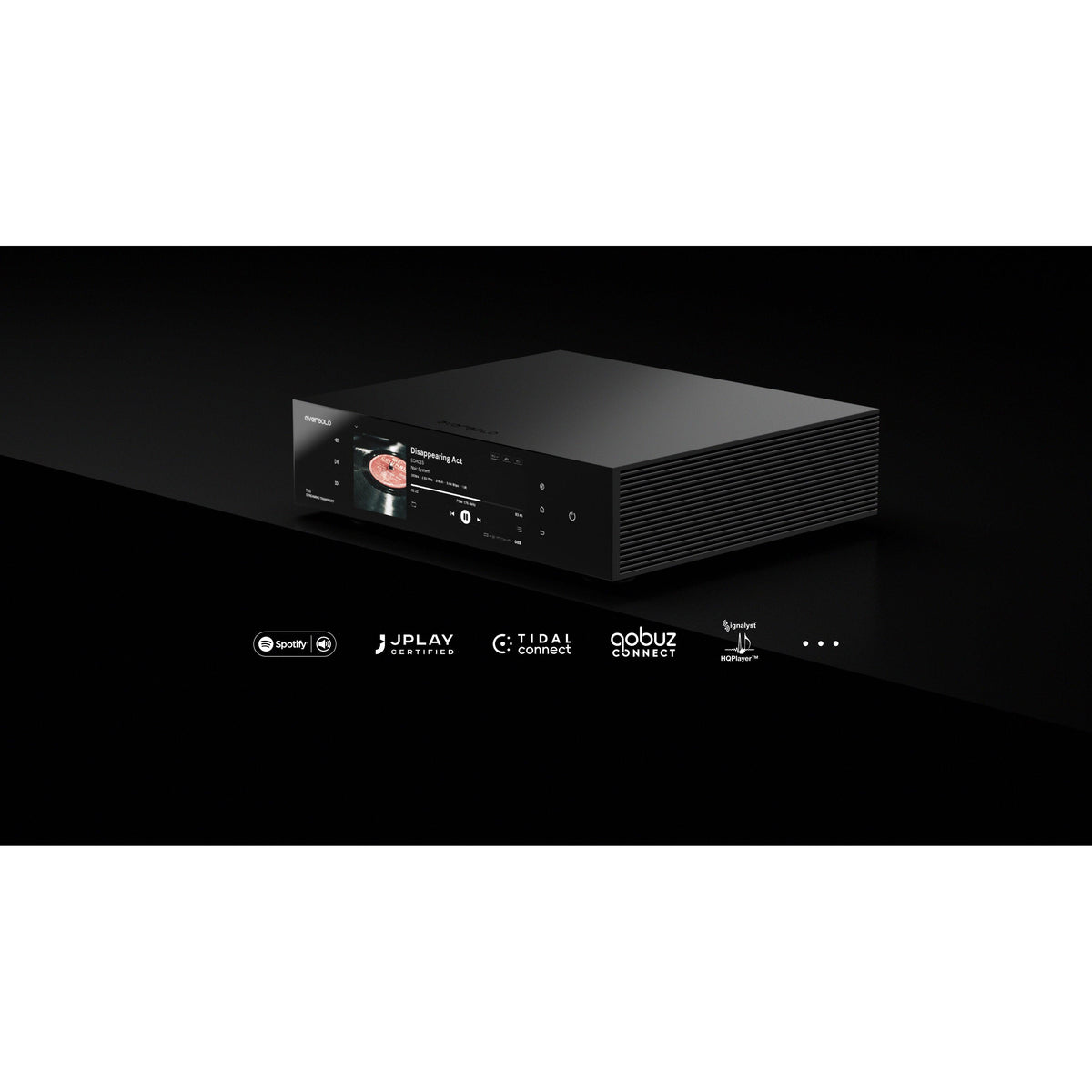

Streaming Protocols Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, JPLAY Certified, NAA, UPnP and more.

Library Management Supports SMB, NFS, WebDAV for NAS and network storage access. Automatic metadata organisation, cross-platform playlists (streaming + local), global search, gapless playback and high-speed library scanning of up to 200,000 tracks.

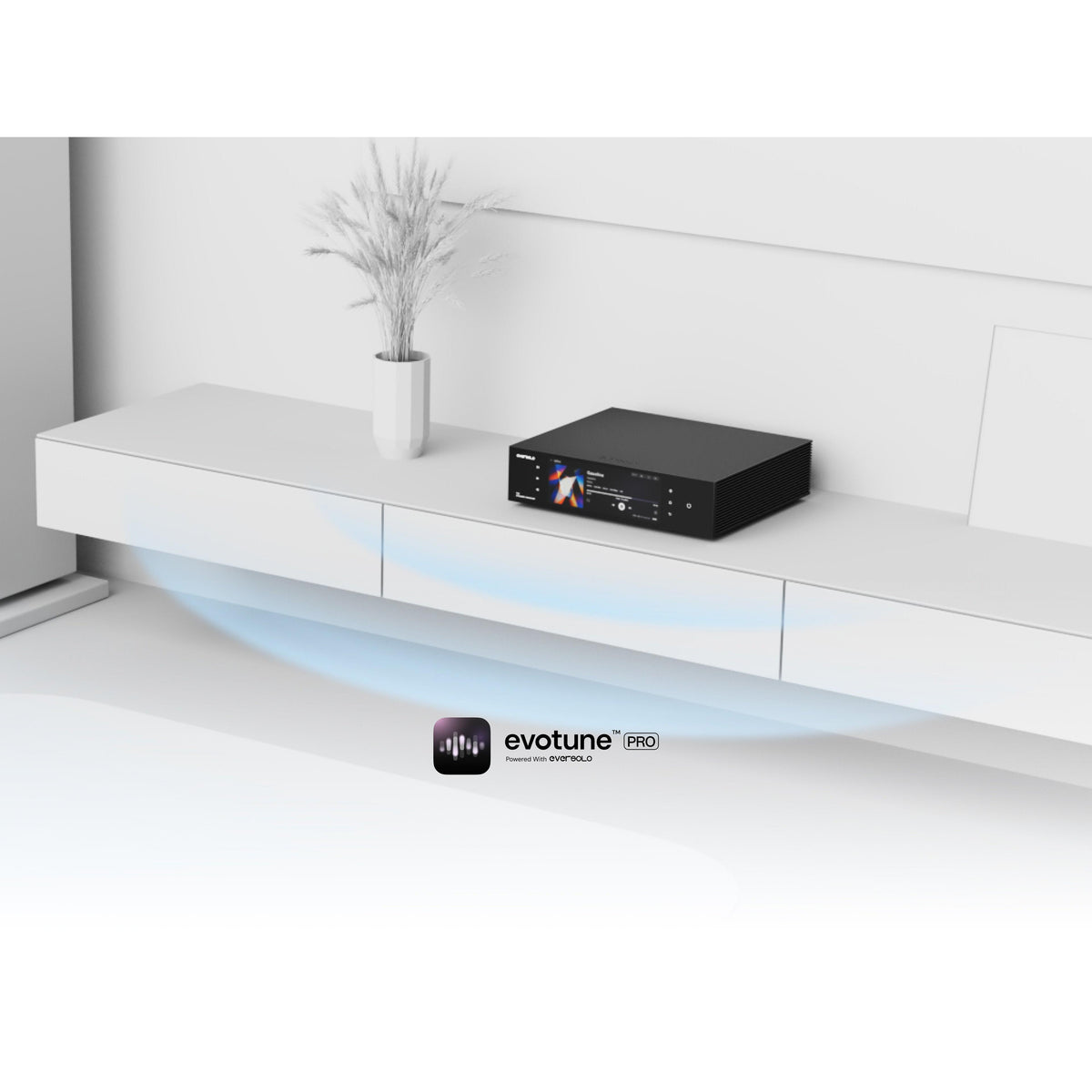

evotune™ Pro Room Correction Advanced room correction analyses acoustics, frequency response, reflection paths and spatial characteristics to build a dedicated acoustic model for your listening environment. Supports 40-band DSP including 20 custom PEQ bands and 20 room-correction PEQ bands. Also supports FIR filter import, loudness compensation and dynamic compression.

EVC Volume Control Engine Maintains signal integrity across all listening levels — the sound character remains natural and complete whether volume is raised or lowered.

CD Playback & Storage

• External CD playback and ripping with automatic artwork and metadata retrieval
• Dual SSD slots supporting up to 8TB × 2 expandable storage (SSD not included)
• Intelligent error correction and duplicate detection for CD archiving

In the Box

• Eversolo T10 streaming transport
• Power cable

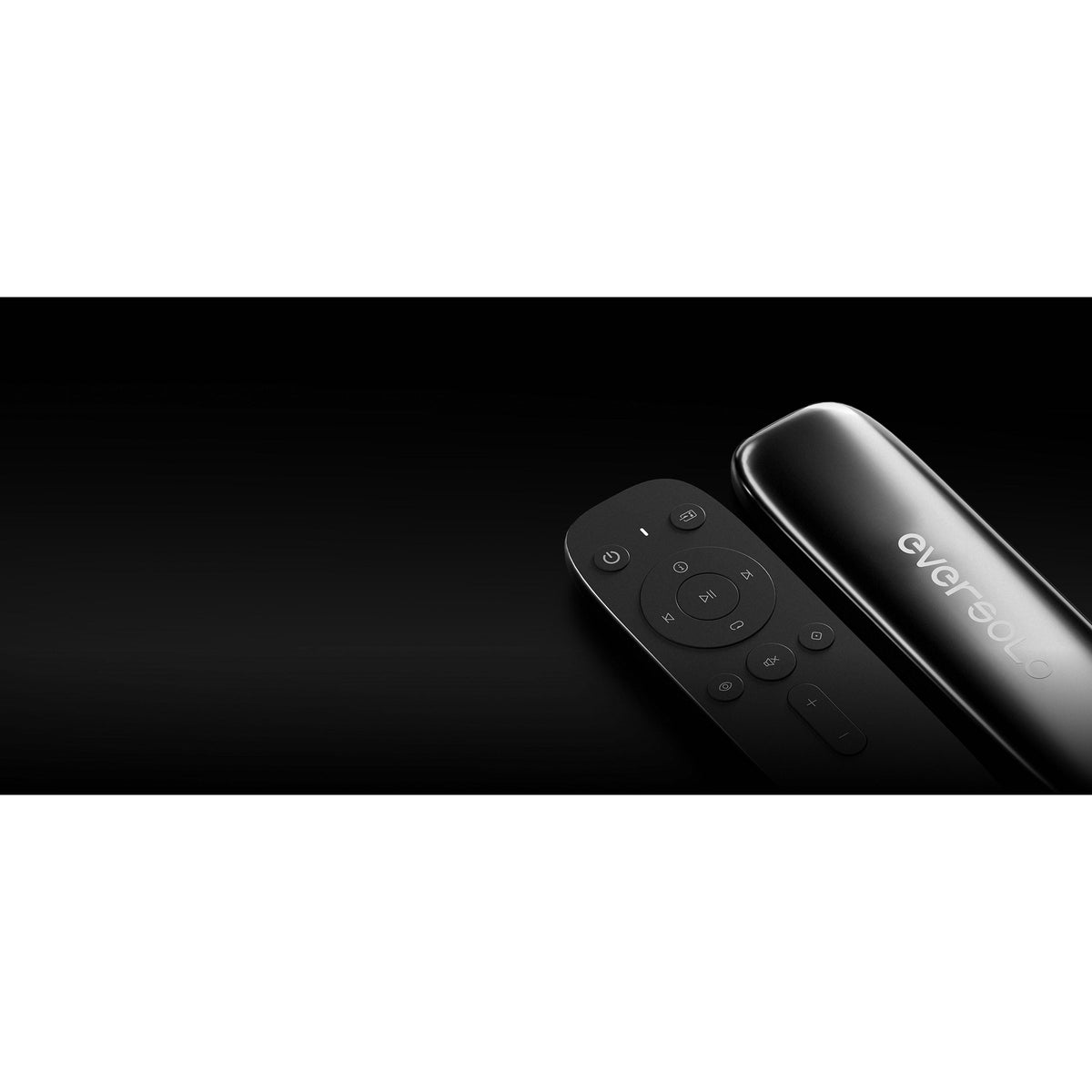

• Remote control (dual-mode Bluetooth + infrared, alloy casing)
• User manual

SFP optical modules and SSD storage sold separately.
