Ferrum - Hypsos - Power Supply
HYPSOS defines a brand new category of a hifi products. It’s not a simple power supply but an audio component of its own – an equally (or even more) important part of a setup as any other. HYPSOS offers a selection of unique features and even accounts for future software improvements – the device is software controlled with as few hardware dependent elements as possible.
HYPSOS is the easiest upgrade for even the most discerning music lovers.
Any quality device with a DC power connector will benefit from HYPSOS. This could be a preamplifier, D/A converter, separate phono preamp, turntable or even a network switch. HYPSOS will power selected components and make them perform to the maximum of their capabilities.
All it takes is a revolution
You can make a first impression only once. With this idea in mind, parent company HEM set out to conquer the world with Ferrum. A new brand, which they modelled on their twenty years’ worth of experience in designing and manufacturing audio electronics. They decided to start at the beginning of any hifi system; the power supply. And make it better.
Enter Ferrum’s firstborn.
HYPSOS is a hybrid power system and combines the best features of both linear and switching power supplies. HYPSOS can power many brands with a simple revolution of a knob. This software based operation is unique to HYPSOS and an industry first! Apart from the ease of operation HYPSOS makes use of a smart combination of existing power sensing techniques, which again sets it apart from the pack. HYPSOS will reveal unrivalled detail and makes your existing setup perform to the max. You’ll just love it!
- Hybrid Power System: Linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency.
- Sweet Spot Tuning (SST): Possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.
- Advanced Automation: Compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode even without dedicated trigger connection
- Detailed and revealing yet unfatiguing sound: Makes your current audio setup perform to its potential. Tweak the sound modifying the voltage level on the fly and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.
- Distinct user levels: Using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous ouput voltage range of 5-30V with up to 6A of current delivered to the load. HYPSOS is as universal a device as it gets.
- 4T Sensing Design (4TSD): Ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance effectively improving transient response.
- Extremely safe to use: Automatic Transformer Voltage Adjust (ATVA), Electronic Output Voltage Polarity Switch and overvoltage, current limit and short protection. Settings lock to prevent accidental change of the parameters.

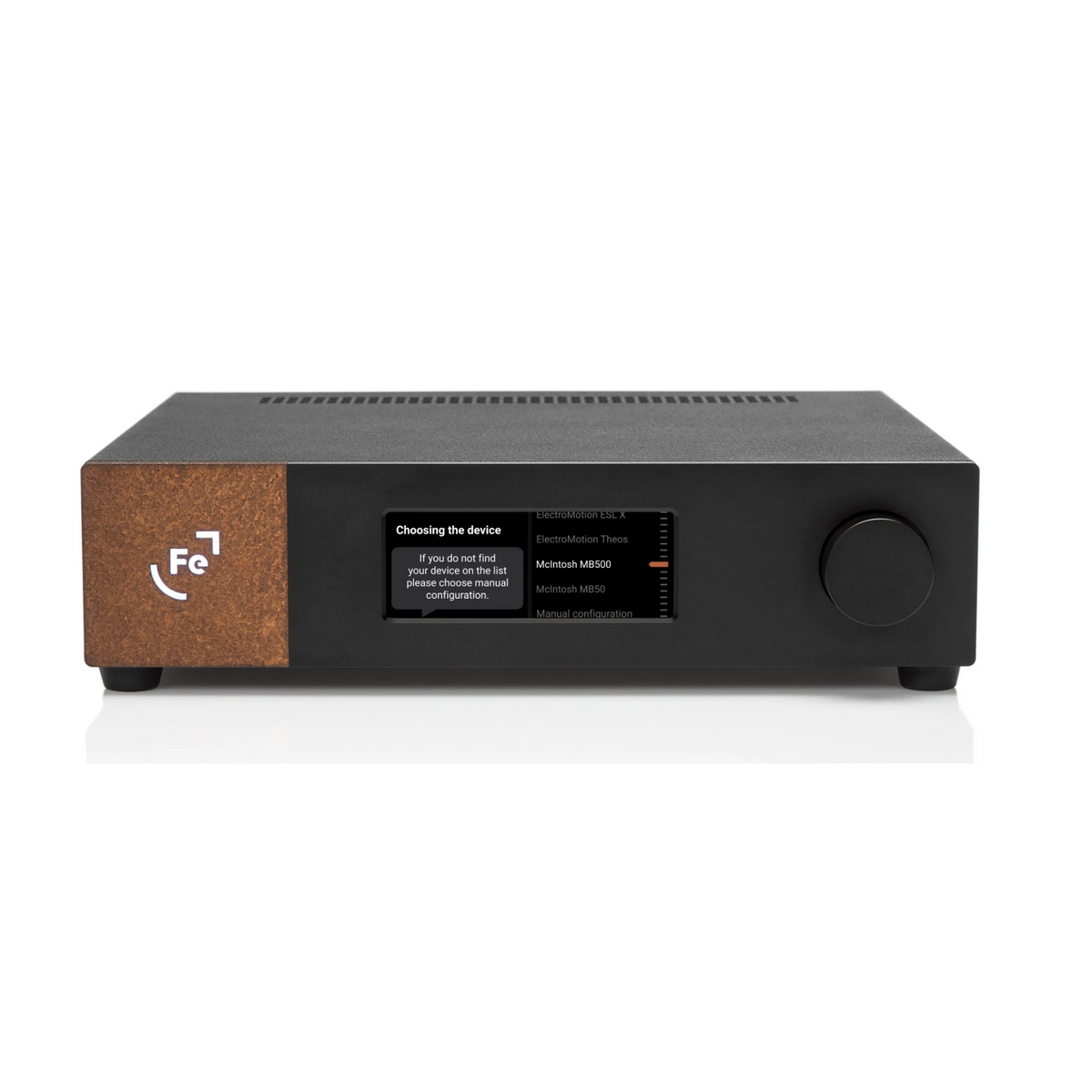

- Works with: Extensive and easy to update list of compatible devices is flashed right into the device to make the Hypsos set-up experience straight-forward and safe.

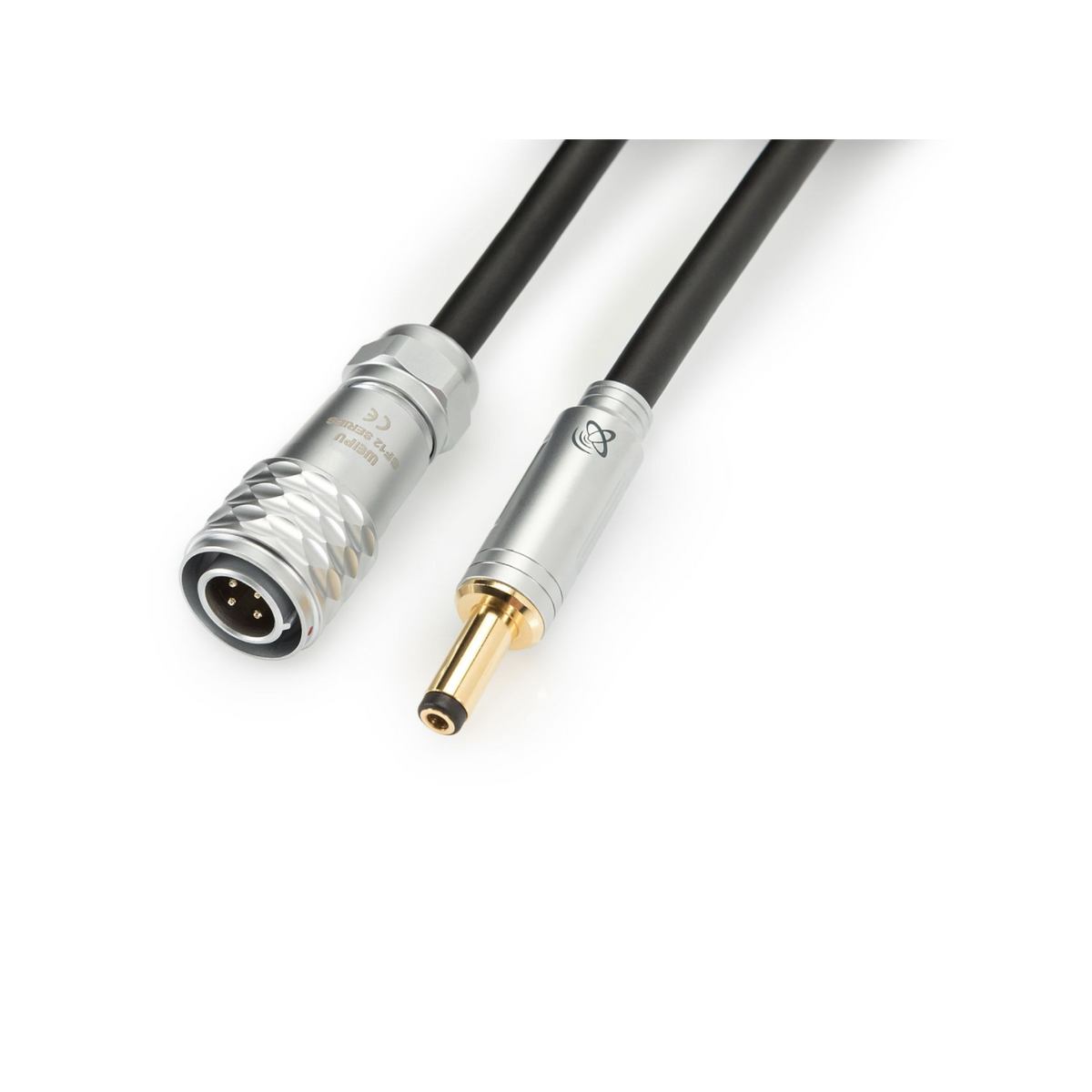

High quality DC power cords
Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.
HYPSOS comes with one of the two high quality DC power cables fitted with a 5,5x2,5mm and a 5,5x2,1mm DC plug, to connect to the most commonly used DC inlets.
- Power input: 100-240Vac/50-60Hz (EU/US Version) IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
- Mains cable: US/EU/UK
- DC OUT cable: 5×2.5mm DC plug / 5×2.1mm DC plug Custom cables made to order at additional cost
- Output Voltage Range: 5-30 [V]
- Max Continuous Output Current (for V_out below 13,3V): 6 [A]
- Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
- Maximum Impulse Current: 9A
- Maximum Impulse Power: DC V_out*9A (270W for 30V)
- Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
- Max Continuous Output Power (for V_out higher than 13,3V): 80W
- Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
- Net weight (kg / lb): ~ 2,89 / ~ 6.2
- Primary winding fuse: IEC 5x20mm, 250V 3.15A, slown-blown for Japan version / 250V 2A, slown-blown for Europe, US version
- Secondary winding fuse: Littefuse 154004T, 4A
- Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA
