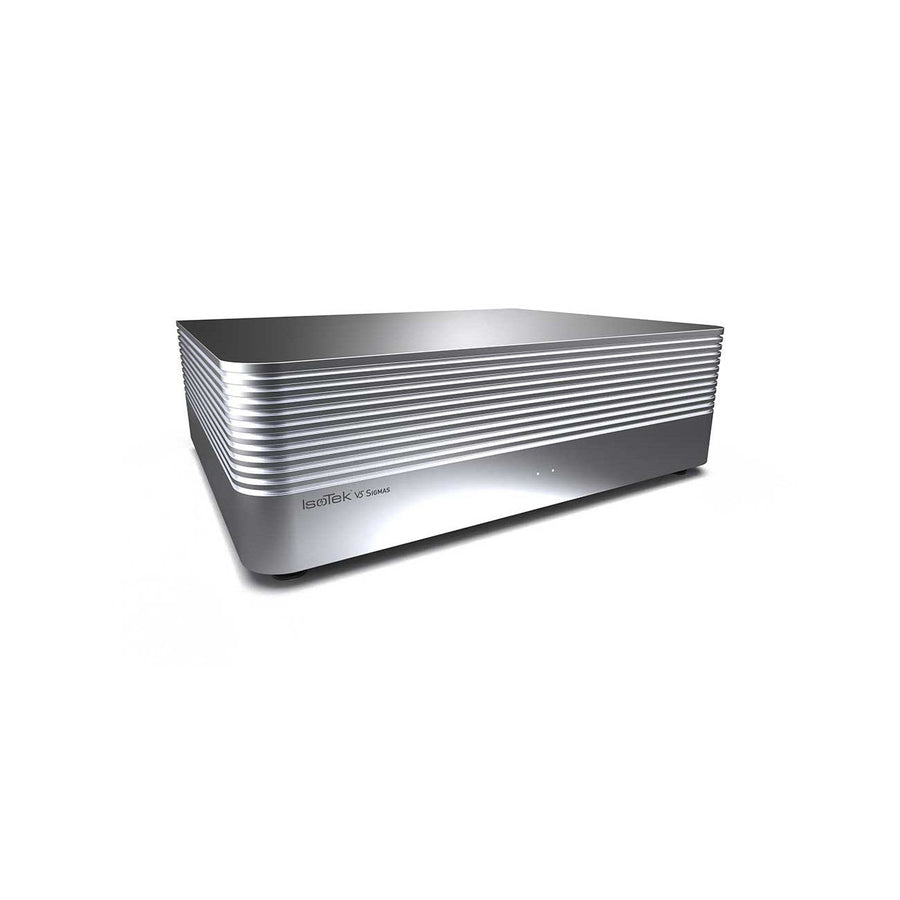

IsoTek - V5 Sigmas - 7-Way Power Conditioner

IsoTek V5 Sigmas Power Conditioner: Elevating Your Audio Experience

The IsoTek V5 Sigmas power conditioner is a groundbreaking power cleaning and distribution system designed to enhance your audio system's performance. Measuring 445mm in width, 305mm deep, and 150mm high, it represents a significant advancement from the Aquarius and its EVO3 predecessor. With over 35% improved amperage due to reduced resistance within the circuit design and a 40% increase in current handling capability, the V5 Sigmas delivers dramatically improved performance.

Innovative Design Highlights:

• Improved Direct Current Resistance (DCR): The new design minimises DCR, bringing performance closer to the ideal of zero Ohms, resulting in cleaner power delivery.

• Seven Independent Outlets: The V5 Sigmas houses seven independent outlets, each with its dedicated clean power network. This reduces both Differential Mode and Common Mode noise and minimizes cross-contamination of connected components.

• High Current and Medium Current Outlets: It offers three high current low impedance outlets rated at 16A, suitable for power amplifiers, active loudspeakers, subwoofers, and modern TVs. There are also four medium current outputs rated at 10A, designed for source components. Adaptive Gating© technology ensures optimal clean power based on power draw.

• KERP© (Kirchhoff’s Equal Resistance Path): Equal resistance and power delivery to all outlets are ensured, optimising performance.

• High-Quality Internal Wiring: Ultra-pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offer low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix and extruded FEP dielectric protect the conductor, creating a Virtual Dielectric of Air dielectric (FDA) for unrivaled performance.

• Comprehensive Protection: The V5 Sigmas provides 121,500A of instantaneous protection through IsoTek’s unique sequential and repeatable protection system, safeguarding valuable equipment.

• System Link Outlet: Connect multiple units together using the System Link outlet, maintaining a starred earth reference and reducing the need for multiple wall outlet sockets.

Enhance Your Audio System:

The IsoTek V5 Sigmas is not only a high-quality design but also a highly functional upgrade for your high-end audio system. It improves soundstage, three-dimensional imaging, bass articulation, control, and extends the frequency range and openness of your audio experience. The package includes IsoTek’s award-winning Premier power cable.

Synergy with IsoTek Power Cables:

IsoTek products, including the V5 Sigmas, are designed to synergize with IsoTek power cables, maintaining commonality of design and material properties throughout your audio wiring loom.

Elevate your audio experience with the IsoTek V5 Sigmas, a remarkable power cleaning and distribution system designed to unleash the full potential of your high-end audio system.

IsoTek V5 Sigmas Power Conditioner Features

• Suitable for all audio or AV systems
• RFI reduction 80dB
• 7 optimised power cleaning circuits remove Common and Differential Mode mains noise

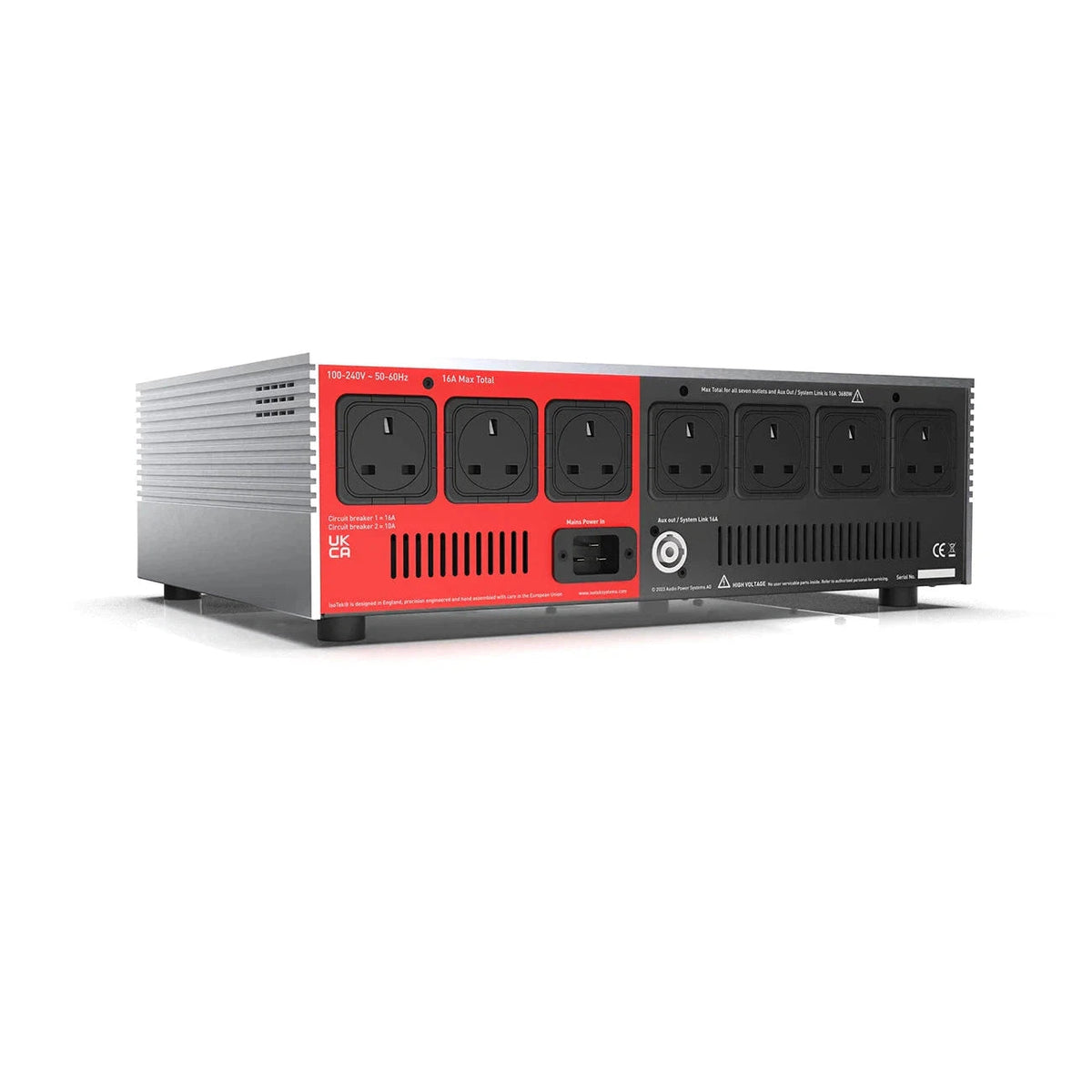

• 4 independent outlets for source components (10A max each)
• 3 independent high current outlets for power amps, active subwoofers, active loudspeakers, TVs etc. (16A max each)
• 121’500A instantaneous protection
• Fully star-earthed network
• Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
• SYSTEM LINK outlet for extending the outlets and maintaining a starred earth reference
• Supplied with IsoTek’s award winning EVO3 PREMIER POWER CABLE (1.5m)
• UK, EU, US, AU & CH outlets available
