Marantz

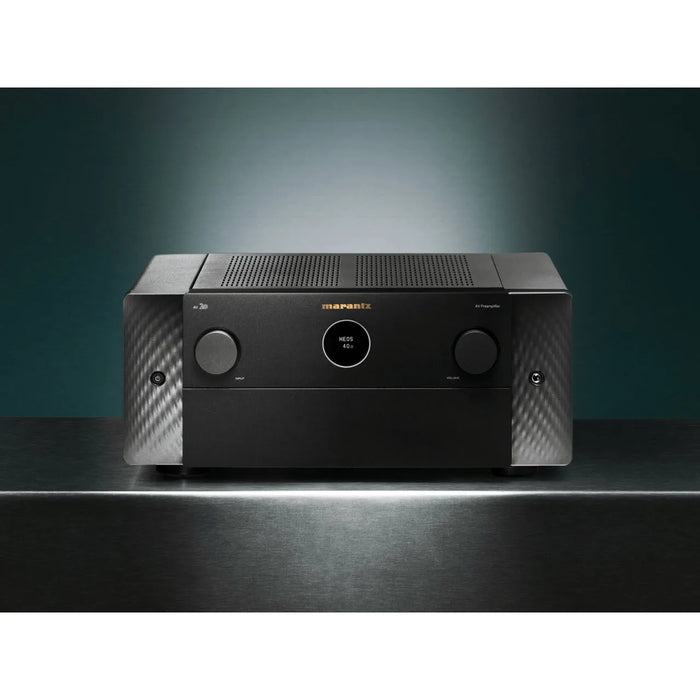

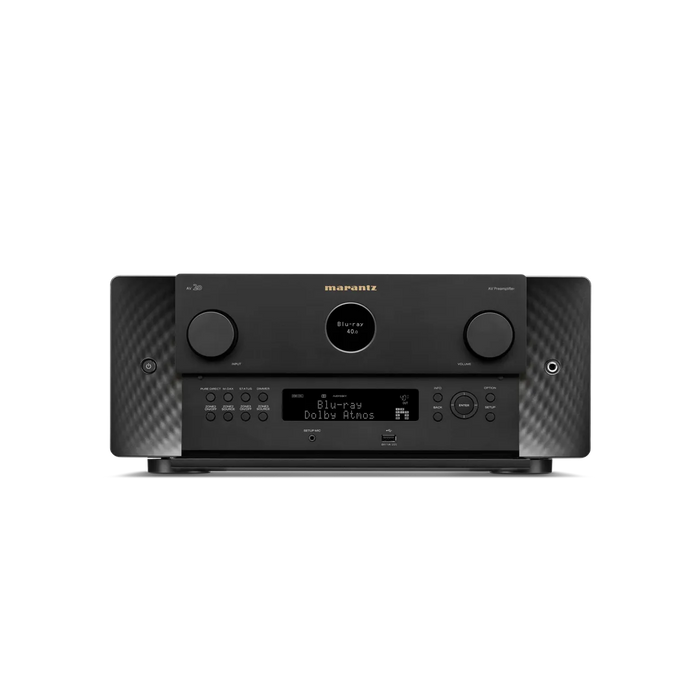

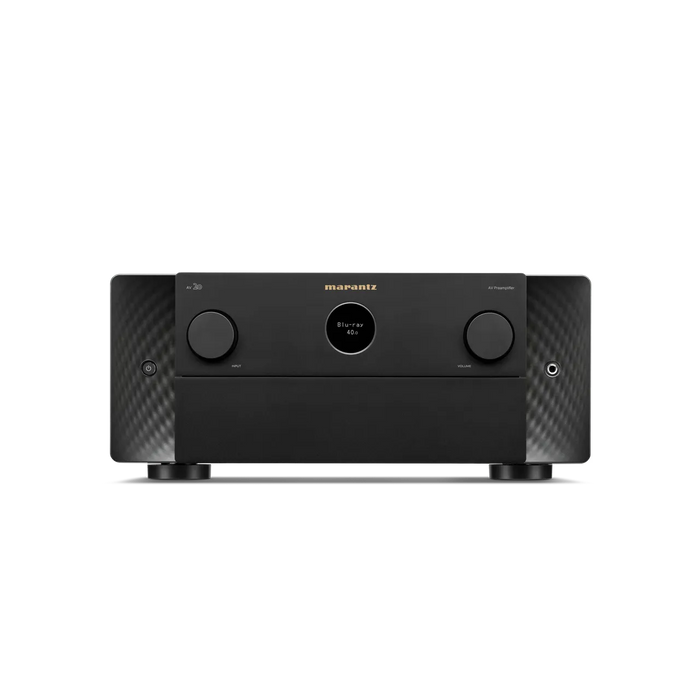

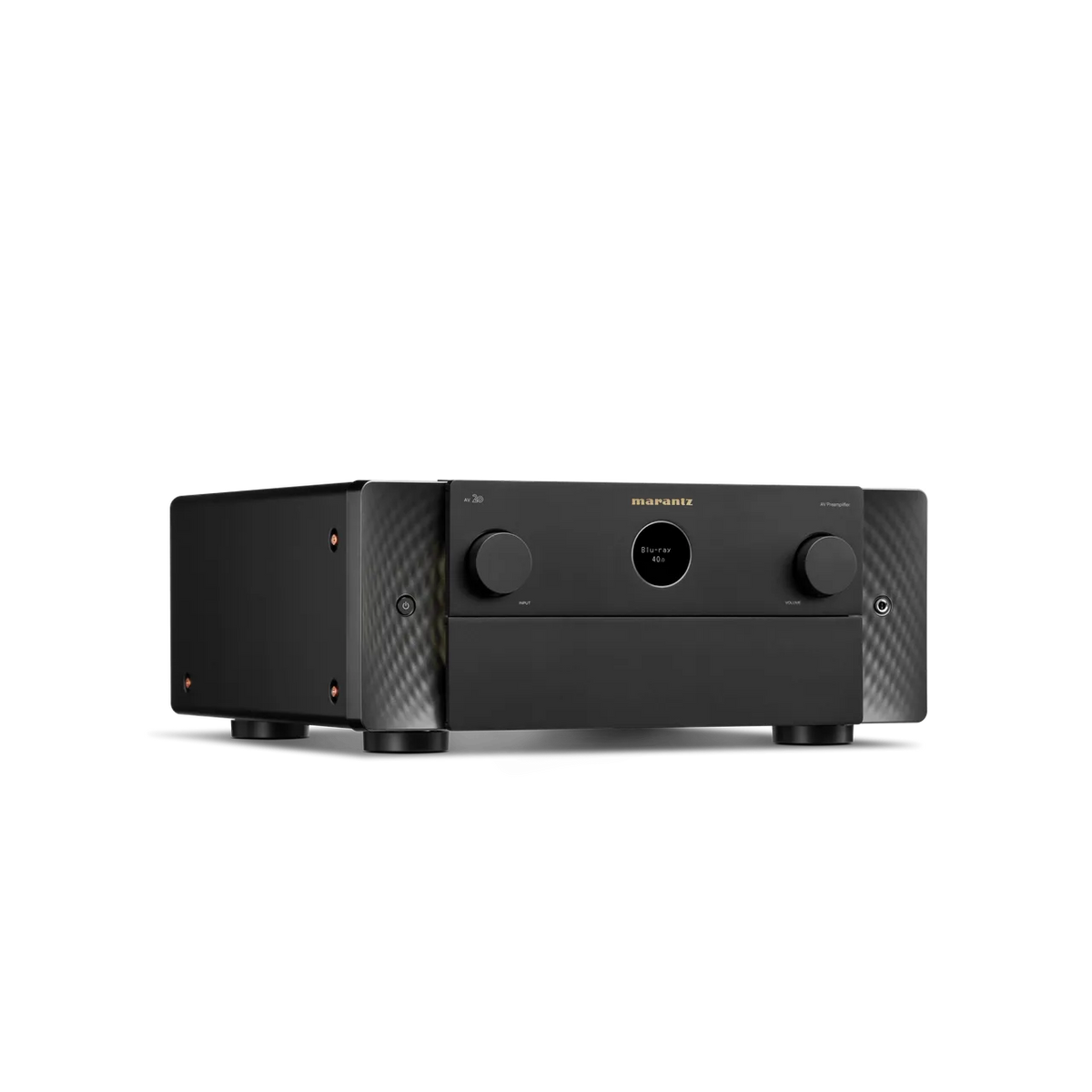

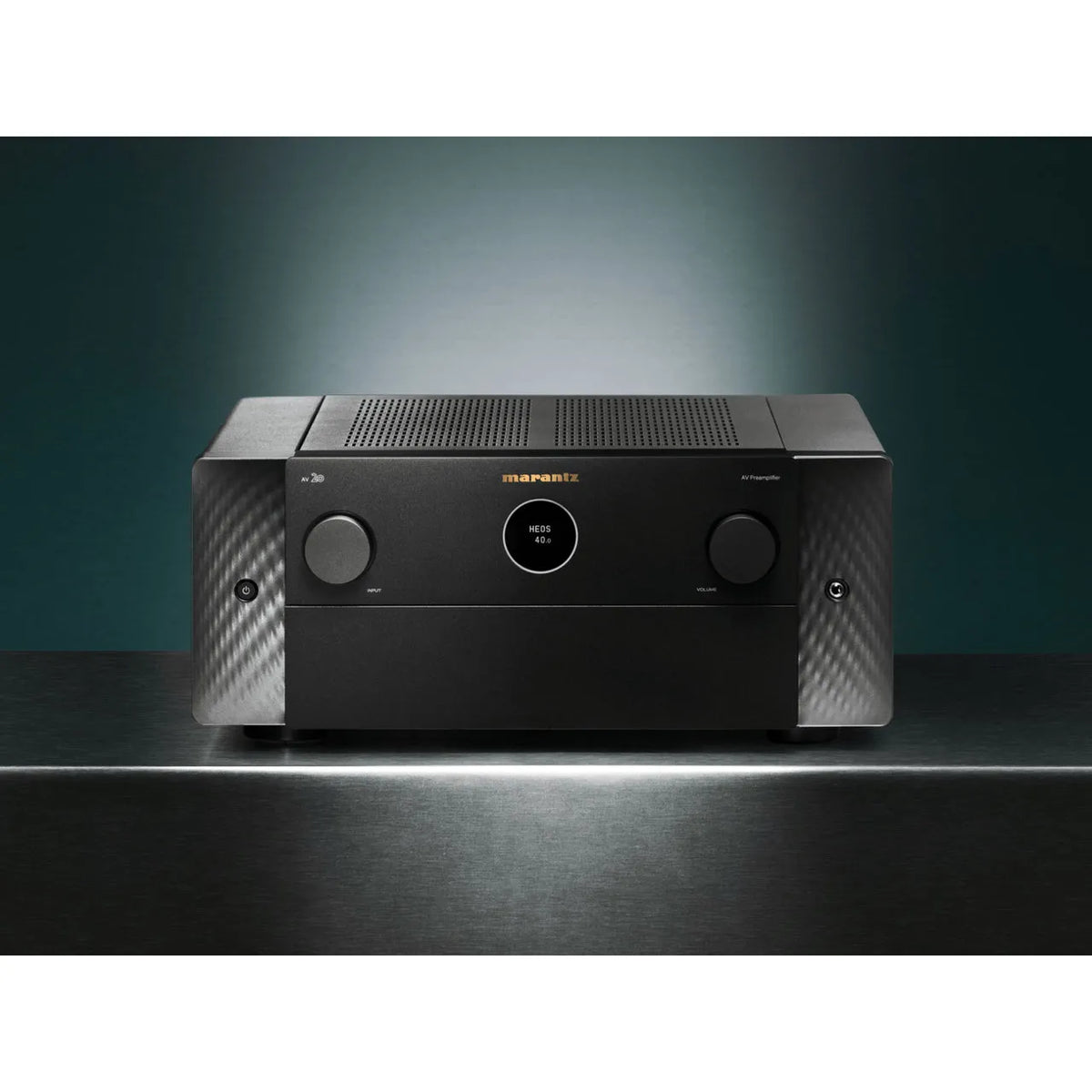

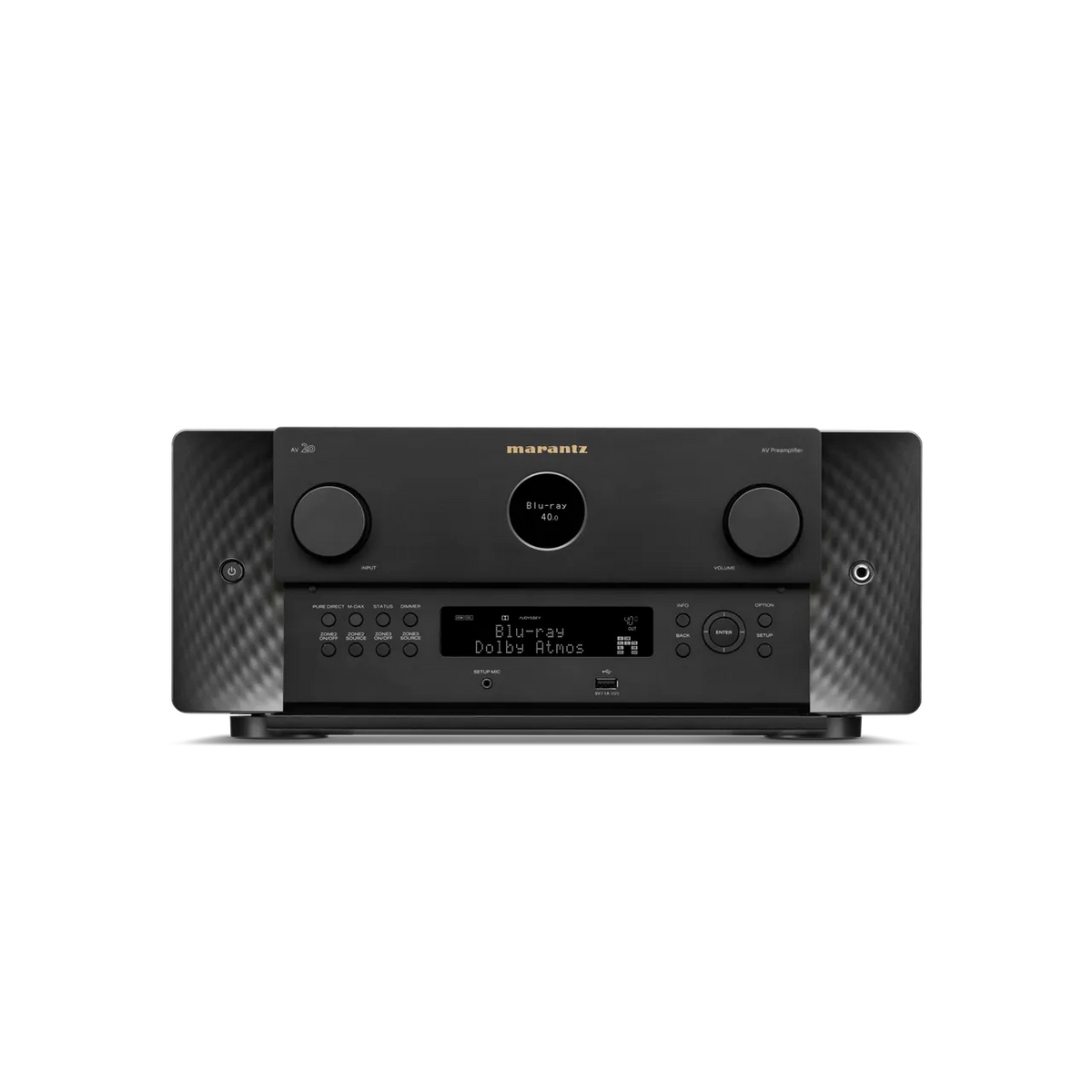

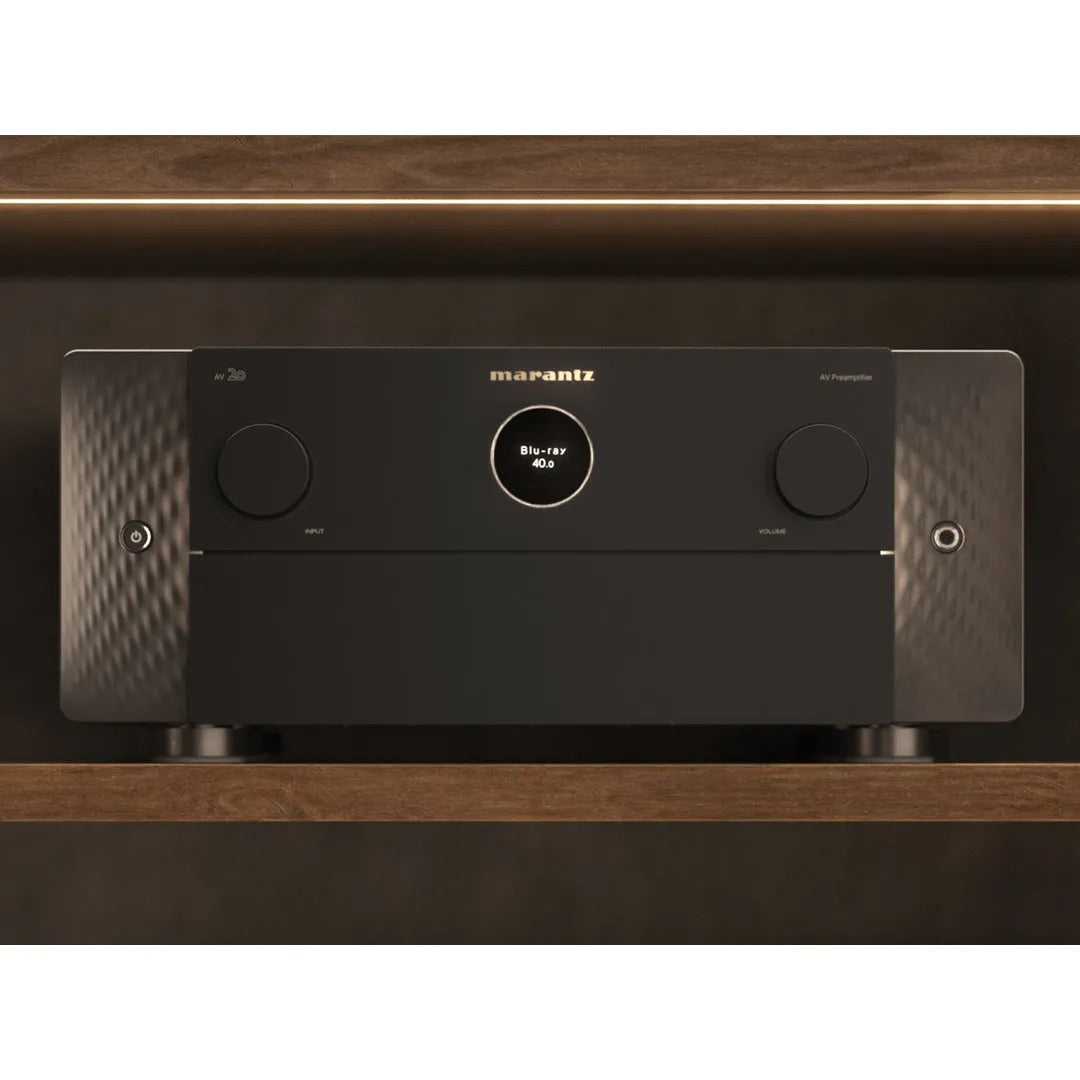

Marantz - AV20 - Reference AV Preamplifier (Back Order)

$10,000.00

In stock

Delivery Australia-wide

Shipping calculated at checkout

Pick up from The Audio Tailor Usually ready in 2-4 days. We'll let you know when it's ready to collect. Store info
9/20 Rivergate Pl, Murarrie QLD 4172
Tuesday to Friday
9am to 5pm
Saturday
9am to 3pm
Sunday and Monday
Closed
Get directions Call 1300 308 711 Book a listen

Experience it in store

Want to hear it first?

Call or message us to check it's set up to demo in our Murarrie listening rooms.

Ask about a demo Call 1300 308 711
Unit 9/20 Rivergate Place, Murarrie, Qld 4172 Get directions
  • Australian Hi-Fi Retailer of the Year
  • Fast, insured delivery Australia-wide
  • Trade in your old gear and upgrade
  • Advice from experts, not salespeople

Overview

AV20

Brand
Marantz
Category
AV Processors
SKU
AV20

Not sure it's the right fit for your room or system? Our team can talk you through it.

Call 1300 308 711

AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.

  • Meticulously crafted with authentic materials
  • 13.4 Channels
  • 7 HDMI Inputs plus eARC
  • 8K and Dolby Atmos
  • 3D Audio
  • HEOS Built-In

Elevated Listening Begins Here

When it comes to home theatre, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.

  • Reference Quality Performance - AV 20 is engineered to create the most memorable home theatre experiences possible.
  • Sound Master Tuned - Marantz' Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.
  • Endlessly Customisable - Comprehensive connectivity options and extensive optimisation ability ensures AV 20 will always deliver the perfect results to suit your home theatre.
  • System Matching - Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.

For the Soundtrack of Your Life

HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

  • Search for Songs Across Platforms - HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
  • Your Whole Home in One Place - HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.
  • Hi-Resolution Streaming - Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favourites.

      • Specifications

      Multichannel Surround

      • DTS: DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch)
      • Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
      • IMAX: IMAX Enhanced
      • Auro 3D / 360 Reality Audio / MPEG H: Yes / Yes / Yes
      • Multichannel Stereo: Yes
      • Max Number of Processing (Pre-amp) Channels: 13.4

      Sound Enhancements

    • Copper-Plated Chassis / Toroidial Power Transformer: Yes / Yes
    • Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM): Yes / Yes (SA3, monolithic)
    • Pure Direct / Gold-Plated RCA Terminals: Yes / Yes
    • Clock Jitter Reducer: Yes
    • Dirac Live upgradability: Yes
    • Compressed Audio Enhancer: MDAX2: Yes
    • Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC: Yes / Yes / Yes
    • Audyssey: MultEQ XT32

    Network

    • Wi-Fi / Bluetooth / Ethernet: Yes / Yes / Yes
    • HEOS Multi-Room and Streaming: Yes
    • Bluetooth Retransmit for Bluetooth Headphones: Yes
    • Apple HomePod: Yes
    • Lossy formats: MP3, WMA, AAC
    • Lossless formats: FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24
    • DSD Audio Streaming: Yes (2.8/5.6MHz)
    • Gapless Playback: FLAC, ALAC, WAV, DSD
    • TuneIn / AirPlay 2 / Spotify: Yes / Yes / Yes
    • Roon-Ready: Yes
    • Other Streaming Services*: Amazon Music / TIDAL / Deezer / Napster / Soundcloud
    • Compatible with Remote App for Smartphones: Marantz AVR Remote
    • Compatible with Remote App for Tablets: Android / iOS / Amazon Kindle

    HDMI

    • Total HDMI Inputs: 7 (rear)
    • HDCP2.3 Support: Yes
    • HDMI Outputs: Main / Zone: 2 / 1
    • HDMI Scaling: 1080P/4K to 8K
    • GUI Overlay on HDMI: Yes
    • HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
    • 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out: 7 / 2 (up to 40Gbps)
    • HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
    • Enhanced ARC: Yes
    • ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
    • Variable Refresh Rate / Quick Frame Transport: Yes / Yes
    • HDMI Pass-Though in Standby Mode: Yes
    • DSD Audio Capability: Yes
    • Auto LipSync: Yes

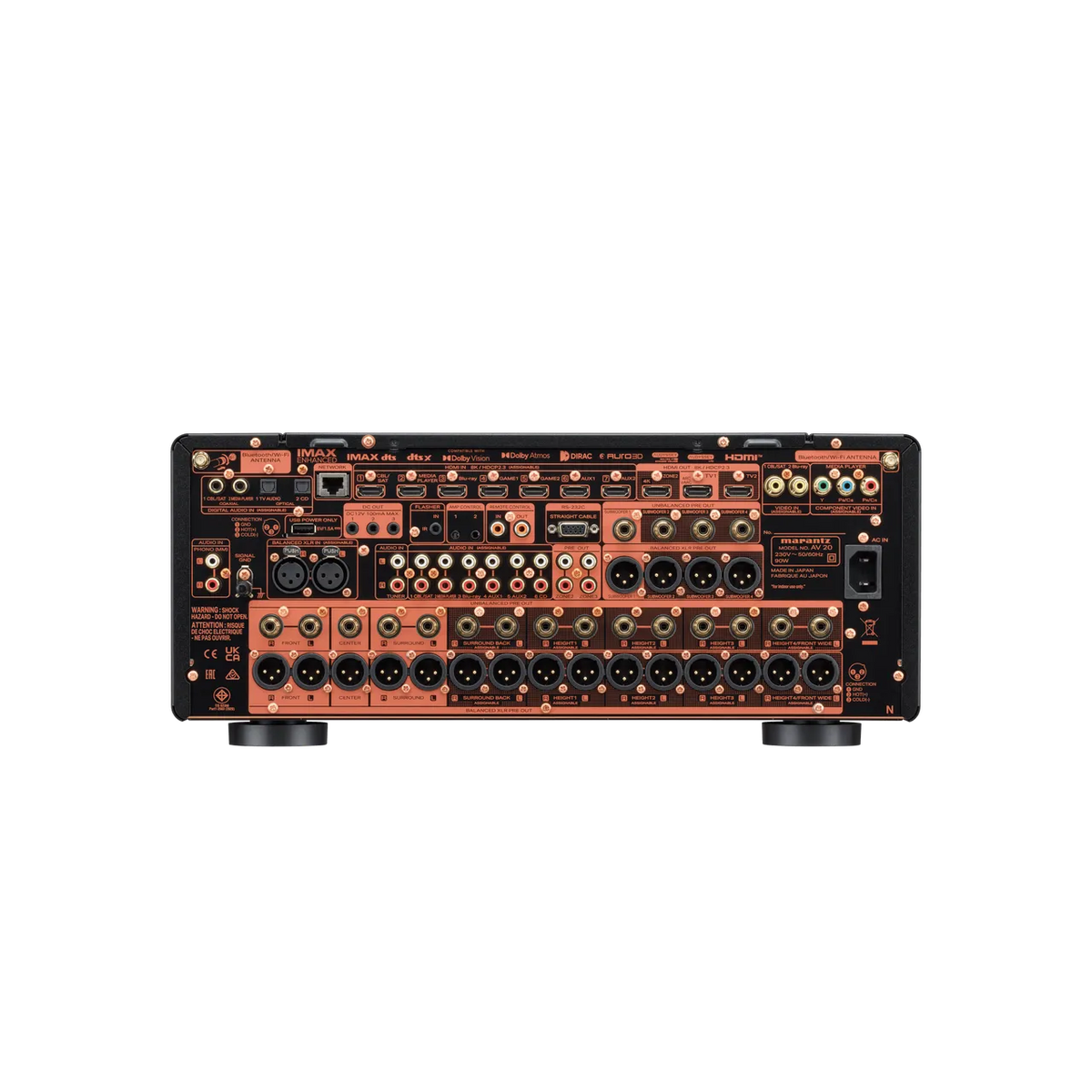

    Inputs & Outputs

    • Composite In / Out: 2 / 0
    • Component In / Out: 1 / 0
    • HDMI In / Out: 7 / 3
    • Multi-Room Video Out: Video / HDMI: No / Yes
    • Analogue In: 6 (1x XLR)
    • Phono (MM) In: Yes
    • Digital In: Optical / Coaxial: 2 / 2
    • Multi-Room Out: analog / digital: 2 / 0
    • Multichannel Pre-Amp Out: Yes (15.4 RCA, 15.4 XLR)
    • Subwoofer Out: 4 (independent) RCA, XLR
    • Speaker A / B: assignable pre out
    • Bi-amp drive: assignable pre out
    • Front USB Input / USB Audio: Yes / Yes
    • USB Power Supply (Rear): Yes
    • AM/FM Tuner: Yes

    Multi-Room CI

    • HEOS Multi-Room Integrated: Yes
    • HEOS Link Compatibility: IR/ IP: Yes / Yes
    • Multi-Room Zones: 3
    • Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue: Yes (2 ch) / Yes (2 ch) / Yes / Yes
    • Zone Audio Output: Speaker / Pre-Out: No / Yes
    • Zone HDMI Output from HDMI Source: Yes
    • IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
    • IR Flasher In / Marantz Remote Bus: Yes / Yes
    • DC Trigger Output: 3
    • HDMI Diagnostics: Yes

    Other

    • Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
    • Front Display: 2-Line FLD, Port Hole OLED
    • Graphic User Interface - GUI: Modern HD GUI
    • GUI Languages: 3
    • Setup Assistant / Smart Select: Yes / Yes
    • Firmware Update by Network / USB: Yes / Yes
    • Variable Cross Over / Optimized Bass Redirection / Bass Sync: Yes / Yes / Yes
    • Auto Power Off / Sleep Timer: Yes / Yes

    General

    • Metal Front Panel: Yes
    • System Remote Control: RC051SR
    • Backlit: Yes
    • Power Consumption: 90 W
    • Standby Consumption: 0.2 W
    • CEC Standby Consumption in W: 0.5 W
    • Network Standby Consumption: <2.0 W
    • Maximum Dimensions: Antenna Horizontal (W x D x H) 17.4 × 18.0 × 7.5 in.; Antenna Vertical (W x D x H) 17.4 × 18.0 × 10.0 in.; W/o Antenna (W x D x H) 17.4 × 17.2 × 7.5 in.
    • Weight: 33.1 lbs.
    • What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
    • UPC Code: 747192143848
