Monitor Audio - CP-IW260X - In-Wall Speaker

SKU: MON-IW260X-IW-SPK-WHT

$1,649.00$1,485.00

You Save: $164.00

Buy Now. Fast Delivery or Store Pickup
Trusted by 40,000+ Customers in Australia
We love helping our customers create amazing experiences
Hi Fi Reviews

Speak to a Monitor Audio Expert In Store

Call 1300 308 711.

Get Brisbane Store Directions.

Trusted by 40,000+ Customers


Service you can trust

Official Australian Dealer


Official Australian Warranty

Great Prices & Deals


Found a better price? Call us.

5-Star Customer Service


Industry experts ready to help

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

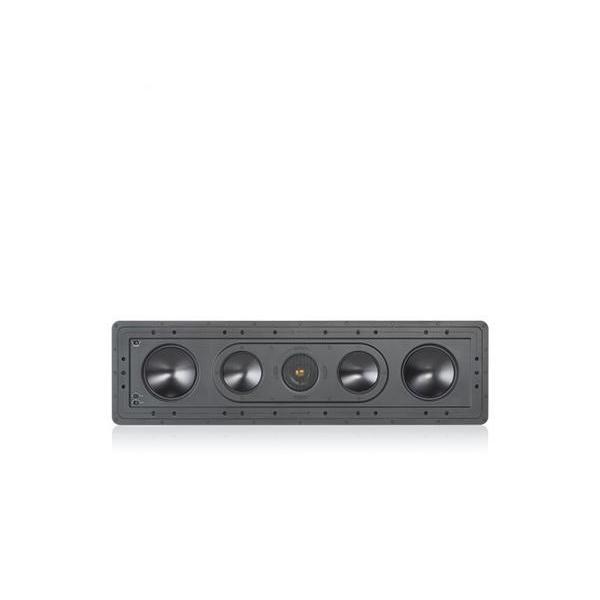

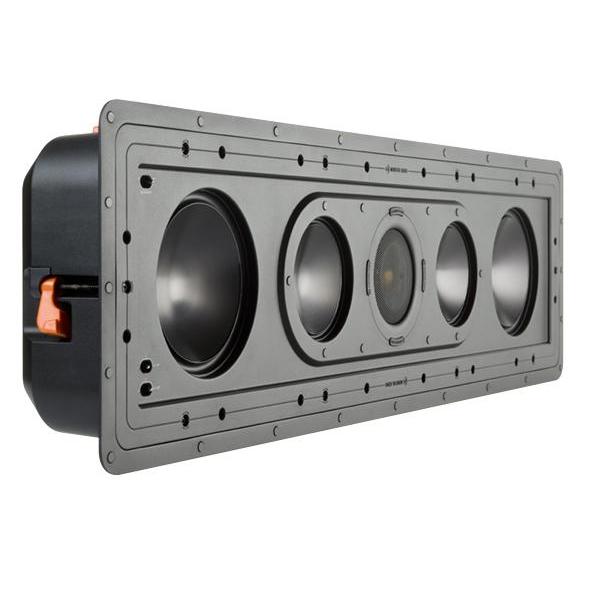

The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.



Features:

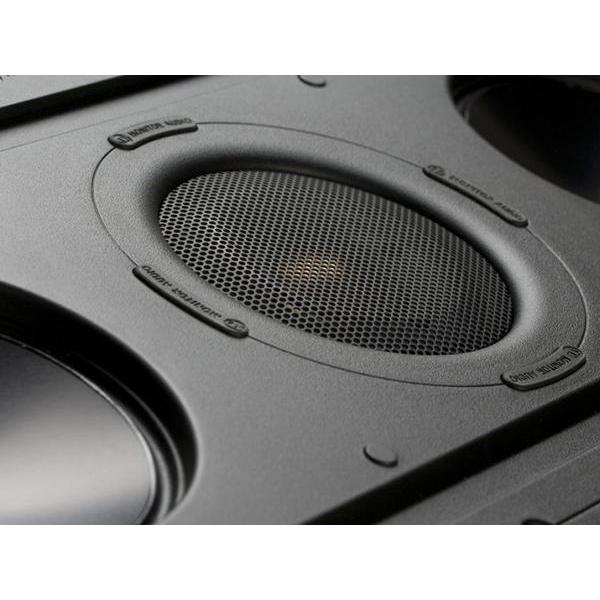

  • Dual 4" C-CAM mid-range drivers – featuring underhung voice coil 25 mm (1") C-CAM Gold Dome tweeter
  • Portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

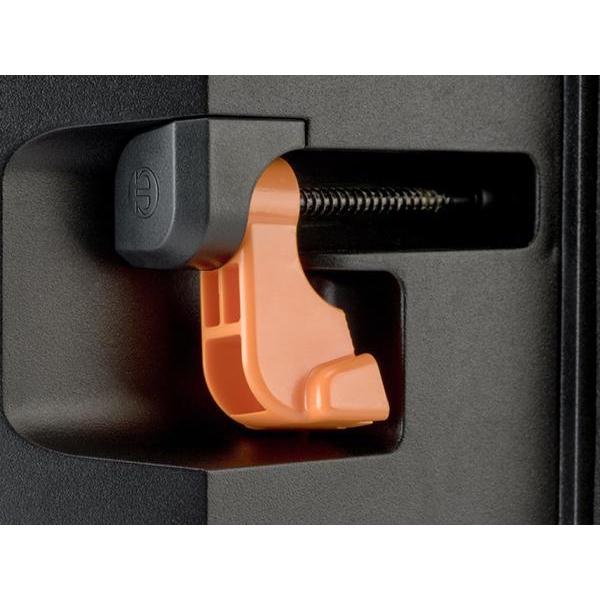

  • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing

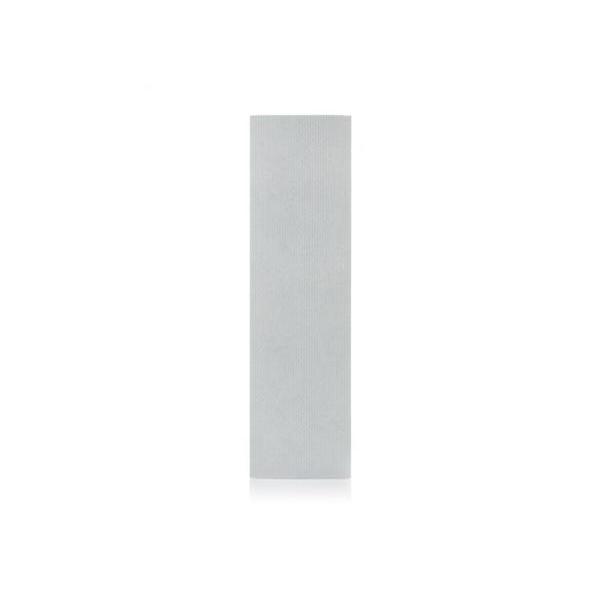

  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing



Specifications:

  • Frequency Response - 50 Hz - 30 kHz (-6 dB typical in room response)
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 89 dB
  • Maximum SPL - 113.8 dBA
  • Power Handling (RMS) - 150 W
  • Recommended Amplifier Requirements - 60 - 150 W
  • Crossover Frequency - L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
  • Drive Unit Complement - 2 x 6.5" C-CAM Bass drivers, 2 x 4" C-CAM Mid-range drivers, 1 x 25 mm (1") C-CAM Gold Dome tweeter
  • Adjustment Controls -Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
  • Overall Dimensions (H x W x D) - 907 x 257 mm (353/4 x 101/8")
  • Overall Depth (Including Grille) - 102 mm (4")
  • Cut-Out Dimensions - 880 x 230 mm (3421/32 x 9")
  • Mounting Depth - 96 mm (33/4")
  • Fixing Type - 10 x Tri-Grip Dog leg fixings
  • Construction Material - Cast Polymer enclosure (RoHS2 Compliant)
  • Weight - 11.98 kg (26 lb 6 oz)
  • Pre-Construction Bracket - WB12 Pre-Construction Bracket (Green)
  • Sold as: individually
