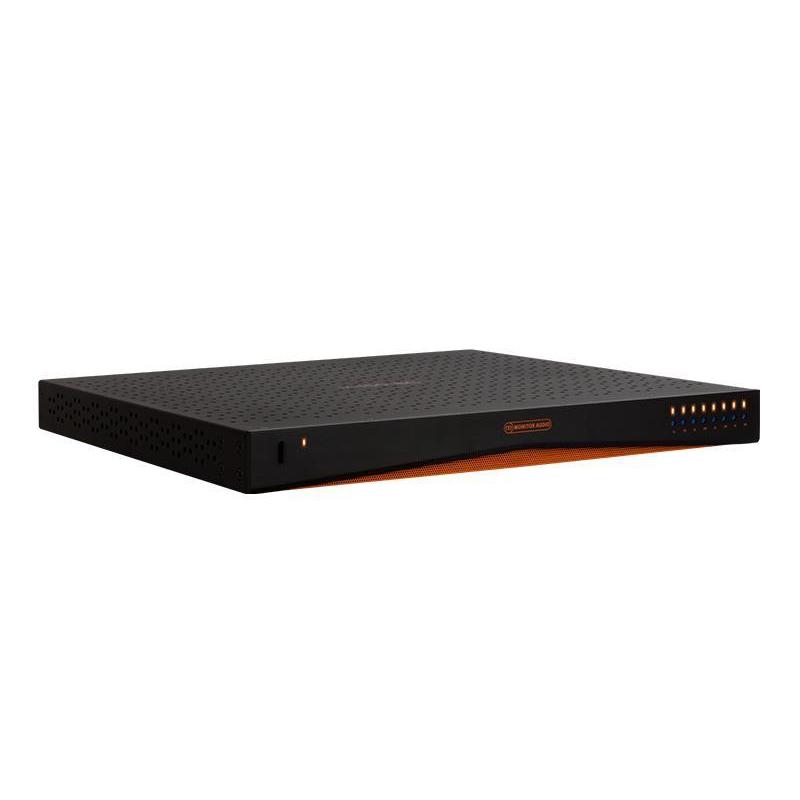

Monitor Audio - IA150-8C - Custom Install Amplifier

SKU: MON-IA150-8C-AMP-BLK

$4,839.00$4,355.00

You Save: $484.00

Buy Now. Fast Delivery or Store Pickup
Trusted by 40,000+ Customers in Australia
We love helping our customers create amazing experiences
Hi Fi Reviews

Speak to a Monitor Audio Expert In Store

Call 1300 308 711.

Get Brisbane Store Directions.

Trusted by 40,000+ Customers


Service you can trust

Official Australian Dealer


Official Australian Warranty

Great Prices & Deals


Found a better price? Call us.

5-Star Customer Service


Industry experts ready to help

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

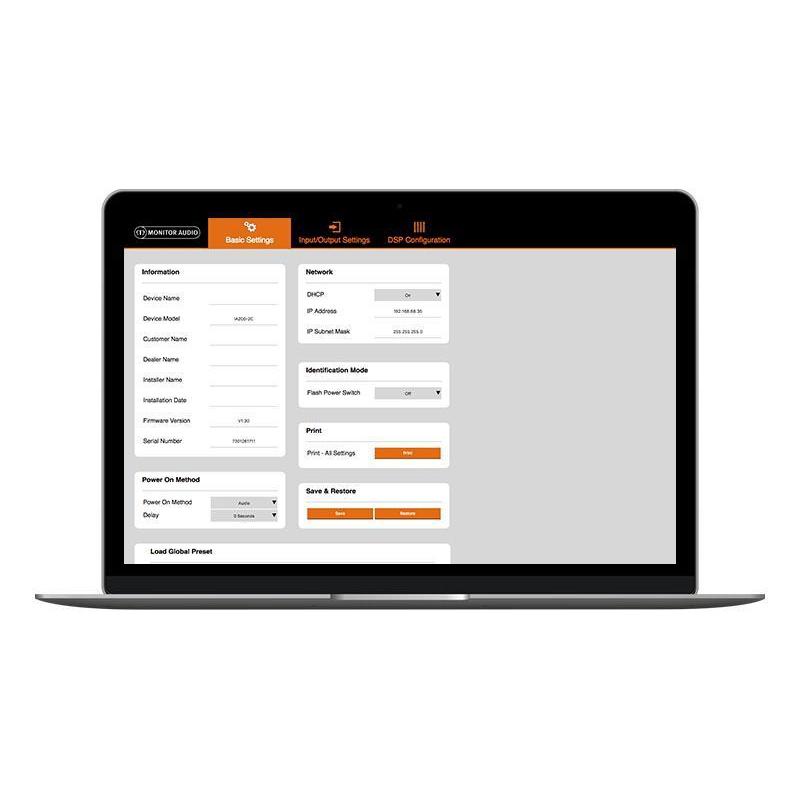

The IA150-8C enables up to eight (4 stereo pairs) channels of 150 watts of power at 4 ohms. It’ll fit 1U rack height and, it employs our Connect IP interface, a web application, which can be accessed by any device connected to the internet with a browser on the same network.

The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.

Features:

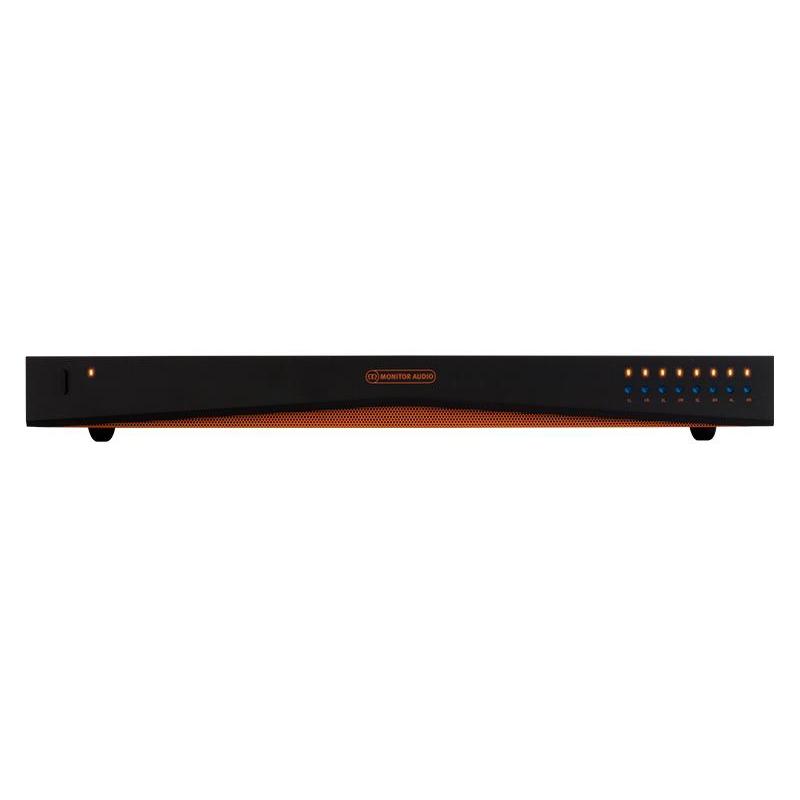

  • Power Switch – Front panel mounted
  • Status LED – Indicating standby, power on or protect modes
  • Signal LED’s – Indicating a signal is present at each channel independently. It will also indicate clipping
  • Power Options – Trigger input – 3 – 30 V AC or DC. A trigger output provides signal for additional amplifiers or other equipment. Audio – Auto signal sensing or permanently on

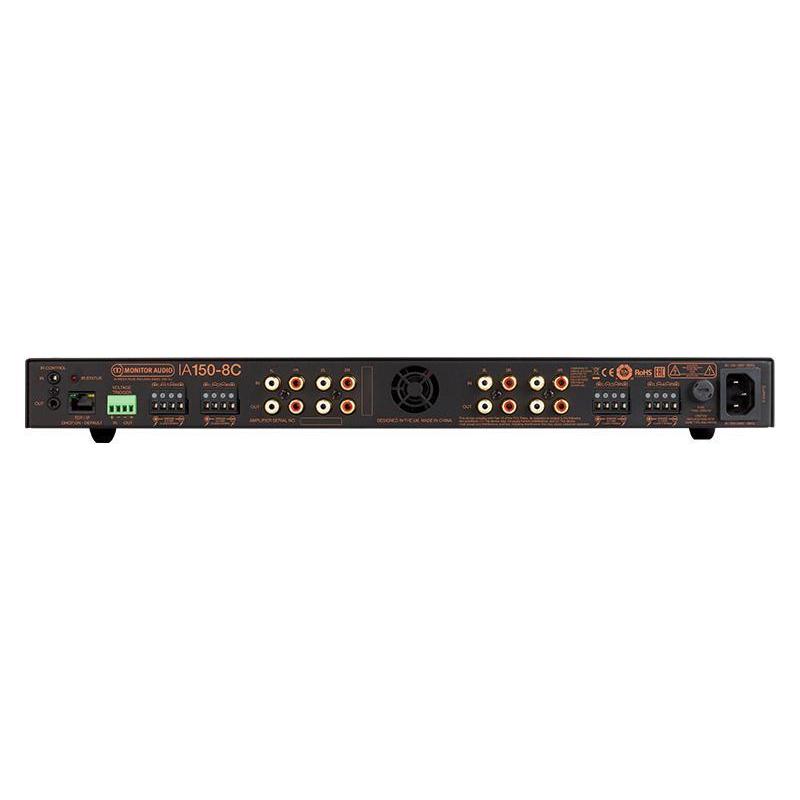

  • Speaker Connections – Industry standard removable block connectors accepts up to 12 gauge (3.5 mm2) cable
  • Higher power levels
  • Volume Level Controls – Each channel on the amplifier has a volume adjustment on the front panel
  • ‘Connect’ – IP control is via the RJ-45 input. IP controls power On/Off, volume, muting and input source selections for either global control or group control
  • IR Control – In/Out jacks. IR controls global On/Off, group volume, muting and input source selections. Connectivity can be seen with IR status light

Specifications:

  • 'Connect' IP Control - Yes
  • Channel Number - 8 (4 Stereo Pairs)
  • Power (W / Channel) | 4 ohms - 150 W
  • Power (W / Channel) | 8 ohms - 140 W
  • Power (W / Channel) | Bridge (8 ohms) - 300 W (4CH)
  • Power (W / Channel) | 70V - N/A
  • Input Impedance - 20 K ohms
  • Output Impedance (Loop RCA) - 600 ohms
  • Input Sensitivity- 100 mV / 1 W, 1140 mV – Full power
  • Maximum Input Voltage - 2.9 V
  • Signal to Noise (SN:R) - -100 dB (20 Hz – 20 kHz)
  • Frequency Response - 5 Hz – 50 kHz
  • Total Harmonic Distortion THD + N@1 KHz - 0.03%
  • Rack Height - 1U
  • Dimensions (Excluding Feet (H x W x D)) - 42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16")
  • Dimensions (Including Feet (H x W x D)) - 52.8 x 438 x 427 mm (21/16 x 171/4 x 1613/16")
  • Width (including rack brackets) - 482 mm (19")
  • IP Communication - TCP/IP (RJ-45 10/100 Base T)
  • Mains Operating Voltage - 100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz
  • Fuse Rating - 10 A (T10AL ~ 250VAC)
  • Standby Power Consumption - <0.5 W (green mode)
  • Networked Standby Power Consumption -<2 W
  • Weight - 7.45 kg (16 lb 6 oz)
