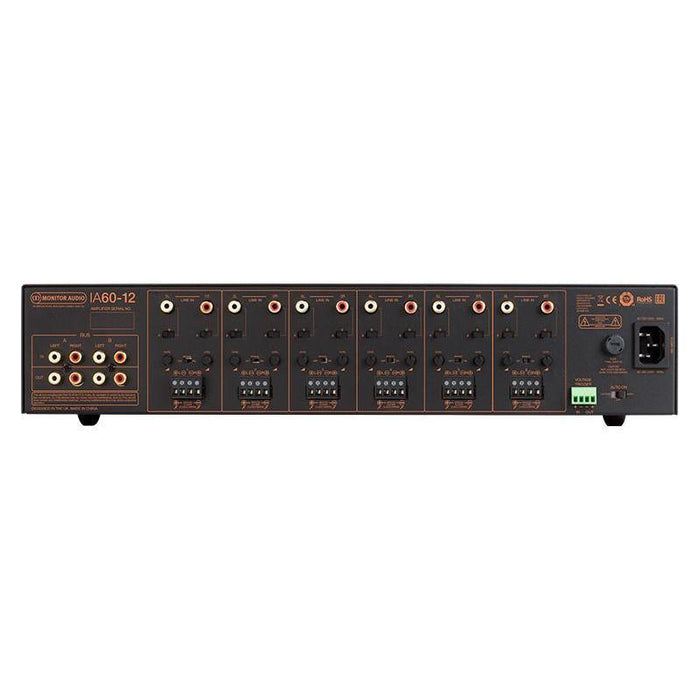

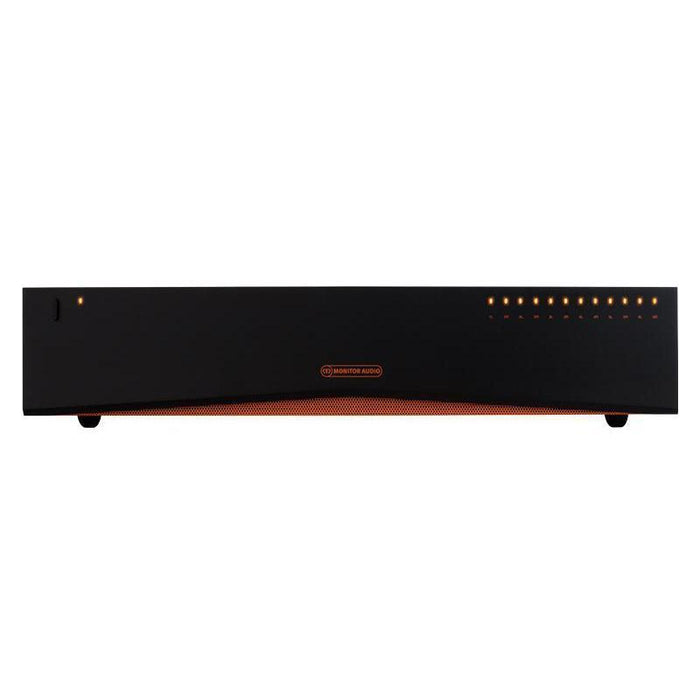

Monitor Audio - IA60-12 - Custom Install Amplifier (Special Order)

Save $220.00
Original price $2,199.00
Current price $1,979.00

From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.

Features:

  • Power Switch – Front panel mounted
  • Status LED – Indicating standby, power on or protect modes
  • Signal LED’s – Indicating a signal is present at each channel independently. It will also indicate clipping
  • Power Options – Trigger input – 3 – 30 V AC or DC. A trigger output provides signal for additional amplifiers or other equipment. Audio – Auto signal sensing or permanently on
  • Speaker Connections – Industry standard removable block connectors accepts up to 12 gauge (3.5 mm2) cable
  • Volume Level Controls – Each channel on the amplifier has a volume adjustment on the rear pane
  • IA60-12 – Bus Inputs A/B and Loop Outputs – Loop outputs are non buffered (maximum number of amplifiers that can be looped together will depend on the output capability of your source component)

Specifications:

  • 'Connect' IP Control - N/A
  • Channel Number - 12 (6 Stereo Pairs)
  • Power (W / Channel) | 4 ohms - 60 W
  • Power (W / Channel) | 8 ohms - 45 W
  • Power (W / Channel) | Bridge (8 ohms) - 100 W (6CH)
  • Power (W / Channel) | 70V - N/A
  • Input Impedance - 20 K ohms
  • Output Impedance (Loop RCA) - 600 ohms
  • Input Sensitivity - 100 mV / 1 W, 700 mV – Full power
  • Maximum Input Voltage - 2.9 V
  • Signal to Noise (SN:R) - -100 dB (20 Hz – 20 kHz)
  • Frequency Response - 5 Hz – 50 kHz
  • Total Harmonic Distortion THD + N@1 KHz - 0.03%
  • Rack Height - 2U
  • Dimensions (Excluding Feet (H x W x D)) - 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16")
  • Dimensions (Including Feet (H x W x D)) - 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16")
  • Width (including rack brackets) - 482 mm (19")
  • IP Communication - N/A
  • Mains Operating Voltage - 100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz
  • Fuse Rating - 10 A (T10AL ~ 250VAC)
  • Standby Power Consumption - <0.5 W (green mode)
  • Networked Standby Power Consumption - N/A
  • Weight - 7.34 kg (16 lb 2 oz)
