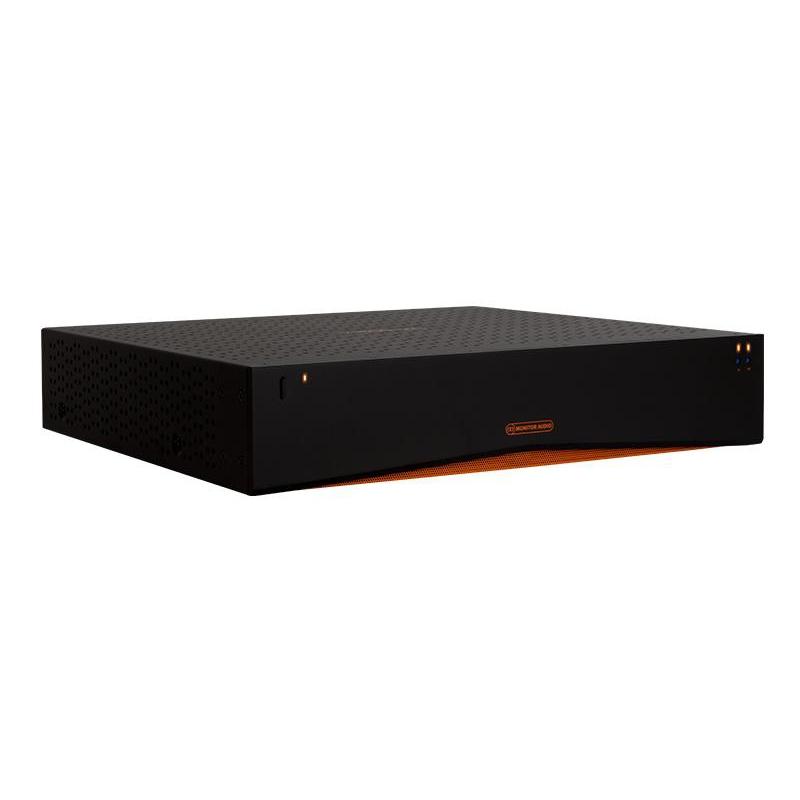

Monitor Audio - IA800-2C - Custom Install Stereo Amplifier

SKU: MON-IA800-2C-AMP-BLK

$3,079.00$2,775.00

You Save: $304.00

Buy Now. Fast Delivery or Store Pickup
Trusted by 40,000+ Customers in Australia
We love helping our customers create amazing experiences
Hi Fi Reviews

Speak to a Monitor Audio Expert In Store

Call 1300 308 711.

Get Brisbane Store Directions.

Trusted by 40,000+ Customers


Service you can trust

Official Australian Dealer


Official Australian Warranty

Great Prices & Deals


Found a better price? Call us.

5-Star Customer Service


Industry experts ready to help

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

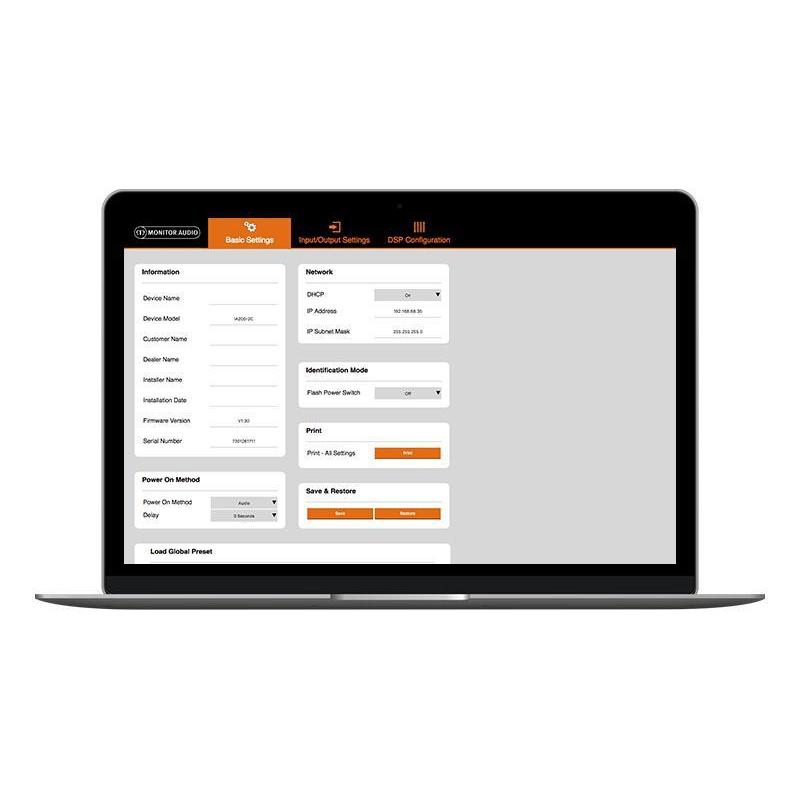

IA800-2C brings Monitor Audios Connect IP interface, which can be accessed by any device connected to the internet with a web browser on the same network. Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fit into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

Features:

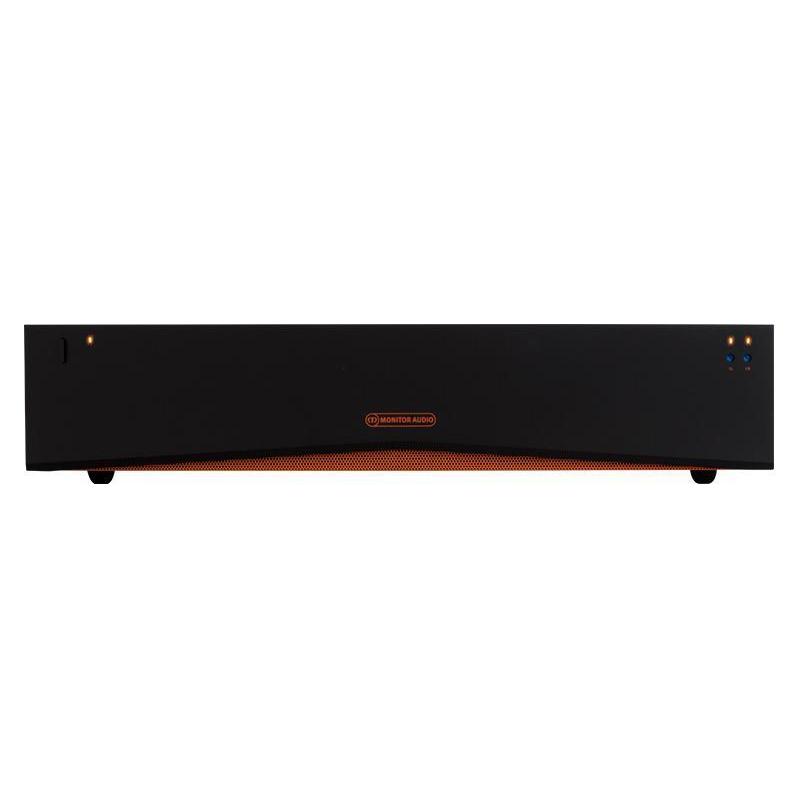

  • Power Switch – Front panel mounted
  • Status LED – Indicating standby, power on or protect modes
  • Signal LED’s – Indicating a signal is present at each channel independently. It will also indicate clipping
  • Power Options – Trigger input – 3 – 30 V AC or DC. A trigger output provides signal for additional amplifiers or other equipment. Audio – Auto signal sensing or permanently on

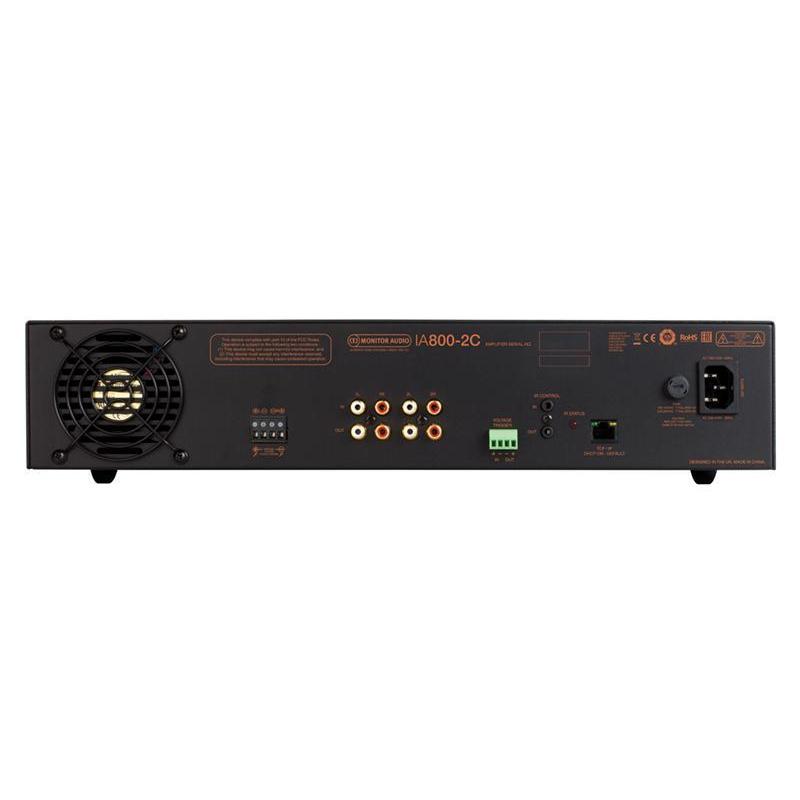

  • Speaker Connections – Industry standard removable block connectors accepts up to 12 gauge (3.5 mm2) cable
  • Higher power levels
  • Volume Level Controls – Each channel on the amplifier has a volume adjustment on the front panel
  • ‘Connect’ – IP control is via the RJ-45 input. IP controls power On/Off, volume, muting and input source selections for either global control or group control
  • IR Control – In/Out jacks. IR controls global On/Off, group volume, muting and input source selections. Connectivity can be seen with IR status light
  • IA800-2C – Can drive 70 V line speakers directly without a line matching transformer

Specifications:

  • 'Connect' IP Control - Yes
  • Channel Number - 2 (1 Stereo Pair)
  • Power (W / Channel) | 4 ohms - 800 W
  • Power (W / Channel) | 8 ohms - 500 W
  • Power (W / Channel) | Bridge (8 ohms) - 2000 W (1CH)
  • Power (W / Channel) | 70V - 800 W
  • Input Impedance - 20 K ohms
  • Output Impedance (Loop RCA) - 600 ohms
  • Input Sensitivity - 100 mV / 1 W, 2200 mV – Full power
  • Maximum Input Voltage - 2.9 V
  • Signal to Noise (SN:R) - -100 dB (20 Hz – 20 kHz)
  • Frequency Response - 5 Hz – 50 kHz
  • Total Harmonic Distortion THD + N@1 KHz - 0.03%
  • Rack Height - 2U
  • Dimensions (Excluding Feet (H x W x D)) - 86.8 x 438 x 438 mm (37/16 x 171/4 x 1613/16")
  • Dimensions (Including Feet (H x W x D)) - 97.2 x 438 x 438 mm (313/16 x 171/4 x 1613/16")
  • Width (including rack brackets) - 482 mm (19")
  • IP Communication - TCP/IP (RJ-45 10/100 Base T)
  • Mains Operating Voltage - 100 –120 V @ 60 Hz, 220 – 240 V @ 50 Hz
  • Fuse Rating - 100-120VAC: T15AL/250V AC, 220-240VAC: T10AL/250V AC
  • Standby Power Consumption - <0.5 W (green mode)
  • Networked Standby Power Consumption - <2 W
  • Weight - 9.2 kg (20 lb 4 oz)
