Musical Fidelity - M3X DAC - Digital to Analog Converter

Musical Fidelity M3x DAC - Digital to Analog Converter

Introducing the Musical Fidelity M3x DAC, a cutting-edge Digital to Analog Converter that sets a new standard in affordable, high-end sound processing. Designed with passion and meticulous attention to detail by Musical Fidelity’s experts, this converter combines precision technology and luxurious build quality to deliver an unbeatable sonic experience.

The M3x DAC utilizes the PCM1795 DAC and the SRC4392 Upsampling Chip to achieve audio that is incredibly low in noise and distortion, and exceptionally high in linearity. With a focus on enhancing your digital music's fidelity, this converter upsamples PCM inputs to a generous 192kHz, offers USB support for up to 32bit/192kHz, and native and DoP DSD of up to DSD 256. Additionally, it caters to various input and output needs through multiple connectors.

Featuring a Super Silent Power Transformer and an expertly crafted PCB design that minimizes electromagnetic interference, the M3x DAC is designed to absorb and neutralize noise, delivering your music in its purest form. Furthermore, it is designed to look as good as it sounds, with a heavy aluminium front plate and a steel chassis that not only adds aesthetic appeal but also impedes electromagnetic fields.

Key Features and Benefits:

1. High-Quality Sound Processing: PCM1795 DAC and SRC4392 Upsampling Chip deliver audio with minimal noise, distortion, and high linearity.
2. Total Fidelity Enhancement: Upsamples PCM inputs to 192kHz, supports USB up to 32bit/192kHz and native and DoP DSD up to DSD 256.

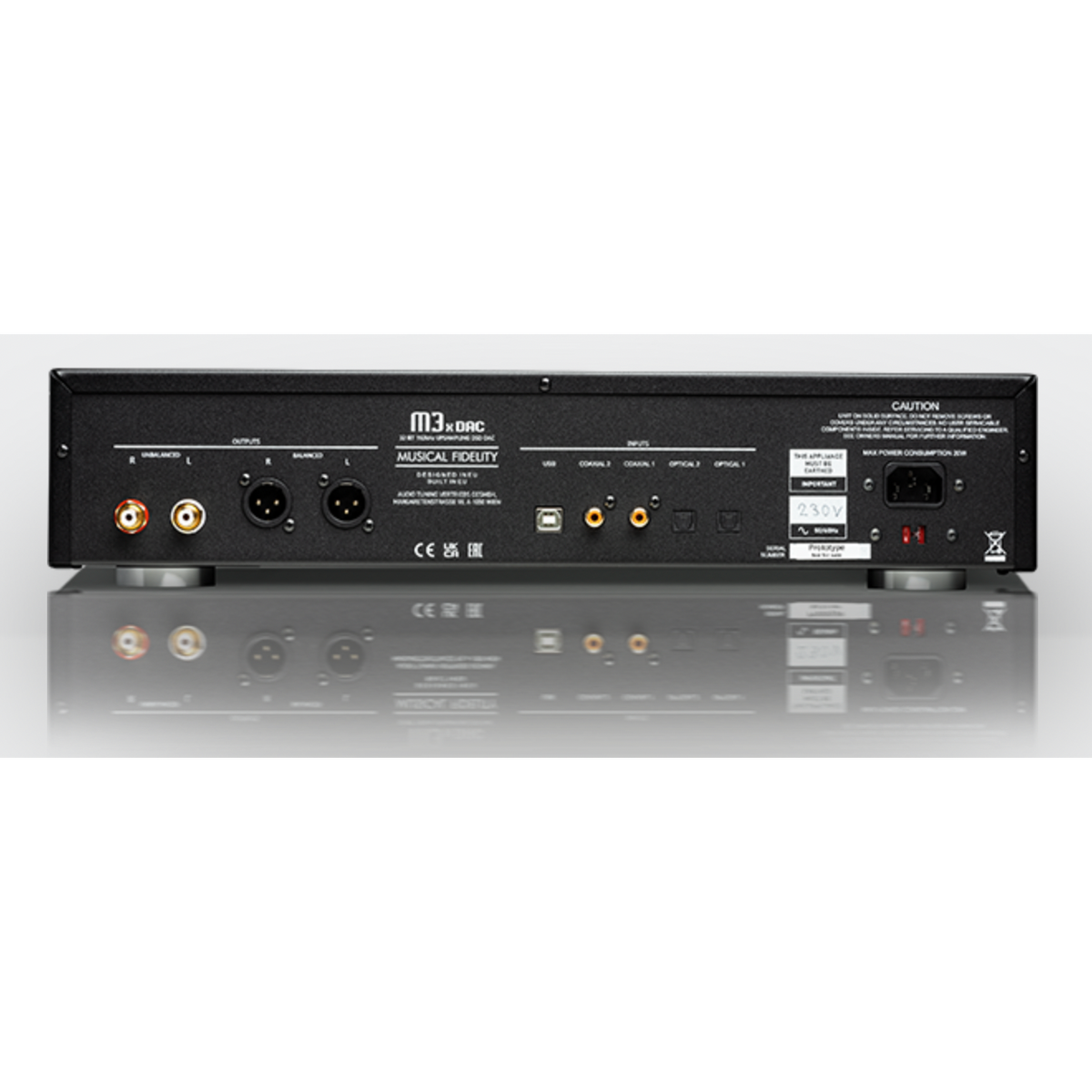

3. Abundant Input and Output Options: Multiple connectors for 1x USB, 2x coaxial, 2x optical inputs, and 1x RCA and 1x balanced XLR output.
4. Super Silent Power Transformer: Ultra-quiet power transformer absorbs and neutralizes noise for pristine sound output.
5. Durable and Aesthetic Design: Sturdy aluminium front plate and steel chassis protect against electromagnetic fields and add elegance to your setup.
6. Jitter Reduction: Less than 48 picoseconds peak to peak for minimal interruption to your musical journey.
7. Exceptionally Low Distortion: Delivers audio with exceptionally low distortion levels.
8. Impressive Channel Separation: Offers top-notch channel separation for clearer and more immersive audio.
9. Substantial Output Voltage Swing: RCA and balanced XLR outputs provide significant output voltage swing and high current drive.
10. Minimal Electromagnetic Interference: Meticulous PCB design and layout minimize electromagnetic interference for a clean, pure sound.
11. Roon Tested* (pending): Pending certification for seamless integration with Roon music software.
12. Future-Ready Design: Designed to meet the future standards of high-end DACs reliably.
13. EU Craftmanship: European manufacturing ensures precision and attention to detail.

Specifications:

• Product Name: Musical Fidelity - M3x DAC - Digital to Analog Converter
• DAC Chip: PCM1795
• Sample Rate Converter: SRC4392
• Total Correlated Jitter: < 48 picoseconds peak to peak
• Linearity: < 0,2dB down to -100dB
• Frequency Response: -0,2dB at 20Hz, 0,1dB at 20kHz; 1,5dB at 70kHz
• Channel Separation: < -115dB 10kHz @ 0dBFS
• Signal to Noise: >107dB “A”- wtd 1kHz @ 0dBFS
• Total Harmonic Distortion: < 0,005% at 1kHz @ 0dBFS
• Digital Inputs: 2x Coax, up to 24bit 192kHz (stereo PCM); 2x Optical, up to 24bit 192kHz (stereo PCM); 1x USB Audio Class 2.0, ‘USB B’; up to 32 bit 192kHz (stereo PCM), DSD 256 (stereo DoP and native)
• Analogue Outputs: 1 pair line level RCA fix/var @ 2V RMS at 0dBFS; 1 pair line level XLR fix/var @ 4V RMS at 0dBFS
• Output Impedance: < 50 ohms
• Build Specifications: Heavy aluminium front plate with steel chassis
• Power Transformer: Super Silent Power Transformer
• Power Consumption: Max. Consumption: 15W, <0.5W in standby
• Dimensions: (WxHxD): 440 x 100 x 363mm
• Weight: 6.8kg
• Compliance: Made in the EU
• Additional Technology: Upsampling DAC design with SRC4392, Very low noise, Extremely low distortion, Outstanding channel separation
• Construction: Balanced and RCA output, Minimal electromagnetic interference from power supply to DAC circuitry
• Connectivity: 1x USB, 2x coaxial, 2x optical inputs
• Output: 1x RCA, 1x balanced XLR output
• Pending Certification: Roon Tested

In conclusion, the Musical Fidelity M3x DAC is a masterpiece of audio engineering that promises a sound experience like no other. This DAC enhances your digital music listening experience without compromising on quality, offering an affordable entry into the realm of high-end DACs. With its advanced technology and stylish design, the M3x DAC provides a sensational auditory journey. Experience Musical Fidelity's commitment to superior sound and innovative technology with the M3x DAC, available exclusively at The Audio Tailor, Australia's #1 Hi-Fi store. Let the M3x DAC redefine your auditory landscape and indulge in the luxury of music.
