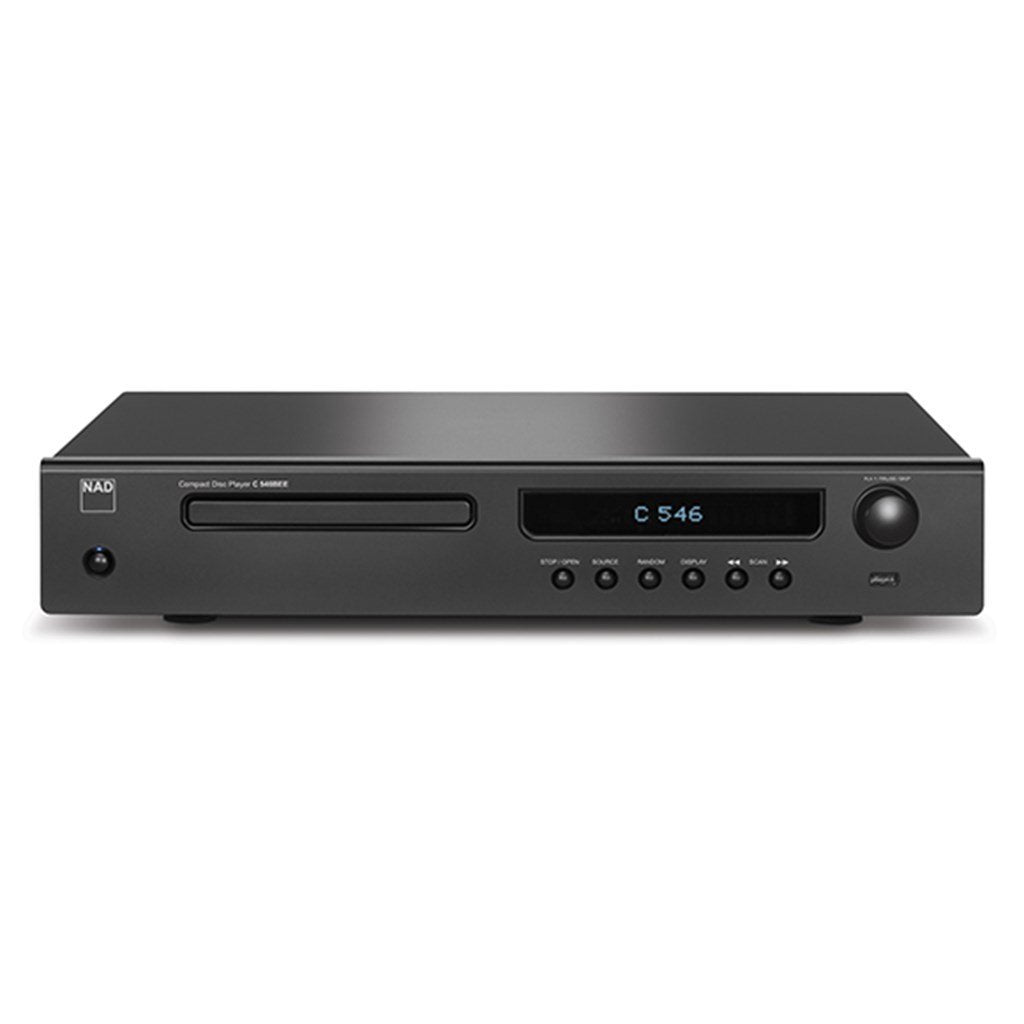

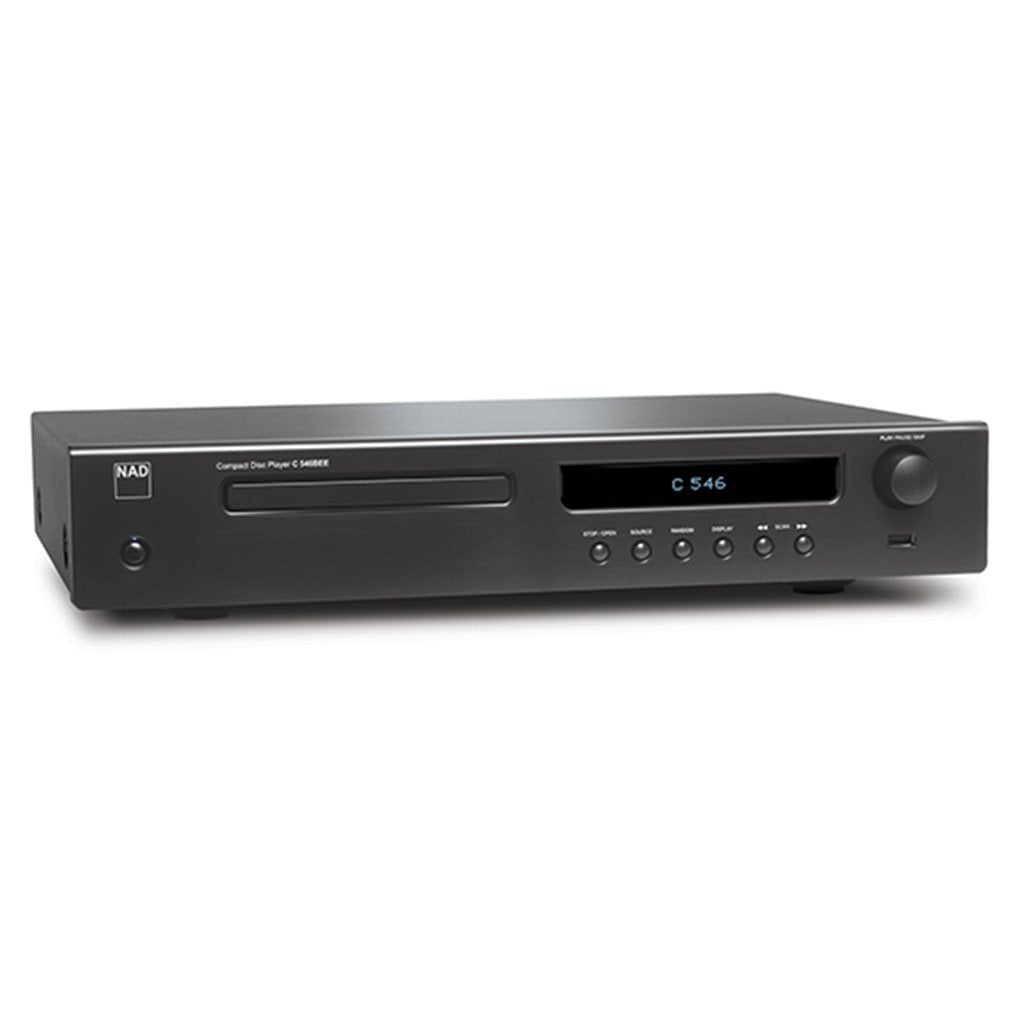

NAD - C 546 - CD Player (Special Order)

The C 546BEE lives up to its predecessor’s reputation, the C 545BEE, by delivering a performance that is both refined and riveting. Supporting a wide range of program material such as CD, CD-R and CD-RW, the C 546BEE will seamlessly play discs that are encoded in both MP3 and WMA. Designed to deliver a fluid listening experience, features such as being able to repeat a track, skip a track or select tracks at random, will make music listening that much more enjoyable. Thanks to a CD-9 remote control, you are given full command over your CD collection with the option to program up to 20 tracks. So dig out those albums of yours that you know and love, and let your favourite songs ring out.

Features:

• CD, CD-R and CD-RW Compatible
• USB Input supports external memory and audio rates up to 384kbps
• MP3 and WMA decoding
• NAD CD-9 Remote Control
• Wolfson 24-bit Digital-to-Analogue Converter
• Coaxial/Optical Digital Output
• Low Output Impedance
• Toroid Power supply with Separate Power Regulators for Analogue and Digital Sections
• VFL Display with CD text
• Selectable Track, Time and Repeat
• Repeat Mode for Single Track or Entire CD
• Program Play up to 20 Tracks
• Random Play
• External IR Input
• 12V Trigger Input
• <0.5 watt Standby consumption
• Detachable AC cord

5-STAR RATED CD PLAYER

With the worldwide acclaim and numerous awards for the C 545BEE’s outstanding performance and value, it is fair to ask why NAD would “mess with success.” However, NAD has never rested on its laurels and development is ongoing at the NAD Lab. We launch new models when we feel a significant improvement has been achieved. Such is the case with the C 546BEE. Besides more refined cosmetics, the circuit layout and component choices have been extensively updated. The cumulative effect of these changes is dramatic, improving low frequency slam and extension, while maintaining the pace and timing for which our CD players are so lavishly praised. Image depth and scale are further enhanced while retaining the timbral accuracy and lucid harmonic structure of its predecessor.

Features and Circuitry

Creating one’s favourite compilation CD-R or CD-RW on a CD Recorder is becoming ever more popular, and unlike older CD players, the C 546BEE will easily play these discs and even those encoded in MP3 and WMA. Nearly ten hours of music can be recorded onto one CD-R when using 128kps compression allowing ‘all day’ background music listening. We have included a number of additional features to make your listening more enjoyable: ‘random’ gives the listener a random selection of all tracks on the disc in play, and ‘repeat’ allows repeat playing of either the entire disc or individual tracks. Individual tracks can be quickly accessed using the SKIP function (forward and back), and the SCAN function (forward and back) gives an aural précis of individual tracks, giving the listener the opportunity to reach specific sections of the track.

The Vacuum Fluorescent Display (VFD) provides clear and understated, yet comprehensive information to the listener. The track number is displayed, and for those who regularly record CDs, the button displays the current time elapsed or remaining for complete CDs or individual tracks.

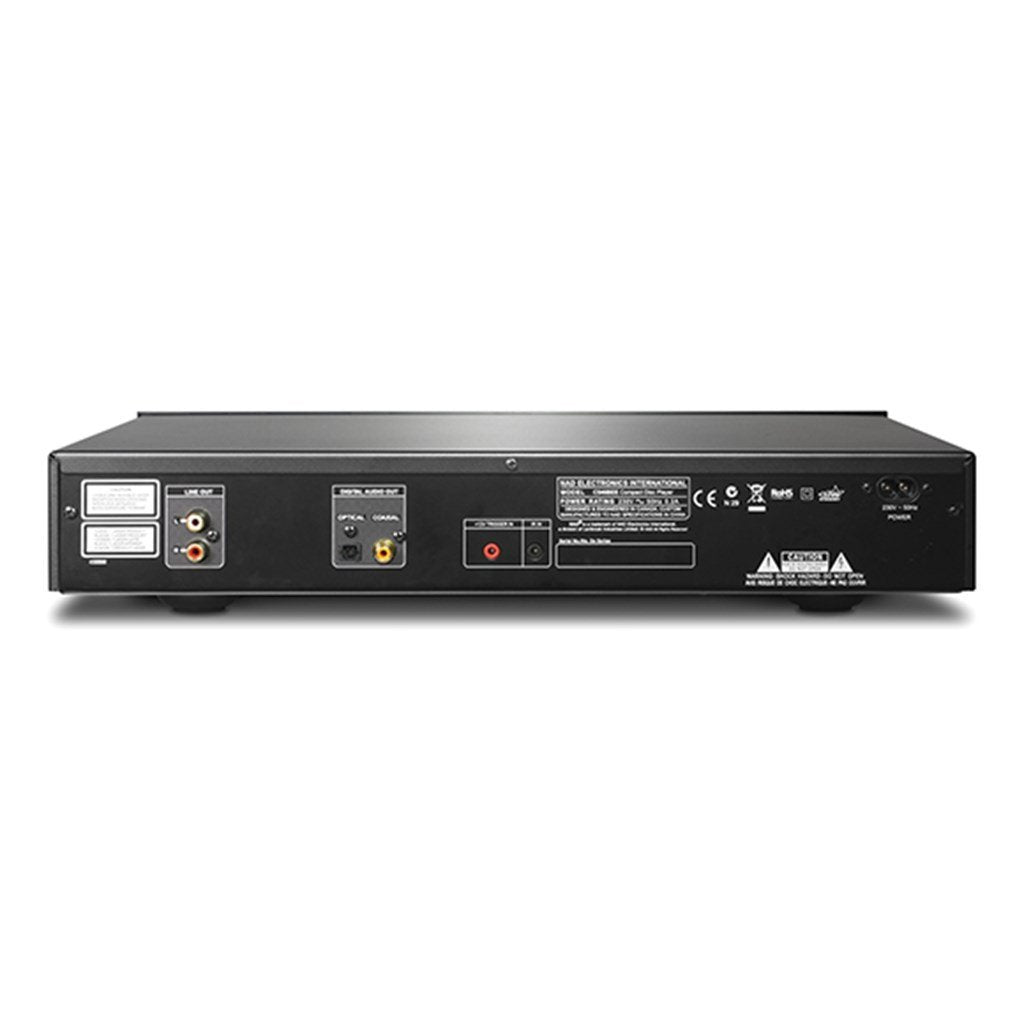

Not all digital outputs are equal. In the case of the NAD C 546BEE, careful attention has been paid so that best use can be made of the ever increasing number of products now available with digital inputs (computer sound cards, outboard digital-to-analogue converters, AVRs, etc.). Unusually at this price point, the coaxial output is buffered and isolated by a 75 ohm transformer thus isolating the converter to ensure perfect matching. This attention to detail reduces timing errors (jitter) that could otherwise distort the digital data signal. An optical TOSLINK output is also provided allowing connection to devices that only provide this option.

The C 546BEE comes supplied with the new NAD CD-9 full function remote control, offering all of the features described above from the comfort of your listening chair. On top of that, the remote control handset gives you direct track access and programming facilities, as well, saving the user’s time when they’re storing up to 20 tracks of preferred song titles. It is also possible to delete tracks without using the program function by simply using the delete key.

Separate power regulators for the digital and analogue sections isolate the two reducing electrical interference effects. Furthermore, careful layout of the PCB tracks around the digital-to-analogue converter helps to optimise the audio performance. The 24-bit high-resolution Wolfson Digital-to-Analogue Converter chip was chosen for its excellent low-level linearity and detail retrieving capabilities. Metal film resistors and polypropylene capacitors are used in key areas to ensure a highly accurate frequency response. High quality OPA 2134 op-amps are used instead of the much lower grade and type used in lesser players. Apart from the single film type output capacitor, no other capacitors are used in the signal path. The output impedance is very low at 300 ohms, making the C 546BEE less sensitive to cables or the ancillary equipment it is partnered with.

We urge you to listen to the NAD C 546BEE with a wide range of program material and with the best ancillary equipment to fully appreciate the refinement of this modest looking – and inexpensive by high end standards – CD player. You can spend a lot more money for a CD player, but we think you’ll have a difficult task finding a more musically complete and rewarding performance than that offered by the NAD C 546BEE. A new benchmark has been set.

Specifications:

• Analogue: 2.2 ±0.2V
• Optical: -22.5 ±3.5dBm
• Coaxial: 650 ±150mV
• Frequency Response: ±0.3dB (ref. 0dB 20Hz-1kHz; ±0.5dB (ref. 0dB 5Hz-20kHz
• Total Harmonic Distortion: 0.01% (ref. 1kHz, Audio LPF)
• Signal/Noise Ratio: 118dB (ref. 1kHz, A-weighted LPF Stop, Pause)
• Channel Balance: ±0.5dB (ref. 0dB 1kHz)
• Dynamic Range: 95dB
• Channel Separation: >90dB
• De-emphasis: -3.73 to -5.336dB (ref.0dB 1kHz, 5kHz); -8.04 to -10.04dB (ref. 0dB 1kHz, 16kHz)
• Linearity: ±0.01dB (ref. 0dB 1kHz at -3dB); ±0.02dB (ref. 0dB 1kHz at -6dB); ±0.02dB (ref. 0dB 1kHz at -10dB); ±0.05dB (ref. 0dB 1kHz at -20dB); ±0.15dB (ref. 0dB 1kHz at -60dB)

USB

• Output level: 2.2 ±0.2V
• Frequency Response: ±1dB (ref. 0dB 20Hz – 16kHz)
• Total Harmonic Distortion: <0.03% (ref. 0dB 1kHz, Audio LPF)
• Signal/Noise Ratio: 118dB (ref. 1kHz, A-weighted Pause)

POWER CONSUMPTION

• Standby Power: <0.5W (120V/230V)
• Idle Power: 9W

WEIGHT & DIMENSIONS

• Gross Unit Dimensions* (WxHxD): 435 x 89 x 306mm/17 1/8 x 3 9/16 x 12 1/16 inches**
• Net Weight: 4.9kg (10.8lb)

*Gross dimensions include feet, extended buttons and rear panel terminals.

**Non-metric measurements are approximate.
