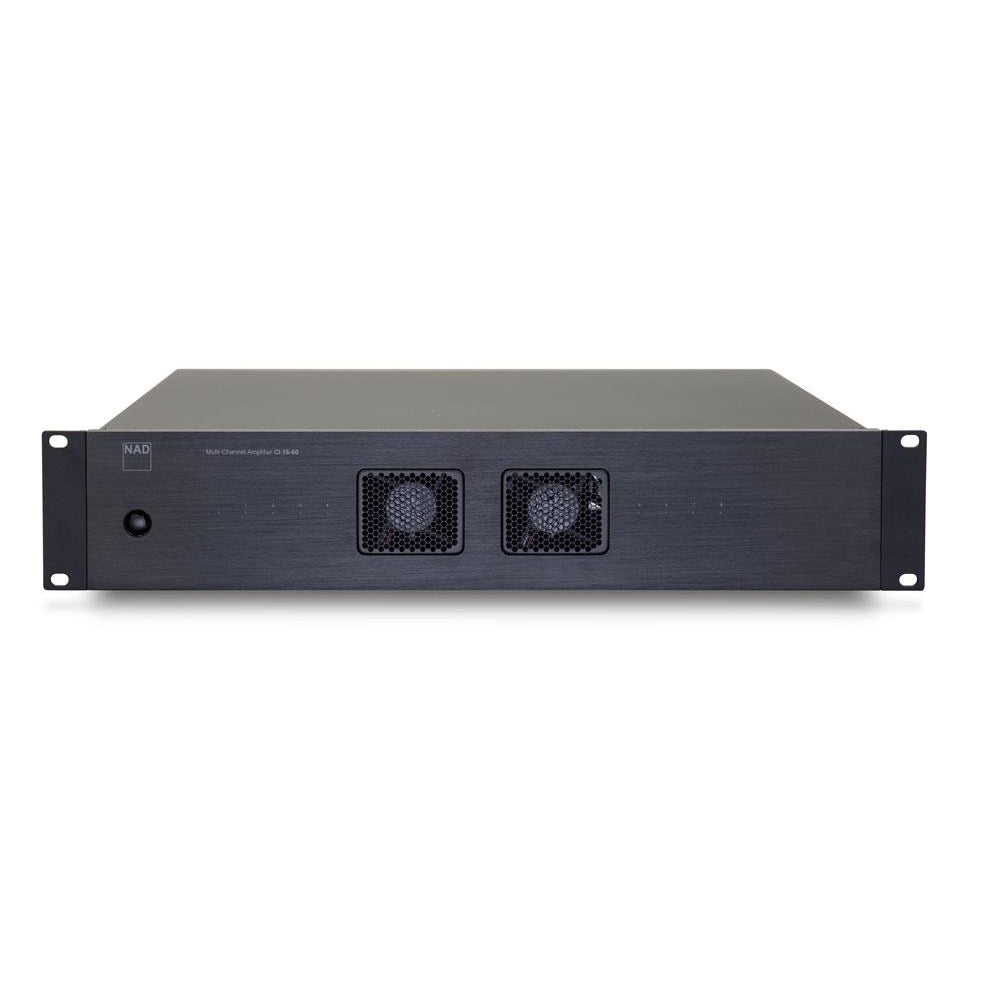

NAD CI 16-60 DSP Multi-Channel Amplifier
Discover the resounding innovation and exemplary functionality embedded within every detail of the NAD CI 16-60 DSP Multi-Channel Amplifier. Unveiling the considerable prowess of NAD's renowned, high-performance lineage, this 16 channel amplifier is set to redefine the scope of your distributed audio systems. Expect reliability, stability, and a plethora of installer-friendly features seamlessly combined to create a product that supersedes the standard. Crafted specifically for professional installations, the amplifier boasts a versatile and robust character; confidently handling long cable runs and challenging speaker loads.
Imagine, sixteen channels each providing 60 watts at 8 ohms, with the tantalizing option to bridge any consecutive channel pair to a powerful 2 x 140 watts @ 8ohm. At your disposal, a custom web app for managing your DSP calibration and input assignments and more. Nestled comfortably into a compact 2U rack space, this powerhouse of a machine promises low distortion and noise, along with an impressively load invariant power, thanks to the customized version of the well-established Hypex UcD output stage. Combined with multiple power-up options, Eco Mode, and Universal AC Power Supply, this amplifier is not merely a product but a promise of undisputed audiophile performance. Your journey into the expansive world of immersive audio experiences begins here, with the NAD CI 16-60 DSP Multi-Channel Amplifier.
FEATURES
A Robust 16 Channel Amplifier: Provides 60 watts per channel at 8 ohms spread across 16 channels. Each pair of channels is bridgeable to 140 watts if more power is desired.
NAD Sonic Signature: Renowned for its high-performance legacy, this amplifier delivers best-in-class audio performance.
Rack-Saving Design: The compact 2U rack space design fits comfortably into a professional installation rack without consuming excessive space.
Highly Customizable: Offers features such as a custom web app that manages DSP calibration, Input assignments, and more, delivering a tailored audio experience.
Eco Mode: Ensures energy efficiency with minimal power consumption setting.
Universal AC Power Supply: Operates seamlessly across different power conditions.
High Performing Amplification Platforms: Rest assured of the reliability and stability as the models rely on well-established amplification platforms.
Multiple Power-Up Options: Provides a variety of methods to power the amplifier.
BENEFITS
Exceptional Audio Performance: Offers exceptional audio quality with 60 watts per channel across 16 channels for a truly immersive experience.
Flexible Installation: The compact design and robust functionality enable seamless integration in any professional setup.
Custom User Experience: The web app allows users to customize their audio configuration with ease, providing a personalized listening experience.
Energy Efficient: The Eco Mode settings allow for minimal power consumption, making it an environmentally and economically efficient choice.
Wide Compatibility: With a universal AC power supply, this amplifier works smoothly under variant electricity conditions, offering international compatibility.
Reliable Performer: Reliability being a cornerstone of NAD's design philosophy assures a steady and reliable performance under different conditions.
Effortless Setup: The amplifier comes with multiple power-up options offering hassle-free setup and operation.
Specifications
Specification | Description |
---|---|
Product Type | Multi-Channel Amplifier |
Model Name | NAD - CI 16-60 DSP |
Channels | 16 Channels X 60 Watts @ 8 Ohms |
Bridgable Channels | Any consecutive channel pair bridgeable to 2 x 140 Watts @ 8 ohms |
Rack Height | 2U Rack saves valuable rack space |
Digital Signal Processing | Yes, platform accessed through IP control |
Custom Web App | Manages DSP calibration, Input assignments and more |
Cable Run Handling | Effectively handles long cable runs and difficult speaker loads |
Global Inputs/Outputs | Dual global Inputs/Outputs |
Standby Mode | 5W Standby Mode, 3W Network Standby |
Trigger In, IR In/Out | 12V Trigger In; IR In/Out |
Power-up Options & Eco Mode | Multiple power-up options and Eco Mode |
Power Supply | Universal AC Power Supply |
Output Power (all channels driven, 8 ohms) | 60 W (1kHz 0.05% THD) |
Output Power (two channels driven, 8 ohms) | 65 W (1kHz 0.05% THD) |
Output Power (all channels driven, 4 ohms) | 65 W (1kHz 0.05% THD) |
Output Power (two channels driven, 4 ohms) | 105 W (1kHz 0.05% THD) |
Output Power - Bridged mode (8 ohms) | 140 W (1kHz 0.05% THD) |
THD (1 W to 50 W, 8 ohms and 4 ohms) | 0.05 % (20 Hz – 3 kHz); 0.2 % (3kHz – 20 kHz) |
Approved Signal-to-Noise Ratio | 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
Clipping Power | 60 W (1 kHz 8 ohms 1 % THD); 80 W (1 kHz 4 ohms 1 % THD) |
Clipping Power - Bridged mode (8 ohms) | 150 W (1 kHz 1 % THD – all channels driven); 250 W (1 kHz 1 % THD – two channels driven) |
Peak Output Current | 15 A (1 ohm, 1 ms) |
Damping Factor | 110 (20 Hz to 1 kHz 8 ohms) |
Frequency Response | ±1dB (20 Hz – 20 kHz) |
Channel Separation | 60 dB (1 kHz); 55 dB (10 kHz) |
Max. Undistorted Input Level | 2900 mV |
Input Sensitivity (for 50 W in 8 ohms, maximum volume) | 760 mV |
Input Impedance | 20 kohms//220pF |
Analog Input Sense Threshold | 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz) |
Trigger IN Level | 3 – 30 Vdc |
Standby Power | 0.5W |
Dimensions (W x H x D) | 483x100x435mm; 19 1/16 x 3 15/16 x 17 3/16 inches |
Net Weight | 10.3 kg (22.7 lbs) |
Shipping Weight | 12.8 kg (28.2 lbs) |
Pledge allegiance to the unmatched and dynamic sound quality that radiates from the NAD CI 16-60 DSP Multi-Channel Amplifier. Commandeer the power of your audio setup, create exhilarating sonic spaces, and experience every high, mid, and low with stunning clarity and depth. Endowed with the reliability and technology of NAD's distinguished lineage, this multi-channel amplifier reengineers your perception of sound quality, function, and flexibility.
As Australia's #1 Hi-Fi Store, The Audio Tailor extends an invitation to reach out, explore, experience, and procure this transformative addition to your audio collection. Visit us in-store at Unit 9/20 Rivergate Place, Murarrie QLD 4172, call us at 1300 308 711, or reach us via our Contact URL.
In the world of audio amplification, the NAD CI 16-60 DSP Multi-Channel Amplifier stands as an undisputed champion, delivering unparalleled audio quality, multi-faceted functionality, and the ultimate extravagance in sound evolution. Dive boldly into the sound of the future and let the music play.
