NAD - M10 V3 - BluOS Streaming Amplifier

Combining a sophisticated music streamer and powerful 100-watt-per-channel amplifier in one super-stylish chassis, the NAD M10 V3 BluOS Streaming Amplifier fully embodies the way people listen to music today. At the heart of the M10 V3’s user experience is the acclaimed BluOS multi-room music platform, which integrates dozens of streaming music services. You can queue up any music you want using the intuitive BluOS app, and hear it in pristine high fidelity through your favourite loudspeakers. The M10 V3 maintains everything that made the original M10 and M10 V2 so beloved, but improves upon the platform with the addition of NAD’s new BC1 IR remote control, support for optional Dirac Live Bass Control*, a high-performance dedicated phono input (MM), and an upgraded DAC.

Features & Details

• BluOS Streaming Amplifier
• Wireless 4.0, 4.1- and 4.2-channel surround sound option
• Hybrid Digital NCore Amplifier
• Continuous Power: 100W into 8/4 Ohms
• Dynamic Power: 160W into 8 Ohms /300W into 4 Ohms
• 32-bit/768kHz ESS Sabre DAC
• MQA decoding and rendering
• Colour LCD display
• Amazon Alexa & Apple Siri voice control skills
• AirPlay 2 and Two-way Qualcomm aptX HD Bluetooth
• Roon Ready
• Spotify Connect and Tidal Connect
• NFC Bluetooth pairing for compatible smart devices
• BluOS multi-room compatible
• Gigabit Ethernet
• HDMI eARC, USB Type A Inputs
• Stereo Line Input, MM Phono Stage, Coax/Optical Digital Inputs
• Preamp output, two independent subwoofer outputs
• Dirac Live with optional Dirac Live Bass Control*
• BC1 IR remote control with Dirac filter switching
• IR Input, 12V Trigger Out
• BluOS apps for iOS, Android, Mac OS, and Windows
• Support for advanced control systems including Crestron, Control4, RTI, URC, Elan, Lutron, and iPort

*Dirac Live Bass Control is expected to be made live in the M10 V3 by end of 2024

Better synergy between your sound system and your room

Like its predecessors, the M10 V3 exemplifies the “Just Add Speakers” revolution in hi-fi, whether you’re simply connecting a pair of your favourite speakers to the audiophile-grade speaker terminals or pairing two additional wireless BluOS-enabled rear speakers for a full-fledged Dolby Digital 4.0, 4.1 or 4.2-channel surround sound system. Settings for the dual subwoofer outputs can be adjusted using the intuitive BluOS Controller app.

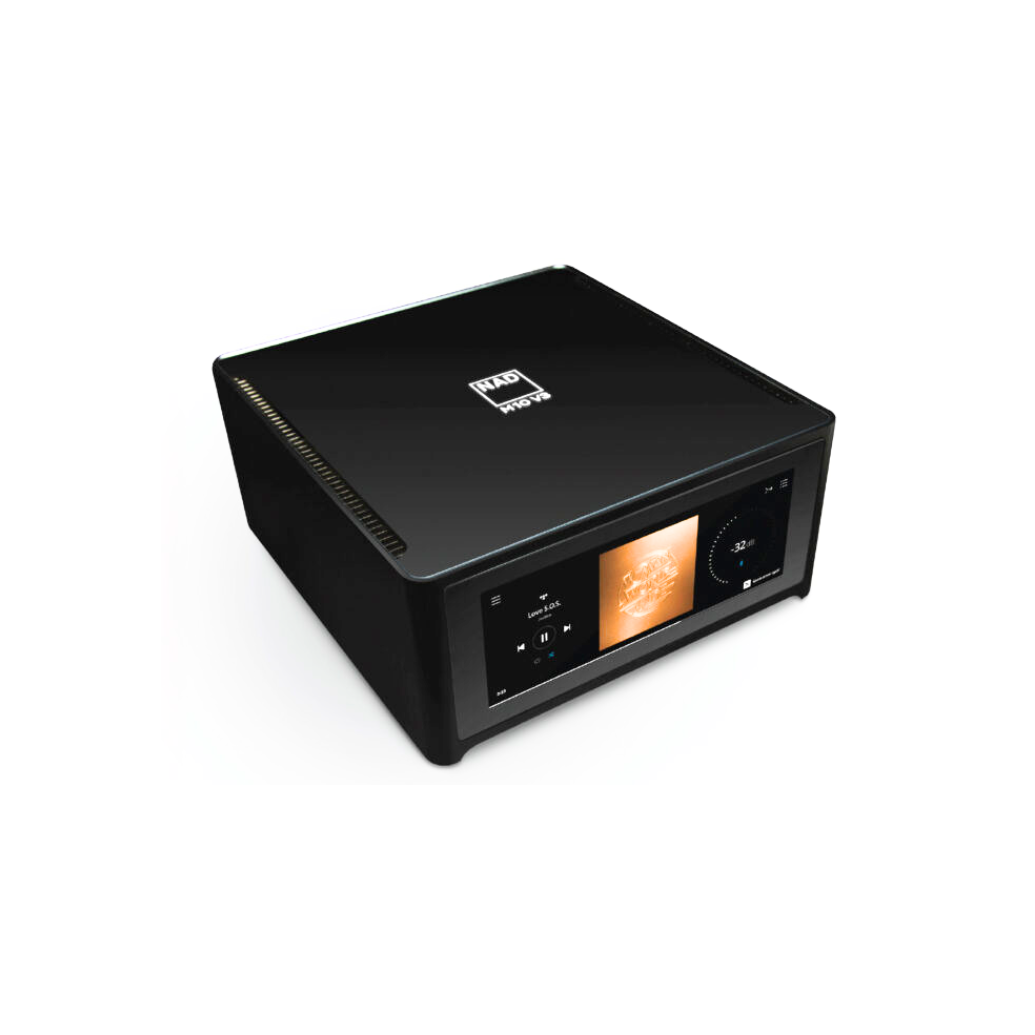

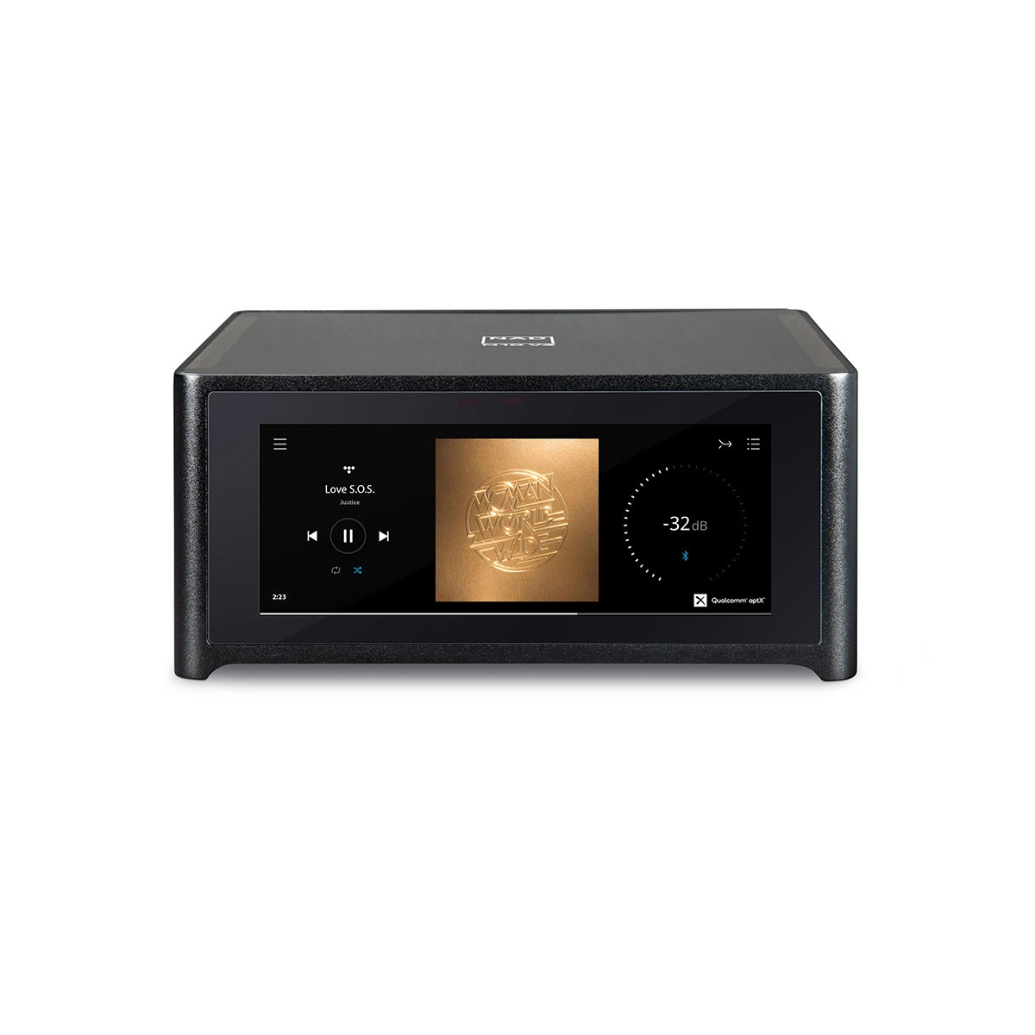

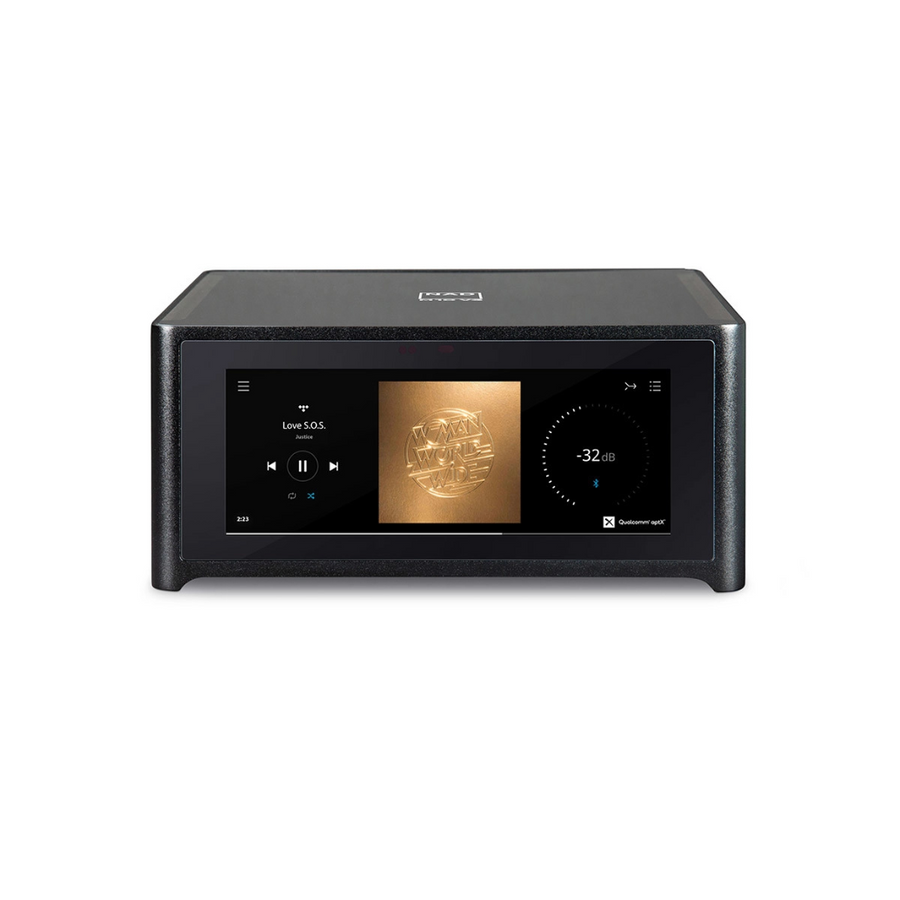

Created by the award-winning design firm DF-ID, the M10 V3 features a solid brushed aluminium chassis, Gorilla Glass top and front panels, and a bright 7″ touchscreen. With its compact form factor and elegant minimalist design, the M10 V3 it blends beautifully into any living space—not just visually, but sonically as well.

In addition to the Dirac Live Room Correction capabilities carried over from the V2, the M10 V3 has been upgraded to support Dirac Live Bass Control* via an optional license. This not only unlocks optimisation of multiple subwoofers, but also co-optimisation of subwoofers and speakers to significantly improve the blend between low and high frequencies to unlock the full potential of every sound source in the room, free of anomalies caused by the listening environment itself.

The M10 V3 can store multiple Dirac profiles for different listening positions or room conditions—for example, whether the drapes are open or closed—and each of these presets can be accessed at the touch of a button of the supplied BC1 IR remote control.

Small and mighty

Behind the M10 V3’s gorgeous colour touchscreen display lies a powerful sound system that delivers thrilling dynamics and exquisite detail. The Hybrid Digital amplifier, based on NCore class-D circuitry, is conservatively rated to deliver 100 watts per channel. The unit’s DAC chip has also been upgraded to the ESS Sabre ES9039, which provides even higher dynamic range, lower noise, and more detail.

The M10 V3 can stream lossless and high-resolution audio and has full MQA hardware decoding and rendering capabilities. And its new dedicated MM phono preamp assures textbook-accurate RIAA equalisation and clean gain, meaning you’ll get the most out of your vinyl collection, as well.

Take control of your musical experience

The M10 V3 offers an abundance of control options, in addition to the BC1 remote control. With the BluOS app, you play music from your favourite streaming services, as well as files stored on USB and network drives, using your smartphone, tablet, or PC. The M10 V3 supports AirPlay 2, so you can stream music directly from an iPhone, iPad, or iTunes library. It also supports Spotify Connect and Tidal Connect, so you can play music using the apps for those services, and is Roon Ready. Numerous other streaming services are supported directly from within the BluOS app, including Amazon Music Ultra HD, Deezer, Qobuz, and many others.

You can choose tracks, select sources, and adjust volume and other settings from the M10 V3’s touchscreen. The supplied remote control lets you adjust volume, skip tracks, and activate preset commands. The M10 V3 is compatible with the Amazon Alexa and Apple Siri digital voice assistants, and can be integrated into Apple, Control4, Crestron, Lutron, and other control and automation ecosystems, so you can control music playback, along with other home systems such as lighting, shades, HVAC, and security.

A modern masterpiece

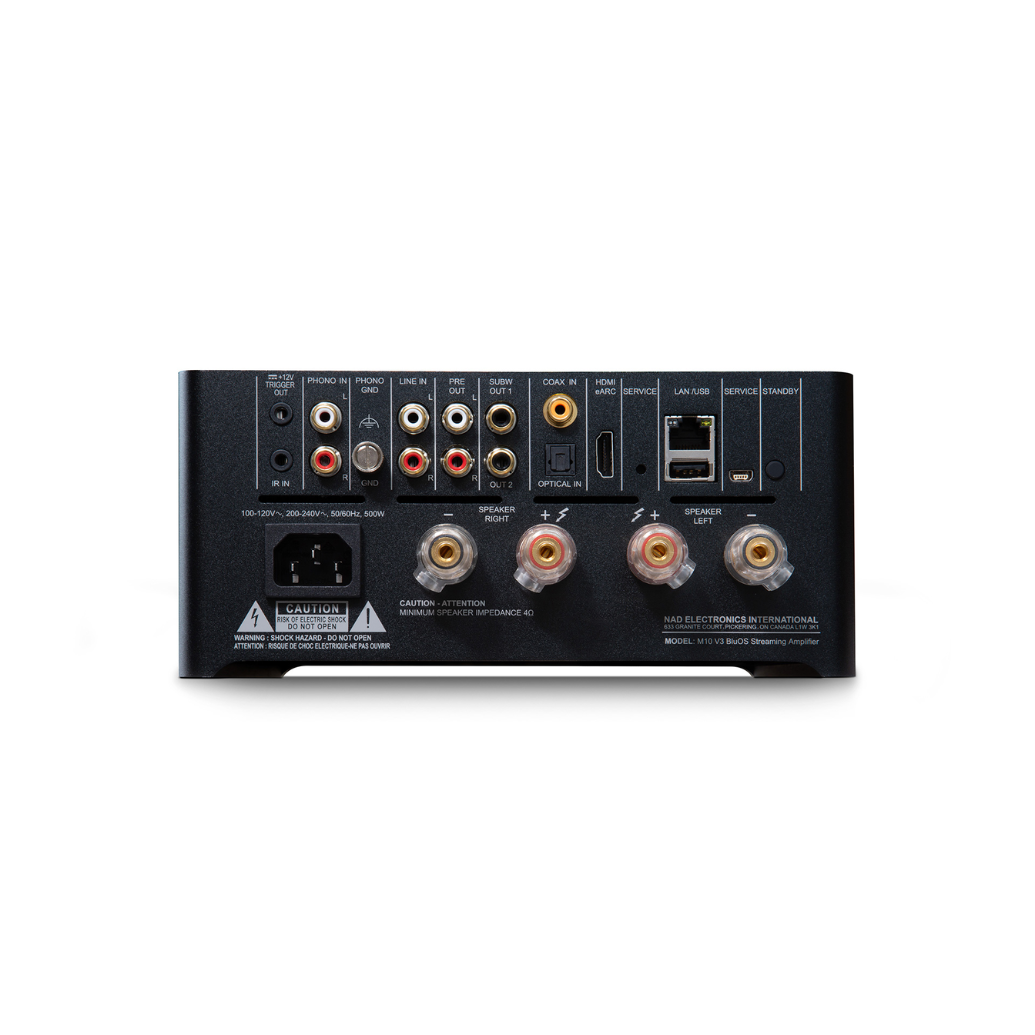

In addition to its robust streaming capabilities and aforementioned MM phono stage, the M10 V3 has a line-level analogue input as well as optical and coaxial digital inputs, HDMI eARC, and USB Type A inputs, for connecting disc players, game consoles, external drives, media adapters, flat-panel displays, and other components. It also features bidirectional aptX HD Bluetooth.

With the M10 V3, you can listen through wireless headphones, stereo loudspeakers, a surround-sound setup, or up to 64 BluOS-capable components arrayed throughout your home. No matter how and where you listen, it is the perfect integrated amplifier for the modern home and the modern music fan.

Specifications

LINE INPUT, SPEAKER OUT

• Continuous output power into 8 ohms and 4 ohms: >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz): <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio: >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
• Clipping power: >130 W (at 1 kHz 8 ohms 0.1 % THD), >230 W (at 1 kHz 4 ohms 0.1 % THD)
• IHF dynamic power: 8 ohms: 160 W, 4 ohms: 300 W
• Damping factor: >190 (ref. 8 ohms, 20Hz to 6.5kHz)
• Frequency response: ±0.6 dB (20 Hz – 20 kHz)
• Tone controls: Treble: ±6.0 dB at 20 kHz, Bass: ±6.0dB at 60 Hz
• Channel separation: >83 dB (1 kHz), >70.5 dB (10 kHz)
• Input sensitivity (for 100 W in 8 ohms): Line In: 456 mV, Digital In: -13.23 %FS
• Standby power: 0.5W

DAC SECTION

• Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
• Hi-Resolution audio formats: MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
• Sampling rate: up to 24 bit/192 kHz

BluOS SECTION

• Supported operating systems: Plays music from network shares on the following desktop operating systems: Microsoft Operating Systems and Mac OS X versions
• User interface mobile operating system BluOS: BluOS – Free Android and iOS App available online at Google Play and Apple App store
• Supported cloud services*: Amazon Music Ultra HD, Spotify, Tidal Max, Deezer, Qobuz, HDtracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
• Free internet radio*: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
• Bluetooth quality: Bluetooth aptX HD built-in
• Bluetooth connectivity: Two-Way (Receive and Headphone modes)
• Network connectivity: Gigabit Ethernet RJ45, Wi-Fi 5

DIMENSION AND WEIGHT

• Gross dimensions (W x H x D)**: 215 x 100 x 260 mm, 8 1/2 x 3 15/16 x 10 1/4 inches
• Shipping weight: 5 kg (11 lbs)

NOTE

* – Supported audio file format, cloud services and free internet radio are subject to change without notice.

** – Gross dimension includes feet and extended rear panel terminals
