NAD - PP 2e - Phono Preamplifier

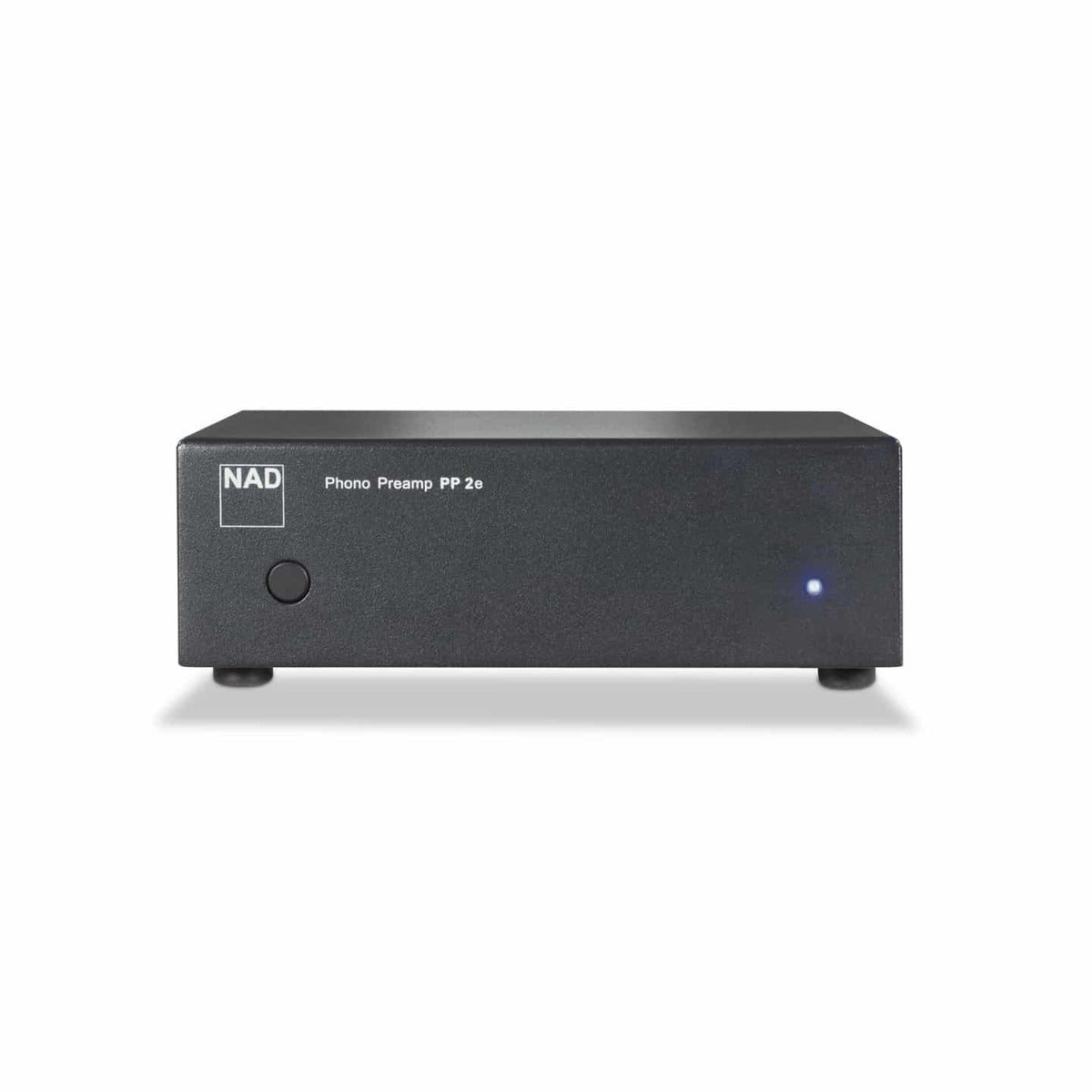

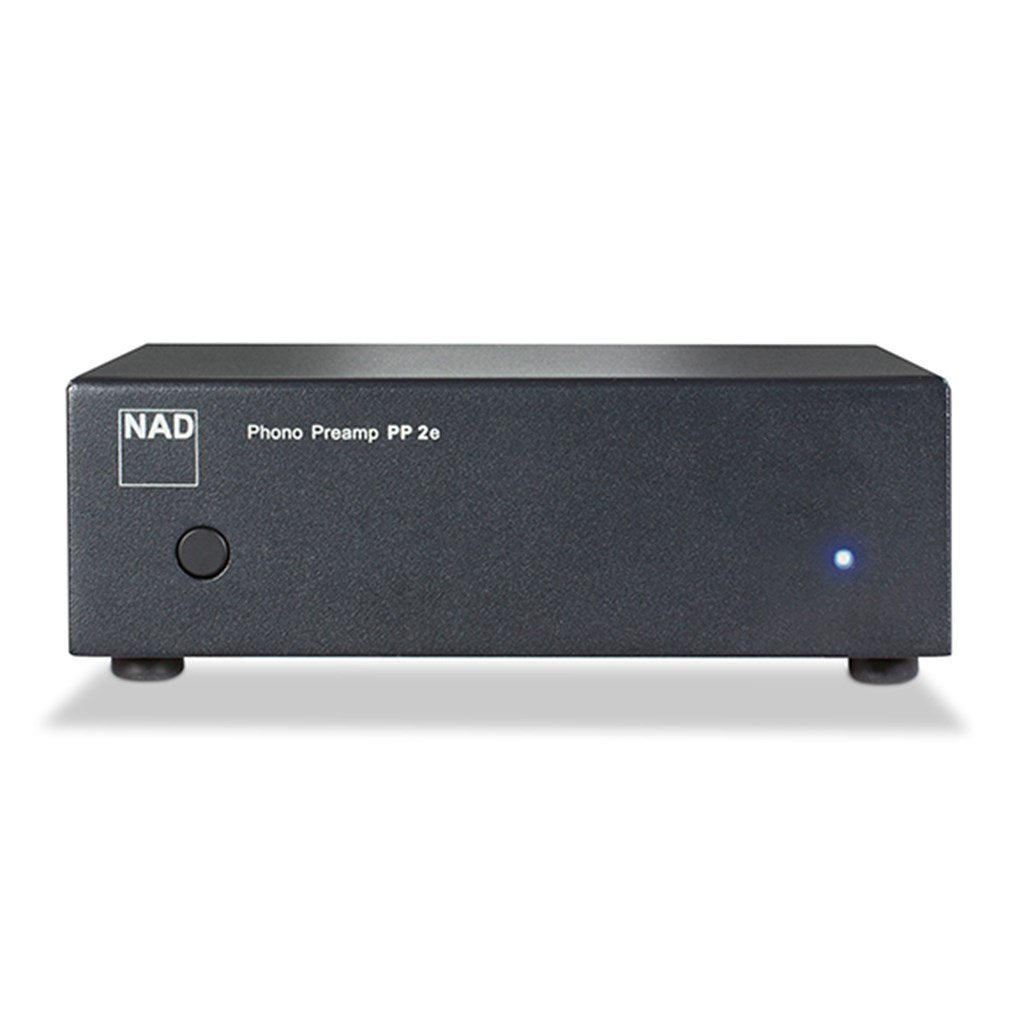

NAD PP 2e Phono Preamplifier

The NAD PP 2e Phono Preamplifier is a sleek and striking companion to your turntable setup, designed to elevate your vinyl listening experience. With its dual moving coil/moving magnet input selector, this preamplifier offers versatility and allows for a wide range of phono cartridge options. It is ideal for the discerning audiophile who values both quality and cost.

One of the standout features of the PP 2e is its Auto Power Down feature, which automatically powers off the unit when not in use, making it energy-efficient and eco-friendly. The preamplifier also features low-noise, wide band for both MM & MC phono stages, ensuring high-quality sound with minimal distortion, bringing out the best in your vinyl collections.

With gold plated input sockets and high-quality components, the NAD PP 2e exudes subtle luxury. The LED power indicator keeps you updated on the unit's status, while its ability to connect to almost all amplifiers and receivers showcases its versatility. Despite its compact size, the PP 2e delivers clear and powerful sound.

Features:

1. Moving Coil/Moving Magnet Input Selector: Offers versatility in connecting to any turntable, providing a vast array of phono cartridge options.
2. Auto Power Down Feature: Powers off the unit when not in use, promoting energy conservation.
3. Low-Noise, Wide Band for MM & MC Phono Stages: Ensures a rich and immersive sound with minimal distortion.

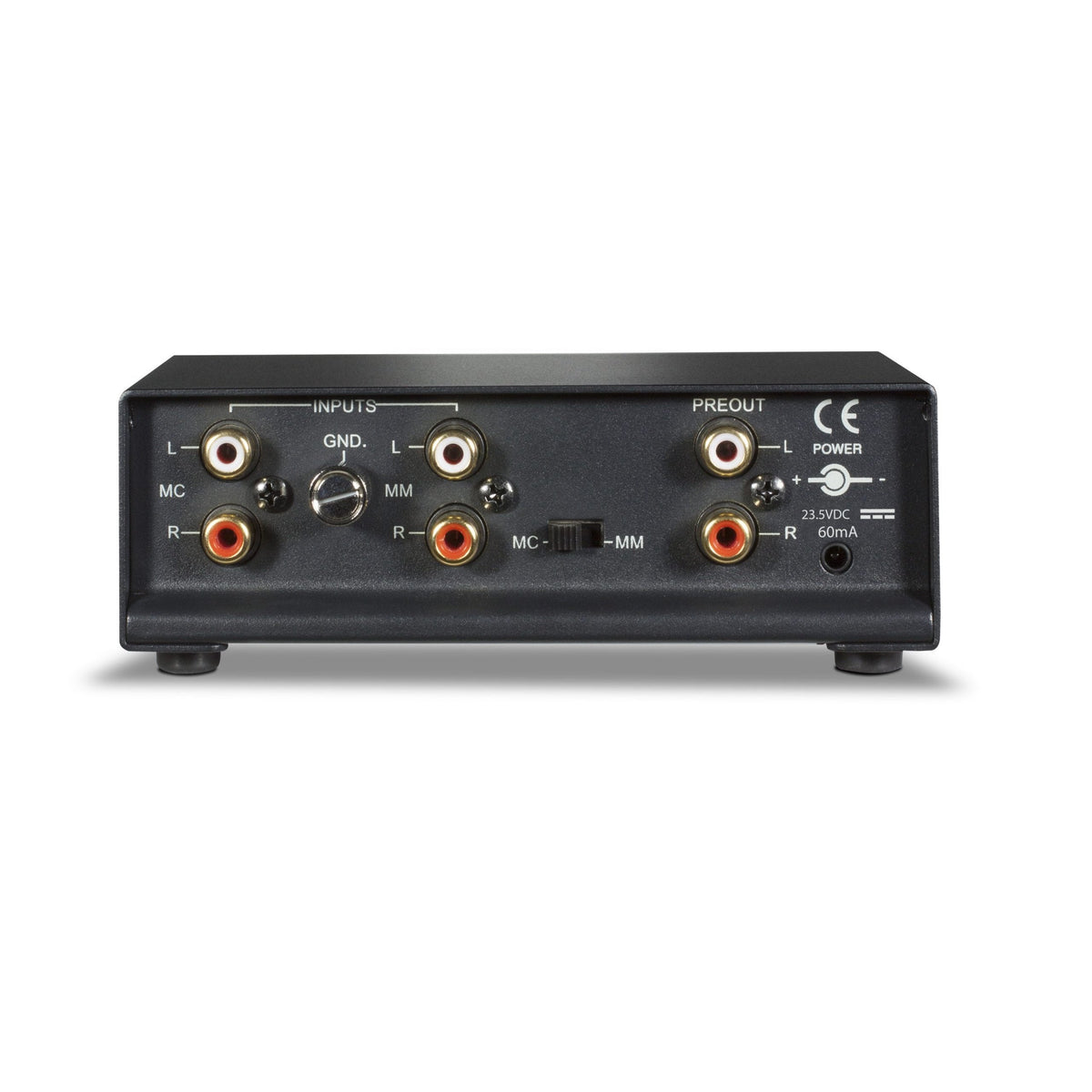

4. Gold Plated Input Sockets: Enhances the longevity and durability of the preamplifier.
5. LED Power Indicator: Allows for easy monitoring of the unit's operational status.
6. External 24V Power Supply: Reduces noise interference and optimizes sound quality.

Benefits:

1. Enhanced Versatility: Connects to any turntable, adding value to your listening setup.
2. Eco-Friendly & Cost-Effective: The Auto Power Down feature conserves energy, making it an environmentally friendly option.
3. Distortion-Free Listening: Provides a rich and immersive sound experience without compromising on audio quality.
4. Robust & Durable: Gold plated input sockets ensure a secure and long-lasting connection.
5. Continuous Monitoring: The LED power indicator keeps you informed and ensures uninterrupted listening.
6. Optimal Sound Experience: The external power supply reduces signal interference, delivering optimal sound quality.

Specifications:

• Product: NAD - PP 2e - Phono Preamplifier
• MC Input Impedance (R and C): 100 Ohm + 180pF
• Gain at 1kHz: 60dB
• Input Sensitivity (ref. 200mV output): 0.3mV
• Signal to Noise Ratio: 78dB (A weighted, with cartridge connected)
• Input Overload (20Hz/1kHz/20kHz): 0.8/9/84mV
• Rated Distortion (THD 20Hz – 20kHz): <0.03%
• RIAA Response Accuracy: ±0.3dB
• MM Input Impedance (R and C): 47 kilohm + 200pF
• Gain at 1kHz: 35dB
• Input sensitivity (ref. 200mV output): 2.5mV
• Signal to Noise Ratio: 80dB (A weighted, with cartridge connected)
• Input overload (20Hz/1kHz/20kHz): 10/102/950mV
• Rated Distortion (THD 20Hz – 20kHz): <0.03%
• RIAA response accuracy: ±0.3dB
• LINE OUT Output Impedance: 100 Ohm
• Maximum Output Level: 5.3V
• AC Supply: External 23.5V DC
• Dimensions excl. Power supply (W x H x D): 135 x 49 x 72mm; 5 5/16 x 1 15/16 x 2 7/8″
• Key Features: Moving coil/moving magnet input selector, Auto Power Down, Low noise, wide band MM & MC phono stage, Gold plated input sockets, LED power indicator

Experience the powerful harmony of nostalgia and modernity with the NAD PP 2e Phono Preamplifier. It promises to elevate your audio experience to unparalleled heights, delivering crisp and richly detailed audios that mirror the artist's intent. Trust 'The Audio Tailor', Australia's #1 Hi-Fi Store, to guide you towards your audio nirvana.
