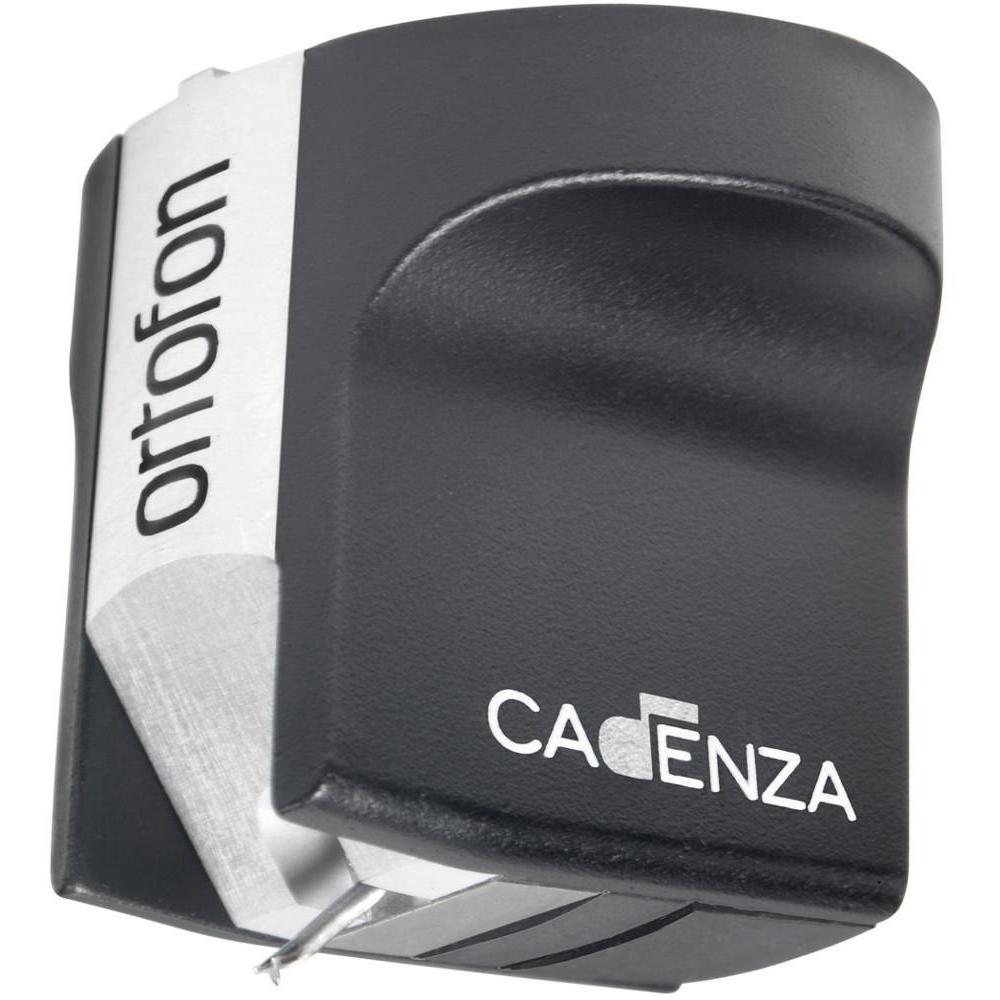

Ortofon - Cadenza Mono - Cartridge
Ortofon Cadenza Mono - the true Mono cartridge
The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.
Sharing internal build with the Cadenza Red and with optimised adjustments for mono playback the sound is relaxed, homogeneous and moderate.
Technical Specifications Output voltage at 1 kHz 5 cm/sec 0.45 mV Frequency range at -3 dB 20Hz - 50 kHz Frequency response 20Hz - 20 kHz +3/-1Tracking ability at 315Hz at recommended tracking force *) 70 μmCompliance, dynamic, lateral 12 μm/mNStylus type Nude Fine Line on Alu cantileverStylus tip radius r/R 8/40Tracking force range 2.2-2.7 g (22-27 mN)Tracking force recommended 2.5 g (25 mN)Tracking angle 20ºInternal impedance, DC resistance 5 OhmRecommended load impedance 50-500 Ohm CARTRIDGE body material Stainless steel AluminiumCartridge colour Natural/BlackCartridge weight 10.7 g
