Ortofon - Cadenza Red - Cartridge

SKU: CADENZARED

$1,699.00$1,559.00

You Save: $140.00

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

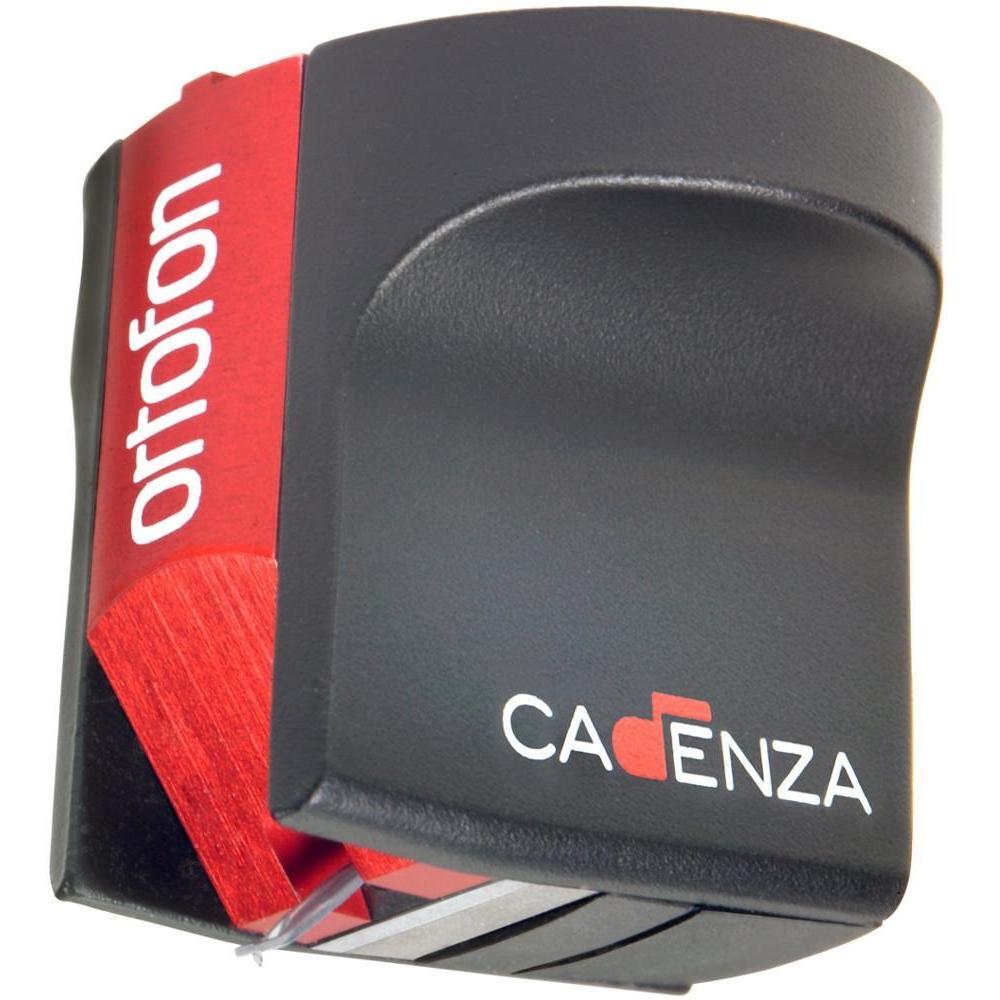

Ortofon Cadenza Red

The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.
Specifications
Technical Specifications Output voltage at 1 kHz 5 cm/sec 0,45 mV CHANNEL balance < 1,5 dBChannel separation at 1 kHz > 23 dBChannel separation at 15 kHz > 15 dB Frequency range at -3 dB 20Hz - 50 kHz Frequency response 20Hz - 20 kHz +3/-1Tracking ability at 315Hz at recommended tracking force *) 80 μmCompliance, dynamic, lateral 12 μm/mNStylus type Nude Fine Line on Alu cantileverStylus tip radius r/R 8/40Tracking force range 2,2-2,7 g (22-27 mN)Tracking force recommended 2,5 g (25 mN)Tracking angle 20ºInternal impedance, DC resistance 5 OhmRecommended load impedance 50-500 Ohm CARTRIDGE body material Stainless steel AluminiumCartridge colour Red/BlackCartridge weight 10,7 g
