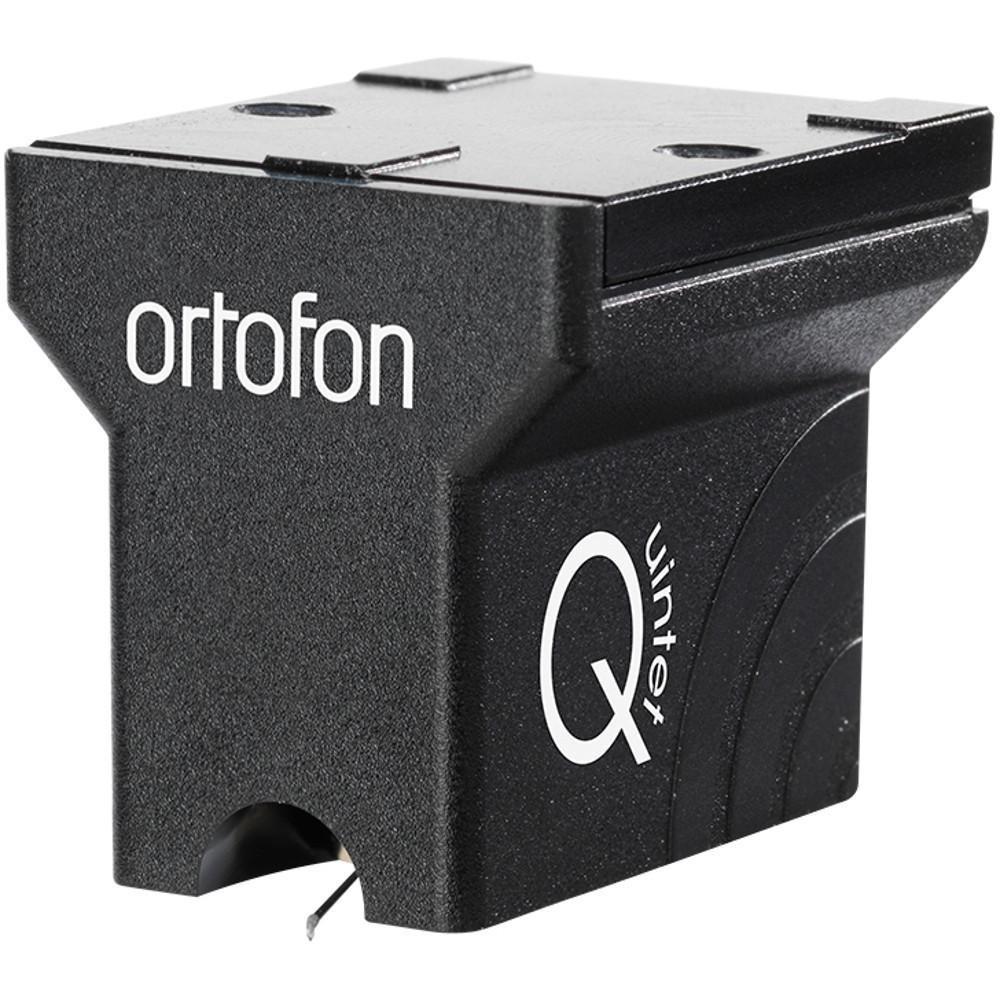

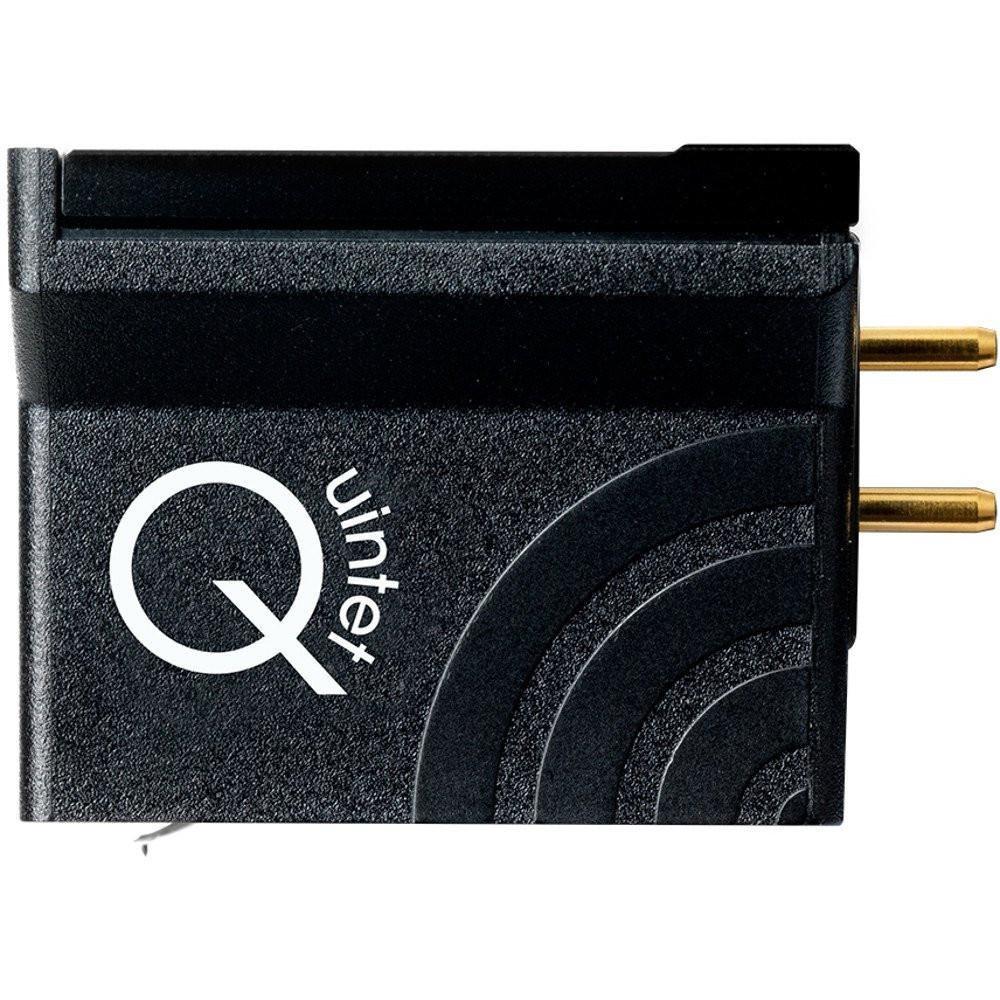

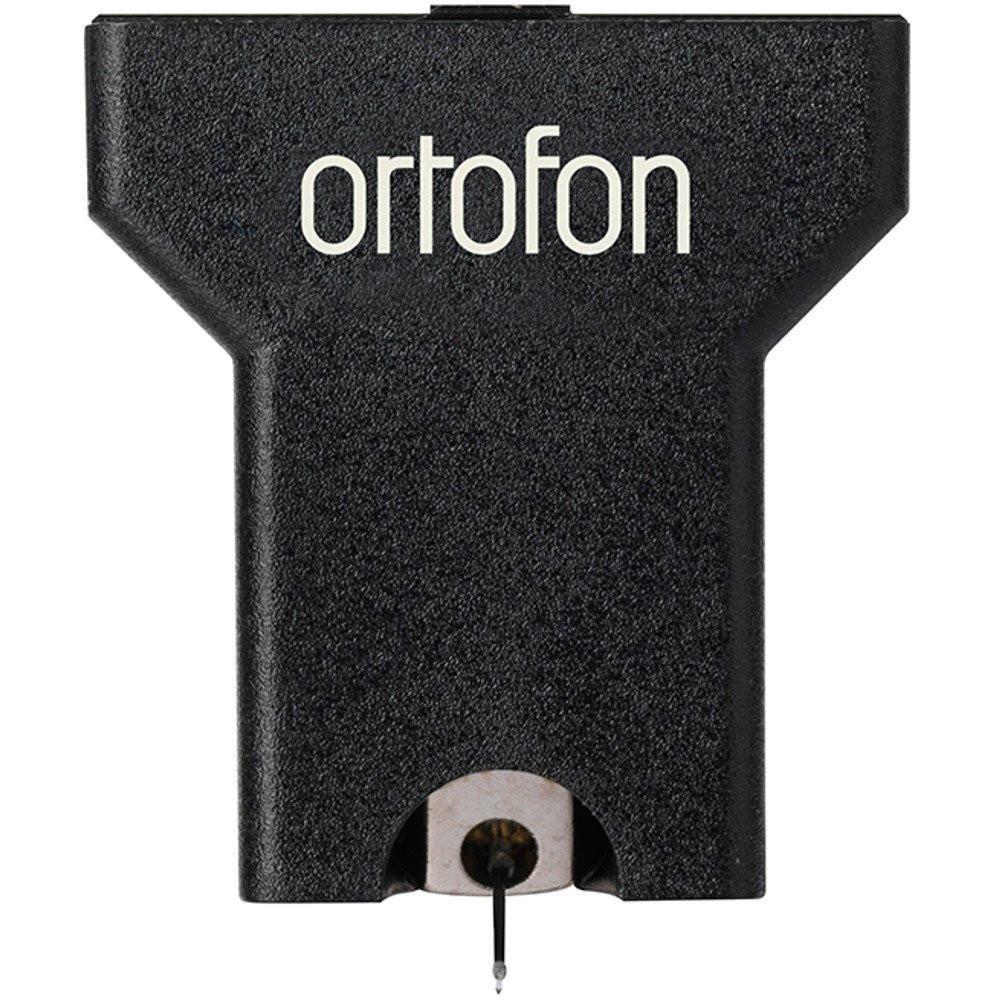

Ortofon - Quintet Black - Cartridge
The Quintet Black is the best example of Quintet’s overall excellence.
The Quintet Black is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Boron cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.
Technical Specifications Output voltage at 1000Hz, 5cm/sec. 0.3 mV CHANNEL balance at 1 kHz < 1.0 dBChannel separation at 1 kHz > 23 dBChannel separation at 15 kHz > 15 dB Frequency range at - 3dB 20 - 25.000 Hz Frequency response 20-20.000 Hz +/- 1.5 dB Tracking ability at 315Hz at recommended tracking force *) 80 µmCompliance, dynamic, lateral 15 µm/mNStylus type Nude Shibata on Boron cantileverStylus tip radius r/R 6/50 µmTracking force range 2.1-2.5 g (21-25 mN) Tracking force, recommended 2.3 g (23 mN)Tracking angle 20°Internal impedance, DC resistance 5 OhmRecommended load impedance > 20 Ohm CARTRIDGE body material ABS/AluminiumCoil wire material Aucurum Cartridge colour BlackCartridge weight 9 g
For our customers that can make it into our Brisbane store we offer a fitting, balancing, alignment and calibration service from as little as $69, pre booking is essential.
