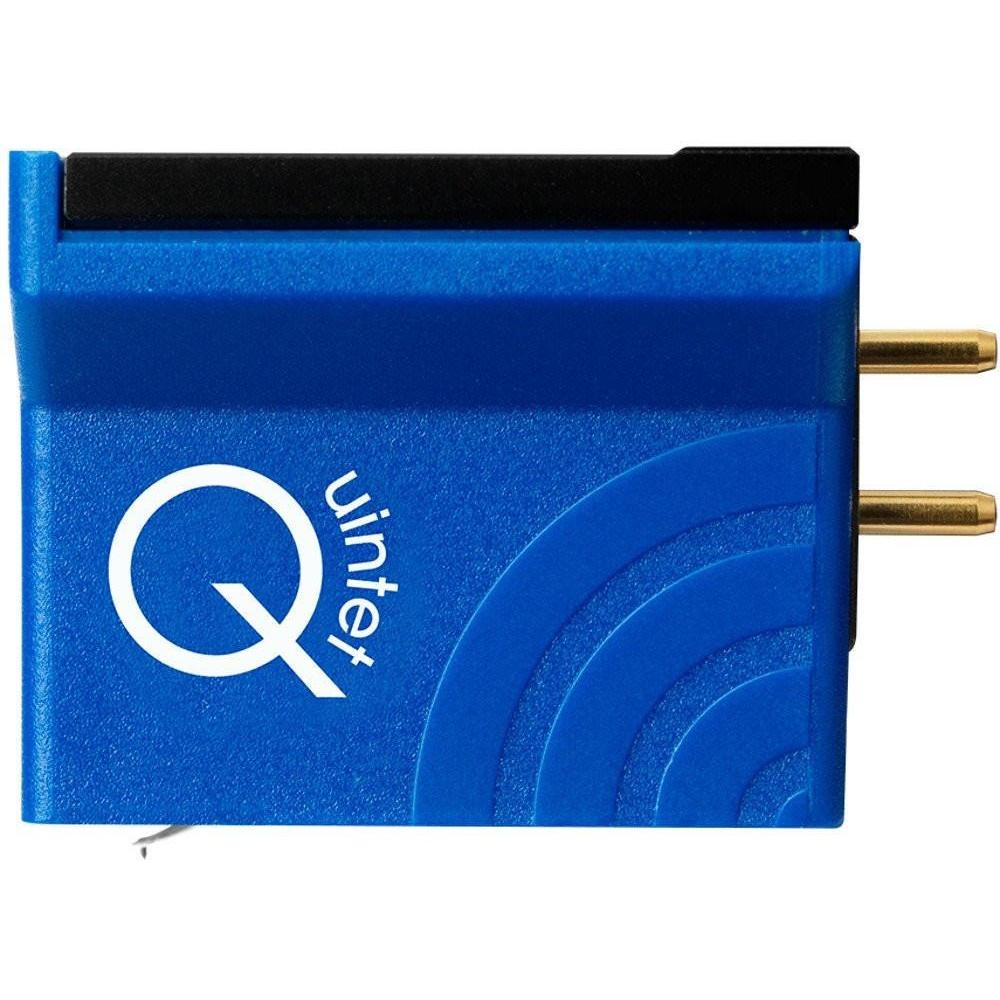

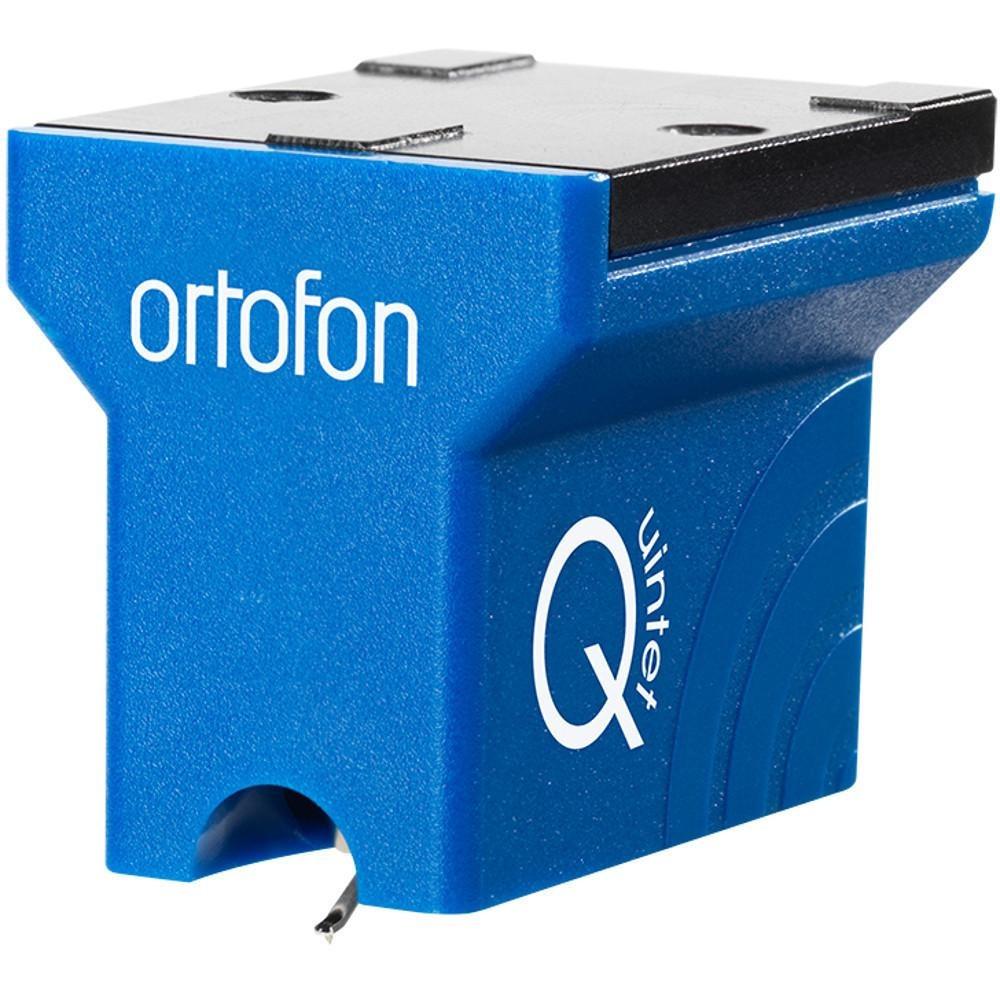

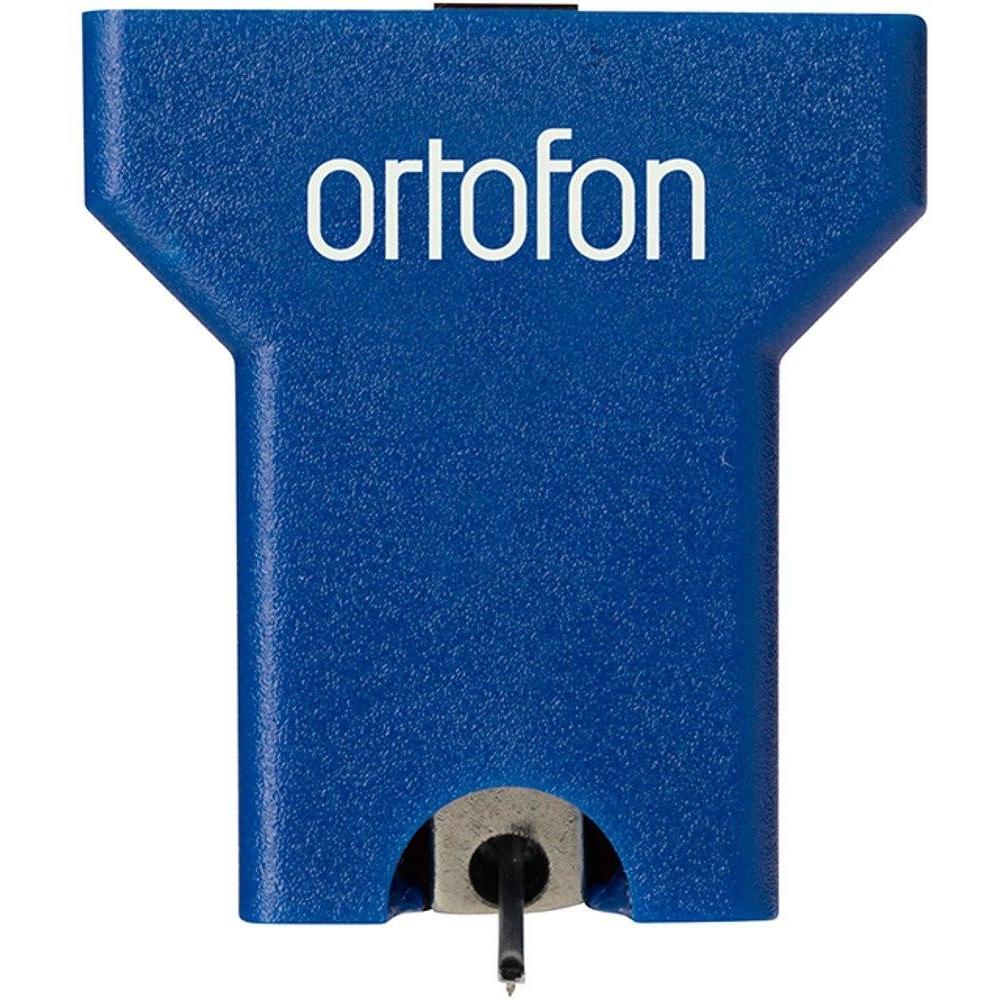

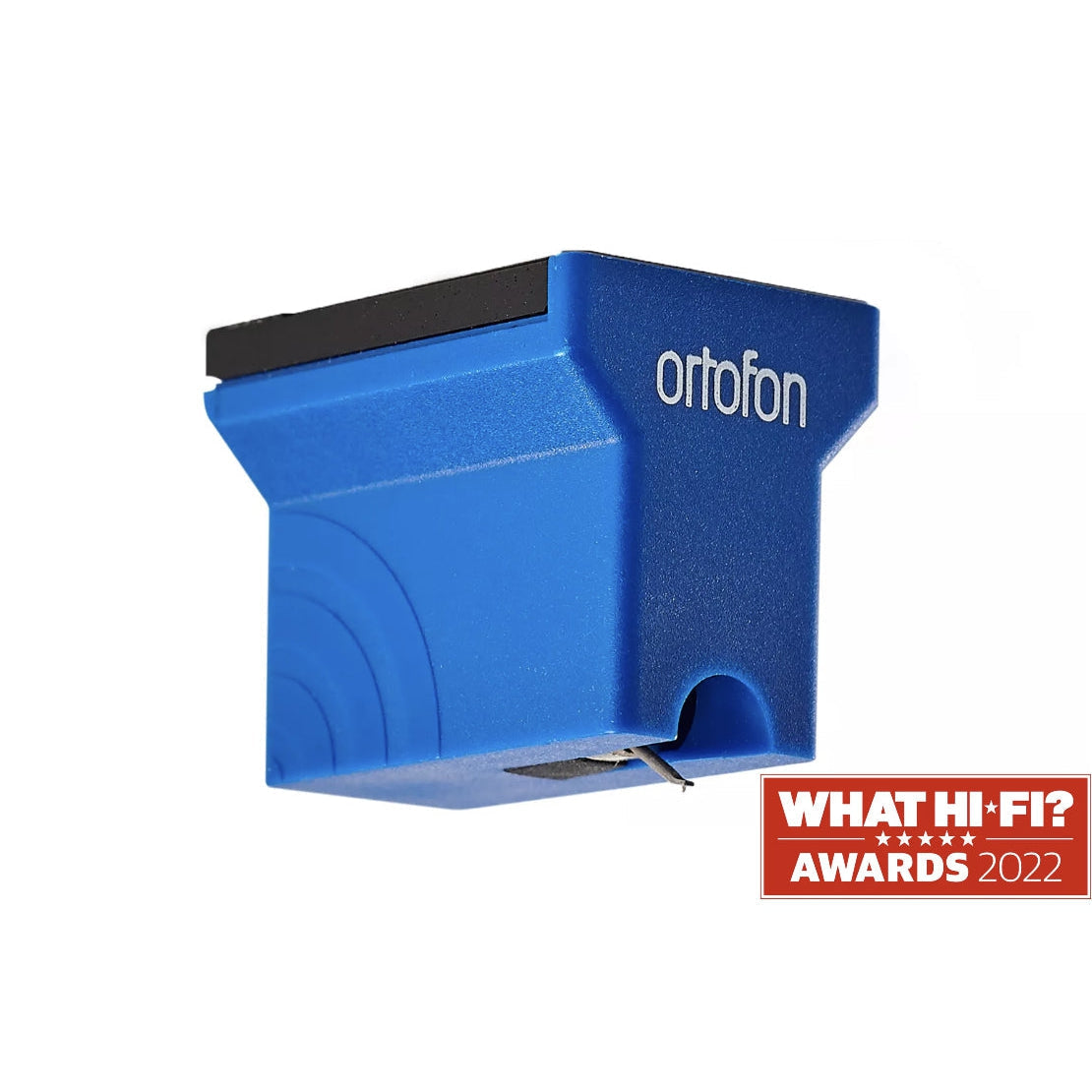

Ortofon - Quintet Blue - Cartridge

MC Quintet Blue

The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.

Specifications

Technical Specifications Output voltage at 1 kHz 5 cm/sec 0.5 mV CHANNEL balance < 1.5 dBChannel separation at 1 kHz > 21 dBChannel separation at 15 kHz > 14 dB Frequency range at -3 dB 20-25.000 Hz Frequency response 20-20.000 Hz +/-2.5 dB Tracking ability at 315Hz at recommended tracking force *) 70 μmCompliance, dynamic, lateral 15 μm/mNStylus type Nude EllipticalStylus tip radius r/R 8/18 μm Tracking force range 2.1-2.5 g (21-25 mN)Tracking force recommended 2.3 g (23 mN)Tracking angle 20ºInternal impedance, DC resistance 7 OhmRecommended load impedance >20 Ohm CARTRIDGE body material ABS/AluminiumCoil wire material Pure 4-nines copperCartridge colour BlueCartridge weight 9 g
