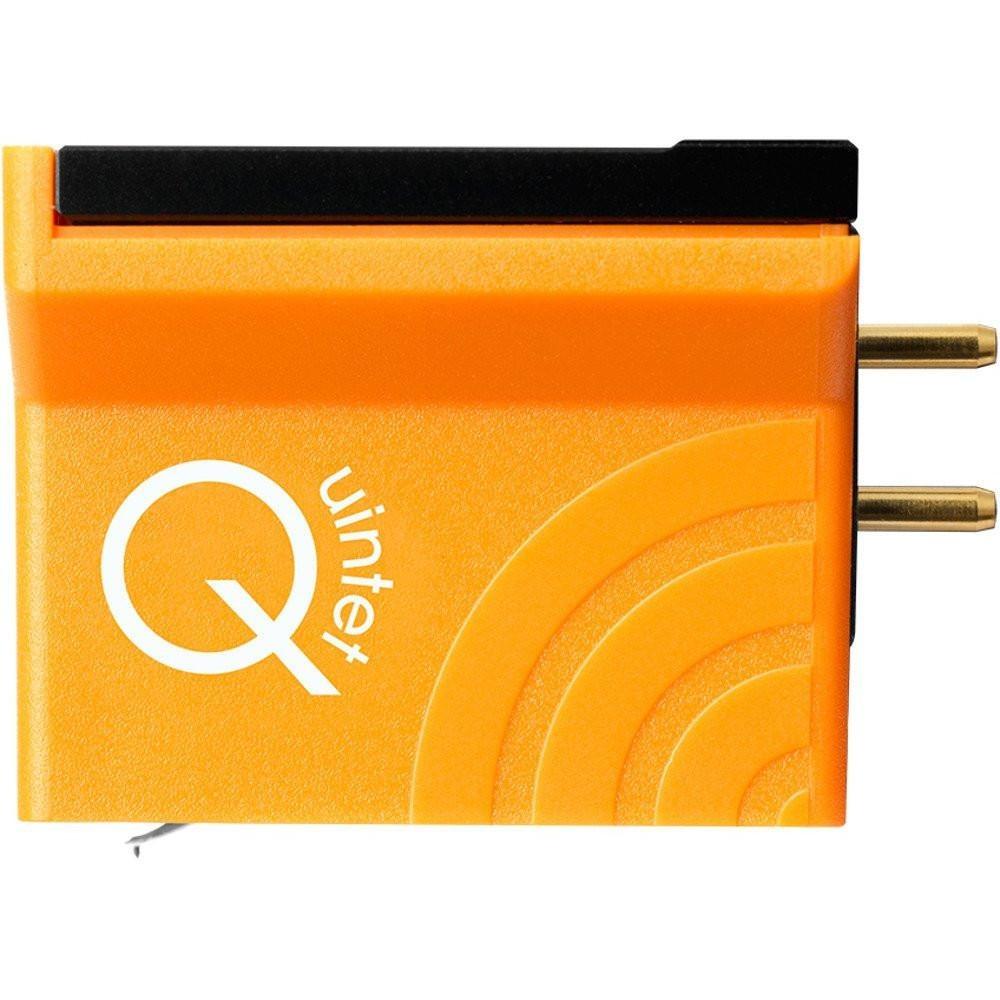

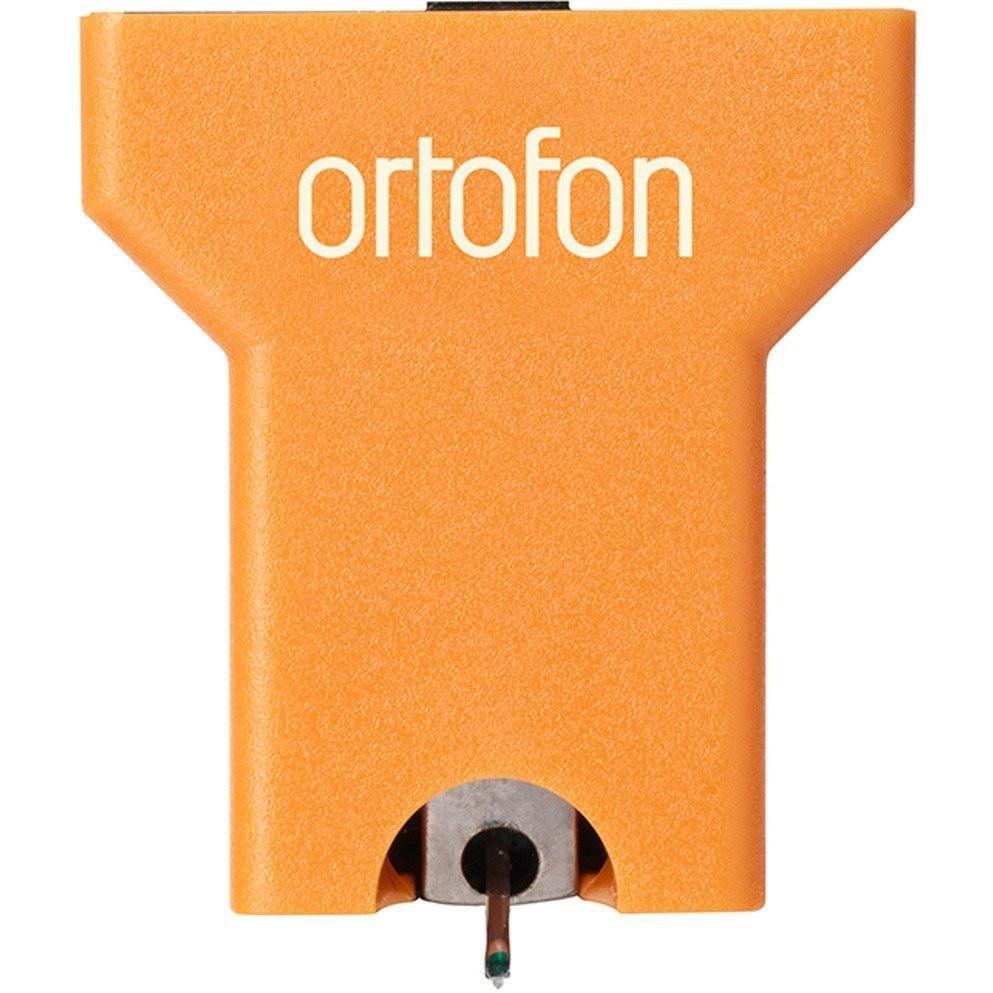

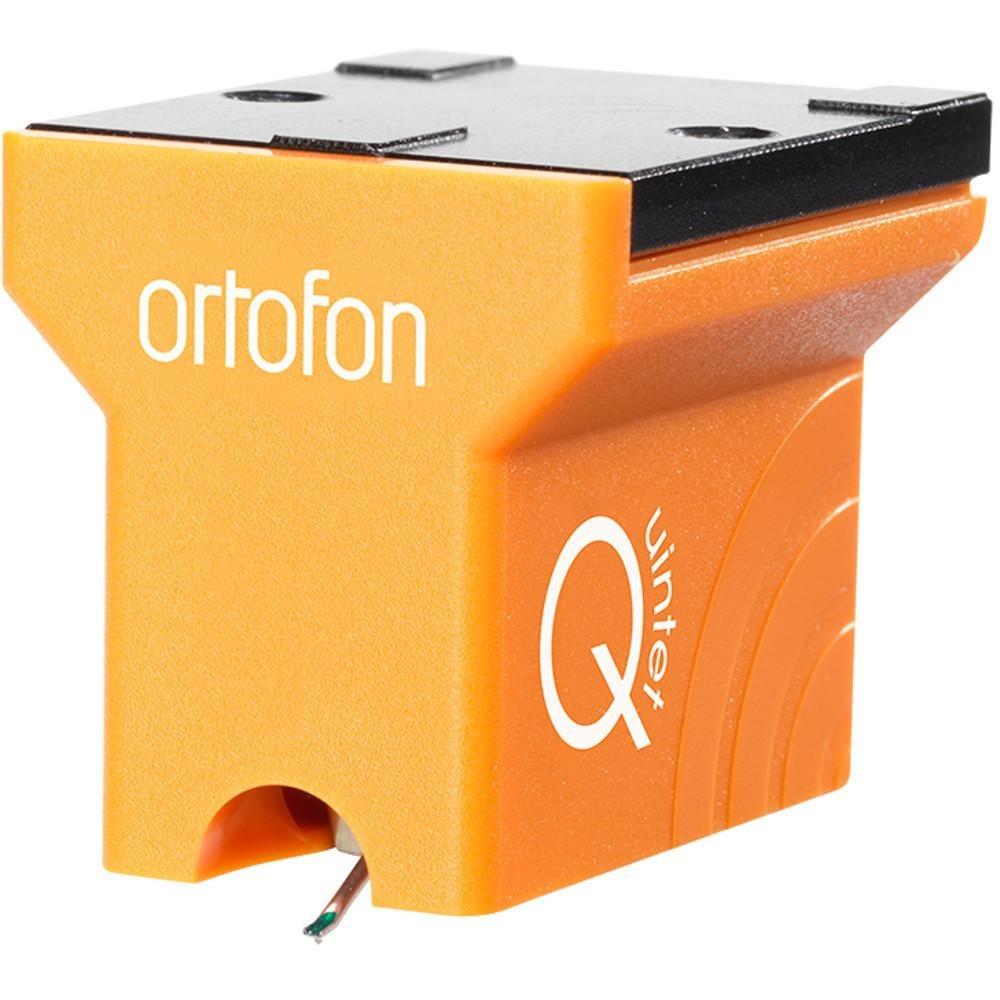

Ortofon - Quintet Bronze - Cartridge
The Quintet Bronze moves into the higher league of the Quintets.
The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, Making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear.
The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
Technical Specifications Output voltage at 1000Hz, 5cm/sec. 0.3 mV CHANNEL balance at 1 kHz < 1.2 dBChannel separation at 1 kHz > 23 dBChannel separation at 15 kHz > 15 dB Frequency range at - 3dB 20-25.000 Hz Frequency response 20-20.000 Hz +/-1.5 dB Tracking ability at 315Hz at recommended tracking force *) 80 µmCompliance, dynamic, lateral 15 µm/mNStylus type Nude Fine LineStylus tip radius r/R 8/40 µm Tracking force range 2.1-2.5 g (21-25 mN)Tracking force, recommended 2.3 g (23 mN)Tracking angle 20°Internal impedance, DC resistance 5 OhmRecommended load impedance > 20 Ohm CARTRIDGE body material ABS/AluminiumCoil wire material Pure 4-nines copperCartridge colour BronzeCartridge weight 9 gram
For our customers that can make it into our Brisbane store we offer a fitting, balancing, alignment and calibration service from as little as $69, pre booking is essential.
