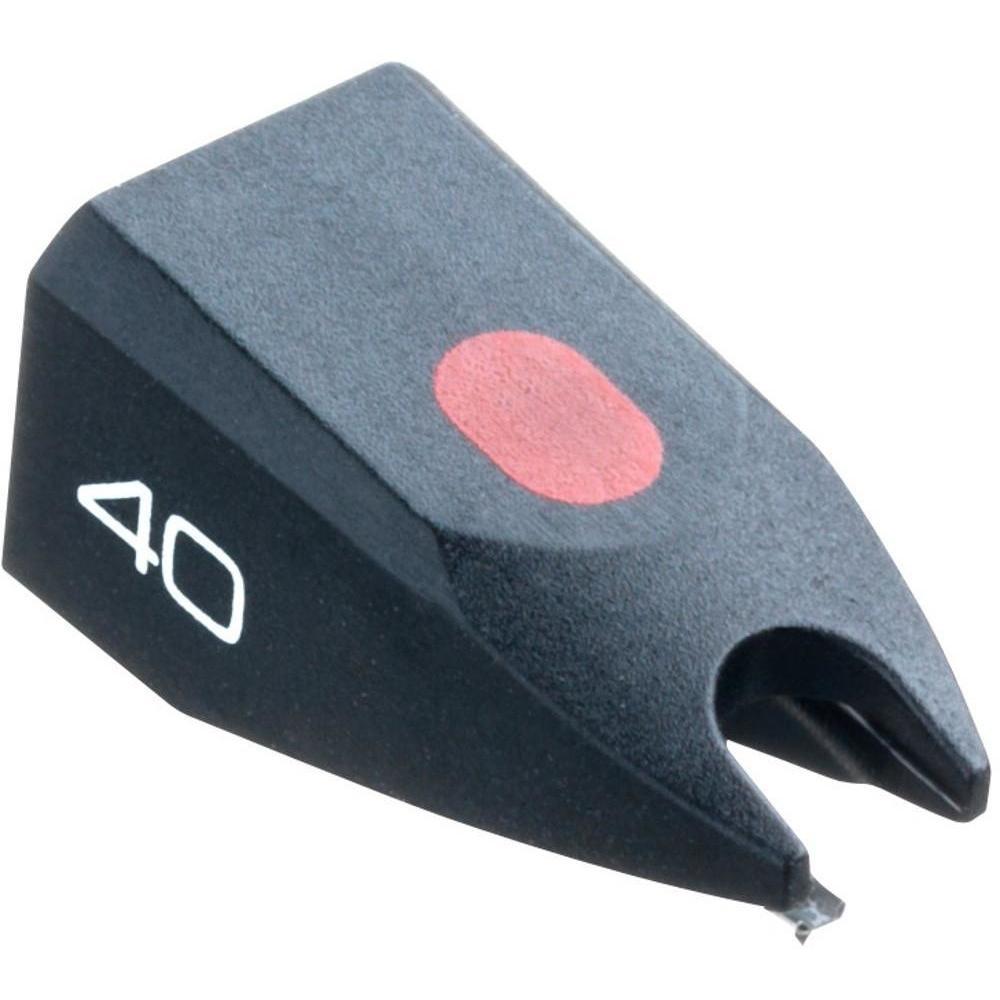

Ortofon - Stylus 40

Stylus 40 Replacement

Stylus 40 For OM 40

Specifications

Technical Specifications Frequency range 20-30.000 Hz Frequency response 20-30.000 Hz + 2 / - 3 dB Tracking ability at 315Hz at recommended tracking force *) 95 µmCompliance, dynamic, lateral 25 µm/mNStylus type Nude FG 70Stylus tip radius r/R 5/70 µmEquivalent stylus tip mass 0.3 mgTracking force range 1.25-1.75 g (12.5-17.5 mN)Tracking force, recommended 1.5 g (15 mN)Tracking angle 20°Stylus colour BlackRecommended for following cartridges OM 40, OM 40 GOLD OM Series stylus protection guard Stylus protection guard_pair
