OSD Audio - S80-MK2 - On-Wall Home Theatre Speaker

Features:

• Reference Sound Pressure Levels: 108dB means these speakers are capable of delivering commercial theater sound levels.

• Custom Designed and Built Crossovers: 2nd Order, 12dB per Octave Crossover. Air-core chokes with 100% oxygen free copper windings, 5% resistors and polypropylene/metal film German capacitors ensure super low distortion.

• Timbre/Voice Matched S Series LCR's: Identical Tweeter and woofers ensure a perfect match for the S-Series LCR's and make them the ideal choice for surround and height speakers.

• Shallow 6.2" Deep Enclosure: Can be unobtrusively wall-mounted next to, beneath, or behind a screen.

• 8-Inch Long Wood Fiber Woofers: Long fiber inter-weave woofer cone ensures low distortion even at high SPLs.

• The S-Series from OSD Black was created for use in home theaters in family rooms, media rooms, and dedicated home theaters. The focus was on delivering high SPL levels that met or exceeded Dolby and THX reference levels while being affordable.

Perfect Timbre Matching:

The S-80 uses the same tweeter and woofer as the S-81 and S-82 MK2’s, ensuring perfect timbre matching. The S-80 can be used for all channels or for surround and height channels. Identical speakers for all channels result in the best overall performance.

Long Wood Fiber Cone Woofer:

The 8-inch woofer’s cones are made from long wood fiber, a coarser type of paper that reduces cone resonance while maintaining rigidity at high SPLs. This ensures pistonic air displacement and lower distortion. The improved magnet structure uses a larger low-carbon steel magnet, and a triangular "silent" spider attaches to the pure copper edge-wound voice coil. The 12dB-per-octave roll-off is an easy match for subwoofers.

Let's Talk Crossovers:

Custom-designed and -built crossovers feature 2nd Order, 12dB per octave crossover. Higher-quality air-core chokes with 100% oxygen-free copper windings, 5% resistors, and polypropylene/metal film German capacitors are used in the elegantly laid-out and highly refined crossovers. Japanese silver solder is used for better conductivity in all soldering.

Technical Specifications:

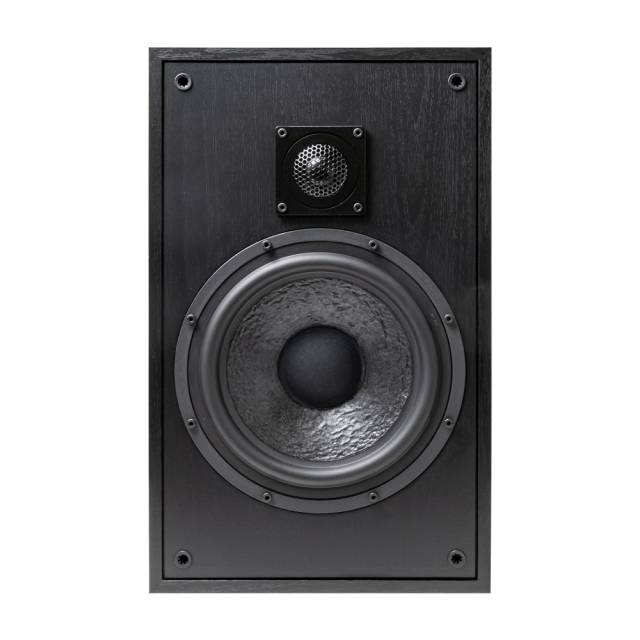

• Speaker Type: 8" Home Theater/On Wall Speaker
• Woofer: 8" Long Wood Fiber Inter-Thread Double Compressed Cone

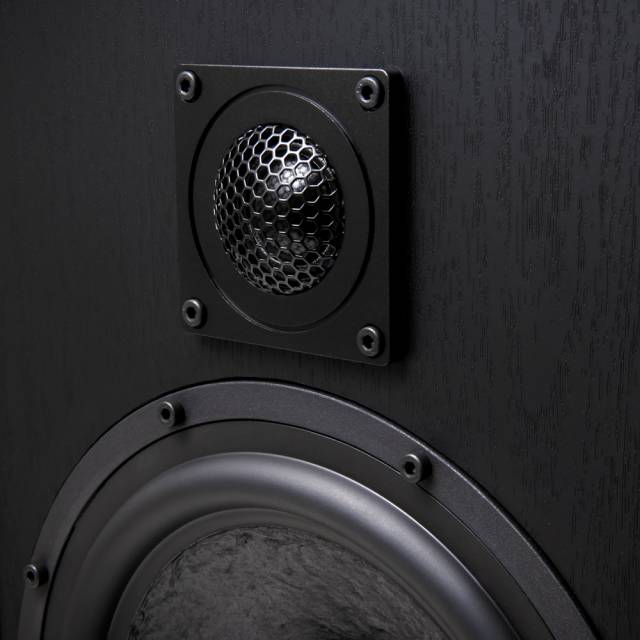

• Tweeter: Silk Dome
• X-Over: 12dB Second Order at 2200Hz

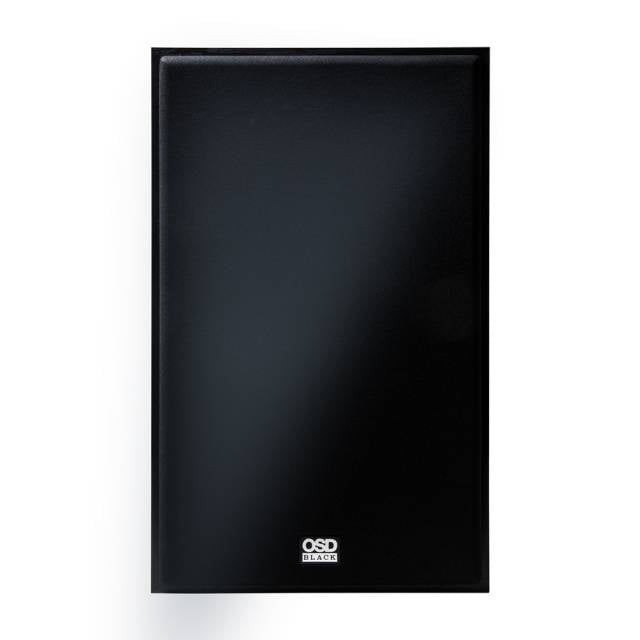

• Cabinet: Front Inverted w/ High Transparency Grille

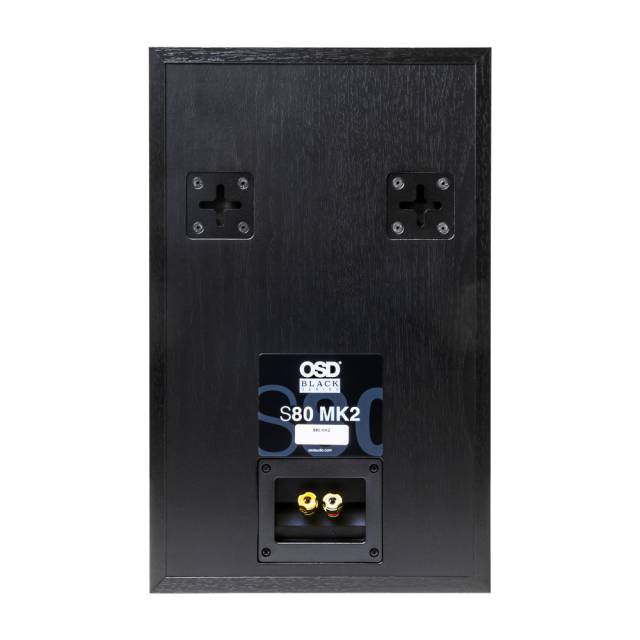

• Gold Plated Terminals: 5 Way Binding Posts
• Power Handling: 150W
• Sensitivity: 85dB 1w/1m
• Max SPL: 108dB
• Freq Response: 90Hz - 20kHz (Measured On Wall) +/- 3dB and 55Hz - 10dB
• Impedance: 4 Ohms
• Finish: Black PUV Coated Surface
• Dimensions: 17" x 10" x 5" (H x W x D)
