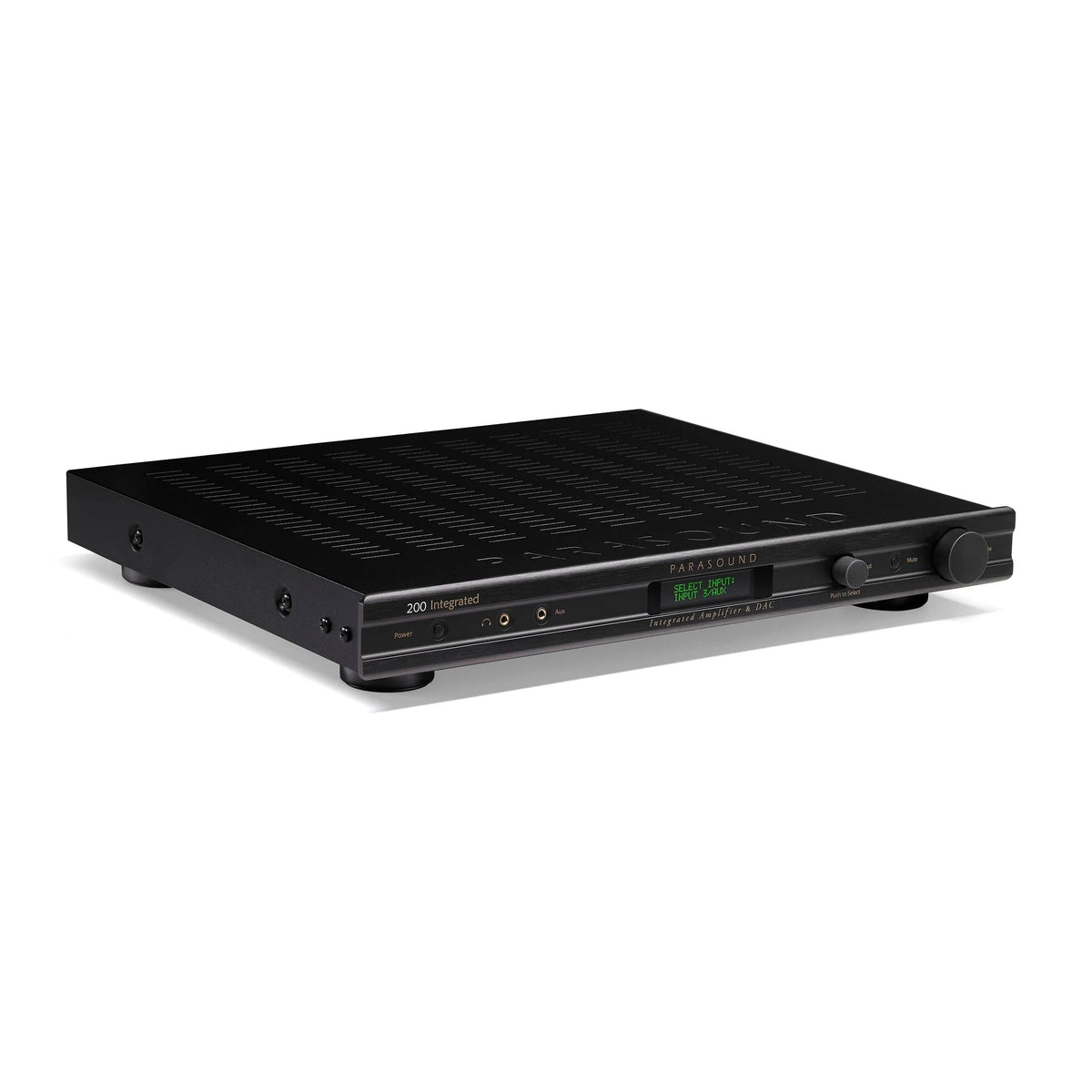

Parasound - NewClassic 200 - Integrated Amplifier

Unbeatable Performance and Power Value!

Features

• 110 Watts @ 8 or 4 Ohms
• Class D amplification by Pascal
• Burr-Brown 192kHz-24 bit DAC from the Halo P 5
• USB, Optical and Coax digital audio inputs
• 4 Analog audio inputs
• Phono input for MM or MC cartridges
• Pure analog signal path from input to output
• Analog bass management w/ variable 20-140Hz high pass crossover
• Subwoofer On/Off & level by remote control
• 80Hz low pass subwoofer output
• Full range mono output can be used for subwoofer or mono listening area
• Variable and fixed stereo preamp outputs
• Bypass input for surround sound or music streamer integration
• Default turn on volume memory
• Favourite volume memory with remote control button
• Input level matching (source volume offset)
• Bass, treble and balance adjustments by remote control

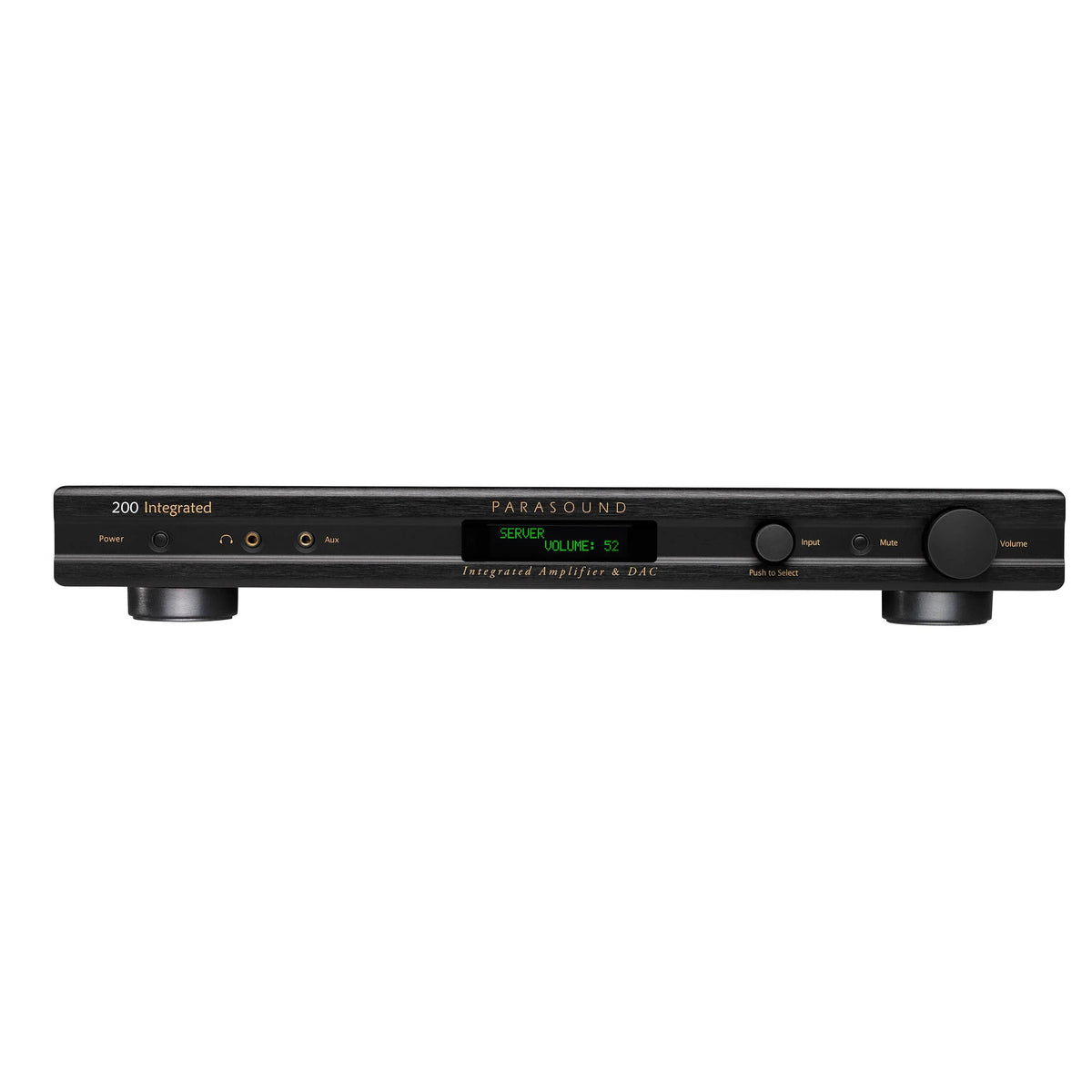

• Front panel LCD display with dimming
• 2-way RS232 w/ exact volume control & feedback
• Control4 Driver available
• Rename inputs to match connected source
• Front panel Aux input with12dB of additional gain
• Dedicated headphone amplifier

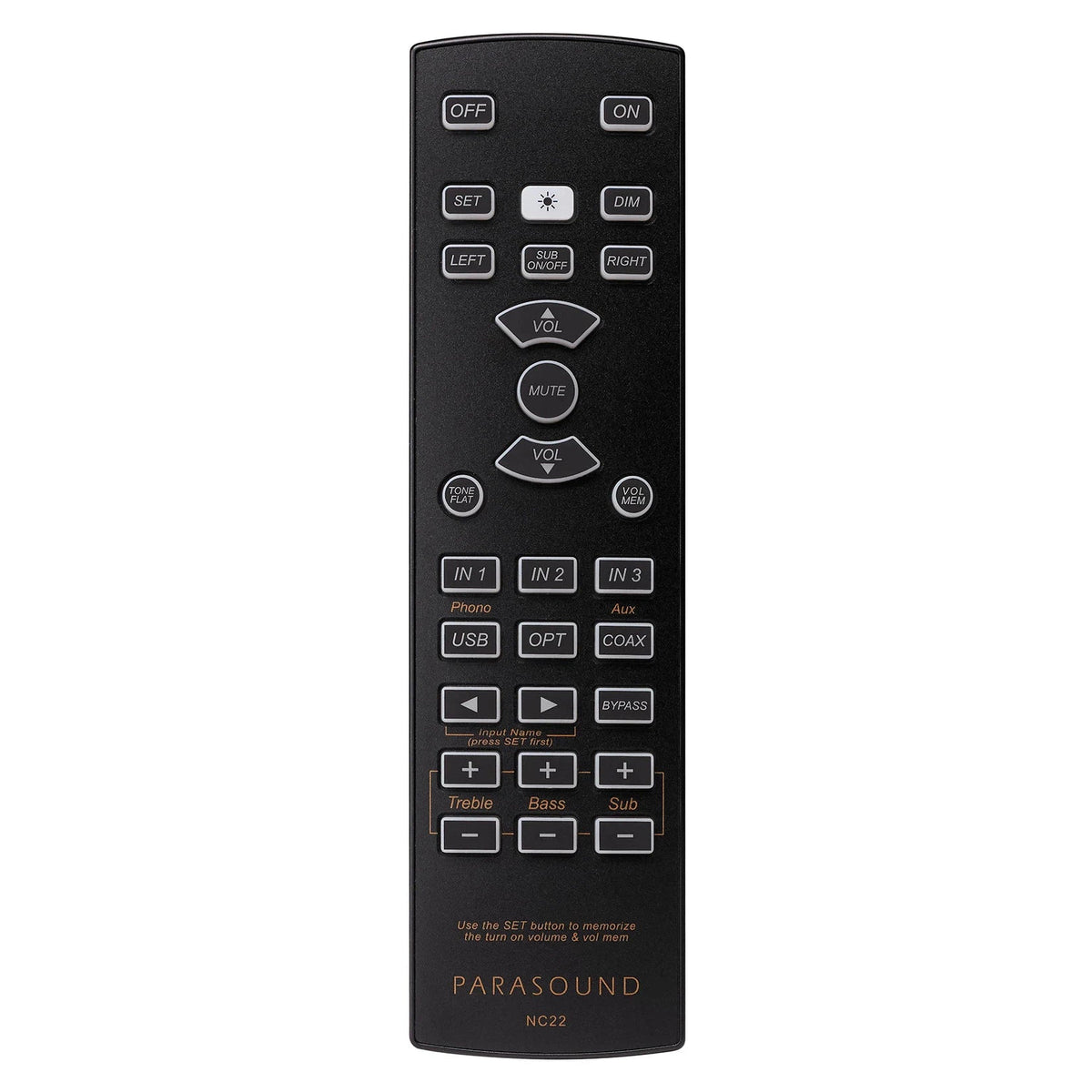

• Back-lit remote control with discrete buttons
• 12V trigger output
• Rear panel IR input
• 0.5w standby power consumption meets Energy Star & EU specs
• 1U rack mount kit available separately (Model RMK11)

Specifications

• Power Output - Both channels driven (0.05% THD, 20 Hz - 20 kHz); 110 watts x 2 @ 4 Ω or 8 Ω (RMS)
• Power Output - Both channels driven (1% THD, 20 Hz - 20 kHz); 125 watts x 2 @ 4 Ω or 8 Ω (RMS)
• Frequency Response: 20 Hz - 20 kHz, +0 / -0.05 dB; 10 Hz - 80 kHz, +0 / -3 dB
• Total Harmonic Distortion (20 Hz - 20 kHz): < 0.05 %, (110 watts, 8 Ω)
• Interchannel Crosstalk: -75 dB at 20 kHz; -85dB at 1 kHz
• Preamp Output: 250mv = 1V output; Total gain = 12 dB (volume set to 100); Unity gain = Volume set to 76; Maximum output = 3.5V
• Phono Stage Gain / Input Impedance: MM: 40 dB / 47 k Ω; MC: 50 dB / 100 Ω
• Line Level Input Impedance: 24k Ohms
• Preamp Output Impedance: 470 Ohms
• S/N Ratio – Line Inputs: > 100 dB, input shorted, IHF A-weighted
• S/N Ratio – Digital Inputs: > 110 dB, input shorted, IHF A-weighted
• DAC IC: Burr-Brown PCM1798
• DAC Maximum Sampling Rates (PCM only): USB: 96kHz - 24 bit; Optical: 192kHz - 24 bit; Coax: 192kHz - 24 bit
• DC Trigger Output: 12 Vdc, 50mA
• AC Power Requirement: Standby: 0.5 watts; Idling: 15 watts (no music playing); Typical: 50 watts (music playing); Maximum: 300 watts; 100-250 VAC 50/60 Hz (automatic)
• Dimensions: Width: 17.25" (438 mm); Depth: 14.75" (375 mm); Depth: 16.75" (425 mm) with cables connected; Height, with feet: 2.5" (63.5 mm); Height, without feet: 1.75" (44.5 mm), 1U; Rack mounting requires RMK-11(sold separately)
• Weight: Net: 11.5 lbs (5.2 kg)
