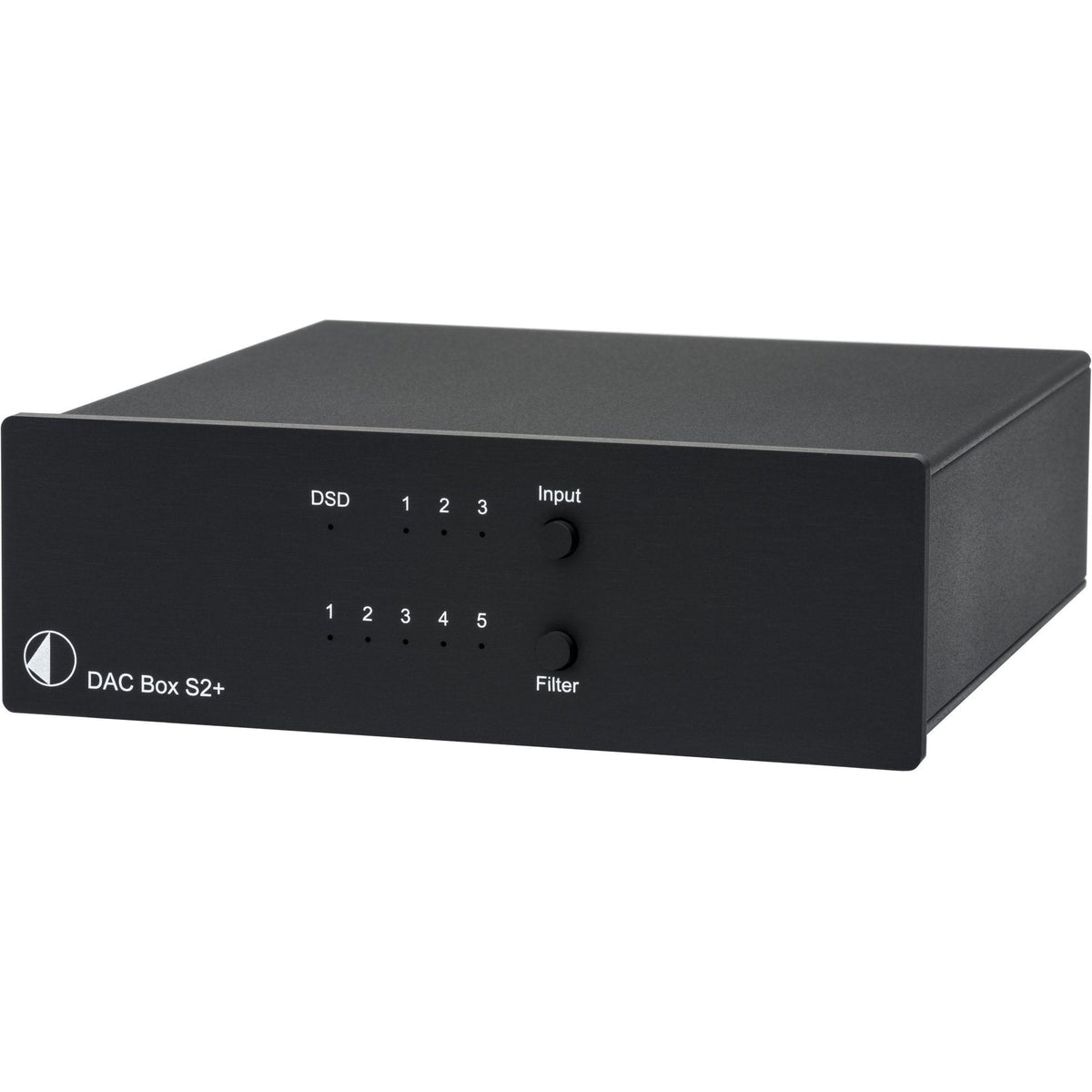

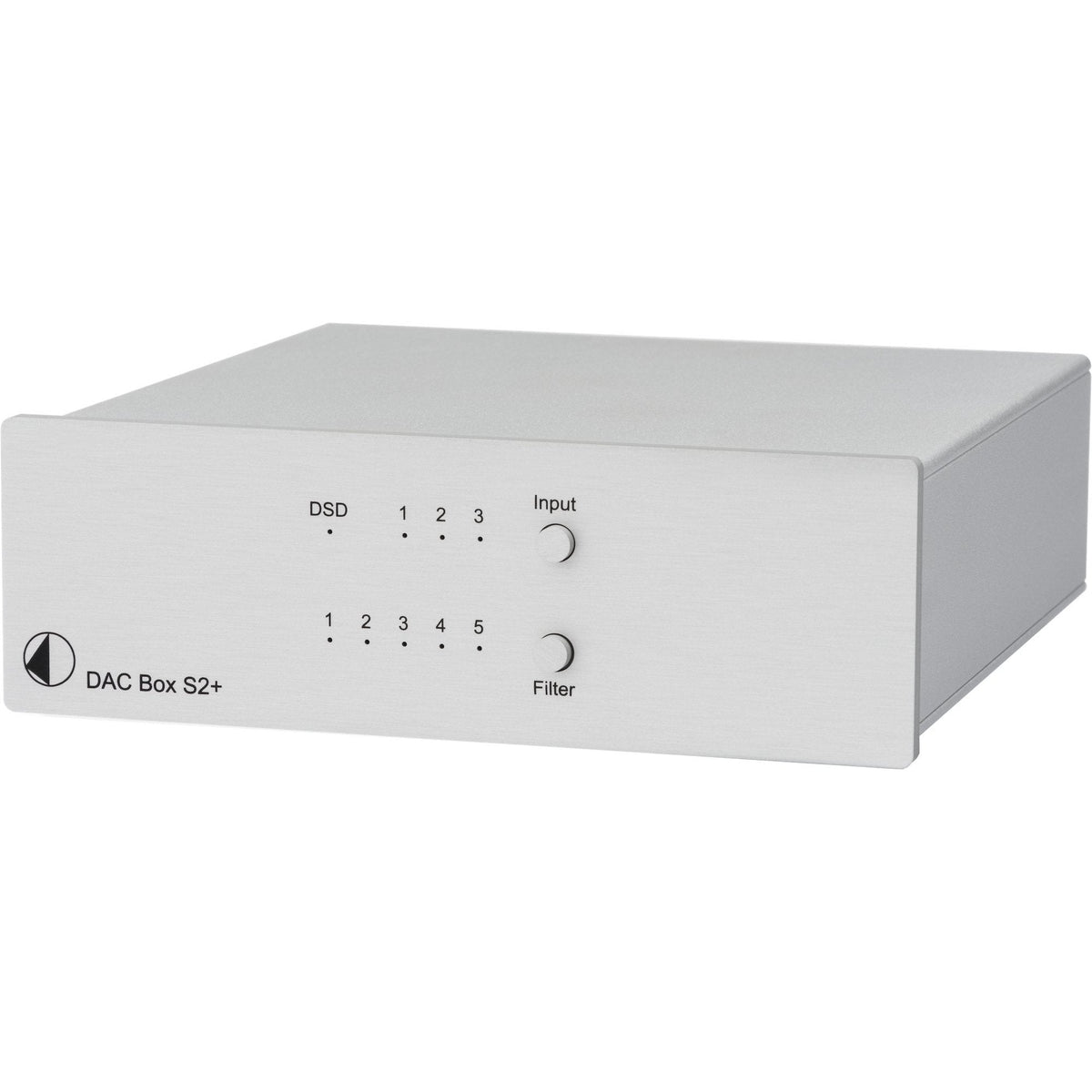

Pro-Ject - DAC Box S2 Plus - Digital to Analogue Converter

miniature high quality digital to analogue converter!

DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The co-axial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!

Features:

• High end ESS Sabre ESS9038 DAC
• Proprietary clock circuity design
• Organic polymer capacitors and thin film miniMELF resistors
• 32bit / 768kHz PCM support
• DSD64, DSD128 & DSD256(DSD over PCM)
• Up to 24bit/192kHz for optical & coax inputs
• 5 selectable digital filter characteristics
• 1 proprietary optimum transient digital filter
• Synchronization of all internal oscillators
• Jitter as low as 100 Femtoseconds!

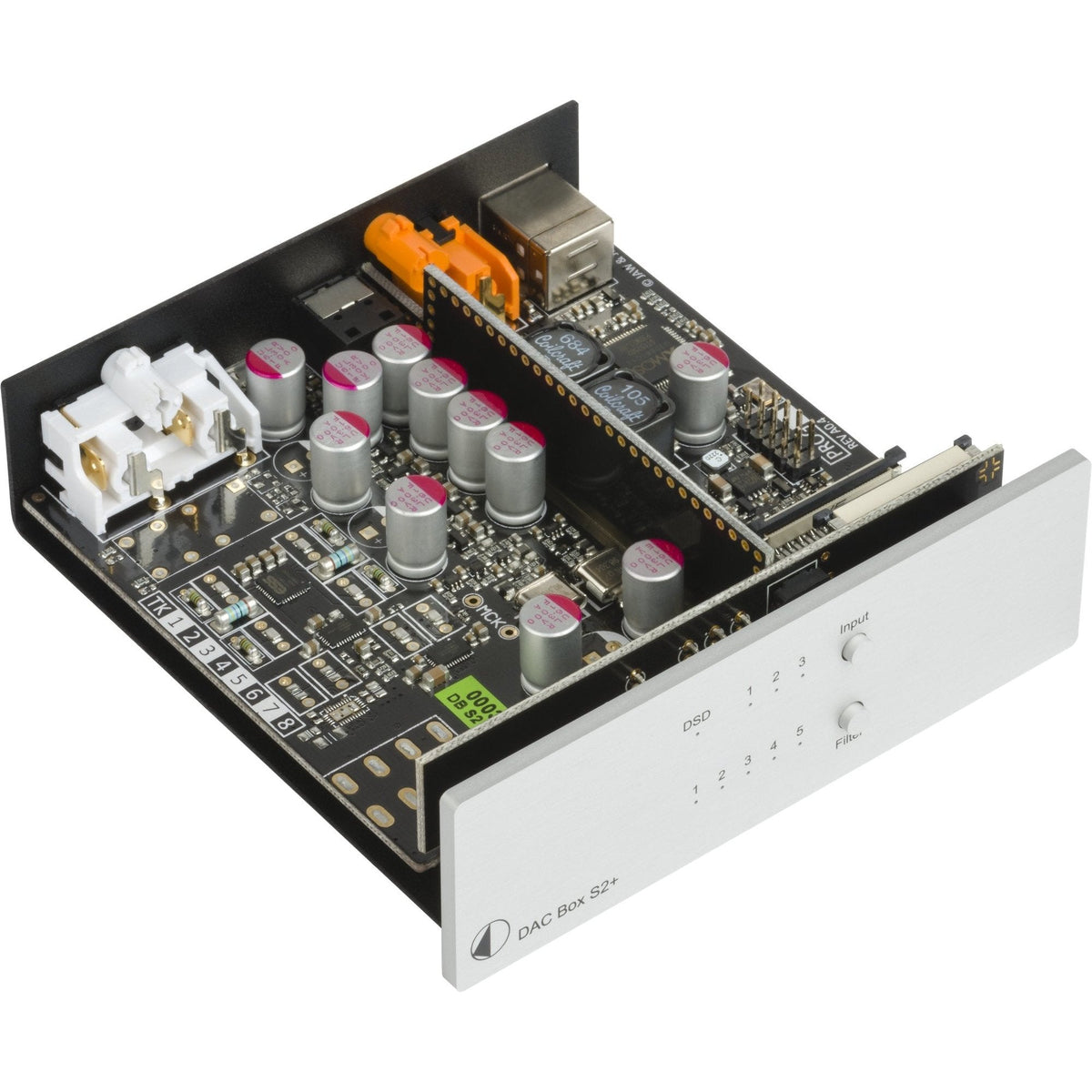

• Gold plated four layer PCB

Specifications:

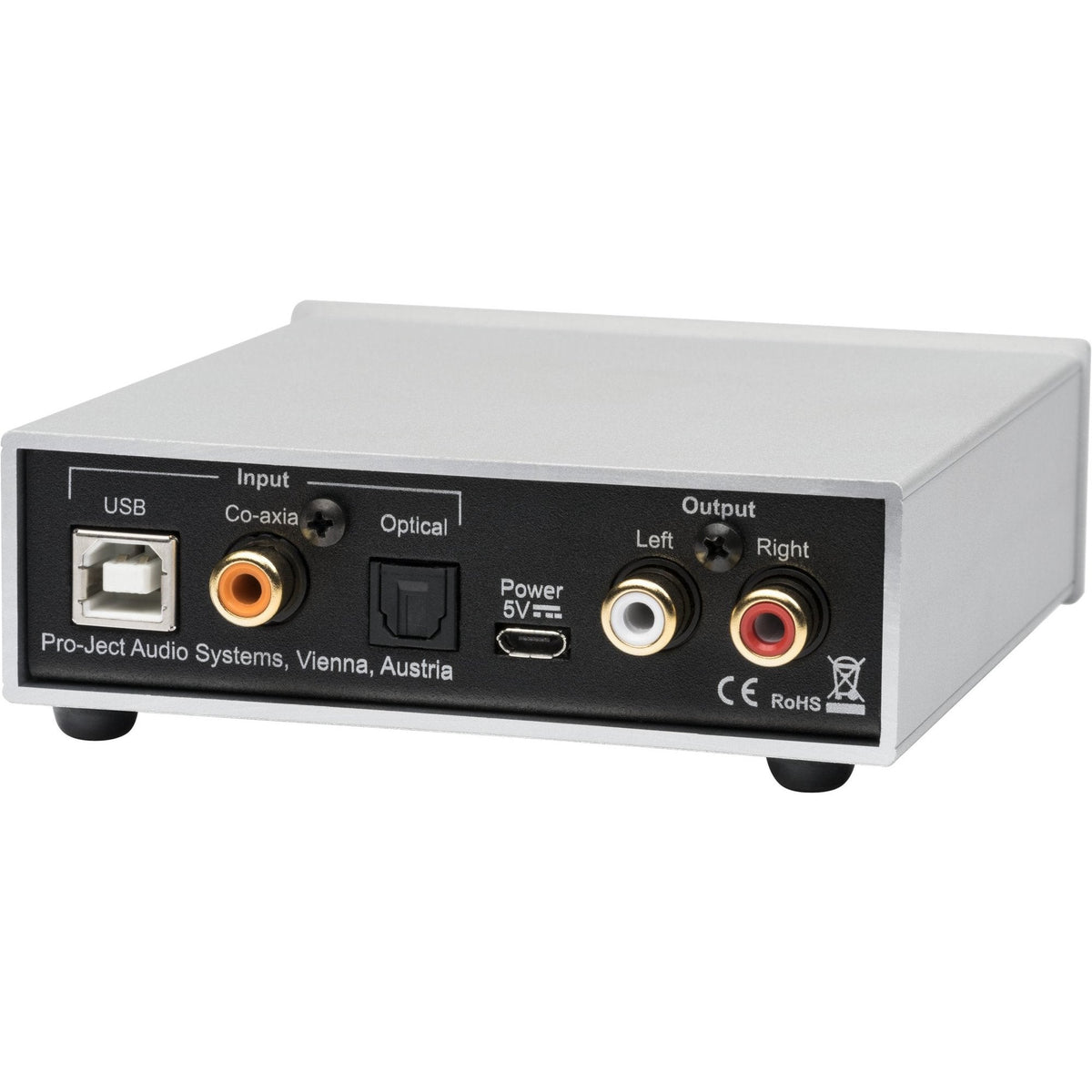

• Digital inputs - 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
• D/A-converter - 1x ESS9038K2M 32-bit Playback formats
• Filter settings - 5 different selectable on front
• USB - up to DSD256, PCM up to 32b/768kHz
• Coaxial - PCM up to 24 b /192 kHz
• Optical - PCM up to 24 b / 192 kHz
• Frequency response - 20 Hz - 20 kHz
• THD - 0,0007% bei 0dB, 2V RMS, 1kHz
• Dynamic range - 120 dB
• Output - 1 pair of RCA/Cinch-sockets
• Outboard Power supply - 5V/1A DC (included)
• Dimensions W x H x D - 103 x 37 x 122 mm 2 (including knob and connectors)
• Weight - 355g without power supply
