Pylon - Diamond 25 MkII - Floorstanding Speakers (Temporarily Unavailable)

More colour options available, please inquire for more information

Polished Diamond

While designing the Diamond 25 mkII, we have strived at every stage to refine the sound coming out of the speakers while maintaining the signature sound philosophy of the entire series. Every element of the second generation was rethought, from the drivers to the cabinet and crossover. As a result, the lowest frequencies have gained depth, speed, and control; the midrange shows even more naturalness and neutrality, and the treble has become more detailed. The outstanding sound is complemented by a subtly updated design, making the speakers look better than ever.

Unique speaker configuration

The Diamond 25 mkII stands out with its unique speaker configuration for a 2.5-way design. It utilises custom woofers from Norwegian Seas specially redesigned by our engineers in two variants. The upper speaker has a phase plug and a lightweight 1-inch voice coil, while the lower woofer has a massive magnetic circuit and a 1.5-inch voice coil with a wide linear range. The two drivers have been brought closer together, making them work better together in the acoustic field, and the sound source is consistent and less sensitive to changes in listening height. In addition, both speakers are made using Spider Ring technology, designed to enhance control over the manufacturing process of high-end products. The tweeter from Danish Scan-Speak has also been updated with a more powerful neodymium magnet system, reduced voice coil mass, and eliminated ferrofluid. It delivers even better detail and microdynamics at the highest frequencies, with greater efficiency and control. Also new is the dual resonance chamber design, which further reduces the primary resonance of the tweeter. An additional advantage of this speaker is reduced nonlinear distortion.

Details that change everything

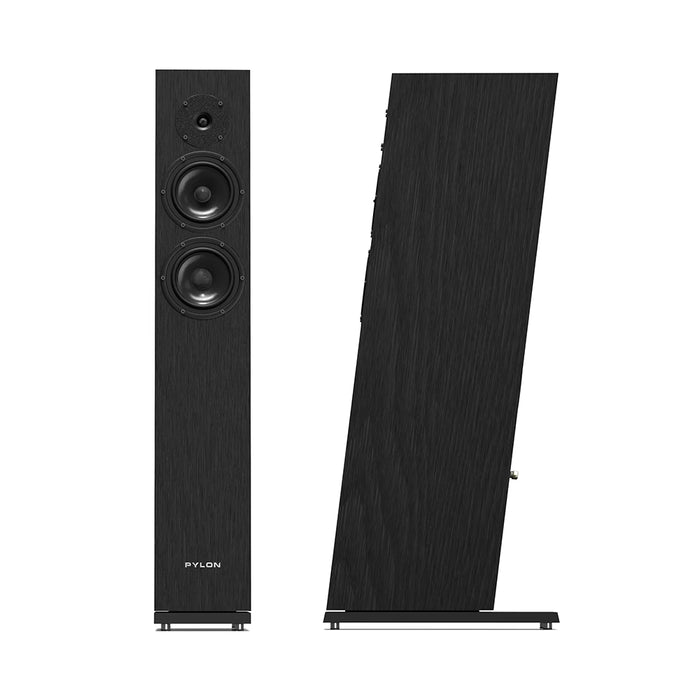

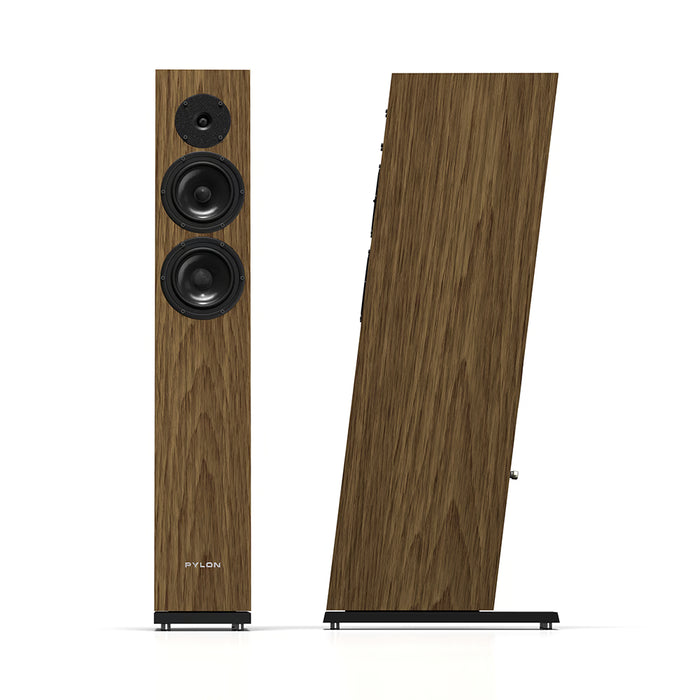

Compared to its predecessor, the design of the column underwent a gentle facelift. The Diamond 25 mkII has a steeper front and back angle, which makes it look even better, but also improves the time integration of individual frequency bands. The base of the column has been completely redesigned to create a sleeker silhouette while maintaining a timeless, minimalistic character. The tweeter’s elegant front, crafted from durable black cellular rubber for extended longevity, not only adds a touch of exclusivity but also minimises sound wave reflections. Cabinet wall vibrations are significantly reduced thanks to carefully considered and precisely placed reinforcements and ribs. Natural sheep’s wool and a new, specially selected soundproofing material combination dampen unwanted standing waves inside the speaker cabinet. The whole set underwent testing using a laser vibrometer and our anechoic chamber to ensure that, after all the changes, the set not only looks fabulous but also sounds excellent.

Specifications

• Impedance: 4 Ohm
• Frequency response: 36 Hz - 20 kHz
• Nominal power: 100 W
• Max power: 200 W
• Efficiency: 87 dB
• Woofer: Pylon Audio PSW 15.8.CA (Seas CA15RLY)
• Mid-range: Pylon Audio PSW 15.8.CA/P (Seas CA15RLY/P_CUSTOM)
• Tweeter: Pylon Audio PST 19.TN (Scan Speak D2010/852100)
• Dimensions (W/H/D): 196 / 980 / 410 mm
• Weight: 19 kg / pc.
• Dedicated room size: 15 - 30 m2
• Speaker grill: Included, magnetic

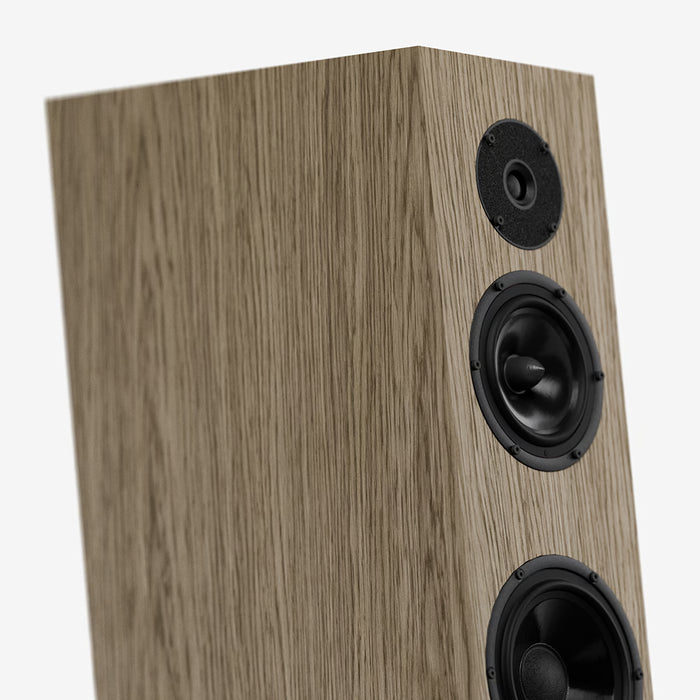

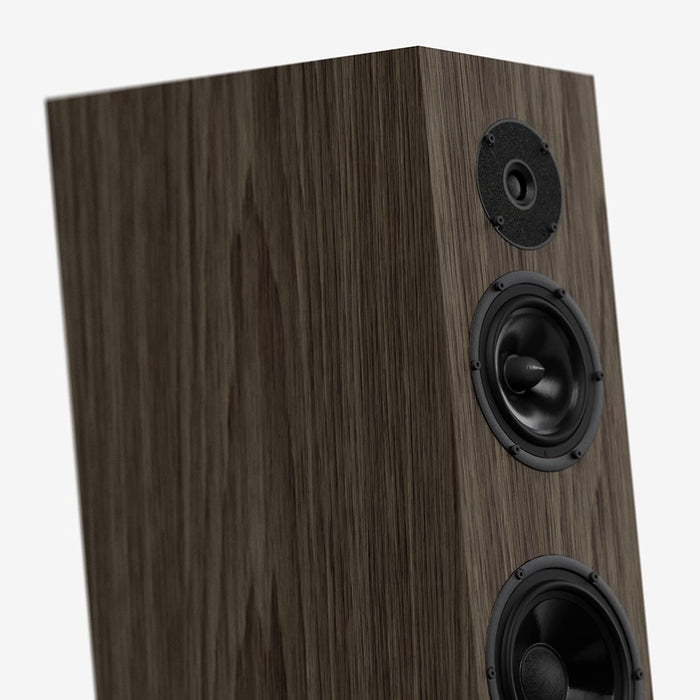

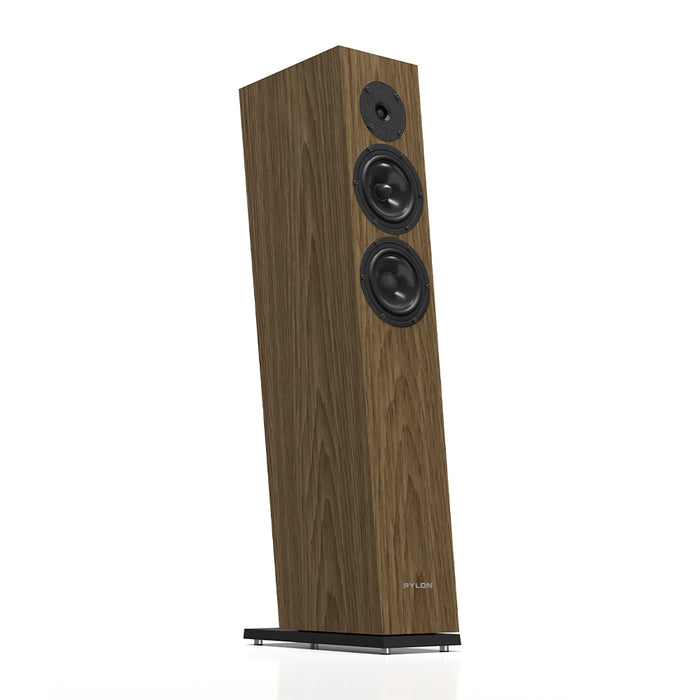

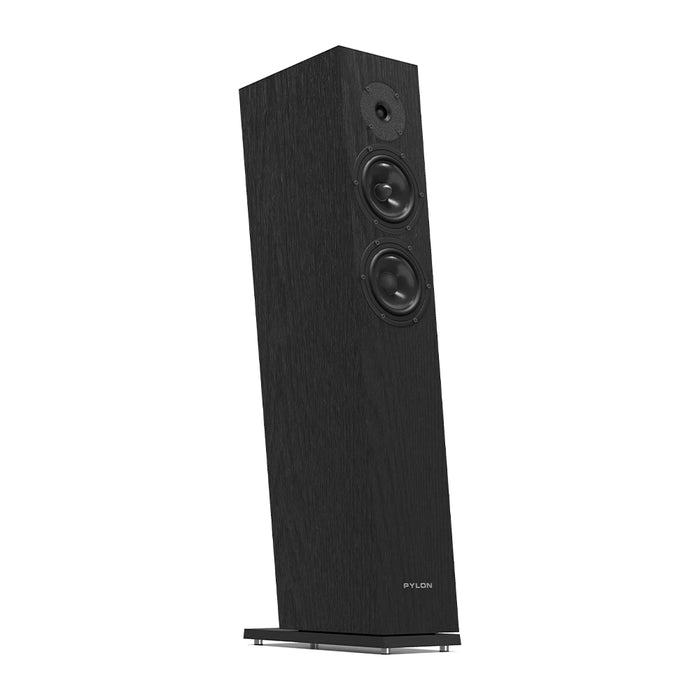

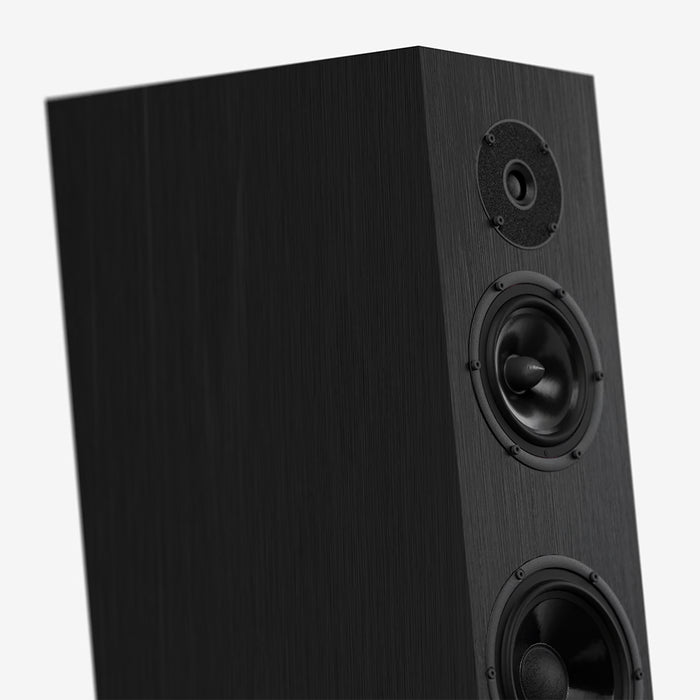

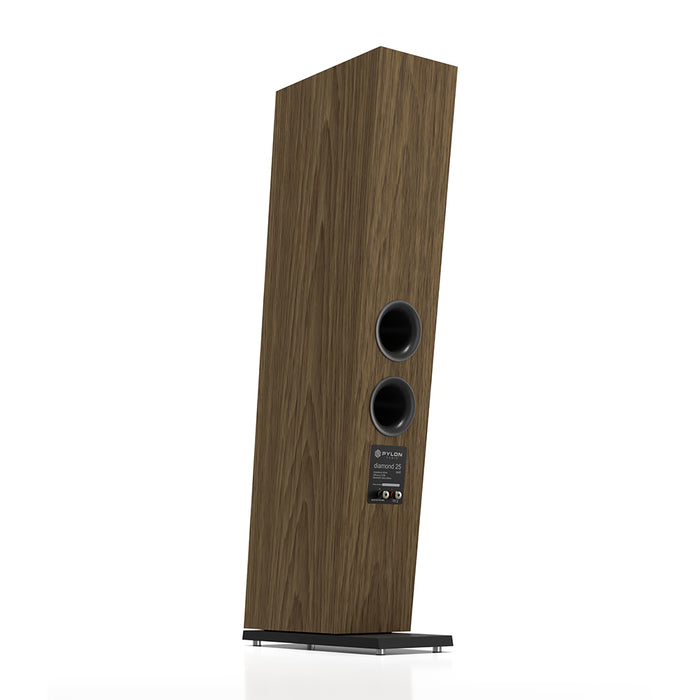

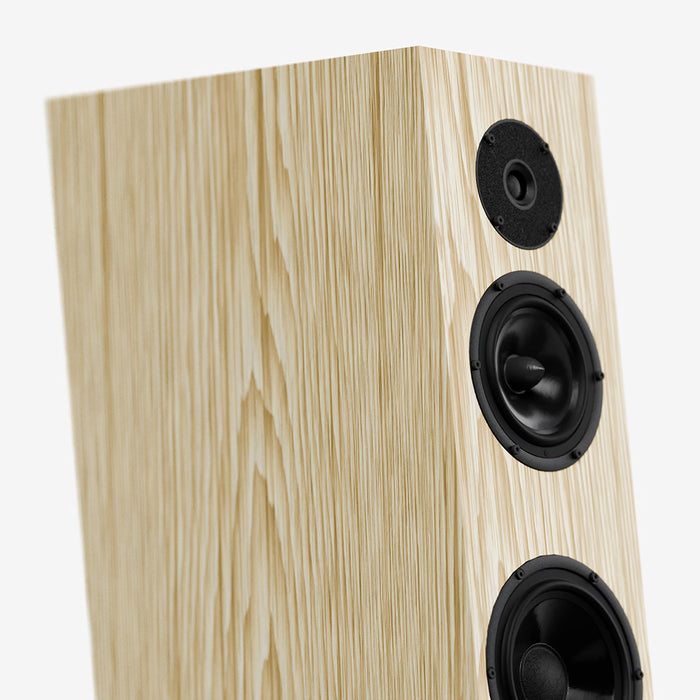

• Finishes: Black & walnut (Natural oak veneer, Oil-wax coated), Black (Natural oak veneer, 25% gloss lacquer)

Please note that as these products are made from real wood, finishes may vary in colour from what’s pictured. All Pylon Diamond speakers are ‘mate matched’ meaning speakers are paired as closely in finish as possible to one another
