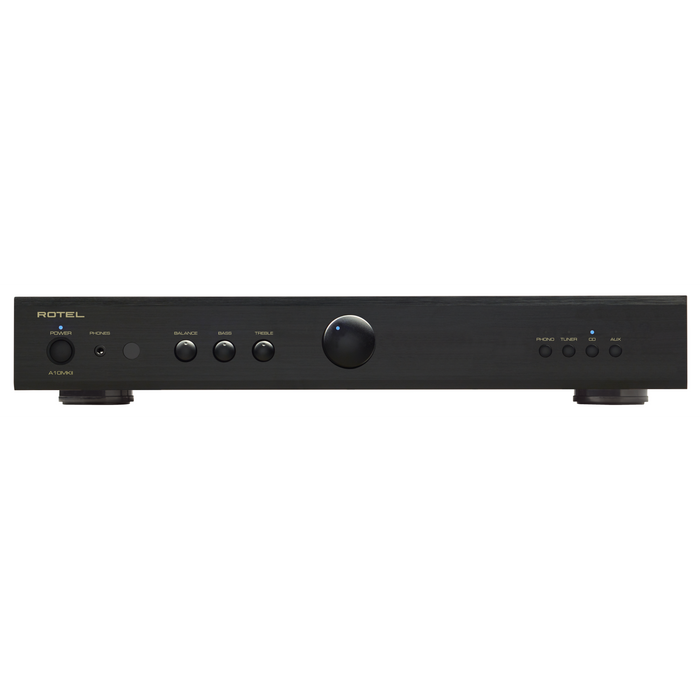

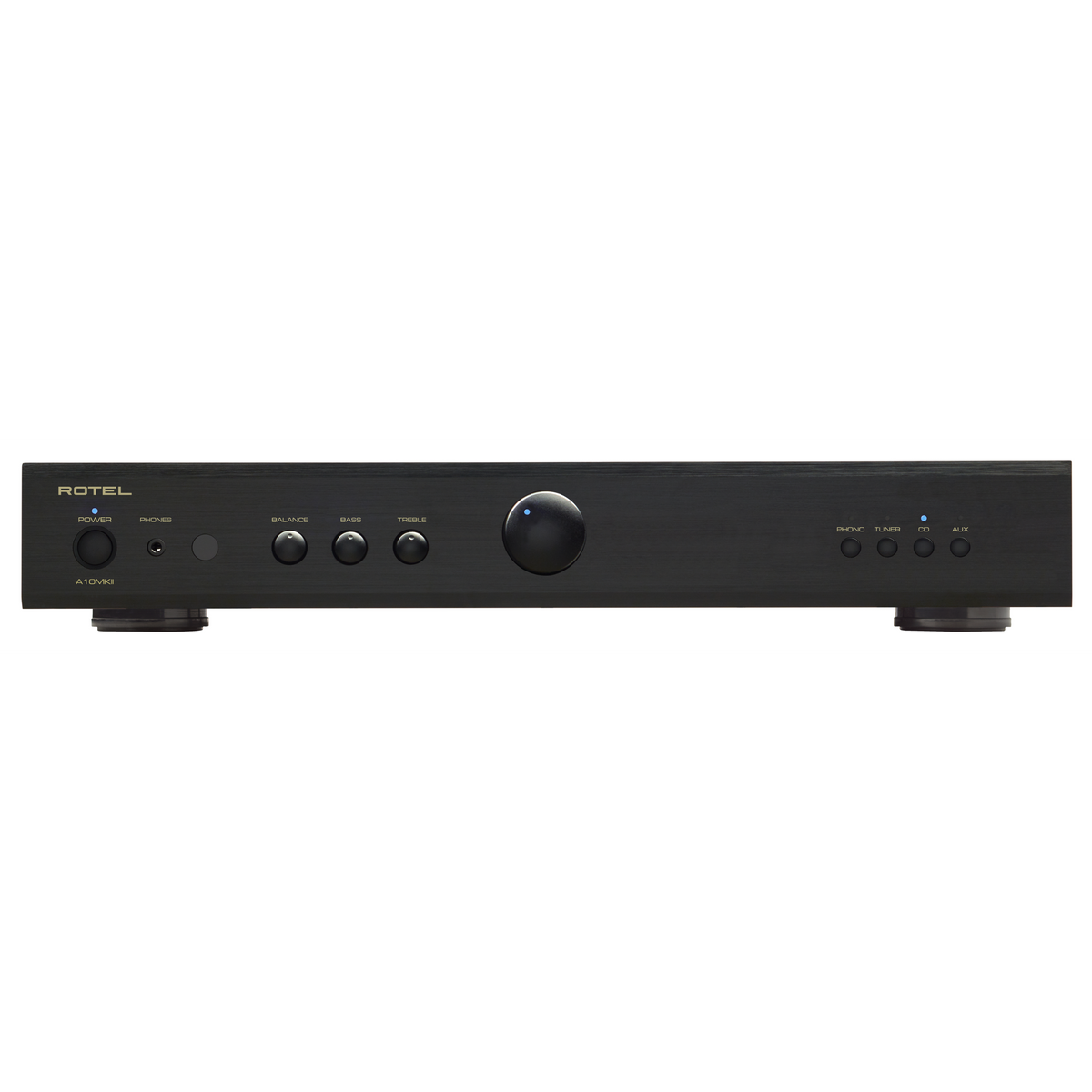

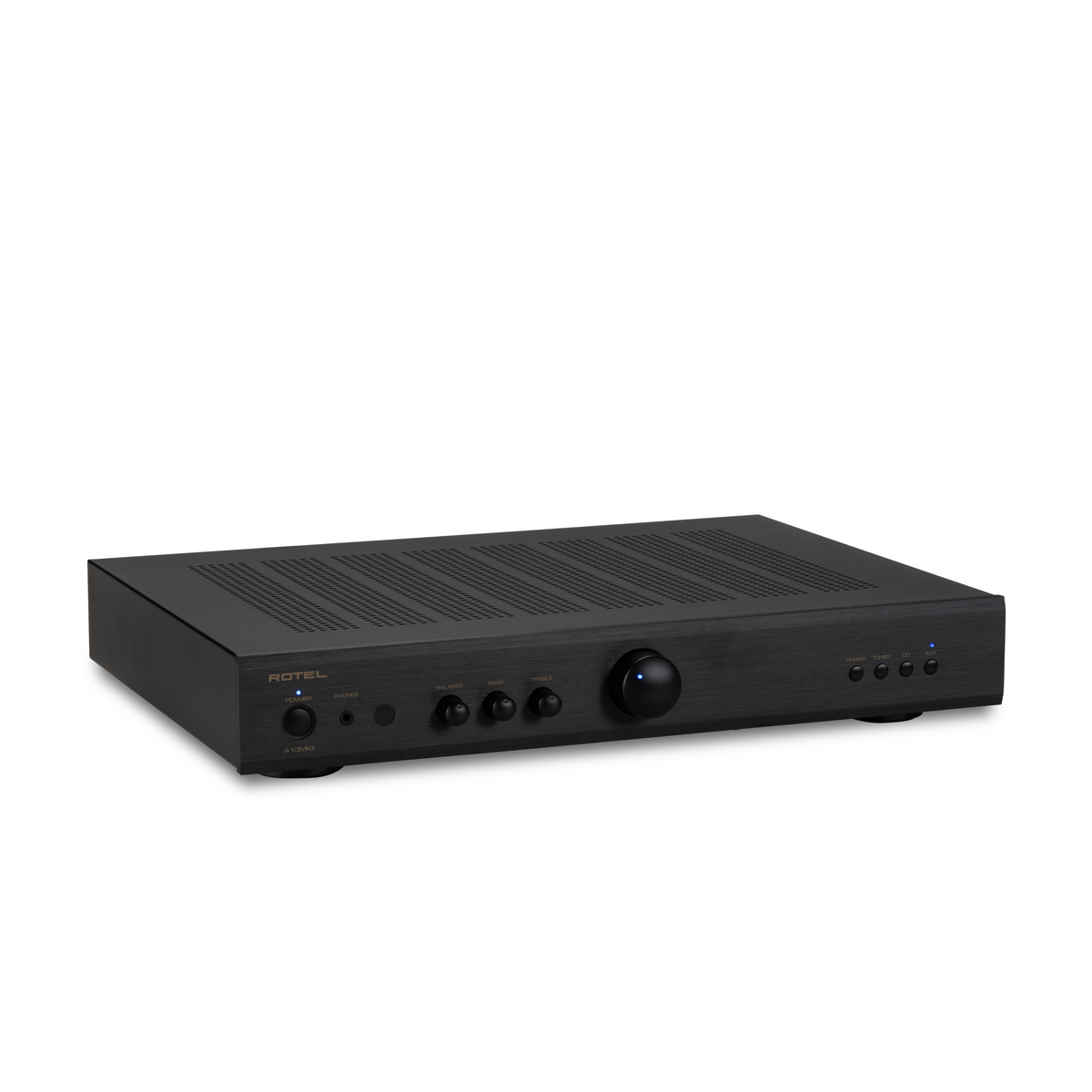

Rotel - A10MKII - Integrated Amplifier

0 watts of Class A/B power. 60 watts into 4 ohms. A Rotel-built toroidal transformer. Moving Magnet phono stage. Dedicated headphone amplifier. Motorised volume control. Bass, treble, and balance. The Rotel A10MKII is the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Power and Style — The Perfect Combination

There are integrated amplifiers that do a little of everything adequately. And there are integrated amplifiers built around a clear conviction about what matters most. The Rotel A10MKII belongs firmly in the second category — a compact, thoughtfully engineered stereo amplifier that delivers 50 watts per channel into 8 ohms and 60 watts into 4 ohms, driven by a massive Rotel-built toroidal transformer, and designed for those who understand that great music deserves a great foundation.

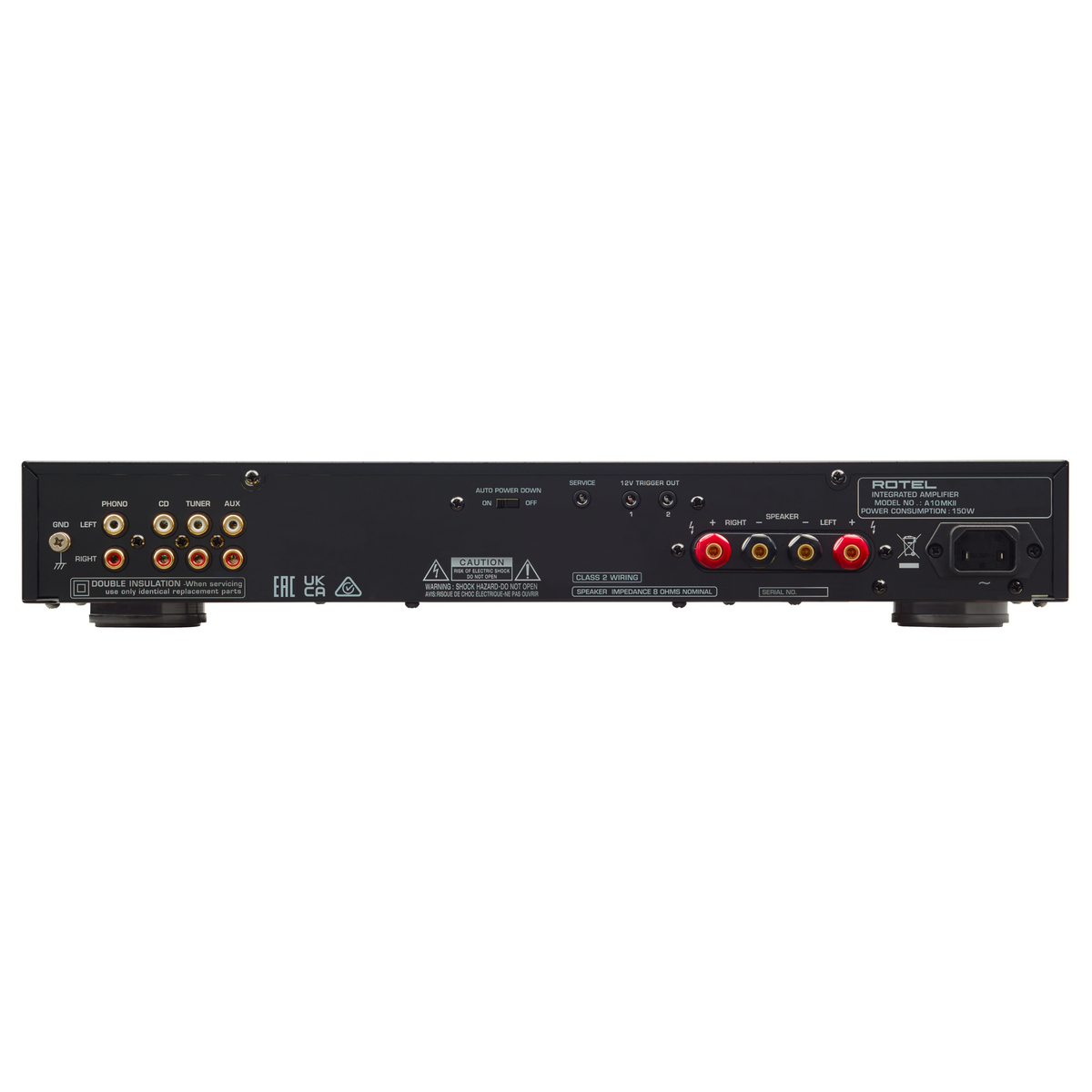

The A10MKII welcomes every analogue source you own. Three line-level RCA inputs accommodate CD players, streamers, and other components. A Moving Magnet phono stage brings your vinyl records into the same signal chain with the care they deserve. A dedicated headphone amplifier circuit with front-panel 3.5mm output turns the A10MKII into a private listening hub whenever the moment calls for it.

And for those moments when you want to shape the sound to the room and the recording, rotary Bass and Treble controls (±6dB at 100Hz and 10kHz respectively) and a Balance control sit intuitively on the front panel — complemented by a motorised analogue volume controller that can be operated from the listening seat with the included IR remote control.

This is what an integrated amplifier at this price point should be: serious about sound, elegant in design, and an absolute pleasure to use.

The Foundation That Makes the Difference — Rotel-Built Toroidal Transformer

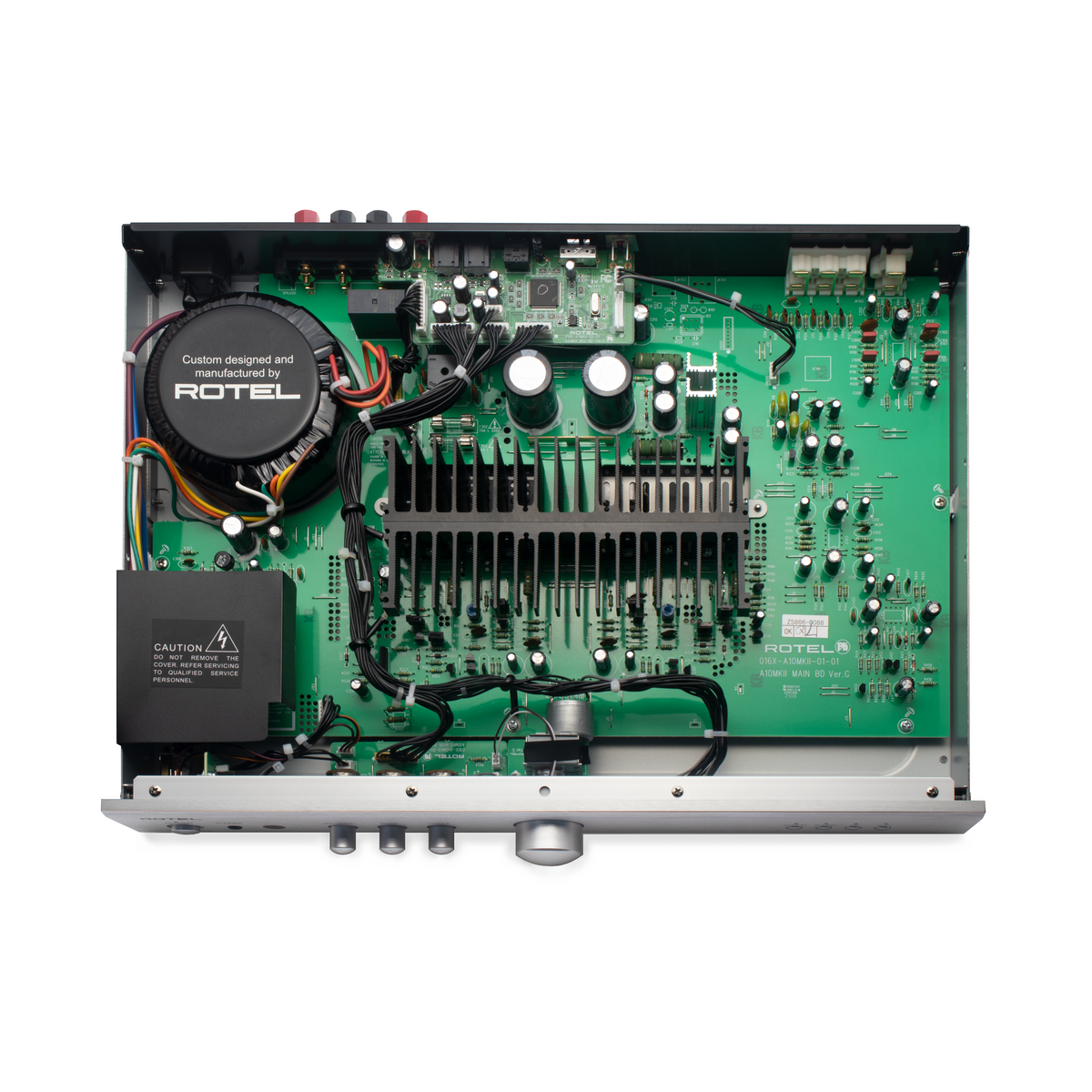

Every detail of the A10MKII's performance begins with its power supply — and at the heart of that supply is a massive toroidal transformer, designed and manufactured by Rotel in-house. Toroidal transformers are chosen by serious audio engineers for their low magnetic field radiation, high efficiency, and low mechanical noise — qualities that translate directly into a quieter background, greater dynamic headroom, and the ability to respond to the instantaneous power demands of real music without sagging or compressing.

This is not a cost-cutting compromise. It is a deliberate engineering decision that underpins every watt of the A10MKII's output — and a commitment that distinguishes Rotel from amplifier manufacturers who source their transformers externally.

50W into 8Ω — 60W into 4Ω — Class A/B Throughout

50 watts per channel into 8 ohms, rising to 60 watts into 4 ohms. The A10MKII's Class A/B topology delivers power that is clean and dynamic across a wide range of loudspeaker loads — from the most efficient standmounts to more demanding 4-ohm designs. THD is below 0.03%, intermodulation distortion is below 0.03%, and the damping factor of 120 ensures the amplifier maintains firm control over the loudspeaker drivers. Whatever speakers you pair it with, the A10MKII drives them with the authority and composure that real music demands.

Moving Magnet Phono Stage — For Vinyl Lovers

The A10MKII includes a full Moving Magnet phono stage — not an afterthought, but a properly implemented circuit with 1.5mV input sensitivity, 43kΩ input impedance, and 85dB SNR that brings vinyl playback into the amplifier's signal chain with the precision and musicality a good cartridge deserves. Whether you are spinning classic rock, jazz, or classical recordings, the A10MKII's phono stage ensures your records sound exactly as they should: warm, present, and alive.

Dedicated Headphone Amplifier

A 3.5mm headphone output on the front panel, driven by a dedicated headphone amplifier circuit, ensures that private listening sessions are as rewarding as those through the loudspeakers. This is not a passive tap from the speaker output — it is a circuit designed specifically for headphone loads, delivering the control and dynamic range that serious headphone listening requires.

Intuitive Controls — At the Panel and From the Seat

The A10MKII's front panel layout is a model of intuition — rotary Bass and Treble controls (±6dB at 100Hz/10kHz), Balance, and a motorised analogue volume control make hands-on adjustment a pleasure. The motorised volume control means that remote adjustments are reflected physically on the front panel, ensuring the displayed position always matches the actual level. The included IR remote control extends every key function to the listening seat.

Feature Cards

⚡ Rotel-Built Toroidal Transformer

Designed and manufactured in-house by Rotel, the massive toroidal power transformer delivers low noise, high efficiency, and the dynamic headroom that Class A/B power demands — a high-current foundation that separates the A10MKII from competitors who compromise on power supply quality.

🎵 Moving Magnet Phono Stage

1.5mV input sensitivity, 43kΩ impedance, 85dB SNR — a properly implemented MM phono stage that brings vinyl into the A10MKII's signal chain with the accuracy and musicality that a good moving magnet cartridge deserves.

🎧 Dedicated Headphone Amplifier

A front-panel 3.5mm output driven by a dedicated headphone amplifier circuit — not a passive speaker tap — for private listening sessions that are as musically rewarding as those through your loudspeakers.

🎛️ Motorised Volume & Tone Controls

Bass and Treble controls (±6dB @ 100Hz/10kHz), Balance, and a motorised analogue volume control that reflects remote adjustments physically on the front panel — with the included IR remote bringing everything to your fingertips from the listening seat.

Editorial Blockquote

"The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience." — Rotel

At-a-Glance Bullets

• 50W per channel (8Ω) / 60W per channel (4Ω) — Class A/B
• THD: < 0.03% — IMD: < 0.03%
• Damping factor: 120
• Rotel-built toroidal power transformer — high-current linear supply
• 3 × line-level RCA inputs — 120mV sensitivity, 45kΩ impedance
• Moving Magnet (MM) phono stage — 1.5mV sensitivity, 43kΩ impedance, 85dB SNR
• 3.5mm headphone output — dedicated amplifier circuit
• Bass control: ±6dB @ 100Hz — Treble control: ±6dB @ 10kHz
• Balance control
• Motorised analogue volume control
• IR remote control — included
• Frequency response (line): 10Hz–100kHz (–0.5dB, +0.05dB)
• Frequency response (phono): 20Hz–20kHz (–0.5dB, +0.3dB)
• SNR (line, max volume): 90dB — SNR (line, min volume): 98dB
• Power consumption: 150W — Standby: < 0.5W
• Dimensions (W × H × D): 430 × 73 × 347mm — Weight: 6.6kg

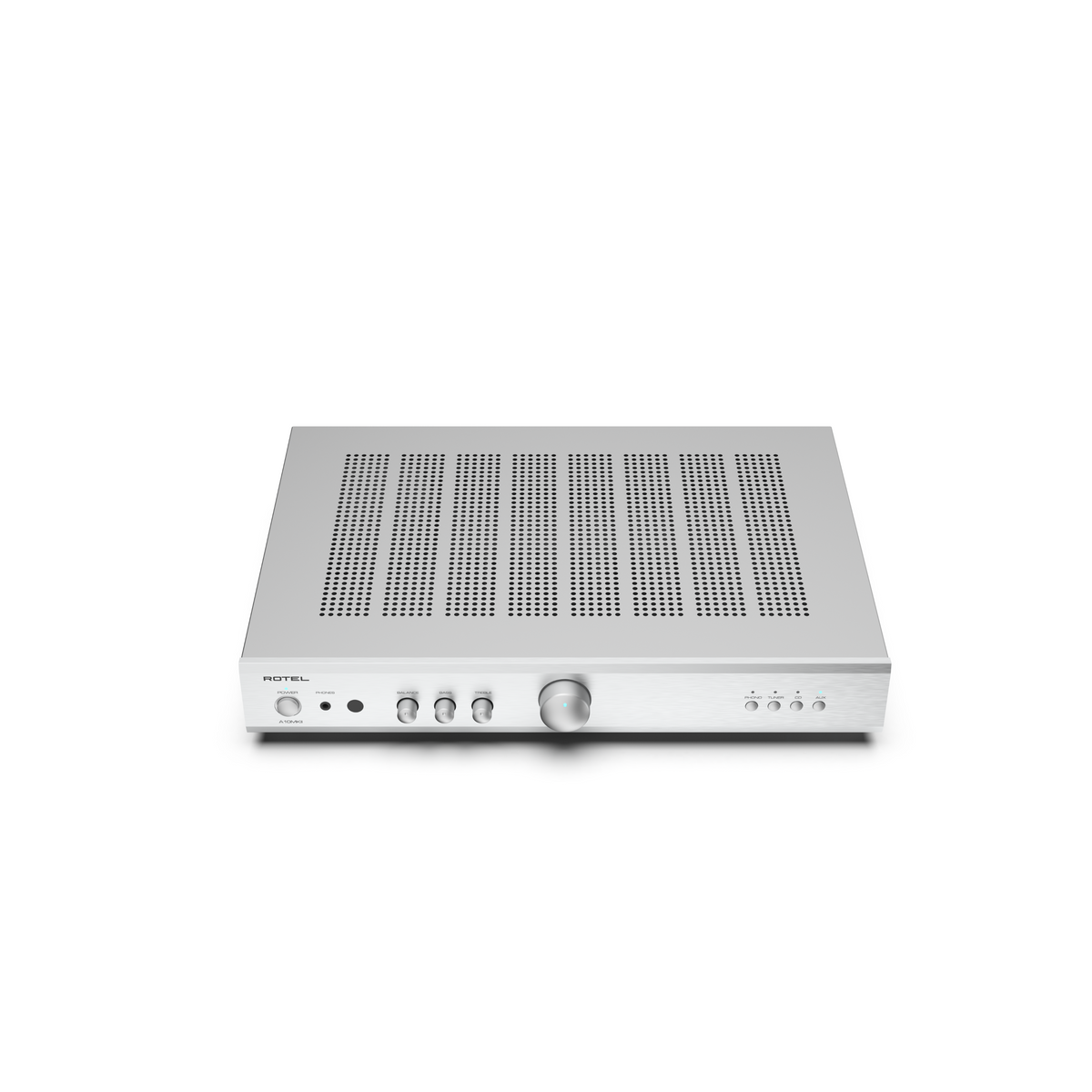

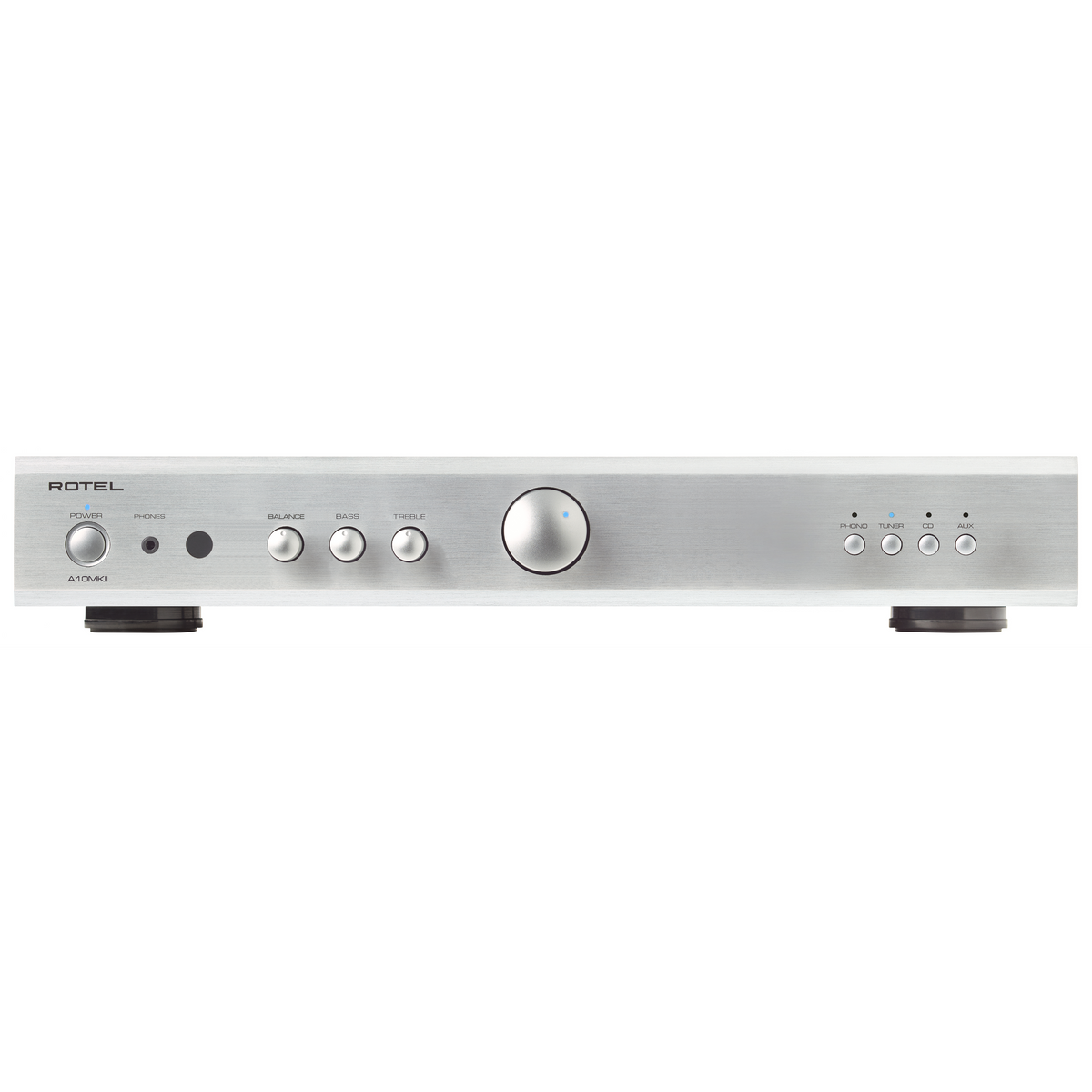

• Available in Black and Silver

Finish / Colour Options

• Black
• Silver

Specifications

Power

Performance

Inputs

Controls & Outputs

General

Closing Quote

"50 watts into 8 ohms. 60 watts into 4 ohms. A toroidal transformer built in-house. A phono stage that takes vinyl seriously. The Rotel A10MKII proves that great sound doesn't have to wait for a bigger budget."
