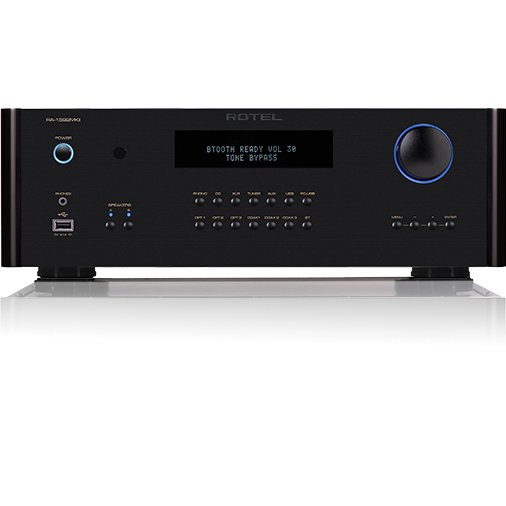

Rotel - RA-1592 mk 2 - Integrated Amplifier

Experience sonic perfection with the Rotel RA-1592MKII Integrated Amplifier

The RA-1592MKII Integrated Amplifier by Rotel is a supremely engineered audio masterpiece that delivers a sonic experience like no other. With 60 years of audio manufacturing expertise, Rotel has crafted an amplifier that combines tradition and technology to create an unmatched auditory experience.

Featuring a Class AB output of up to 200 Watts into 8 ohm speakers, this integrated amplifier supports a wide range of inputs including analog, digital, XLR, ACC, aptXTM Bluetooth, and PC-USB with MQA. It also includes a Moving Magnet Phono stage input, allowing seamless connectivity for turntables and a perfect blend between cutting-edge technology and the nostalgia-inducing sound of vinyl.

The RA-1592MKII is equipped with an audiophile-grade 32-bit/384kHz DAC and accurately tuned circuits, resulting in an unprecedented sound stage with precise positioning. This amplifier brings your favorite music to life, delivering stunning clarity and vibrant sound.

Not only does the RA-1592MKII reproduce sound with perfection, it goes beyond the standards of auditory excellence. Built with advanced technologies and meticulous attention to detail, this amplifier ensures an immersive acoustic experience that captures the true essence of your desired soundscapes.

Features:

1. 200 Watts Class AB Output: Experience unparalleled power and clarity with 200 Watts of output into 8-ohm speakers.

2. Support for Multiple Inputs: Enjoy your favorite music from any source with support for analog, digital, XLR, ACC, aptXTM Bluetooth, and PC-USB with MQA.

3. Moving Magnet Phono Stage Input: Seamless connectivity for turntables, preserving the nostalgia and depth of vinyl records.

4. Audiophile-Grade DAC: The 32-bit/384kHz DAC ensures precise note positioning and a concert hall-like sound stage.

5. Roon Tested Support: Enjoy a visually rich and immersive listening experience with Roon software.

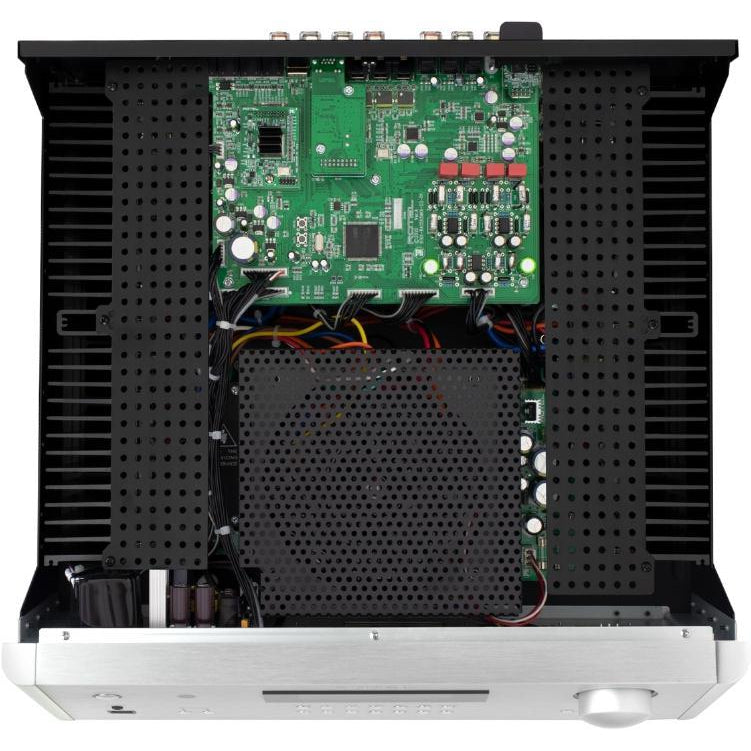

6. Advanced Circuit Design: Innovative circuit design and optimized audio signal paths deliver riveting performance.

7. Wireless Bluetooth capable: Includes aptXTM and AAC Bluetooth for convenient and high-quality wireless audio streaming.

Benefits:

1. Pristine Sound Quality: The RA-1592MKII's audiophile-grade DAC provides crystal clear and immersive sound.

2. Flexible Connectivity: Connect your favorite music sources with support for various inputs.

3. Elegant Design: The sleek and stylish design of the RA-1592MKII complements any home audio system.

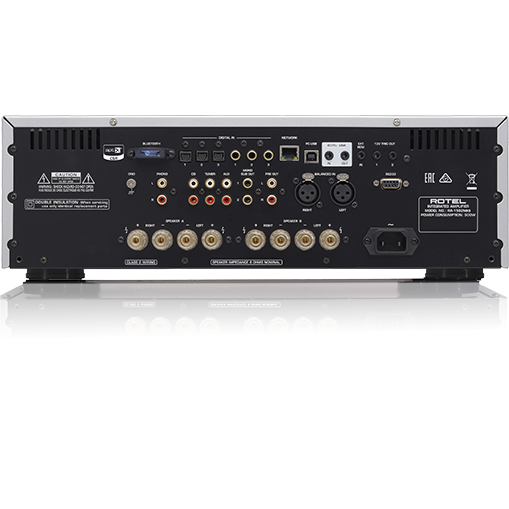

4. Easy Integration: Selectable A-B speaker outputs, RS232, Ethernet, and 12V triggers ensure seamless incorporation into existing audio setups.

5. Unprecedented Sound Stage: Precision-tuned circuits and a premium DAC guarantee an expansive and detailed sound stage.

6. Preserve and Enhance Vinyl Playback: The Moving Magnet Phono Stage input maintains the texture and depth of vinyl records.

7. Trusted Brand Name: With over 60 years of high fidelity audio production, Rotel is synonymous with top-tier quality and performance.

Specifications:

• Product Name: Rotel - RA-1592 mk 2 - Integrated Amplifier
• Dimensions (W × H × D): 431 × 144 × 425mm / 17" × 5.7" × 16"
• F\n
• Front Panel Height: 3U / 132.6mm / 5.25"
• Power Requirements: 230V, 50Hz
• Power Consumption: 500W
• Standby Power Consumption: <0.5W
• Net Weight: 17.63kg / 38.87lbs.
• BTU Rating: 1239 BTU/h
• Maximum Power Output: 350W/Channel (4Ω)
• Continuous Power Output: 200W/Channel (8Ω)
• Total Harmonic Distortion (THD): <0.008%
• Frequency Response: Line Level Inputs: 10Hz - 100kHz, ±0.5d, Digital Inputs: 10Hz - 90kHz, ±2dB, Phono Input: 20Hz - 20kHz, ±0.5dB
• S/N Ratio (IHF "A" Weighted): Line Level Inputs: 103dB, Digital Inputs: 102dB, Phono Input: 80dB
• Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%
• Damping Factor: 600
• Input Sensitivity: Line Level Inputs (RCA): 340mV, Line Level Inputs (XLR): 540mV, Digital Inputs: 0 dBfs, Phono Input (MM): 5.2mV
• Input Impedance: Line Level Inputs (RCA): 100kΩ, Line Level Inputs (XLR): 100kΩ, Digital Inputs: 75Ω, Phono Input (MM): 47kΩ
• Input Overload: Line Level Inputs (RCA): 3.5V, Line Level Inputs (XLR): 5.5V, Phono Input: 52mV
• Preout Level: 1.9V
• Output Impedance: 100Ω
• Coax/Optical Digital Input Signals: LPCM (Up to 24-bit/192kHz)
• PC-USB: USB Audio Class 1 (up to 24-bit/192kHz), USB Audio Class 2 (up to 32-bit/384kHz), with driver installation required, supports MQA and MQA Studio (up to 24-bit/384kHz), Roon Tested

In conclusion, the Rotel RA-1592MKII Integrated Amplifier is the pinnacle of audio excellence. It combines technology, innovation, tradition, and craftsmanship to create a harmonious and powerful sound experience. Whether you're a music enthusiast, casual listener, or vinyl lover, this amplifier provides unmatched clarity, warmth, and precision for every note and nuance. With its elegant design and flexible connectivity options, it seamlessly integrates into any home audio system. The RA-1592MKII is more than a sound reproduction device; it transforms every listening session into a concert-like experience. Trust Rotel's 60 years of expertise in high fidelity audio production and embrace the awe-inspiring sound quality of the RA-1592MKII Integrated Amplifier. Contact The Audio Tailor at 1300 308 711, sales@theaudiotailor.com.au, or visit their store in Brisbane to discover why they are Australia's #1 Hi-Fi Store. Remember, good sound starts with The Audio Tailor, and great sound starts with the Rotel RA-1592MKII Integrated Amplifier.
