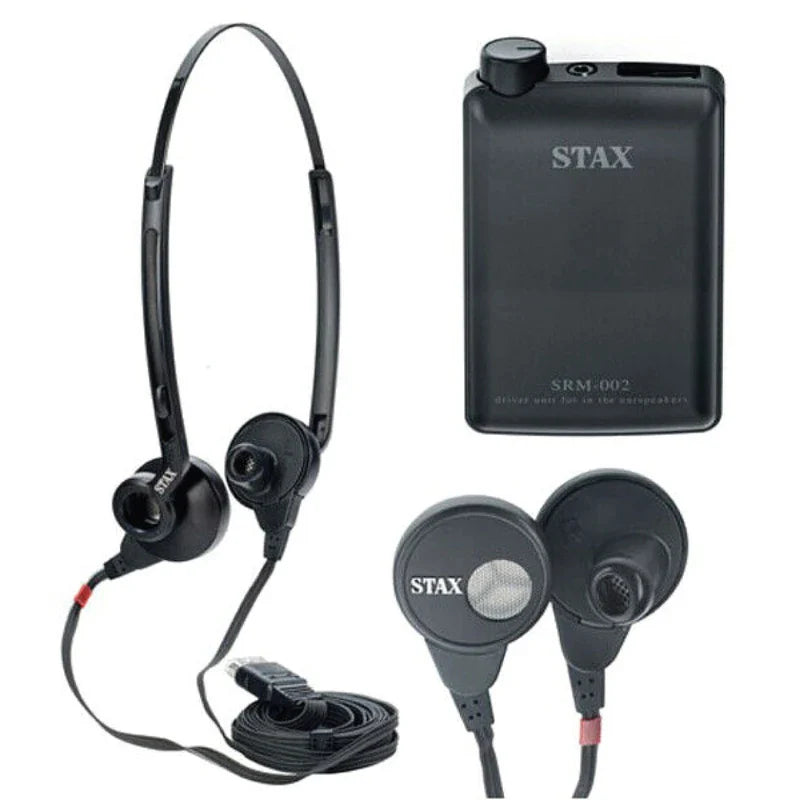

STAX - SRS-002 - Compact In-Ear System

Lighter Diaphragms of the Earphones, Electrostatic Sound

The STAX SRS-002 has 15% lighter diaphragms than the older, now discontinued S-001/MK2. These headphones result in further resolution, transparency and pure listening pleasure. Electrostatic designed have been pioneered by Stax and they are clearly at the top of the game. The electrostatic headphones operate on a an unconventional level unlike other headphones that feature dynamic and moving coil designs. In most headphones, the drivers are heavier, making it difficult to recreate detail in playback due to mass.

Improved Power Supply on the SRM-002 Amplifier

The newly designed driver unit SRM-002 featuring improved power supply has made it possible to get enough perfor- mance also when using a chargeable battery with lower voltage not to mention an alkaline dry cell. Furthermore, the unit can be switched over to ECO and normal modes to enjoy the difference in tone quality.

Open-Back Redesigned Earpiece. Improved Wearing Comfort with 3 Kinds of Earpads.

The redesigned ear canal type structure of the SR-002 enables you to enjoy excellent electrostatic sound quality without covering your ears. Three kinds of ear pads (ear piece) are also attached so that the SR-002 can offer better wearing comfort with the improved form of ear pads. Moreover, an exclusive head band (overhead arc) is provided to obtain more stable wearing feeling.

>SPECIFICATIONS

STAX SRM-002

AUDIO SPECIFICATIONS

• FREQUENCY RESPONSE: 20-20kHz (4dB)
• IMPEDANCE: 170k Ω (10kHz)
• SENSITIVITY: 110dB / 100V r.m.s. 1 kHz
• BIAS VOLTAGE: 550-580V DC

CONTROLS & CONNECTIVITY

• TYPE: Push-Pull electrostatic circular sound element, In-The-Earcanal type enclosure
• CAPACITANCE: 44pF (including cable)
• CABLE: Parallel 6-core, 1.5m full length

DESIGN & BUILD

• EAR PADS: Silicone earbuds (Small, Medium, or Large) Medium included
• WEIGHT: 11gm without cable / 28gm with cable

STAX SR-002

AUDIO SPECIFICATIONS

• FREQUENCY RESPONSE: 20 to 20kHz
• HIGH HARMONIC DISTORTION: Max 0.1% (1kHz at 100V r.m.s. )
• MAX. OUTPUT VOLTAGE: 230V r.m.s. (1kHz)
• GAIN: 54dB
• INPUT IMPEDANCE: 10KΩ

CONTROLS & CONNECTIVITY

• RATED INPUT LEVEL: 100mV / 50V Output
• POWER CONSUMPTION: 0.75W (alkaline battery) 1.2W (AC adapter)
• CONTINUOUS OPERATING TIME: 5hrs or more with Alkaline battery on ECO mode 4hrs or more with Alkaline battery on normal mode (*operating time may differ depending on volume level and battery type)
• AC ADAPTER: DC4.5V/300mA, Polarity EIAJ TYPE2 (optional)

DESIGN & BUILD

• DIMENSIONS: 5.2 (W) x 1.5 (H) x 5.2 (D) in
• WEIGHT: 3.6oz without battery
• BATTERY: Size AA battery x2 (Alkaline battery, Rechargable , Magnesium Dry Cell)
• IN THE BOX: Stax SRM-002, Stax SR-002, Three different silicone tips (S, M and L), A headband, A 3.5mm interconnect, Two AA batteries
