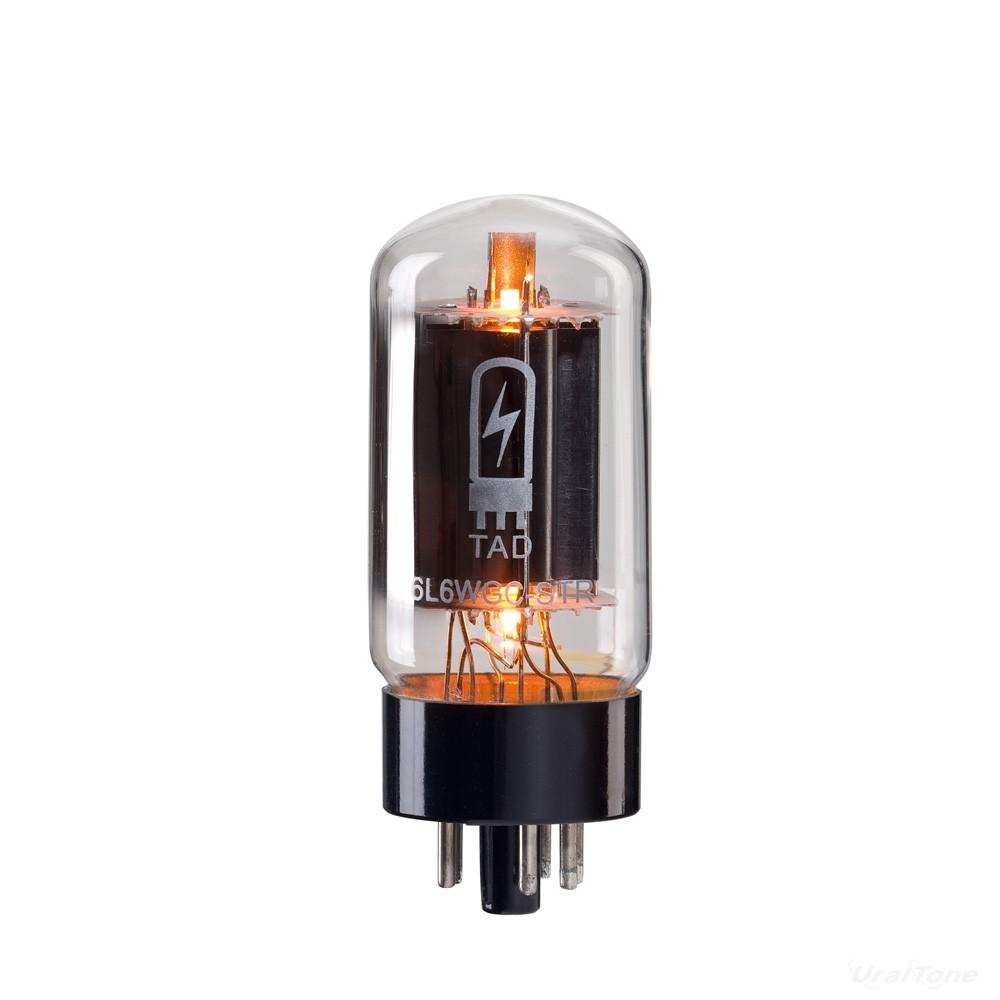

Tube Amp Doctor - 6L6WGC-STR Premium - Power Tubes

SKU: RT811

$79.00$69.00

You Save: $10.00

Each
Pair
Quad
Buy Now. Fast Delivery or Store Pickup
Trusted by 40,000+ Customers in Australia
We love helping our customers create amazing experiences
Hi Fi Reviews

Speak to a Tube Amp Doctor Expert In Store

Call 1300 308 711.

Get Brisbane Store Directions.

Trusted by 40,000+ Customers


Service you can trust

Official Australian Dealer


Official Australian Warranty

Great Prices & Deals


Found a better price? Call us.

5-Star Customer Service


Industry experts ready to help

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

GE-style black-plate, excellent tone and maximum lifetime

The perfect choice for vintage tweed and blackface amps such as the 1960 Bassman, Twin, Showman or Super Reverb. The complex midrange and sweet heights are a class of its own. The TAD 6L6WGC-STR is our recommendation for classic tone with warm cleans and rich, sweet mids when pushed. Great for fat jazz or blues tones.

The TAD 6L6WGC-STR is a remake of the small bottle GE6L6GC and has the same warm lower midrange and silky top end as the classic GE versions of the 1950s and 60s. Like the historic RCA 5881, this tube features exclusive blackplate anodes and a side getter. The TAD 6L6GC-STR and the TAD 6L6WGC-STR have our exclusive black-plate desings, gold grid wire, double getter construction, no-noise filaments and 1.2mm thick heavy duty glass. This tube is only 80mm high (without pins) and can replace 5881 or 6L6WGB tubes.



Q: When does a power tube become a Premium Selected power tube?

A: All power tubes labeled Premium Selected have passed the following tests:

  • Plate Current (PC) and Amplification (TC)
  • Low Noise Test
  • Microphonic Test
  • Sonic Tests
  • Shock Tests
  • Listening Tests
  • Shorts & Leakage Tests



Premium RT-Matching of Power Tubes

Our Premium Matching is an exact matching of power tubes with identical Plate Current (PC) and Transconductance (TC).

TAD Premium Selected tubes are guaranteed for a period of 6 months (according to terms of warranties) for the quality criteria mentioned above.

RohS Compliant



Specifications:

Electrical

Heater:

  • Voltage (AC or DC) - 5.8V(min), 6.3V(nom.), 6.8V(max)
  • Current - ca 0.9A

Cathode: oxide coated, unipotential

cathode-to-heater potential, max - 200V

Direct interelectrode capacitances, max*** -

  • Grid no.1 to cathode and grid no.3, and grid no.2 - base sleeve and heater <16pF
  • Plate to Cathode and grid no.3, grid no.2 - Base sleeve and heater <8pF / grid no.1 <1.1pF

Mechanical

  • Operating position - Any
  • Base - JEDEC #8ET, octal, 8-pin
  • Dimensions - 95mm (height),82mm (seated height), 38mm (diameter)
  • Cooling - Convection
  • Approximate net weight - 50g

AF Power Amplifier

Maximum Ratings

  • DC plate voltage - 550V
  • Grid no.2 DC (screen) voltage - 450V
  • Grid no.1 (control) voltage - -100V
  • DC Cathode current - 150mA
  • Plate dissipation - 30W
  • Grid no.2 DC (screen) dissipation - 5W
  • Bulb Temperature (surface hottest point) - 250 degrees celcius

Typical Operation

AF Power Amplifier, Class A1 (single tube)

  • Plate Voltage - 250V
  • Grid 2 screen voltage - 250V
  • Grid 1 control voltage* - -14V
  • Peak AF Grid 1 control voltage - 14V
  • Zero signal plate current - 100mA
  • Maximum signal plate current - 105mA
  • Zero signal grid 2 screen current (avg) - 15mA
  • Transconductance (nominal) - ca 11,000 mS
  • Load resistance - 2000 Ohms
  • Output power at 5% distortion - 10W
