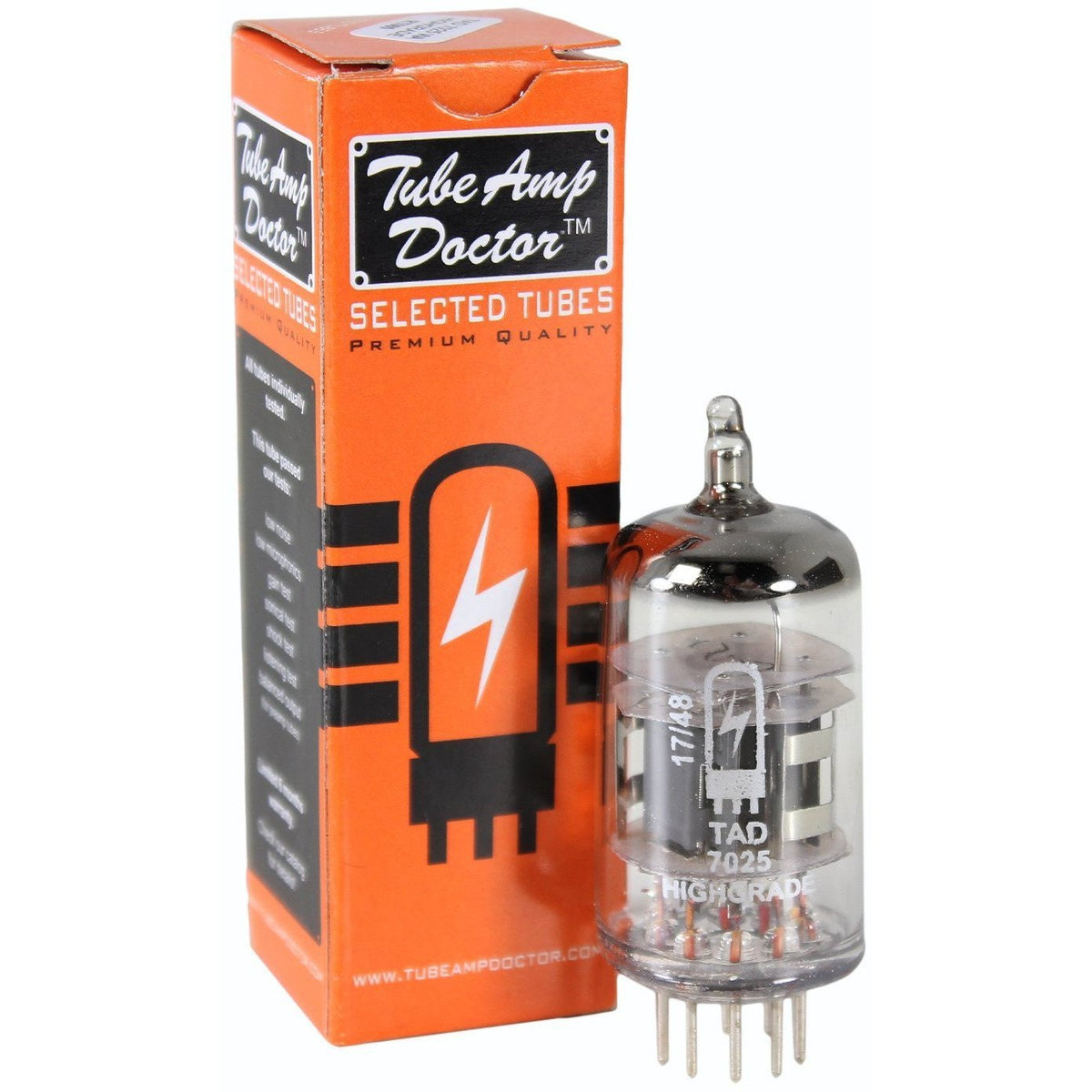

Tube Amp Doctor - 7025 Highgrade - Preamplifier Tube

SKU: RT010

$139.00$119.00

You Save: $20.00

Buy Now. Fast Delivery or Store Pickup
Trusted by 40,000+ Customers in Australia
We love helping our customers create amazing experiences
Hi Fi Reviews

Speak to a Tube Amp Doctor Expert In Store

Call 1300 308 711.

Get Brisbane Store Directions.

Trusted by 40,000+ Customers


Service you can trust

Official Australian Dealer


Official Australian Warranty

Great Prices & Deals


Found a better price? Call us.

5-Star Customer Service


Industry experts ready to help

PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Warm, clean tone with creamy overdrive

PREMIUM selected quality for the most demanding amp stages. This tube works greatly for warm clean tones and creamy overdrive. We recommend this tube for the 1st gain stage and as input tube. It upgrades 12AX7A and ECC83 tubes and replaces E83CC tubes.

The HIGHGRADE Selection is the tip-of-the-top quality at the lowest noise (microphony, hum, hiss) level. Tipically only 0,5-2% out of the whole production of this tube meet the HIGHGRADE requirements.

NOTE: due to extreme demanding TAD-Selection criteria, the availability of this tube is limited.In case this tube is currently not available, we recommend as replacement tube: RT080

The TAD 7025 Highgrade can replace any ECC83, E83CC, 12AX7, 12AX7A, 12AX7M, 12AX7WA/WB/WC/LPS/EH, 5751 or 7025.



Q: When does a preamp tube become a Premium Selected tube?

A: All preamp tubes labeled Premium Selected have passed the following tests:

  • Low Noise Test
  • Microphonic Test
  • Gain Test
  • Sonic Tests
  • Shock Tests
  • Listening Tests
  • Balanced Output Test



HIGHGRADE SELECTION - But only those tubes which pass these tests best are labeled Highgrades.

Matching and Selecting Options for Preamp Tubes

Matching in Pairs for preamp tubes means that two tubes show identical gain, hence, four characteristically identical systems. This matching method includes our Balance-Selection. We highly recommend this matching method for hi-fi systems.

TAD Premium Selected/Highgrade tubes are guaranteed for a period of 6 months (according to terms of warranties) for the quality criteria mentioned above.

RohS Compliant



Specifications:

Electrical

Heater

  • Voltage (AC or DC) - 12.6V +/- 1.0 (Series), 6.3 +/- 0.5 (Parallel)
  • Current - 0.15(Series), 0.3 (Parallel)

Heating - Indirect

Cathode-to-heater potential, max - 150V

Direct interelectrode capacitances, max***

  • Grid to plate - 1.5pF
  • Grid to cathode - 1.7pF
  • Grid to heater - 0.2pF
  • Plate to cathode - 0.3pF

Mechanical

  • Operating position - Any
  • Base - E9-1, small button 9-pin
  • Dimensions - 56mm(height), 49mm(seated height), 22.5mm(diameter)
  • Cooling - Conventional
  • Approximate net weight - 13g

AF Power Amplifier

Maximum Ratings

  • DC plate voltage - 330V
  • Positive DC grid voltage - 0V
  • Negative DC grid voltage - -55V
  • DC cathode current - 8mA
  • Plate dissipation - 1.2W
  • Bulb temperature (surface hottest point) - 160 degrees celcius
